File Corrupted

[foegra]

Hello,
Recently, i have started seeing message on office files:
File Corrupted.

I can open file then after 3rd 4th try only



[m0nkey_]

Is this a FreeNAS issue? As there is very little to go on. What is the error you're seeing? Anything in the FreeNAS console or logs? Is your pool healthy? Have you run a scrub lately?



[foegra]

Log files seems to be clear, scrub is done twice a week. Freenas is on ESXi



[kdragon75]

Freenas is on ESXi

That's probably your problem but will still have almost no information to go in. We need to know that hardware its running on, the version of FreeNAS, how the VM is configured, the output of zpool status -v, and the output of lspci from the FreeNAS shell.

If you do not provide all of those details, I will not respond. I don't meant to be rude but we need ALL of the information to help you.



[foegra]

Of course, i understand.
Here is the information:

zpool status -v:

Code:

  pool: freenas-boot
 state: ONLINE
  scan: scrub repaired 0 in 0 days 00:00:13 with 0 errors on Wed Nov 14 03:45:13 2018
config:

		NAME		STATE	 READ WRITE CKSUM
		freenas-boot  ONLINE	   0	 0	 0
		  da0p2	 ONLINE	   0	 0	 0

errors: No known data errors

  pool: shared-files
 state: ONLINE
  scan: scrub repaired 0 in 0 days 00:01:48 with 0 errors on Sun Nov 18 00:01:49 2018
config:

		NAME										  STATE	 READ WRITE CKSUM
		shared-files								  ONLINE	   0	 0	 0
		  gptid/269a4051-87df-11e7-abd1-000c297d9f77  ONLINE	   0	 0	 0

errors: No known data errors

lspci:

Code:

00:00.0 Host bridge: Intel Corporation 440BX/ZX/DX - 82443BX/ZX/DX Host bridge (rev 01)
00:01.0 PCI bridge: Intel Corporation 440BX/ZX/DX - 82443BX/ZX/DX AGP bridge (rev 01)
00:07.0 ISA bridge: Intel Corporation 82371AB/EB/MB PIIX4 ISA (rev 08)
00:07.1 IDE interface: Intel Corporation 82371AB/EB/MB PIIX4 IDE (rev 01)
00:07.3 Bridge: Intel Corporation 82371AB/EB/MB PIIX4 ACPI (rev 08)
00:07.7 System peripheral: VMware Virtual Machine Communication Interface (rev 10)
00:0f.0 VGA compatible controller: VMware SVGA II Adapter
00:10.0 SCSI storage controller: LSI Logic / Symbios Logic 53c1030 PCI-X Fusion-MPT Dual Ultra320 SCSI (rev 01)
00:11.0 PCI bridge: VMware PCI bridge (rev 02)
00:15.0 PCI bridge: VMware PCI Express Root Port (rev 01)
00:15.1 PCI bridge: VMware PCI Express Root Port (rev 01)
00:15.2 PCI bridge: VMware PCI Express Root Port (rev 01)
00:15.3 PCI bridge: VMware PCI Express Root Port (rev 01)
00:15.4 PCI bridge: VMware PCI Express Root Port (rev 01)
00:15.5 PCI bridge: VMware PCI Express Root Port (rev 01)
00:15.6 PCI bridge: VMware PCI Express Root Port (rev 01)
00:15.7 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.0 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.1 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.2 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.3 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.4 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.5 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.6 PCI bridge: VMware PCI Express Root Port (rev 01)
00:16.7 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.0 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.1 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.2 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.3 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.4 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.5 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.6 PCI bridge: VMware PCI Express Root Port (rev 01)
00:17.7 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.0 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.1 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.2 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.3 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.4 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.5 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.6 PCI bridge: VMware PCI Express Root Port (rev 01)
00:18.7 PCI bridge: VMware PCI Express Root Port (rev 01)
02:00.0 USB controller: VMware USB1.1 UHCI Controller
02:01.0 Ethernet controller: Intel Corporation 82545EM Gigabit Ethernet Controller (Copper) (rev 01)
02:02.0 USB controller: VMware USB2 EHCI Controller
02:04.0 SATA controller: VMware SATA AHCI controller



[m0nkey_]

OK, from what I can gather you are not correctly passing through your drives to the FreeNAS VM. I'm guessing you've created one large virtual disk or RAID array and given that to FreeNAS -- that is a giant no-no. ZFS has no ability to correctly checksum the data and is likely causing your data to become corrupted.



[foegra]

What is the solution then?



[Ericloewe]

That's a problem, but doesn't seem to be the problem here. There would be an indication of errors, even if they couldn't be corrected.
We need to know more about your setup, how you're sharing, what clients you have, ...



[foegra]

That's a problem, but doesn't seem to be the problem here. There would be an indication of errors, even if they couldn't be corrected.
We need to know more about your setup, how you're sharing, what clients you have, ...

It is a simple smb share with 18 clients
Do you want me to share my smb config?



[foegra]

OK, from what I can gather you are not correctly passing through your drives to the FreeNAS VM. I'm guessing you've created one large virtual disk or RAID array and given that to FreeNAS -- that is a giant no-no. ZFS has no ability to correctly checksum the data and is likely causing your data to become corrupted.

What Is the right way of connecting disks to Freenas?



[foegra]

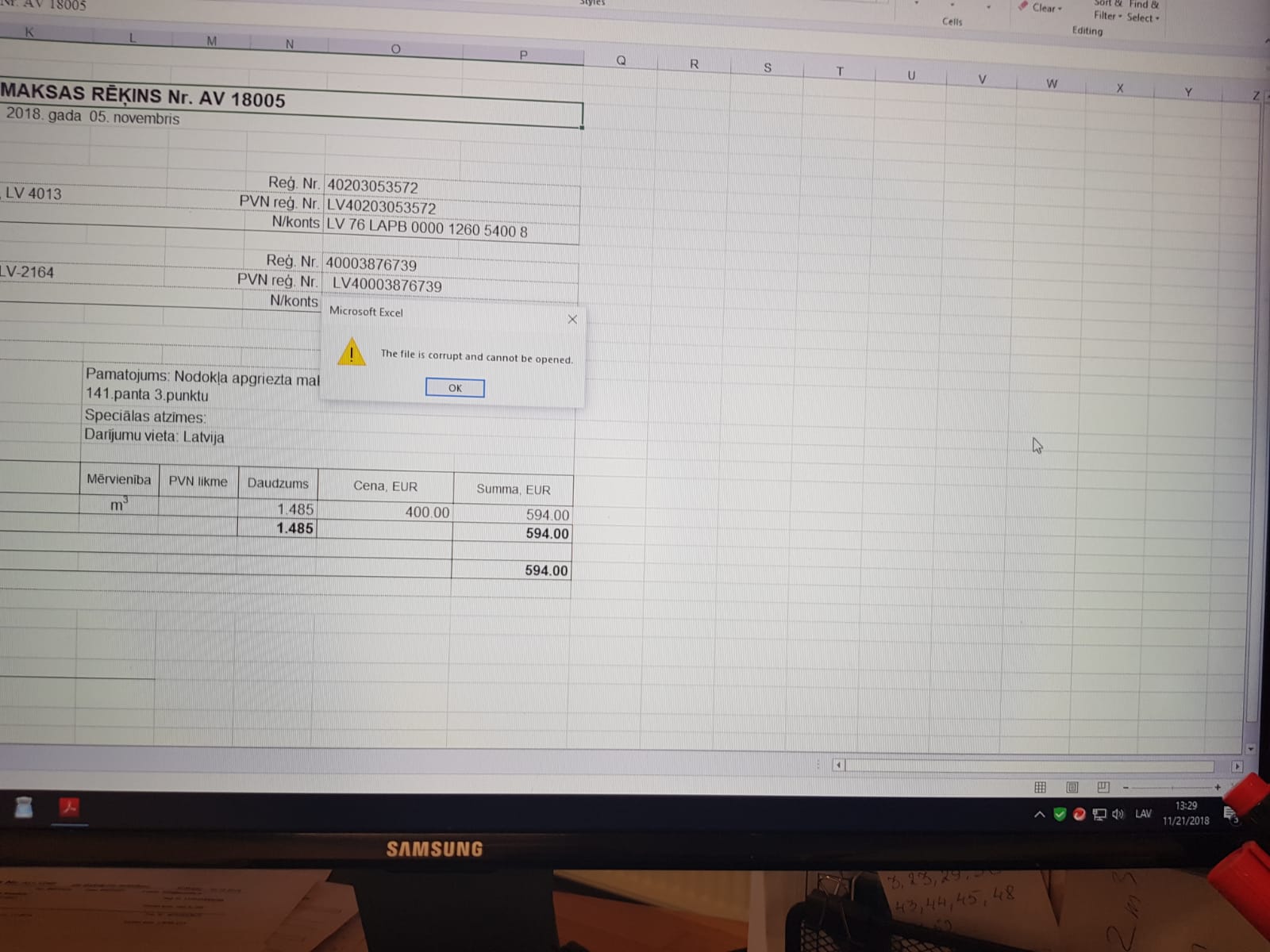

Here is link with problem I have
https://photos.app.goo.gl/ySCs6stLZh68DBdu5



[Ericloewe]

Please post images directly to the forum by copy/pasting them into your messages.

Do you have Mac clients?



[foegra]

No, only Windows!



[foegra]

Hello?



[garm]

You need to reconfigure your server and give ZFS direct access to your drives.

In regard to your excel workbooks, have you pinpointed at what time the file got corrupted? Do you have snapshots? Have you tried https://support.office.com/en-us/ar...workbook-153a45f4-6cab-44b1-93ca-801ddcd4ea53?



[foegra]

You need to reconfigure your server and give ZFS direct access to your drives.

In regard to your excel workbooks, have you pinpointed at what time the file got corrupted? Do you have snapshots? Have you tried https://support.office.com/en-us/ar...workbook-153a45f4-6cab-44b1-93ca-801ddcd4ea53?

Yes, I have snapshots.
Excel files are opening, but need to try 3-4 times, and then - it opens.



[kdragon75]

Backup your data and build FreeNAS properly. This will prevent corruption. Any existing corruption in the underlying RAID system is going to be permanent with the exception of this that can be restored from snapshots.

This may have nothing to do with excel but it should still be done.
