Failed to wipe disk nvd2: gpart: Operation not permitted

[Rabinovitch]

Welcome all!
This is my first experience with TrueNAS, and unfortunately it was an unpleasant experience.
My goal was to create a zpool with two SSDs for the cache. As usual in Ubuntu, I tried to preformat them with support for 4096 byte sectors.
The list of commands was as follows:

Code:

nvmecontrol devlist
geom disk list
smartctl -a /dev/nvme2ns1
gpart create -s gpt nvd2
gpart show
nvmecontrol format -f 2 nvme2ns1

The actions seem to have completed successfully, at least Namespace 1 Formatted LBA Size has become 4096. But when in the web interface I tried to create a zpool, TrueNAS was unable to include these SSDs pool.
What should I do about it? Nothing can be done in the console either.

I tried to do something similar on one of the drives (dd if=/dev/zero of=/dev/nvd2 bs=512), but now the error sounds like

root@truenas[~]# gpart create -s gpt /dev/nvd2
gpart: Input/output error

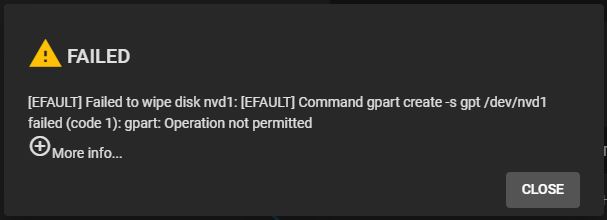

I quote the error message in the attached screenshot. The detailed error message is:

Error: Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/middlewared/job.py", line 367, in run
await self.future
File "/usr/local/lib/python3.8/site-packages/middlewared/job.py", line 403, in __run_body
rv = await self.method(*([self] + args))
File "/usr/local/lib/python3.8/site-packages/middlewared/schema.py", line 973, in nf
return await f(*args, **kwargs)
File "/usr/local/lib/python3.8/site-packages/middlewared/plugins/pool.py", line 666, in do_create
formatted_disks = await self.middleware.call('pool.format_disks', job, disks)
File "/usr/local/lib/python3.8/site-packages/middlewared/main.py", line 1238, in call
return await self._call(
File "/usr/local/lib/python3.8/site-packages/middlewared/main.py", line 1195, in _call
return await methodobj(*prepared_call.args)
File "/usr/local/lib/python3.8/site-packages/middlewared/plugins/pool_/format_disks.py", line 56, in format_disks
await asyncio_map(format_disk, disks.items(), limit=16)
File "/usr/local/lib/python3.8/site-packages/middlewared/utils/asyncio_.py", line 16, in asyncio_map
return await asyncio.gather(*futures)
File "/usr/local/lib/python3.8/site-packages/middlewared/utils/asyncio_.py", line 13, in func
return await real_func(arg)
File "/usr/local/lib/python3.8/site-packages/middlewared/plugins/pool_/format_disks.py", line 29, in format_disk
await self.middleware.call(
File "/usr/local/lib/python3.8/site-packages/middlewared/main.py", line 1238, in call
return await self._call(
File "/usr/local/lib/python3.8/site-packages/middlewared/main.py", line 1206, in _call
return await self.run_in_executor(prepared_call.executor, methodobj, *prepared_call.args)
File "/usr/local/lib/python3.8/site-packages/middlewared/main.py", line 1110, in run_in_executor
return await loop.run_in_executor(pool, functools.partial(method, *args, **kwargs))
File "/usr/local/lib/python3.8/site-packages/middlewared/utils/io_thread_pool_executor.py", line 25, in run
result = self.fn(*self.args, **self.kwargs)
File "/usr/local/lib/python3.8/site-packages/middlewared/plugins/disk_/format.py", line 25, in format
raise CallError(f'Failed to wipe disk {disk}: {job.error}')
middlewared.service_exception.CallError: [EFAULT] Failed to wipe disk nvd1: [EFAULT] Command gpart create -s gpt /dev/nvd2 failed (code 1):
gpart: Operation not permitted



[Rabinovitch]

Right now it looks like this:

root@lenstor1[~]# gpart create -s gpt /dev/nvd2
gpart: geom 'nvd2': File exists
root@lenstor1[~]# gpart create -s gpt /dev/nvd1
gpart: geom 'nvd1': File exists

And it looks that it can't be solved with any obvious measures...

root@lenstor1[~]# gpart destroy -F nvd2
gpart: Input/output error
root@lenstor1[~]# gpart destroy -F nvd1
gpart: Operation not permitted
root@lenstor1[~]# gpart destroy -F /dev/nvd1
gpart: Device not configured
root@lenstor1[~]# gpart destroy -F /dev/nvd2
gpart: Device not configured
root@lenstor1[~]# geom disk list

Geom name: nvd1
Providers:
1. Name: nvd1
Mediasize: 400088457216 (373G)
Sectorsize: 512
Mode: r0w0e0
descr: INTEL SSDPF21Q400GB
lunid: 01000000000000005cd2e4e760155351
ident: PHAL0445001Q400AGN
rotationrate: 0
fwsectors: 0
fwheads: 0

Geom name: nvd2
Providers:
1. Name: nvd2
Mediasize: 3200631791616 (2.9T)
Sectorsize: 512
Mode: r1w1e1
descr: SAMSUNG MZPLJ3T2HBJR-00007
lunid: 35354830522006730025384300000004
ident: S55HNC0R200673
rotationrate: 0
fwsectors: 0
fwheads: 0
