Enable IT mode at Dell Perc H310

[sekroots]

Hello team, how are you?


I hope everyone is good and healthy.

Can anyone share a working guide to flash ( update firmware ) to enable IT mode on a Dell PERC H310?


I followed some guides, but it´s freezing at MegaRec -readsbr 0 backup.sbr or MegaRec -writesbr 0 empty.bin

- https://www.sanderh.dev/flashing-your-Dell-Perc-to-IT-firmware/
- https://tylermade.net/2017/06/27/ho...mware-hba-for-freenas-unraid/#google_vignette
- https://everythingshouldbevirtual.com/dell-perc-h310-and-nexentastor/


Thanks in advance.



[Redcoat]

From our Resource section:

https://www.truenas.com/community/resources/cross-flashing-dell-h310-h710-mini-to-it-mode.166/



[sekroots]

Thanks @Redcoat .


Folks, I just opened PERC bios and set it to NON-RAID, booted into windows and I was able to see disks.

Now I am installing TrueNAS Core 13 to test it.



[sekroots]

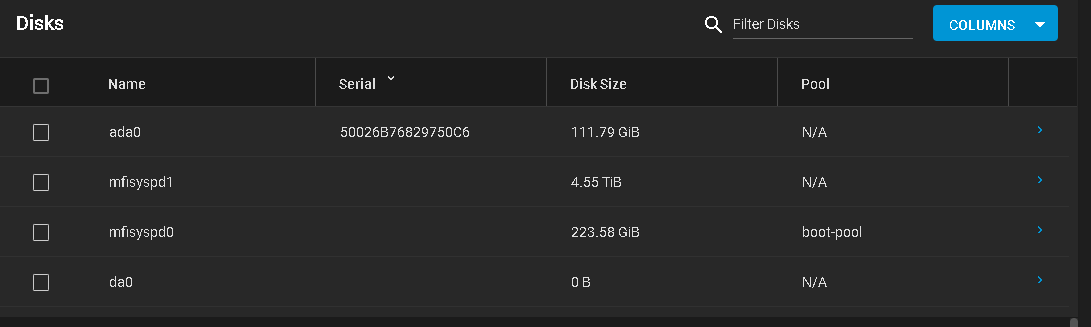

Here is my current dmesg:

Code:

Copyright (c) 1992-2021 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
    The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 13.1-RC6 n245364-74831eea544 TRUENAS amd64
FreeBSD clang version 13.0.0 (git@github.com:llvm/llvm-project.git llvmorg-13.0.0-0-gd7b669b3a303)
VT(efifb): resolution 640x480
CPU: Intel(R) Xeon(R) CPU           E5630  @ 2.53GHz (2527.14-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x206c2  Family=0x6  Model=0x2c  Stepping=2
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x29ee3ff<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,PCID,DCA,SSE4.1,SSE4.2,POPCNT,AESNI>
  AMD Features=0x2c100800<SYSCALL,NX,Page1GB,RDTSCP,LM>
  AMD Features2=0x1<LAHF>
  Structured Extended Features3=0x9c000000<IBPB,STIBP,L1DFL,SSBD>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
real memory  = 17179869184 (16384 MB)
avail memory = 16560758784 (15793 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <DELL   PE_SC3  >
FreeBSD/SMP: Multiprocessor System Detected: 16 CPUs
FreeBSD/SMP: 2 package(s) x 4 core(s) x 2 hardware threads
arc4random: WARNING: initial seeding bypassed the cryptographic random device because it was not yet seeded and the knob 'bypass_before_seeding' was enabled.
ioapic1: MADT APIC ID 1 != hw id 0
ioapic0 <Version 2.0> irqs 0-23
ioapic1 <Version 2.0> irqs 32-55
Launching APs: 1 12 8 13 5 14 10 9 7 2 11 4 6 3 15
random: entropy device external interface
kbd1 at kbdmux0
efirtc0: <EFI Realtime Clock>
efirtc0: registered as a time-of-day clock, resolution 1.000000s
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS>
padlock0: No ACE support.
acpi0: <DELL PE_SC3>
acpi0: Power Button (fixed)
apei0: <ACPI Platform Error Interface> on acpi0
ipmi0: <IPMI System Interface> port 0xca8,0xcac on acpi0
ipmi0: KCS mode found at io 0xca8 on acpi
cpu0: <ACPI CPU> on acpi0
atrtc0: <AT realtime clock> port 0x70-0x7f irq 8 on acpi0
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
attimer0: <AT timer> port 0x40-0x5f irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 350
Event timer "HPET1" frequency 14318180 Hz quality 340
Event timer "HPET2" frequency 14318180 Hz quality 340
Event timer "HPET3" frequency 14318180 Hz quality 340
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
bce0: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xd6000000-0xd7ffffff irq 36 at device 0.0 on pci1
miibus0: <MII bus> on bce0
brgphy0: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus0
brgphy0:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce0: Using defaults for TSO: 65518/35/2048
bce0: Ethernet address: 18:03:73:ed:92:c7
bce0: ASIC (0x57092003);
bce0: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
bce1: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xd8000000-0xd9ffffff irq 48 at device 0.1 on pci1
miibus1: <MII bus> on bce1
brgphy1: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus1
brgphy1:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce1: Using defaults for TSO: 65518/35/2048
bce1: Ethernet address: 18:03:73:ed:92:c9
bce1: ASIC (0x57092003);
bce1: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
pcib2: <ACPI PCI-PCI bridge> at device 3.0 on pci0
pci2: <ACPI PCI bus> on pcib2
bce2: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xda000000-0xdbffffff irq 32 at device 0.0 on pci2
miibus2: <MII bus> on bce2
brgphy2: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus2
brgphy2:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce2: Using defaults for TSO: 65518/35/2048
bce2: Ethernet address: 18:03:73:ed:92:cb
bce2: ASIC (0x57092003);
bce2: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
bce3: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xdc000000-0xddffffff irq 42 at device 0.1 on pci2
miibus3: <MII bus> on bce3
brgphy3: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus3
brgphy3:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce3: Using defaults for TSO: 65518/35/2048
bce3: Ethernet address: 18:03:73:ed:92:cd
bce3: ASIC (0x57092003);
bce3: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
pcib3: <ACPI PCI-PCI bridge> at device 7.0 on pci0
pci3: <ACPI PCI bus> on pcib3
pcib4: <ACPI PCI-PCI bridge> at device 9.0 on pci0
pci4: <ACPI PCI bus> on pcib4
mfi0: <Drake Skinny> port 0xfc00-0xfcff mem 0xdf1bc000-0xdf1bffff,0xdf1c0000-0xdf1fffff irq 40 at device 0.0 on pci4
mfi0: Using MSI
mfi0: Megaraid SAS driver Ver 4.23
mfi0: 17158 (707499313s/0x0020/info) - Shutdown command received from host
mfip0: <SCSI Passthrough Bus>mfi0: 17159 (boot + 3s/0x0020/info) - Firmware initialization started (PCI ID 0073/1000/1f78/1028)
mfi0: 17160 (boot + 3s/0x0020/info) - Firmware version 2.120.14-1504
mfi0: 17161 (boot + 5s/0x0020/info) - Package version 20.10.2-0002
mfi0: 17162 (boot + 5s/0x0020/info) - Board Revision A00
 on mfi0
mfi0: 17163 (boot + 3s/0x0020/info) - Firmware initialization started (PCI ID 0073/1000/1f78/1028)
mfi0: 17164 (boot + 3s/0x0020/info) - Firmware version 2.120.14-1504
mfi0: 17165 (boot + 5s/0x0020/info) - Package version 20.10.2-0002
mfi0: 17166 (boot + 5s/0x0020/info) - Board Revision A00
mfi0: 17167 (boot + 36s/0x0002/info) - Inserted: PD 04(e0xff/s4)
pci0: <base peripheral, interrupt controller> at device 20.0 (no driver attached)
pci0: <base peripheral, interrupt controller> at device 20.1 (no driver attached)
pci0: <base peripheral, interrupt controller> at device 20.2 (no driver attached)
uhci0: <Intel 82801I (ICH9) USB controller> port 0xec40-0xec5f irq 17 at device 26.0 on pci0
uhci0: LegSup = 0x2f00
usbus0 on uhci0
usbus0: 12Mbps Full Speed USB v1.0
uhci1: <Intel 82801I (ICH9) USB controller> port 0xec60-0xec7f irq 18 at device 26.1 on pci0
uhci1: LegSup = 0x2f00
usbus1 on uhci1
usbus1: 12Mbps Full Speed USB v1.0
ehci0: <Intel 82801I (ICH9) USB 2.0 controller> mem 0xdf0fe000-0xdf0fe3ff irq 19 at device 26.7 on pci0
usbus2: EHCI version 1.0
usbus2 on ehci0
usbus2: 480Mbps High Speed USB v2.0
pcib5: <ACPI PCI-PCI bridge> at device 28.0 on pci0
pci5: <ACPI PCI bus> on pcib5
uhci2: <Intel 82801I (ICH9) USB controller> port 0xec80-0xec9f irq 21 at device 29.0 on pci0
uhci2: LegSup = 0x2f00
usbus3 on uhci2
usbus3: 12Mbps Full Speed USB v1.0
uhci3: <Intel 82801I (ICH9) USB controller> port 0xeca0-0xecbf irq 20 at device 29.1 on pci0
uhci3: LegSup = 0x2f00
usbus4 on uhci3
usbus4: 12Mbps Full Speed USB v1.0
ehci1: <Intel 82801I (ICH9) USB 2.0 controller> mem 0xdf0ff000-0xdf0ff3ff irq 21 at device 29.7 on pci0
usbus5: EHCI version 1.0
usbus5 on ehci1
usbus5: 480Mbps High Speed USB v2.0
pcib6: <ACPI PCI-PCI bridge> at device 30.0 on pci0
pci6: <ACPI PCI bus> on pcib6
vgapci0: <VGA-compatible display> mem 0xd5800000-0xd5ffffff,0xde7fc000-0xde7fffff,0xde800000-0xdeffffff irq 19 at device 3.0 on pci6
vgapci0: Boot video device
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
atapci0: <Intel ICH9 SATA300 controller> port 0xec10-0xec17,0xec08-0xec0b,0xec18-0xec1f,0xec0c-0xec0f,0xec20-0xec2f,0xec30-0xec3f irq 23 at device 31.2 on pci0
ata2: <ATA channel> at channel 0 on atapci0
ata3: <ATA channel> at channel 1 on atapci0
uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
uart1: <16550 or compatible> port 0x2f8-0x2ff irq 3 on acpi0
ichwd0: <Intel ICH9 watchdog timer> on isa0
orm0: <ISA Option ROMs> at iomem 0xc0000-0xc7fff,0xc8000-0xc8fff,0xc9000-0xcbfff,0xd2800-0xd37ff,0xec000-0xeffff pnpid ORM0000 on isa0
atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
coretemp0: <CPU On-Die Thermal Sensors> on cpu0
est0: <Enhanced SpeedStep Frequency Control> on cpu0
Timecounter "TSC-low" frequency 1263501326 Hz quality 1000
Timecounters tick every 1.000 msec
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
ugen1.1: <Intel UHCI root HUB> at usbus1
ugen3.1: <Intel UHCI root HUB> at usbus3
mfisyspd0 on mfi0
mfisyspd0: 228944MB (468877312 sectors) SYSPD volume (deviceid: 4)
mfisyspd0:  SYSPD volume attached
uhub0 on usbus1
uhub0: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus1
ugen2.1: <Intel EHCI root HUB> at usbus2
ugen0.1: <Intel UHCI root HUB> at usbus0
uhub1 on usbus3
uhub1: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus3
ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
ipmi0: IPMI device rev. 0, firmware rev. 2.85, version 2.0, device support mask 0xdf
ipmi0: Number of channels 5
ipmi0: Attached watchdog
ipmi0: Establishing power cycle handler
mfisyspd1 on mfi0
mfisyspd1: 4769307MB (9767541168 sectors) SYSPD volume (deviceid: 5)
mfisyspd1:  SYSPD volume attached
mfi0: 17168 (boot + 36s/0x0002/info) - Inserted: PD 04(e0xff/s4) Info: enclPd=ffff, scsiType=0, portMap=01, sasAddr=44332211030ugen4.1: <Intel UHCI root HUB> at usbus4
uhub200000,0000000000000000
mfi0: 17169 (boot + 36s/0x0002/WARN) - PD 04(e0xff/s4) is not a certified drive
mfi0: 17170 (boot + 36s/0x0002/info) - Inserted: PD 05(e0xff/s5)
 on usbus2
ugen5.1: <Intel EHCI root HUB> at usbus5
Trying to mount root from zfs:boot-pool/ROOT/default []...
mfi0: 17171 (boot + 36s/0x0002/info) - Inserted: PD 05(e0xff/s5) Info: enclPd=ffff, scsiType=0, portMap=00, sasAddr=4433221102000000,0000000000000000
mfi0: 17172 (boot + 36s/0x0002/WARN) - PD 05(e0xff/s5) is not a certified drive
mfi0: 17173 (707499364s/0x0020/info) - Time established as 06/02/22 15:36:04; (36 seconds since power on)
uhub3mfi0: 17174 (707499495s/0x0020/info) - Host driver is loaded and operational
 on usbus4
uhub3: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus4
uhub4 on usbus0
uhub4: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus0
uhub5 on usbus5
uhub5: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus5
uhub2: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus2
uhub0: 2 ports with 2 removable, self powered
uhub1: 2 ports with 2 removable, self powered
uhub3: 2 ports with 2 removable, self powered
uhub4: 2 ports with 2 removable, self powered
ada0 at ata2 bus 0 scbus1 target 0 lun 0
ada0: <KINGSTON SA400S37120G 03090004> ACS-3 ATA SATA 3.x device
ada0: Serial Number 50026B76829750C6
ada0: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 512bytes)
ada0: 114473MB (234441648 512 byte sectors)
pass0 at mfi0 bus 0 scbus0 target 4 lun 0
pass0: <ATA WDC WDS240G2G0A- 0000> Fixed Uninstalled SPC-3 SCSI device
pass0: Serial Number 182353804962
pass0: 150.000MB/s transfers
pass0: Command Queueing enabled
pass1 at mfi0 bus 0 scbus0 target 5 lun 0
pass1: <ATA ST5000LM000-2AN1 0001> Fixed Uninstalled SPC-3 SCSI device
pass1: Serial Number WCJ1RJQK
pass1: 150.000MB/s transfers
pass1: Command Queueing enabled
Root mount waiting for: usbus2 usbus5
uhub5: 4 ports with 4 removable, self powered
uhub2: 4 ports with 4 removable, self powered
Root mount waiting for: usbus2 usbus5
ugen2.2: <vendor 0x0424 product 0x2514> at usbus2
uhub6 on uhub2
uhub6: <vendor 0x0424 product 0x2514, class 9/0, rev 2.00/0.00, addr 2> on usbus2
uhub6: MTT enabled
uhub6: 3 ports with 3 removable, self powered
Root mount waiting for: usbus2 usbus5
ugen3.2: <Avocent USB Composite Device-0> at usbus3
ukbd0 on uhub1
ukbd0: <Keyboard> on usbus3
kbd2 at ukbd0
ums0 on uhub1
ums0: <Mouse> on usbus3
ums0: 3 buttons and [Z] coordinates ID=0
ugen2.3: <SEM USB Keyboard> at usbus2
ukbd1 on uhub6
ukbd1: <SEM USB Keyboard, class 0/0, rev 1.10/1.10, addr 3> on usbus2
kbd3 at ukbd1
uhid0 on uhub6
uhid0: <SEM USB Keyboard, class 0/0, rev 1.10/1.10, addr 3> on usbus2
usb_msc_auto_quirk: UQ_MSC_NO_GETMAXLUN set for USB mass storage device Avocent USB Composite Device-1 (0x0624:0x0249)
usb_msc_auto_quirk: UQ_MSC_NO_TEST_UNIT_READY set for USB mass storage device Avocent USB Composite Device-1 (0x0624:0x0249)
usb_msc_auto_quirk: UQ_MSC_NO_SYNC_CACHE set for USB mass storage device Avocent USB Composite Device-1 (0x0624:0x0249)
Root mount waiting for: usbus5
ugen5.2: <Avocent USB Composite Device-1> at usbus5
umass0 on uhub5
umass0: <SCSI Transparent Interface 0> on usbus5
umass0:  SCSI over Bulk-Only; quirks = 0x4101
umass0:3:0: Attached to scbus3
umass1 on uhub5
umass1: <SCSI Transparent Interface 1> on usbus5
umass1:  SCSI over Bulk-Only; quirks = 0x4101
umass1:4:1: Attached to scbus4
cd0 at umass-sim1 bus 1 scbus4 target 0 lun 0
cd0: <iDRAC Virtual CD 0323> Removable CD-ROM SCSI device
cd0: 40.000MB/s transfers
cd0: Attempt to query device size failed: NOT READY, Medium not present
cd0: quirks=0x10<10_BYTE_ONLY>
da0 at umass-sim0 bus 0 scbus3 target 0 lun 0
da0: <iDRAC LCDRIVE 0323> Removable Direct Access SCSI device
da0: 40.000MB/s transfers
da0: Attempt to query device size failed: NOT READY, Medium not present
da0: quirks=0x2<NO_6_BYTE>
da0: Write Protected
random: unblocking device.
mfi0: IOCTL 0x40704d07 not handled
lo0: link state changed to UP
GEOM_ELI: Device mfisyspd0p3.eli created.
GEOM_ELI: Encryption: AES-XTS 128
GEOM_ELI:     Crypto: accelerated software
CPU: Intel(R) Xeon(R) CPU           E5630  @ 2.53GHz (2527.00-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x206c2  Family=0x6  Model=0x2c  Stepping=2
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x29ee3ff<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,PCID,DCA,SSE4.1,SSE4.2,POPCNT,AESNI>
  AMD Features=0x2c100800<SYSCALL,NX,Page1GB,RDTSCP,LM>
  AMD Features2=0x1<LAHF>
  Structured Extended Features3=0x9c000000<IBPB,STIBP,L1DFL,SSBD>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
hwpmc: SOFT/16/64/0x67<INT,USR,SYS,REA,WRI> TSC/1/64/0x20<REA> IAP/4/48/0x3ff<INT,USR,SYS,EDG,THR,REA,WRI,INV,QUA,PRC> IAF/3/48/0x67<INT,USR,SYS,REA,WRI> UCP/8/48/0x3f8<EDG,THR,REA,WRI,INV,QUA,PRC> UCF/1/48/0x60<REA,WRI>
bce0: Gigabit link up!
bce0: link state changed to UP
bce0: Gigabit link up!
bce0: Gigabit link up!
Security policy loaded: MAC/ntpd (mac_ntpd)



[sekroots]

It is using mfi driver.

mfi(4)

www.freebsd.org



[Patrick M. Hausen]

Don't use the controller this way. You must flash it with a special IT mode firmware. Merely enabling "NON-RAID" won't work.
And please enclose this long dmesg output in "CODE" tags like so:

Code:

This
is
code

Thanks!



[sekroots]

From our Resource section:

https://www.truenas.com/community/resources/cross-flashing-dell-h310-h710-mini-to-it-mode.166/

I am finishig this process and I will update here soon. Thanks @All!



[sekroots]

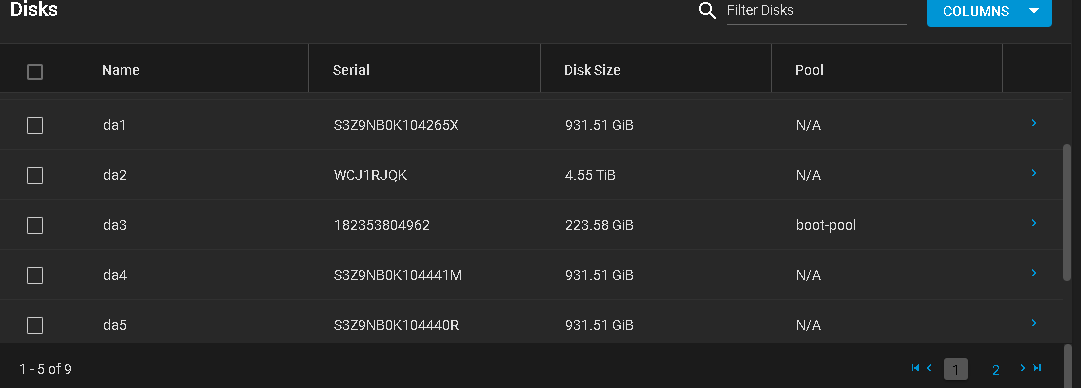

I guess I got it.

dmesg:

Code:

Copyright (c) 1992-2021 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
    The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 13.1-RC6 n245364-74831eea544 TRUENAS amd64
FreeBSD clang version 13.0.0 (git@github.com:llvm/llvm-project.git llvmorg-13.0.0-0-gd7b669b3a303)
VT(efifb): resolution 640x480
CPU: Intel(R) Xeon(R) CPU           E5630  @ 2.53GHz (2527.13-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x206c2  Family=0x6  Model=0x2c  Stepping=2
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x29ee3ff<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,PCID,DCA,SSE4.1,SSE4.2,POPCNT,AESNI>
  AMD Features=0x2c100800<SYSCALL,NX,Page1GB,RDTSCP,LM>
  AMD Features2=0x1<LAHF>
  Structured Extended Features3=0x9c000000<IBPB,STIBP,L1DFL,SSBD>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
real memory  = 17179869184 (16384 MB)
avail memory = 16594280448 (15825 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <DELL   PE_SC3  >
FreeBSD/SMP: Multiprocessor System Detected: 16 CPUs
FreeBSD/SMP: 2 package(s) x 4 core(s) x 2 hardware threads
random: unblocking device.
ioapic1: MADT APIC ID 1 != hw id 0
ioapic0 <Version 2.0> irqs 0-23
ioapic1 <Version 2.0> irqs 32-55
Launching APs: 1 13 6 9 14 11 5 7 4 3 2 12 15 8 10
random: entropy device external interface
kbd1 at kbdmux0
efirtc0: <EFI Realtime Clock>
efirtc0: registered as a time-of-day clock, resolution 1.000000s
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS>
padlock0: No ACE support.
acpi0: <DELL PE_SC3>
acpi0: Power Button (fixed)
apei0: <ACPI Platform Error Interface> on acpi0
ipmi0: <IPMI System Interface> port 0xca8,0xcac on acpi0
ipmi0: KCS mode found at io 0xca8 on acpi
cpu0: <ACPI CPU> on acpi0
atrtc0: <AT realtime clock> port 0x70-0x7f irq 8 on acpi0
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
attimer0: <AT timer> port 0x40-0x5f irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 350
Event timer "HPET1" frequency 14318180 Hz quality 340
Event timer "HPET2" frequency 14318180 Hz quality 340
Event timer "HPET3" frequency 14318180 Hz quality 340
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
bce0: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xd6000000-0xd7ffffff irq 36 at device 0.0 on pci1
miibus0: <MII bus> on bce0
brgphy0: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus0
brgphy0:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce0: Using defaults for TSO: 65518/35/2048
bce0: Ethernet address: 18:03:73:ed:92:c7
bce0: ASIC (0x57092003);
bce0: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
bce1: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xd8000000-0xd9ffffff irq 48 at device 0.1 on pci1
miibus1: <MII bus> on bce1
brgphy1: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus1
brgphy1:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce1: Using defaults for TSO: 65518/35/2048
bce1: Ethernet address: 18:03:73:ed:92:c9
bce1: ASIC (0x57092003);
bce1: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
pcib2: <ACPI PCI-PCI bridge> at device 3.0 on pci0
pci2: <ACPI PCI bus> on pcib2
bce2: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xda000000-0xdbffffff irq 32 at device 0.0 on pci2
miibus2: <MII bus> on bce2
brgphy2: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus2
brgphy2:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce2: Using defaults for TSO: 65518/35/2048
bce2: Ethernet address: 18:03:73:ed:92:cb
bce2: ASIC (0x57092003);
bce2: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
bce3: <QLogic NetXtreme II BCM5709 1000Base-T (C0)> mem 0xdc000000-0xddffffff irq 42 at device 0.1 on pci2
miibus3: <MII bus> on bce3
brgphy3: <BCM5709 10/100/1000baseT PHY> PHY 1 on miibus3
brgphy3:  10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto, auto-flow
bce3: Using defaults for TSO: 65518/35/2048
bce3: Ethernet address: 18:03:73:ed:92:cd
bce3: ASIC (0x57092003);
bce3: link state changed to DOWN
Rev (C0); Bus (PCIe x4, 2.5Gbps); B/C (7.10.0); Bufs (RX:2;TX:2;PG:8); Flags (SPLT|MSI|MFW); MFW (NCSI 2.0.13)
Coal (RX:6,6,18,18; TX:20,20,80,80)
pcib3: <ACPI PCI-PCI bridge> at device 7.0 on pci0
pci3: <ACPI PCI bus> on pcib3
pcib4: <ACPI PCI-PCI bridge> at device 9.0 on pci0
pci4: <ACPI PCI bus> on pcib4
mps0: <Avago Technologies (LSI) SAS2008> port 0xfc00-0xfcff mem 0xdf1bc000-0xdf1bffff,0xdf1c0000-0xdf1fffff irq 40 at device 0.0 on pci4
mps0: Firmware: 20.00.07.00, Driver: 21.02.00.00-fbsd
mps0: IOCCapabilities: 1285c<ScsiTaskFull,DiagTrace,SnapBuf,EEDP,TransRetry,EventReplay,HostDisc>
pci0: <base peripheral, interrupt controller> at device 20.0 (no driver attached)
pci0: <base peripheral, interrupt controller> at device 20.1 (no driver attached)
pci0: <base peripheral, interrupt controller> at device 20.2 (no driver attached)
uhci0: <Intel 82801I (ICH9) USB controller> port 0xec40-0xec5f irq 17 at device 26.0 on pci0
uhci0: LegSup = 0x2f00
usbus0 on uhci0
usbus0: 12Mbps Full Speed USB v1.0
uhci1: <Intel 82801I (ICH9) USB controller> port 0xec60-0xec7f irq 18 at device 26.1 on pci0
uhci1: LegSup = 0x2f00
usbus1 on uhci1
usbus1: 12Mbps Full Speed USB v1.0
ehci0: <Intel 82801I (ICH9) USB 2.0 controller> mem 0xdf0fe000-0xdf0fe3ff irq 19 at device 26.7 on pci0
usbus2: EHCI version 1.0
usbus2 on ehci0
usbus2: 480Mbps High Speed USB v2.0
pcib5: <ACPI PCI-PCI bridge> at device 28.0 on pci0
pci5: <ACPI PCI bus> on pcib5
uhci2: <Intel 82801I (ICH9) USB controller> port 0xec80-0xec9f irq 21 at device 29.0 on pci0
uhci2: LegSup = 0x2f00
usbus3 on uhci2
usbus3: 12Mbps Full Speed USB v1.0
uhci3: <Intel 82801I (ICH9) USB controller> port 0xeca0-0xecbf irq 20 at device 29.1 on pci0
uhci3: LegSup = 0x2f00
usbus4 on uhci3
usbus4: 12Mbps Full Speed USB v1.0
ehci1: <Intel 82801I (ICH9) USB 2.0 controller> mem 0xdf0ff000-0xdf0ff3ff irq 21 at device 29.7 on pci0
usbus5: EHCI version 1.0
usbus5 on ehci1
usbus5: 480Mbps High Speed USB v2.0
pcib6: <ACPI PCI-PCI bridge> at device 30.0 on pci0
pci6: <ACPI PCI bus> on pcib6
vgapci0: <VGA-compatible display> mem 0xd5800000-0xd5ffffff,0xde7fc000-0xde7fffff,0xde800000-0xdeffffff irq 19 at device 3.0 on pci6
vgapci0: Boot video device
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
atapci0: <Intel ICH9 SATA300 controller> port 0xec10-0xec17,0xec08-0xec0b,0xec18-0xec1f,0xec0c-0xec0f,0xec20-0xec2f,0xec30-0xec3f irq 23 at device 31.2 on pci0
ata2: <ATA channel> at channel 0 on atapci0
ata3: <ATA channel> at channel 1 on atapci0
uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
uart1: <16550 or compatible> port 0x2f8-0x2ff irq 3 on acpi0
ichwd0: <Intel ICH9 watchdog timer> on isa0
orm0: <ISA Option ROMs> at iomem 0xc0000-0xc7fff,0xc8000-0xc8fff,0xc9000-0xcbfff,0xd2000-0xd2fff,0xec000-0xeffff pnpid ORM0000 on isa0
atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
coretemp0: <CPU On-Die Thermal Sensors> on cpu0
est0: <Enhanced SpeedStep Frequency Control> on cpu0
Timecounter "TSC-low" frequency 1263498602 Hz quality 1000
Timecounters tick every 1.000 msec
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
ugen0.1: <Intel UHCI root HUB> at usbus0
ugen2.1: <Intel EHCI root HUB> at usbus2
ugen1.1: <Intel UHCI root HUB> at usbus1
ugen3.1: <Intel UHCI root HUB> at usbus3
ugen4.1: <Intel UHCI root HUB> at usbus4
ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
ipmi0: IPMI device rev. 0, firmware rev. 2.85, version 2.0, device support mask 0xdf
ipmi0: Number of channels 5
ipmi0: Attached watchdog
ipmi0: Establishing power cycle handler
uhub0 on usbus0
uhub0: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus0
ugen5.1: <Intel EHCI root HUB> at usbus5
uhub1 on usbus4
uhub1: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus4
uhub2 on usbus1
uhub2: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus1
uhub3 on usbus5
uhub3: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus5
uhub4 on usbus2
uhub4: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus2
uhub5 on usbus3
uhub5: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus3
Trying to mount root from zfs:boot-pool/ROOT/default []...
uhub0: 2 ports with 2 removable, self powered
uhub1: 2 ports with 2 removable, self powered
uhub2: 2 ports with 2 removable, self powered
uhub5: 2 ports with 2 removable, self powered
Root mount waiting for: CAM usbus2 usbus5
uhub3: 4 ports with 4 removable, self powered
uhub4: 4 ports with 4 removable, self powered
Root mount waiting for: CAM usbus2 usbus5
ugen2.2: <vendor 0x0424 product 0x2514> at usbus2
uhub6 on uhub4
uhub6: <vendor 0x0424 product 0x2514, class 9/0, rev 2.00/0.00, addr 2> on usbus2
uhub6: MTT enabled
ugen0.2: <PixArt Microsoft USB Optical Mouse> at usbus0
ums0 on uhub0
ums0: <PixArt Microsoft USB Optical Mouse, class 0/0, rev 1.10/1.00, addr 2> on usbus0
ums0: 3 buttons and [XYZ] coordinates ID=0
ugen3.2: <Avocent USB Composite Device-0> at usbus3
ukbd0 on uhub5
ukbd0: <Keyboard> on usbus3
kbd2 at ukbd0
ums1 on uhub5
ums1: <Mouse> on usbus3
uhub6: 3 ports with 3 removable, self powered
ums1: 3 buttons and [Z] coordinates ID=0
Root mount waiting for: CAM usbus2 usbus5
ugen2.3: <SEM USB Keyboard> at usbus2
ukbd1 on uhub6
ukbd1: <SEM USB Keyboard, class 0/0, rev 1.10/1.10, addr 3> on usbus2
kbd3 at ukbd1
uhid0 on uhub6
uhid0: <SEM USB Keyboard, class 0/0, rev 1.10/1.10, addr 3> on usbus2
usb_msc_auto_quirk: UQ_MSC_NO_GETMAXLUN set for USB mass storage device Avocent USB Composite Device-1 (0x0624:0x0249)
usb_msc_auto_quirk: UQ_MSC_NO_TEST_UNIT_READY set for USB mass storage device Avocent USB Composite Device-1 (0x0624:0x0249)
usb_msc_auto_quirk: UQ_MSC_NO_SYNC_CACHE set for USB mass storage device Avocent USB Composite Device-1 (0x0624:0x0249)
Root mount waiting for: CAM usbus2 usbus5
ugen5.2: <Avocent USB Composite Device-1> at usbus5
umass0 on uhub3
umass0: <SCSI Transparent Interface 0> on usbus5
umass0:  SCSI over Bulk-Only; quirks = 0x4101
umass0:3:0: Attached to scbus3
umass1 on uhub3
umass1: <SCSI Transparent Interface 1> on usbus5
umass1:  SCSI over Bulk-Only; quirks = 0x4101
umass1:4:1: Attached to scbus4
usb_msc_auto_quirk: UQ_MSC_NO_GETMAXLUN set for USB mass storage device SanDisk Cruzer Blade (0x0781:0x5567)
usb_msc_auto_quirk: UQ_MSC_NO_PREVENT_ALLOW set for USB mass storage device SanDisk Cruzer Blade (0x0781:0x5567)
usb_msc_auto_quirk: UQ_MSC_NO_SYNC_CACHE set for USB mass storage device SanDisk Cruzer Blade (0x0781:0x5567)
ugen2.4: <SanDisk Cruzer Blade> at usbus2
umass2 on uhub6
umass2: <SanDisk Cruzer Blade, class 0/0, rev 2.00/1.00, addr 4> on usbus2
umass2:  SCSI over Bulk-Only; quirks = 0xc100
umass2:5:2: Attached to scbus5
Root mount waiting for: CAM
Root mount waiting for: CAM
ada0 at ata2 bus 0 scbus1 target 0 lun 0
ada0: <KINGSTON SA400S37120G 03090004> ACS-3 ATA SATA 3.x device
ada0: Serial Number 50026B76829750C6
ada0: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 512bytes)
ada0: 114473MB (234441648 512 byte sectors)
da0 at mps0 bus 0 scbus0 target 2 lun 0
da0: <ATA Samsung SSD 860 2B6Q> Fixed Direct Access SPC-4 SCSI device
da0: Serial Number S3Z8NB0KC88772L
da0: 600.000MB/s transfers
da0: Command Queueing enabled
da0: 953869MB (1953525168 512 byte sectors)
da1 at mps0 bus 0 scbus0 target 3 lun 0
da1: <ATA Samsung SSD 860 1B6Q> Fixed Direct Access SPC-4 SCSI device
da1: Serial Number S3Z9NB0K104265X
da1: 600.000MB/s transfers
da1: Command Queueing enabled
da1: 953869MB (1953525168 512 byte sectors)
da4 at mps0 bus 0 scbus0 target 6 lun 0
da4: <ATA Samsung SSD 860 1B6Q> Fixed Direct Access SPC-4 SCSI device
da4: Serial Number S3Z9NB0K104441M
da4: 600.000MB/s transfers
da4: Command Queueing enabled
da4: 953869MB (1953525168 512 byte sectors)
da5 at mps0 bus 0 scbus0 target 7 lun 0
da5: <ATA Samsung SSD 860 1B6Q> Fixed Direct Access SPC-4 SCSI device
da5: Serial Number S3Z9NB0K104440R
da5: 600.000MB/s transfers
da5: Command Queueing enabled
da5: 953869MB (1953525168 512 byte sectors)
da3 at mps0 bus 0 scbus0 target 5 lun 0
da3: <ATA WDC WDS240G2G0A- 0000> Fixed Direct Access SPC-4 SCSI device
da3: Serial Number 182353804962
da3: 600.000MB/s transfers
da3: Command Queueing enabled
da3: 228944MB (468877312 512 byte sectors)
da7 at umass-sim2 bus 2 scbus5 target 0 lun 0
da7: <SanDisk Cruzer Blade 1.00> Removable Direct Access SPC-4 SCSI device
da7: Serial Number 03047120100520184640
da7: 40.000MB/s transfers
da7: 14955MB (30629376 512 byte sectors)
da7: quirks=0x2<NO_6_BYTE>
cd0 at umass-sim1 bus 1 scbus4 target 0 lun 0
cd0: <iDRAC Virtual CD 0323> Removable CD-ROM SCSI device
cd0: 40.000MB/s transfers
cd0: Attempt to query device size failed: NOT READY, Medium not present
cd0: quirks=0x10<10_BYTE_ONLY>
da6 at umass-sim0 bus 0 scbus3 target 0 lun 0
da6: <iDRAC LCDRIVE 0323> Removable Direct Access SCSI device
da6: 40.000MB/s transfers
da6: Attempt to query device size failed: NOT READY, Medium not present
da6: quirks=0x2<NO_6_BYTE>
da6: Write Protected
da2 at mps0 bus 0 scbus0 target 4 lun 0
da2: <ATA ST5000LM000-2AN1 0001> Fixed Direct Access SPC-4 SCSI device
da2: Serial Number WCJ1RJQK
da2: 600.000MB/s transfers
da2: Command Queueing enabled
da2: 4769307MB (9767541168 512 byte sectors)
GEOM: da5: corrupt or invalid GPT detected.
GEOM: da5: GPT rejected -- may not be recoverable.
lo0: link state changed to UP
GEOM_ELI: Device da3p3.eli created.
GEOM_ELI: Encryption: AES-XTS 128
GEOM_ELI:     Crypto: accelerated software
CPU: Intel(R) Xeon(R) CPU           E5630  @ 2.53GHz (2527.00-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x206c2  Family=0x6  Model=0x2c  Stepping=2
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x29ee3ff<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,SMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,PCID,DCA,SSE4.1,SSE4.2,POPCNT,AESNI>
  AMD Features=0x2c100800<SYSCALL,NX,Page1GB,RDTSCP,LM>
  AMD Features2=0x1<LAHF>
  Structured Extended Features3=0x9c000000<IBPB,STIBP,L1DFL,SSBD>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
hwpmc: SOFT/16/64/0x67<INT,USR,SYS,REA,WRI> TSC/1/64/0x20<REA> IAP/4/48/0x3ff<INT,USR,SYS,EDG,THR,REA,WRI,INV,QUA,PRC> IAF/3/48/0x67<INT,USR,SYS,REA,WRI> UCP/8/48/0x3f8<EDG,THR,REA,WRI,INV,QUA,PRC> UCF/1/48/0x60<REA,WRI>
bce0: Gigabit link up!
bce0: link state changed to UP
bce0: Gigabit link up!
bce0: Gigabit link up!
Security policy loaded: MAC/ntpd (mac_ntpd)

My current disks:



[sekroots]

Hello. I would like to share this results.

Code:

root@truenas[/mnt/ikigai/teste]# fio --filename=test --direct=1 --rw=randrw  --randrepeat=0 --rwmixread=100 --iodepth=128 --numjobs=16 --runtime=60 --group_reporting --name=4ktest --ioengine=psync --size=4G --bs=4k >> io_results2.txt
root@truenas[/mnt/ikigai/teste]# cat io_results2.txt
4ktest: (g=0): rw=randrw, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=psync, iodepth=128
...
fio-3.28
Starting 16 processes

4ktest: (groupid=0, jobs=16): err= 0: pid=6031: Thu Jun  2 22:29:35 2022
  read: IOPS=44.5k, BW=174MiB/s (182MB/s)(10.2GiB/60002msec)
    clat (usec): min=6, max=94802, avg=352.71, stdev=359.35
     lat (usec): min=6, max=94802, avg=353.16, stdev=359.36
    clat percentiles (usec):
     |  1.00th=[   20],  5.00th=[   28], 10.00th=[  253], 20.00th=[  343],
     | 30.00th=[  355], 40.00th=[  363], 50.00th=[  367], 60.00th=[  371],
     | 70.00th=[  379], 80.00th=[  383], 90.00th=[  396], 95.00th=[  404],
     | 99.00th=[  570], 99.50th=[  644], 99.90th=[ 4686], 99.95th=[ 5276],
     | 99.99th=[ 7701]
   bw (  KiB/s): min=147045, max=191315, per=100.00%, avg=178142.75, stdev=379.24, samples=1904
   iops        : min=36759, max=47825, avg=44530.55, stdev=94.82, samples=1904
  lat (usec)   : 10=0.01%, 20=1.36%, 50=5.89%, 100=0.05%, 250=2.44%
  lat (usec)   : 500=88.88%, 750=1.10%, 1000=0.02%
  lat (msec)   : 2=0.02%, 4=0.05%, 10=0.18%, 20=0.01%, 50=0.01%
  lat (msec)   : 100=0.01%
  cpu          : usr=2.42%, sys=94.08%, ctx=39806, majf=0, minf=0
  IO depths    : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
     submit    : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     complete  : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
     issued rwts: total=2669622,0,0,0 short=0,0,0,0 dropped=0,0,0,0
     latency   : target=0, window=0, percentile=100.00%, depth=128

Run status group 0 (all jobs):
   READ: bw=174MiB/s (182MB/s), 174MiB/s-174MiB/s (182MB/s-182MB/s), io=10.2GiB (10.9GB), run=60002-60002msec
root@truenas[/mnt/ikigai/teste]#


root@truenas[/mnt/ikigai/teste]# dd if=/dev/zero of=./testfile bs=4M count=10000 >> dd_write.txt
10000+0 records in
10000+0 records out
41943040000 bytes transferred in 19.219199 secs (2182351040 bytes/sec)
root@truenas[/mnt/ikigai/teste]# dd of=/dev/zero if=./testfile bs=4M count=10000 >> dd_read.txt
10000+0 records in
10000+0 records out
41943040000 bytes transferred in 7.924501 secs (5292830176 bytes/sec)
root@truenas[/mnt/ikigai/teste]#

root@truenas[/installs]# zpool status
  pool: boot-pool
 state: ONLINE
config:

        NAME        STATE     READ WRITE CKSUM
        boot-pool   ONLINE       0     0     0
          da3p2     ONLINE       0     0     0

errors: No known data errors

  pool: ikigai
 state: ONLINE
config:

        NAME                                          STATE     READ WRITE CKSUM
        ikigai                                        ONLINE       0     0     0
          gptid/448a590d-e2c8-11ec-9d6d-180373ed92c7  ONLINE       0     0     0

errors: No known data errors

 root@truenas[/installs]#



[firesyde424]

Thanks @Redcoat .


Folks, I just opened PERC bios and set it to NON-RAID, booted into windows and I was able to see disks.

Now I am installing TrueNAS Core 13 to test it.

From experience, this doesn't work right. You might be able to run it, but you will likely run into hot swap issues. Far better to just flash it to the LSI firmware.



[sekroots]

From experience, this doesn't work right. You might be able to run it, but you will likely run into hot swap issues. Far better to just flash it to the LSI firmware.

Hello @firesyde424 ,

I just flashed it and it is working like a charm but we intend to provide HA storage using 2 TrueNAS nodes running at Dell PowerEdge R610 ( with PERC H310 IT mode enabled) but we are still researching for a good solution. We also installed TrueNAS Scale at VMs to see it working.



[Patrick M. Hausen]

but we intend to provide HA storage

HA is available with TrueNAS Enterprise.



[sekroots]

HA is available with TrueNAS Enterprise.

Yes, I contacted iXsystems but they want to sell me their hardware to use TrueNAS Enterprise, but it´s too expensive for my company as 1 dollar worth 4,86 Reais (Brazil).

Does anyone know if we can buy TrueNAS Enterprise Licence to use with my own hardware?



[Patrick M. Hausen]

Enterprise is not a license. It's specifically built hardware, so you get HA. Won't work with anything but their systems.
