disks are missing

coffeemachine · Oct 15, 2023

hi community,

I could use your help, my virtualized TrueNAS (Core 13.0 U5.3) can't find its data pool anymore.
The basic system is IPFire 2.27-C180, virtualized with qemu and virsh.
After a reboot via the webinterface of TrueNAS the very long waiting process aroused my interest.
The output of dmesg can be seen here:

Code:

root@coffeenas[~]# dmesg
Copyright (c) 1992-2021 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 13.1-RELEASE-p7 n245428-4dfb91682c1 TRUENAS amd64
FreeBSD clang version 13.0.0 (git@github.com:llvm/llvm-project.git llvmorg-13.0.0-0-gd7b669b3a303)
VT(vga): text 80x25
CPU: Intel Xeon E3-12xx v2 (Ivy Bridge) (1497.58-MHz K8-class CPU)
Origin="GenuineIntel"  Id=0x306a9  Family=0x6  Model=0x3a  Stepping=9
Features=0xf83fbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,MMX,FXSR,SSE,SSE2,SS>
Features2=0xcff82223<SSE3,PCLMULQDQ,VMX,SSSE3,CX16,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,TSCDLT,AESNI,XSAVE,OSXSAVE,RDRAND,HV>
AMD Features=0x2c100800<SYSCALL,NX,Page1GB,RDTSCP,LM>
AMD Features2=0x101<LAHF,Prefetch>
Structured Extended Features=0x20944283<FSGSBASE,TSCADJ,SMEP,ERMS,MPX,RDSEED,SMAP,CLFLUSHOPT,SHA>
Structured Extended Features2=0x4<UMIP>
Structured Extended Features3=0x20000000<ARCH_CAP>
XSAVE Features=0xf<XSAVEOPT,XSAVEC,XINUSE,XSAVES>
IA32_ARCH_CAPS=0x68<SKIP_L1DFL_VME,MDS_NO>
VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID,VID,PostIntr
Hypervisor: Origin = "KVMKVMKVM"
real memory  = 8589934592 (8192 MB)
avail memory = 8259444736 (7876 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <BOCHS  BXPC    >
FreeBSD/SMP: Multiprocessor System Detected: 4 CPUs
FreeBSD/SMP: 4 package(s) x 1 core(s)
random: registering fast source Intel Secure Key RNG
random: fast provider: "Intel Secure Key RNG"
random: unblocking device.
ioapic0 <Version 1.1> irqs 0-23
Launching APs: 1 3 2
random: entropy device external interface
kbd1 at kbdmux0
vtvga0: <VT VGA driver>
kvmclock0: <KVM paravirtual clock>
Timecounter "kvmclock" frequency 1000000000 Hz quality 975
kvmclock0: registered as a time-of-day clock, resolution 0.000001s
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS,SHA1,SHA256>
padlock0: No ACE support.
acpi0: <BOCHS BXPC>
acpi0: Power Button (fixed)
cpu0: <ACPI CPU> on acpi0
atrtc0: <AT realtime clock> port 0x70-0x77 irq 8 on acpi0
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x608-0x60b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pcib0: could not evaluate _ADR - AE_NOT_FOUND
pci0: <ACPI PCI bus> on pcib0
isab0: <PCI-ISA bridge> at device 1.0 on pci0
isa0: <ISA bus> on isab0
atapci0: <Intel PIIX3 WDMA2 controller> port 0x1f0-0x1f7,0x3f6,0x170-0x177,0x376,0xc1c0-0xc1cf at device 1.1 on pci0
ata0: <ATA channel> at channel 0 on atapci0
ata1: <ATA channel> at channel 1 on atapci0
pci0: <bridge> at device 1.3 (no driver attached)
vgapci0: <VGA-compatible display> port 0xc140-0xc15f mem 0xf4000000-0xf7ffffff,0xf8000000-0xfbffffff,0xfc058000-0xfc059fff irq 10 at device 2.0 on pci0
vgapci0: Boot video device
virtio_pci0: <VirtIO PCI (legacy) Network adapter> port 0xc160-0xc17f mem 0xfc05a000-0xfc05afff,0xfebec000-0xfebeffff irq 11 at device 3.0 on pci0
vtnet0: <VirtIO Networking Adapter> on virtio_pci0
vtnet0: Ethernet address: 52:54:00:3d:6a:01
pci0: <multimedia, HDA> at device 4.0 (no driver attached)
xhci0: <XHCI (generic) USB 3.0 controller> mem 0xfc054000-0xfc057fff irq 10 at device 5.0 on pci0
xhci0: 32 bytes context size, 64-bit DMA
usbus0 on xhci0
usbus0: 5.0Gbps Super Speed USB v3.0
ahci0: <Intel ICH9 AHCI SATA controller> port 0xc180-0xc19f mem 0xfc05b000-0xfc05bfff irq 10 at device 6.0 on pci0
ahci0: AHCI v1.00 with 6 1.5Gbps ports, Port Multiplier not supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
ahcich2: <AHCI channel> at channel 2 on ahci0
ahcich3: <AHCI channel> at channel 3 on ahci0
ahcich4: <AHCI channel> at channel 4 on ahci0
ahcich5: <AHCI channel> at channel 5 on ahci0
virtio_pci1: <VirtIO PCI (legacy) Console adapter> port 0xc100-0xc13f mem 0xfc05c000-0xfc05cfff,0xfebf0000-0xfebf3fff irq 11 at device 7.0 on pci0
virtio_pci2: <VirtIO PCI (legacy) Block adapter> port 0xc000-0xc07f mem 0xfc05d000-0xfc05dfff,0xfebf4000-0xfebf7fff irq 11 at device 8.0 on pci0
vtblk0: <VirtIO Block Adapter> on virtio_pci2
vtblk0: 32768MB (67108864 512 byte sectors)
virtio_pci3: <VirtIO PCI (legacy) Balloon adapter> port 0xc1a0-0xc1bf mem 0xfebf8000-0xfebfbfff irq 10 at device 9.0 on pci0
vtballoon0: <VirtIO Balloon Adapter> on virtio_pci3
virtio_pci4: <VirtIO PCI (legacy) Block adapter> port 0xc080-0xc0ff mem 0xfc05e000-0xfc05efff,0xfebfc000-0xfebfffff irq 10 at device 10.0 on pci0
vtblk1: <VirtIO Block Adapter> on virtio_pci4
vtblk1: 65536MB (134217728 512 byte sectors)
acpi_syscontainer0: <System Container> on acpi0
acpi_syscontainer1: <System Container> port 0xaf00-0xaf0b on acpi0
acpi_syscontainer2: <System Container> port 0xafe0-0xafe3 on acpi0
acpi_syscontainer3: <System Container> port 0xae00-0xae17 on acpi0
uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
atkbdc0: <Keyboard controller (i8042)> port 0x60,0x64 irq 1 on acpi0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
psm0: <PS/2 Mouse> irq 12 on atkbdc0
psm0: [GIANT-LOCKED]
WARNING: Device "psm" is Giant locked and may be deleted before FreeBSD 14.0.
psm0: model IntelliMouse Explorer, device ID 4
orm0: <ISA Option ROM> at iomem 0xe8000-0xeffff pnpid ORM0000 on isa0
attimer0: <AT timer> at port 0x40 on isa0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
Timecounters tick every 10.000 msec
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
Trying to mount root from zfs:boot-pool/ROOT/13.0-U5.3 []...
ugen0.1: <(0x1b36) XHCI root HUB> at usbus0
uhub0 on usbus0
uhub0: <(0x1b36) XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus0
Root mount waiting for: CAM usbus0
uhub0: 30 ports with 30 removable, self powered
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
ahcich1: Poll timeout on slot 1 port 0
ahcich1: is 00000000 cs 00000002 ss 00000000 rs 00000002 tfd 130 serr 00000000 cmd 0000c017
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
ahcich2: Poll timeout on slot 1 port 0
ahcich2: is 00000000 cs 00000002 ss 00000000 rs 00000002 tfd 130 serr 00000000 cmd 0000c017
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
ahcich3: Poll timeout on slot 1 port 0
ahcich3: is 00000000 cs 00000002 ss 00000000 rs 00000002 tfd 130 serr 00000000 cmd 0000c017
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
ahcich4: Poll timeout on slot 1 port 0
ahcich4: is 00000000 cs 00000002 ss 00000000 rs 00000002 tfd 170 serr 00000000 cmd 0000c017
(aprobe0:ahcich1:0:0:0): SOFT_RESET. ACB: 00 00 00 00 00 00 00 00 00 00 00 00
(aprobe0:ahcich1:0:0:0): CAM status: Command timeout
(aprobe0:ahcich1:0:0:0): Error 5, Retries exhausted
(aprobe1:ahcich2:0:0:0): SOFT_RESET. ACB: 00 00 00 00 00 00 00 00 00 00 00 00
(aprobe1:ahcich2:0:0:0): CAM status: Command timeout
(aprobe1:ahcich2:0:0:0): Error 5, Retries exhausted
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
ahcich2: Poll timeout on slot 2 port 0
ahcich2: is 00000000 cs 00000004 ss 00000000 rs 00000004 tfd 130 serr 00000000 cmd 0000c017
(aprobe2:ahcich3:0:0:0): SOFT_RESET. ACB: 00 00 00 00 00 00 00 00 00 00 00 00
(aprobe2:ahcich3:0:0:0): CAM status: Command timeout
(aprobe2:ahcich3:0:0:0): Error 5, Retries exhausted
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
ahcich3: Poll timeout on slot 2 port 0
ahcich3: is 00000000 cs 00000004 ss 00000000 rs 00000004 tfd 130 serr 00000000 cmd 0000c017
(aprobe3:ahcich4:0:0:0): SOFT_RESET. ACB: 00 00 00 00 00 00 00 00 00 00 00 00
(aprobe3:ahcich4:0:0:0): CAM status: Command timeout
(aprobe3:ahcich4:0:0:0): Error 5, Retries exhausted
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
Root mount waiting for: CAM
ahcich4: Poll timeout on slot 2 port 0
ahcich4: is 00000000 cs 00000004 ss 00000000 rs 00000004 tfd 170 serr 00000000 cmd 0000c017
(aprobe1:ahcich2:0:0:0): SOFT_RESET. ACB: 00 00 00 00 00 00 00 00 00 00 00 00
(aprobe1:ahcich2:0:0:0): CAM status: Command timeout
(aprobe1:ahcich2:0:0:0): Error 5, Retries exhausted
(aprobe2:ahcich3:0:0:0): SOFT_RESET. ACB: 00 00 00 00 00 00 00 00 00 00 00 00
(aprobe2:ahcich3:0:0:0): CAM status: Command timeout
(aprobe2:ahcich3:0:0:0): Error 5, Retries exhausted
(aprobe3:ahcich4:0:0:0): SOFT_RESET. ACB: 00 00 00 00 00 00 00 00 00 00 00 00
(aprobe3:ahcich4:0:0:0): CAM status: Command timeout
(aprobe3:ahcich4:0:0:0): Error 5, Retries exhausted
intsmb0: <Intel PIIX4 SMBUS Interface> irq 9 at device 1.3 on pci0
intsmb0: intr IRQ 9 enabled revision 0
smbus0: <System Management Bus> on intsmb0
lo0: link state changed to UP
GEOM_ELI: Device vtbd1p3.eli created.
GEOM_ELI: Encryption: AES-XTS 128
GEOM_ELI:     Crypto: accelerated software
CPU: Intel Xeon E3-12xx v2 (Ivy Bridge) (1497.60-MHz K8-class CPU)
Origin="GenuineIntel"  Id=0x306a9  Family=0x6  Model=0x3a  Stepping=9
Features=0xf8bfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,MMX,FXSR,SSE,SSE2,SS>
Features2=0xcff82223<SSE3,PCLMULQDQ,VMX,SSSE3,CX16,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,TSCDLT,AESNI,XSAVE,OSXSAVE,RDRAND,HV>
AMD Features=0x2c100800<SYSCALL,NX,Page1GB,RDTSCP,LM>
AMD Features2=0x101<LAHF,Prefetch>
Structured Extended Features=0x20944283<FSGSBASE,TSCADJ,SMEP,ERMS,MPX,RDSEED,SMAP,CLFLUSHOPT,SHA>
Structured Extended Features2=0x4<UMIP>
Structured Extended Features3=0x20000000<ARCH_CAP>
XSAVE Features=0xf<XSAVEOPT,XSAVEC,XINUSE,XSAVES>
IA32_ARCH_CAPS=0x68<SKIP_L1DFL_VME,MDS_NO

The machine runs with disks "/dev/sdb", "/dev/sdc" and "/dev/sdd" looped through from the host system.

The configuration of the entire machine can be viewed here:

Code:

<domain type="kvm">
<name>coffeenas</name>
<uuid>9f5630af-12ba-444a-aee3-08125c9e9b11</uuid>
<metadata>
<libosinfo:libosinfo xmlns:libosinfo="http://libosinfo.org/xmlns/libvirt/domain/1.0">
<libosinfo:os id="http://freebsd.org/freebsd/13.1"/>
</libosinfo:libosinfo>
</metadata>
<memory unit="KiB">8388608</memory>
<currentMemory unit="KiB">8388608</currentMemory>
<vcpu placement="static">4</vcpu>
<os>
<type arch="x86_64" machine="pc-i440fx-5.0">hvm</type>
</os>
<features>
<acpi/>
<apic/>
<vmport state="off"/>
</features>
<cpu mode="host-model" check="partial"/>
<clock offset="utc">
<timer name="rtc" tickpolicy="catchup"/>
<timer name="pit" tickpolicy="delay"/>
<timer name="hpet" present="no"/>
</clock>
<on_poweroff>destroy</on_poweroff>
<on_reboot>restart</on_reboot>
<on_crash>destroy</on_crash>
<pm>
<suspend-to-mem enabled="no"/>
<suspend-to-disk enabled="no"/>
</pm>
<devices>
<emulator>/usr/bin/qemu-system-x86_64</emulator>
<disk type="block" device="disk">
<driver name="qemu" type="raw" cache="none" io="native"/>
<source dev="/dev/sdb"/>
<target dev="sdb" bus="sata"/>
<address type="drive" controller="0" bus="0" target="0" unit="1"/>
</disk>
<disk type="block" device="disk">
<driver name="qemu" type="raw" cache="none" io="native"/>
<source dev="/dev/sdc"/>
<target dev="sdc" bus="sata"/>
<address type="drive" controller="0" bus="0" target="0" unit="2"/>
</disk>
<disk type="block" device="disk">
<driver name="qemu" type="raw" cache="none" io="native"/>
<source dev="/dev/sdd"/>
<target dev="sdd" bus="sata"/>
<address type="drive" controller="0" bus="0" target="0" unit="3"/>
</disk>
<disk type="file" device="disk">
<driver name="qemu" type="qcow2"/>
<source file="/var/lib/libvirt/images/coffeenas-1.qcow2"/>
<target dev="vda" bus="virtio"/>
<address type="pci" domain="0x0000" bus="0x00" slot="0x08" function="0x0"/>
</disk>
<disk type="file" device="disk">
<driver name="qemu" type="qcow2"/>
<source file="/var/lib/libvirt/images/coffeenas.qcow2"/>
<target dev="vdb" bus="virtio"/>
<boot order="2"/>
<address type="pci" domain="0x0000" bus="0x00" slot="0x0a" function="0x0"/>
</disk>
<controller type="pci" index="0" model="pci-root"/>
<controller type="sata" index="0">
<address type="pci" domain="0x0000" bus="0x00" slot="0x06" function="0x0"/>
</controller>
<controller type="virtio-serial" index="0">
<address type="pci" domain="0x0000" bus="0x00" slot="0x07" function="0x0"/>
</controller>
<controller type="usb" index="0" model="qemu-xhci" ports="15">
<address type="pci" domain="0x0000" bus="0x00" slot="0x05" function="0x0"/>
</controller>
<interface type="bridge">
<mac address="33:44:55:66:77:88"/>
<source bridge="green0"/>
<model type="virtio"/>
<address type="pci" domain="0x0000" bus="0x00" slot="0x03" function="0x0"/>
</interface>
<serial type="pty">
<target type="isa-serial" port="0">
<model name="isa-serial"/>
</target>
</serial>
<console type="pty">
<target type="serial" port="0"/>
</console>
<channel type="spicevmc">
<target type="virtio" name="com.redhat.spice.0"/>
<address type="virtio-serial" controller="0" bus="0" port="1"/>
</channel>
<input type="mouse" bus="ps2"/>
<input type="keyboard" bus="ps2"/>
<graphics type="spice" autoport="yes">
<listen type="address"/>
</graphics>
<sound model="ich6">
<address type="pci" domain="0x0000" bus="0x00" slot="0x04" function="0x0"/>
</sound>
<audio id="1" type="spice"/>
<video>
<model type="qxl" ram="65536" vram="65536" vgamem="16384" heads="1" primary="yes"/>
<address type="pci" domain="0x0000" bus="0x00" slot="0x02" function="0x0"/>
</video>
<redirdev bus="usb" type="spicevmc">
<address type="usb" bus="0" port="1"/>
</redirdev>
<redirdev bus="usb" type="spicevmc">
<address type="usb" bus="0" port="2"/>
</redirdev>
<memballoon model="virtio">
<address type="pci" domain="0x0000" bus="0x00" slot="0x09" function="0x0"/>
</memballoon>
</devices>
</domain>

In the configuration itself I could not find any error, which of course does not mean here may be something wrong?
All other machines run so far without problems, but have no direct access to "/dev/xyz" devices.

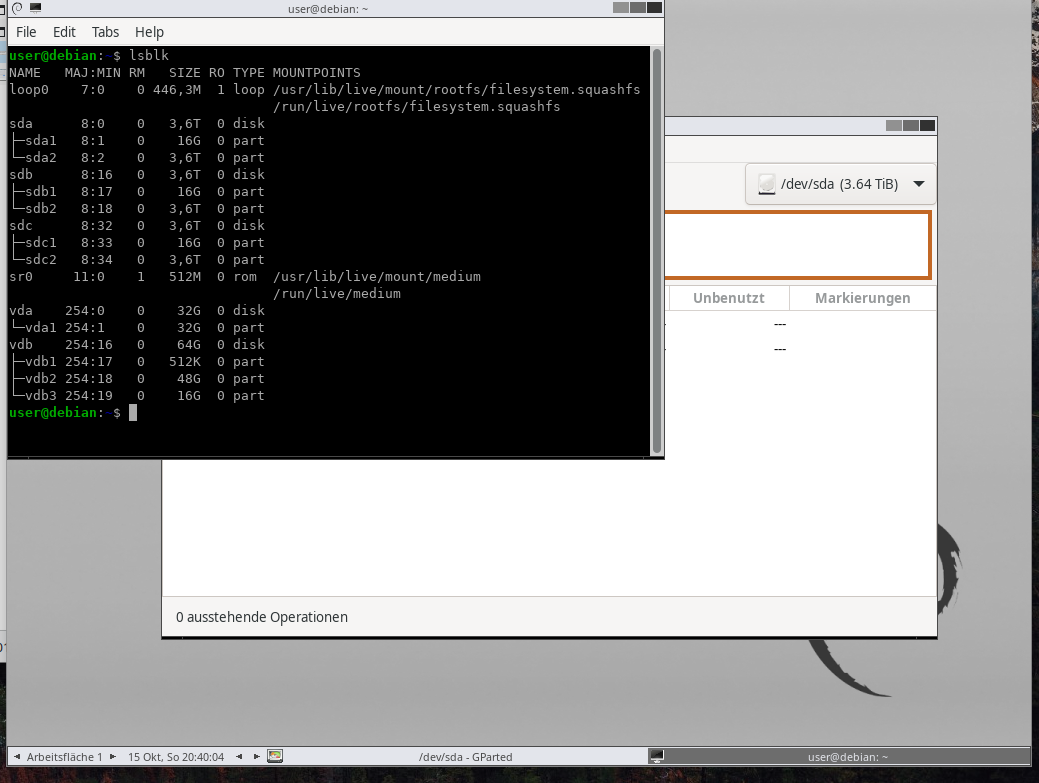

Now I have started a live system to exclude that the configuration of the machine is completely wrong. In this case I used "gparted-live" which showed me after the start all drives available and functional, even the underlying file systems are recognized.

through the host system I have looked at the SMART values of all hard disks, these show me no further abnormalities, that all 3 disks at the same time destroy themselves I consider unlikely.

Now the big question is still, how do I get my data pool back, and whats this 'root mount waiting for cam' in my case?

sincerely the coffeemachine

Important Announcement for the TrueNAS Community.

disks are missing

coffeemachine

Cadet

Similar threads
