Create zfs mirror by adding a drive?

danb35

Wizened Sage
Joined
Aug 16, 2011
Messages
11,933
It's not like the request has been out there for five fscking years or anything...


Ericloewe

Not-very-passive-but-aggressive
Moderator
Joined
Feb 15, 2014
Messages
17,013
It's rather annoying to see what looks like all feature requests moved from their targets (inaccurate as they may end up being) to a vague "backlog".


danb35

Wizened Sage
Joined
Aug 16, 2011
Messages
11,933
...and one of their own devs says it wouldn't be more than a day's work to implement it.


socra

Junior Member
Joined
Nov 3, 2018
Messages
16
I've followed these steps carefully but with 11.2 , this does not seem to work anymore
The last step in the GUI to replace the disk shows no disks when you click "replace disk".


tortue

Neophyte
Joined
Jan 13, 2018
Messages
8
Not much of a solution but have you tried using the legacy ui vice the new one in 11.2?


socra

Junior Member
Joined
Nov 3, 2018
Messages
16
Not much of a solution but have you tried using the legacy ui vice the new one in 11.2?
Well that is a great thought, haven't done that..I had to move on so bit the bullet and started over and this time created the mirror first, then copied the data over (all this time, I had my fingers crossed that my backup drive would no die in the process) Will test this out in my lab to see if it still works with the legacy ui.


Chris Moore

Wizened Sage
Joined
May 2, 2015
Messages
10,062
I've followed these steps carefully but with 11.2 , this does not seem to work any more
The last step in the GUI to replace the disk shows no disks when you click "replace disk".
What were you doing, the original instructions for a un-encrypted pool or the revised set of instructions for an encrypted pool?


socra

Junior Member
Joined
Nov 3, 2018
Messages
16
Hi Chris,
I used the instructions for the encrypted pool. As stated the instructions do work with FreeNAS 11.2 if you use the legacy UI not the new shiny one.


stlkr

Junior Member
Joined
Aug 3, 2019
Messages
14
I was summoned back to this thread via email notifications. I was amused to re-read this thread and have zero recollection of this. I tend to forget a lot of stuff, which is why I like to write things down. I was about to wander away when I saw the skeptical comments about it no longer working. That invoked emotions (I get like that when I feel some advice is mistaken and unreasonably authoritive about it). But, I didn't know if it would still work. So I tried it.

I downloaded the latest version of FreeNAS as of this evening (FreeNAS 11). I created a VM and installed it. 1 OS drive, 2 data drives. When the OS was up, I used the FreeNAS GUI to create a single drive ZFS volume. Then I opened my steps documented in this thread and re-traced them. It worked completely fine. But since some folks need more convincing than others, I did a screencast of the whole damn thing, here:
Then I went on to throw down a post on my personal blog about this, with some tiny updates to the steps, here: https://dawning.ca/2017/freenas-11-add-a-drive-to-create-a-mirrored-zfs-volume/

I doubt these steps will go completely out-of-style any time soon, since I think doing so would mean deep changes to ZFS, which seems unnecessary. Anyway, it still works. Have fun. (and proceed at your own risk)
Hi...
I followed this tutorial but in the end I had

cannot attach /dev/gptid/a1f796ce-b62f-11e9-afc0-3464a99a3b70 to /dev/gptid/deeff679-6414-11e9-b71e-3464a99a3b70: /dev/gptid/a1f796ce-b62f-11e9-afc0-3464a99a3b70 is busy, or pool has removing/removed vdevs

What I missed? o_O


Chris Moore

Wizened Sage
Joined
May 2, 2015
Messages
10,062
Please send a bug report. They have a number of things that are still broken in the new UI.


danb35

Wizened Sage
Joined
Aug 16, 2011
Messages
11,933
They have a number of things that are still broken in the new UI.
This may be true (though I haven't yet seen any), but @stlkr's issue has nothing whatsoever to do with the new UI.


stlkr

Junior Member
Joined
Aug 3, 2019
Messages
14
Please send a bug report. They have a number of things that are still broken in the new UI.
This may be true (though I haven't yet seen any), but @stlkr's issue has nothing whatsoever to do with the new UI.
Yes, @danb35 is right. In the end of the tutorial (via CLI) I had this output:

cannot attach /dev/gptid/a1f796ce-b62f-11e9-afc0-3464a99a3b70 to /dev/gptid/deeff679-6414-11e9-b71e-3464a99a3b70: /dev/gptid/a1f796ce-b62f-11e9-afc0-3464a99a3b70 is busy, or pool has removing/removed vdevs


danb35

Wizened Sage
Joined
Aug 16, 2011
Messages
11,933
...and to that issue, I'm not sure if having removed the disk from the pool (as you did here) should affect anything--I don't remember hearing that it would, but vdev removal is pretty new at this point.


stlkr

Junior Member
Joined
Aug 3, 2019
Messages
14
...and to that issue, I'm not sure if having removed the disk from the pool (as you did here) should affect anything--I don't remember hearing that it would, but vdev removal is pretty new at this point.
So... what is my best chance to fix my problem? Backup all information and configure all again? :confused:
thanks


Chris Moore

Wizened Sage
Joined
May 2, 2015
Messages
10,062
This may be true (though I haven't yet seen any), but @stlkr's issue has nothing whatsoever to do with the new UI.
Perhaps not the GUI specifically, but the GUI and the new Middleware go hand-in-hand and were released at the same time and I have found a number of things that don't work the way they used to / should and (as far as I am concerned) that means they are broken. The root cause may even be in the underlying version of FreeBSD, but there are things that are just not working now.


stlkr

Junior Member
Joined
Aug 3, 2019
Messages
14
This may be true (though I haven't yet seen any), but @stlkr's issue has nothing whatsoever to do with the new UI.
After reboot, I have a different output:

Code:
root@freenas[~]# zpool attach Disco1 /dev/dee51a10-6414-11e9-b71e-3464a99a3b70 /dev/gptid/a1f796ce-b62f-11e9-afc0-3464a99a3b70
cannot attach /dev/gptid/a1f796ce-b62f-11e9-afc0-3464a99a3b70 to /dev/dee51a10-6414-11e9-b71e-3464a99a3b70: no such device in pool


stlkr

Junior Member
Joined
Aug 3, 2019
Messages
14
I wiped my new disk and try again, but without success. Same result.

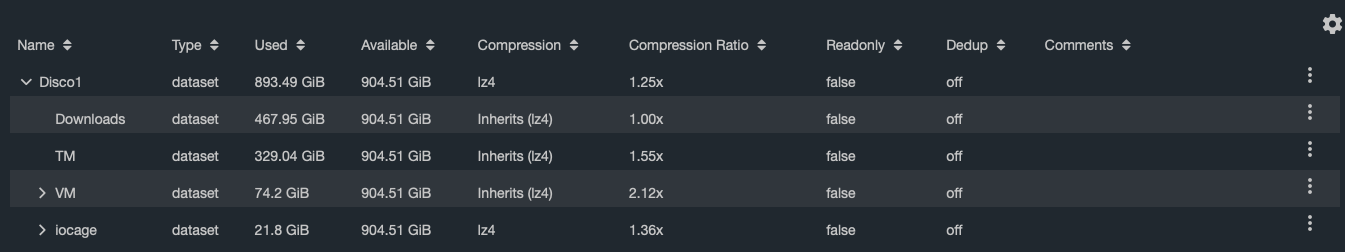

My pool right now (maybe I configured something wrong in this pool):

Captura de ecrã 2019-08-05, às 21.33.04.png


danb35

Wizened Sage
Joined
Aug 16, 2011
Messages
11,933
What's the output of zpool status and glabel status?


stlkr

Junior Member
Joined
Aug 3, 2019
Messages
14
What's the output of zpool status and glabel status?
Code:
root@freenas[~]# zpool status
  pool: Disco1
 state: ONLINE
  scan: scrub repaired 0 in 0 days 02:50:04 with 0 errors on Sun Jul 14 02:50:07 2019
remove: Removal of vdev 1 copied 657M in 0h0m, completed on Sat Aug  3 14:24:262019
    214K memory used for removed device mappings
config:

        NAME                                          STATE     READ WRITE CKSUM
        Disco1                                        ONLINE       0     0     0
          gptid/deeff679-6414-11e9-b71e-3464a99a3b70  ONLINE       0     0     0


and

Code:
root@freenas[~]# glabel status
                                      Name  Status  Components
gptid/deeff679-6414-11e9-b71e-3464a99a3b70     N/A  ada0p2
gptid/a6afc50d-b6dc-11e9-afc0-3464a99a3b70     N/A  da0p1
gptid/10fde8bf-644f-11e9-a0a4-3464a99a3b70     N/A  da1p1
gptid/4107440c-812b-11e9-906e-3464a99a3b70     N/A  da2p2
gptid/dee51a10-6414-11e9-b71e-3464a99a3b70     N/A  ada0p1
gptid/40cef60f-812b-11e9-906e-3464a99a3b70     N/A  da2p1
gptid/1935d136-b7bf-11e9-93dc-3464a99a3b70     N/A  ada1p1
gptid/1e28994f-b7bf-11e9-93dc-3464a99a3b70     N/A  ada1p2



First disk
gptid/deeff679-6414-11e9-b71e-3464a99a3b70 N/A ada0p2
gptid/a6afc50d-b6dc-11e9-afc0-3464a99a3b70 N/A da0p1

Second disk
gptid/1935d136-b7bf-11e9-93dc-3464a99a3b70 N/A ada1p1
gptid/1e28994f-b7bf-11e9-93dc-3464a99a3b70 N/A ada1p2
