First I should say that I am fairly new to FreeNas and I'm still in the learning phase. I've done some searching, but wasn't able to find anything on the subject. I am running :
Build FreeNAS-9.3-STABLE-201506292130
I received an email with A critical Alert saying a disk was offline. I look at the GUI and it shown online. Here is the timeline of events:
Sun, Aug 2, 2015 at 3:24 AM
Email received.
Subjet: Critical Alerts
Message:
Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors
Sun, Aug 2, 2015 at 6:55 AM
Email received.
Subject: Critical Alerts
Message:
Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors
Device: /dev/da0 [SAT], 2 Offline uncorrectable sectors
Mon, Aug 3, 3015 8:30 PM
I look at the GUI under Storage>Volumes and it shows the volume as "HEALTHY"
I then click on the volume and then click the volume status and it shows "ONLINE" for all disk including the suspect da0.
Here are some of the recent console messages copied from the GUI:
smartctl report:
smartctl -a /dev/da0

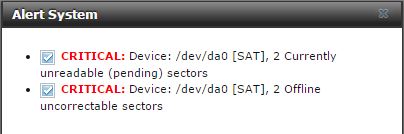

The upper right hand corner of the GUI has a red flashing button with alert under it. When I click on it it brings up a dialog box as show in attached "System Alert.jpg". Since there is no time stamp with these, I'm not sure when the are from.
I guess I'm a bit confused in the discrepancies between the emails and what the GUI show. So should this drive be replaced?
Thank You,
Kerry
Build FreeNAS-9.3-STABLE-201506292130
I received an email with A critical Alert saying a disk was offline. I look at the GUI and it shown online. Here is the timeline of events:
Sun, Aug 2, 2015 at 3:24 AM
Email received.
Subjet: Critical Alerts
Message:
Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors
Sun, Aug 2, 2015 at 6:55 AM
Email received.
Subject: Critical Alerts
Message:
Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors
Device: /dev/da0 [SAT], 2 Offline uncorrectable sectors
Mon, Aug 3, 3015 8:30 PM
I look at the GUI under Storage>Volumes and it shows the volume as "HEALTHY"
I then click on the volume and then click the volume status and it shows "ONLINE" for all disk including the suspect da0.
Here are some of the recent console messages copied from the GUI:
Code:
Aug 3 19:21:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 19:21:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 19:27:54 MainFileServer nmbd[7286]: [2015/08/03 19:27:54.683783, 0] ../source3/nmbd/nmbd_packets.c:1289(process_dgram) Aug 3 19:27:54 MainFileServer nmbd[7286]: process_dgram: ignoring malformed3 (datasize = 494, len=396, off=104) datagram packet sent to name MYHOME<00> from IP 69.11.25.16 Aug 3 19:51:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 19:51:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 20:20:45 MainFileServer smbd[18491]: STATUS=daemon 'smbd' finished starting up and ready to serve connectionsFailed to fetch record! Aug 3 20:21:54 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 20:21:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 20:51:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 20:51:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 21:21:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors Aug 3 21:21:55 MainFileServer smartd[3038]: Device: /dev/da0 [SAT], 2 Currently unreadable (pending) sectors
smartctl report:
smartctl -a /dev/da0
Code:
smartctl 6.3 2014-07-26 r3976 [FreeBSD 9.3-RELEASE-p16 amd64] (local build)
Copyright (C) 2002-14, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital RE4-GP
Device Model: WDC WD2002FYPS-01U1B0
Serial Number: WD-WCAVY0557782
LU WWN Device Id: 5 0014ee 25870240e
Firmware Version: 04.05G05
User Capacity: 2,000,398,934,016 bytes [2.00 TB]
Sector Size: 512 bytes logical/physical
Rotation Rate: 5400 rpm
Device is: In smartctl database [for details use: -P show]
ATA Version is: ATA8-ACS (minor revision not indicated)
SATA Version is: SATA 2.6, 3.0 Gb/s
Local Time is: Mon Aug 3 21:25:59 2015 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x84) Offline data collection activity
was suspended by an interrupting command from host.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: (42360) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 482) minutes.
Conveyance self-test routine
recommended polling time: ( 5) minutes.
SCT capabilities: (0x303f) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0
3 Spin_Up_Time 0x0027 148 147 021 Pre-fail Always - 9583
4 Start_Stop_Count 0x0032 100 100 000 Old_age Always - 779
5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0
7 Seek_Error_Rate 0x002e 100 253 000 Old_age Always - 0
9 Power_On_Hours 0x0032 095 095 000 Old_age Always - 3674
10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0
11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0
12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 69
192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 55
193 Load_Cycle_Count 0x0032 199 199 000 Old_age Always - 4656
194 Temperature_Celsius 0x0022 116 108 000 Old_age Always - 36
196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0
197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 2
198 Offline_Uncorrectable 0x0030 200 200 000 Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0
200 Multi_Zone_Error_Rate 0x0008 200 153 000 Old_age Offline - 0
SMART Error Log Version: 1
No Errors Logged
SMART Self-test log structure revision number 1
Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error
# 1 Short offline Completed without error 00% 3621 -
# 2 Extended offline Completed without error 00% 3533 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
The upper right hand corner of the GUI has a red flashing button with alert under it. When I click on it it brings up a dialog box as show in attached "System Alert.jpg". Since there is no time stamp with these, I'm not sure when the are from.
I guess I'm a bit confused in the discrepancies between the emails and what the GUI show. So should this drive be replaced?
Thank You,
Kerry
