CIFS read performance makes me sad, writes are fine.

[gcs8]

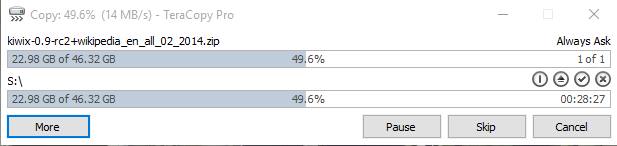

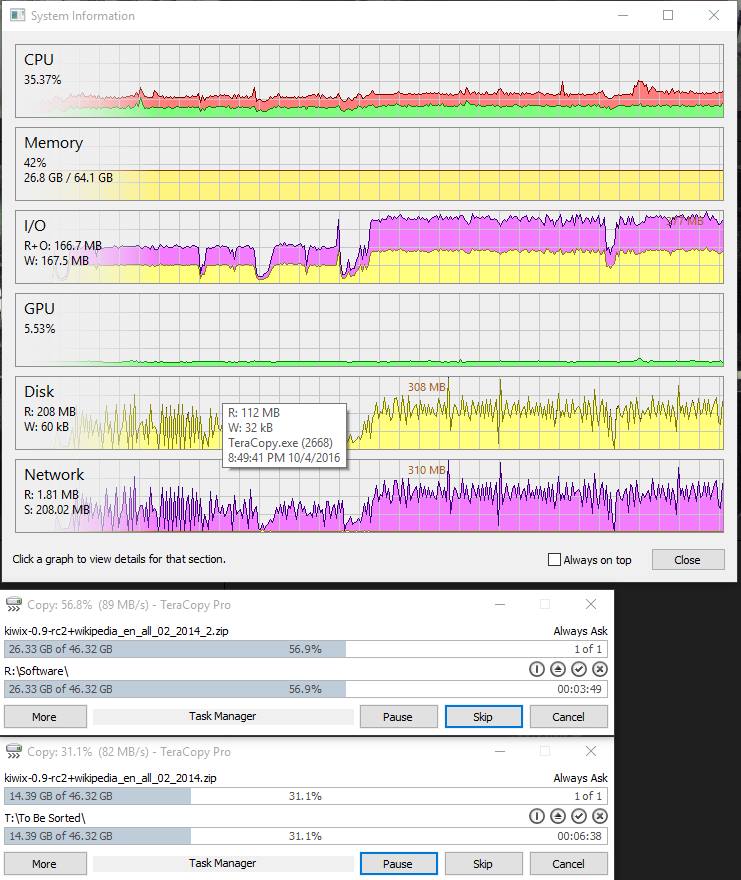

I am getting ~17-20MB/s writes to the array over CIFS but can get ~90MB/s per interface from the local SSD on my PC over the 10GB NIC or about the same over 1Gb to one NIC on the array. It is just CIFS reads that seem to suck. Maybe that's my fault, I might need an adult, or cyberjock to point out what I am doing wrong. Let me know anything I can give you guys, or provide clarity on, anything, just let me know.


Chassis: CSE-846BE2C-R1K28B
RAM: 64GB of MEM-DR432L-SL01-ER21
CPU: Intel 2.20GHz Xeon E5-2630 v4 Deca-Core
Hard Drives: [12 in 6+6raidz] HGST Hard Drive 8TB SAS (HUH728080AL5200)
Motherboard: Supermicro X10DRi-T4+

S:\ is a SSD scratch drive, R:\ is a 3 port LACP and T:\ is a single gig port in the images.



[SweetAndLow]

Remove the lacp and test performed again. Removing variable is how you start figuring this out.



Sent from my Nexus 5X using Tapatalk



[gcs8]

I did, the server has 4 gig NICs, only 3 are in LACP one is not, though I will admit that non LACP NIC does get me up to ~28-35MB/s, did fail to test that.



[SweetAndLow]

Please try using iperf to test your network connection. Make sure to test it both ways, freenas as the server and your client as the server.

Sent from my Nexus 5X using Tapatalk



[gcs8]

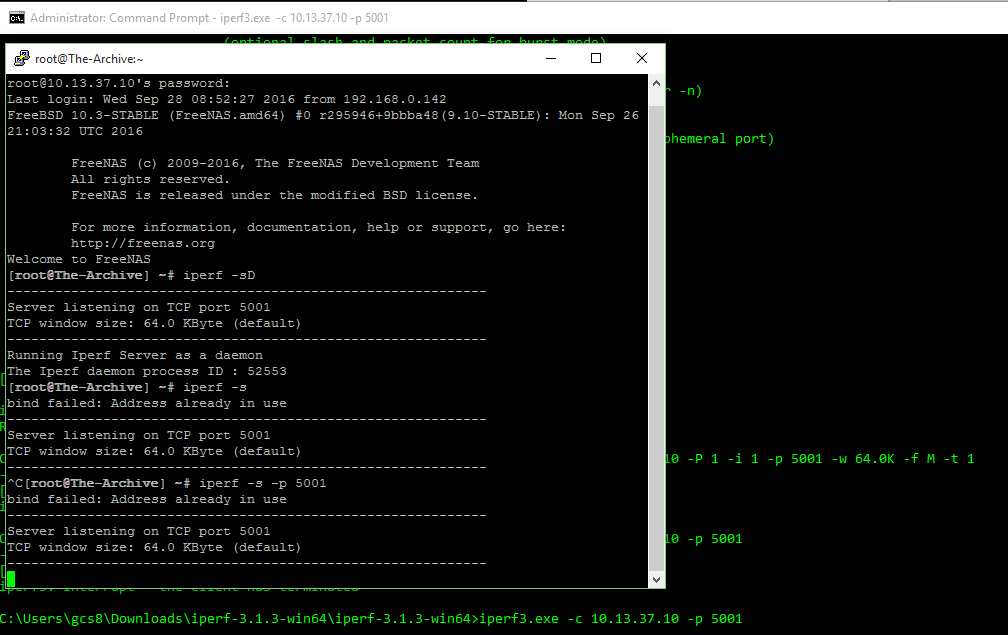

Might need an adult, I can not get data back from iperf.
client side : iperf3.exe -c 10.13.37.10 -P 1 -i 1 -p 5001 -w 64.0K -f M -t 1
Serverside : iperf -sD



[SweetAndLow]

Try iperf3.exe -c 10.13.37.10 -p 5001 skip all this other flags. And in the server use iperf -s -p 5001

Sent from my Nexus 5X using Tapatalk



[gcs8]

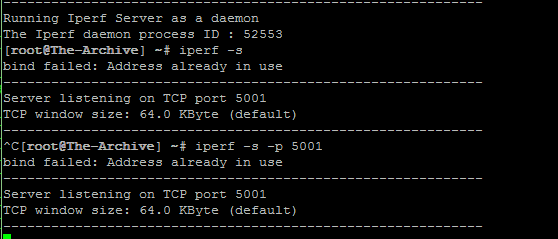

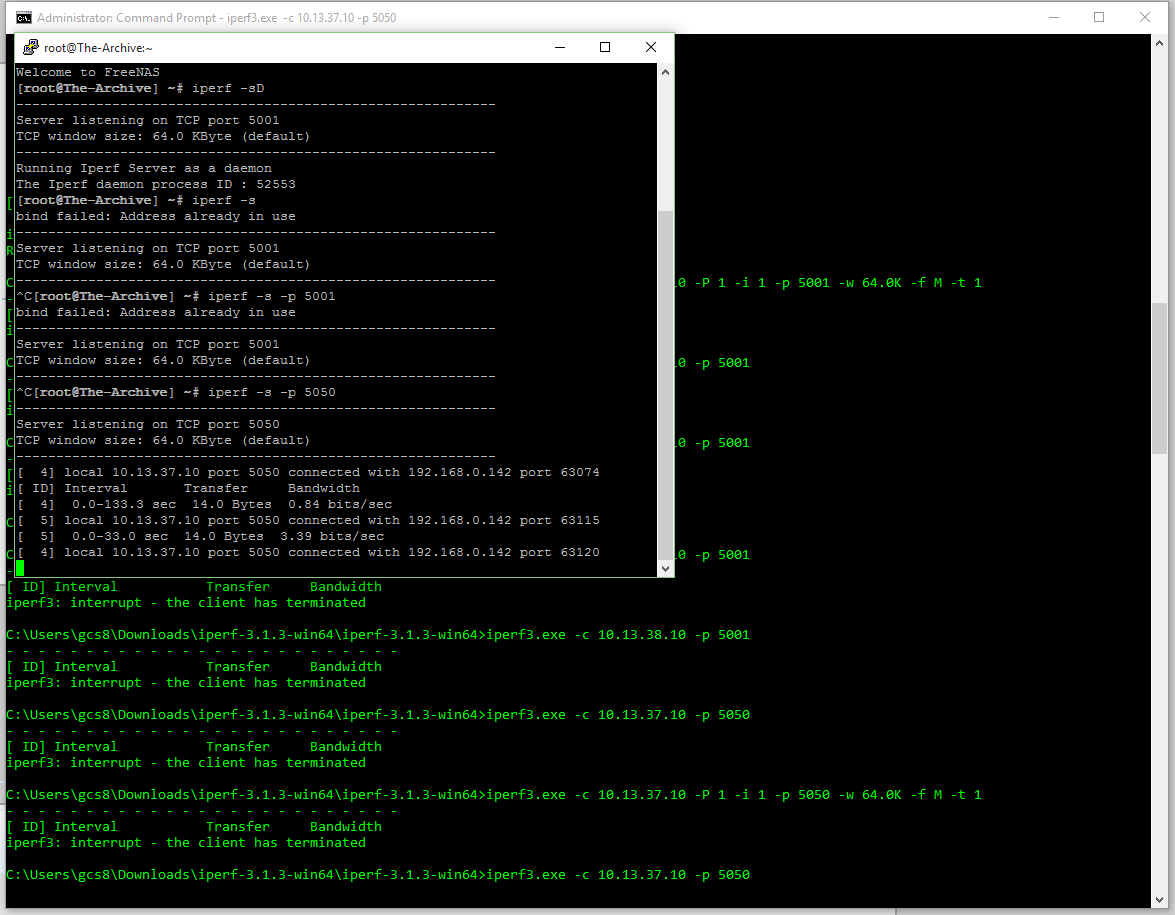

I don't think it like me.



[SweetAndLow]

Pick a different port, try 80800

Sent from my Nexus 5X using Tapatalk



[gcs8]

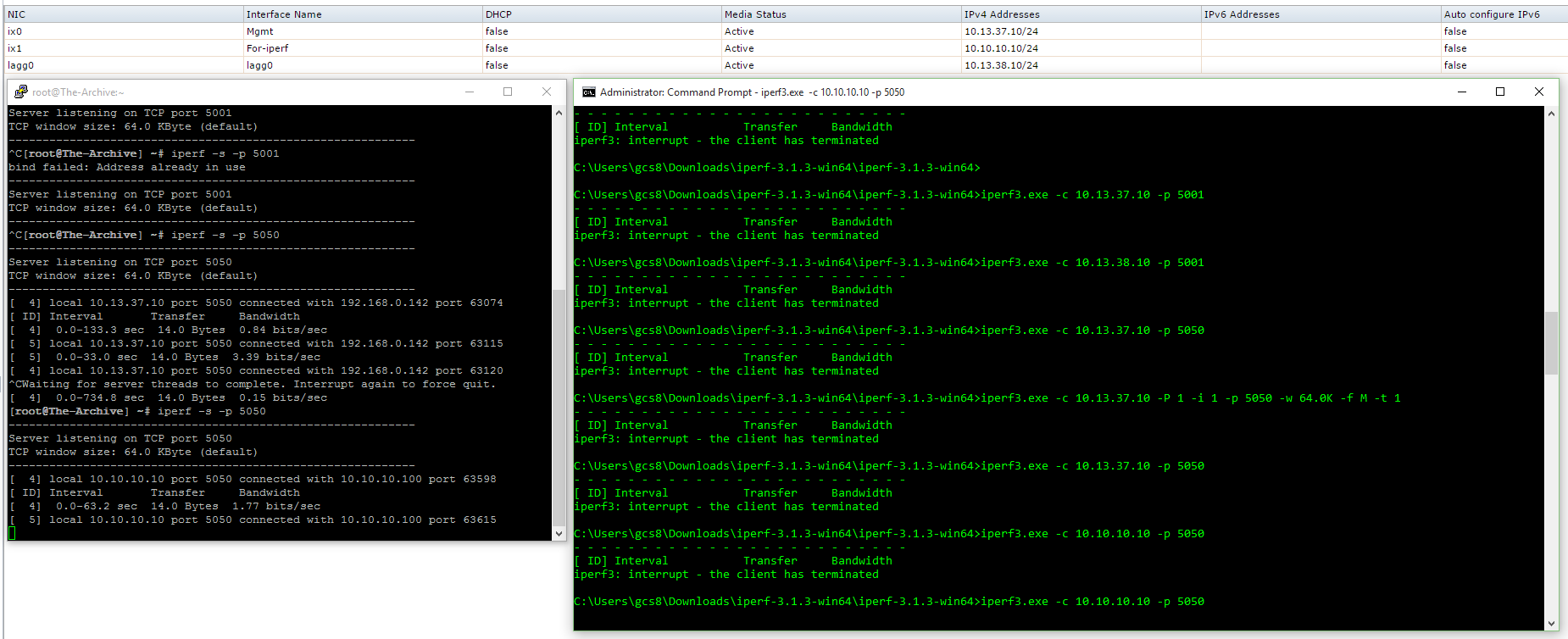

I think it still hates me, is this one of those issues with iperf3?



[SweetAndLow]

Looks like your network is not sending packets correctly. Try plugging your server into your client and configure static IPs. This will eliminate all possibilities of switch failure. Also check or replace your Ethernet cable.

Sent from my Nexus 5X using Tapatalk



[gcs8]

nada



[SweetAndLow]

Stop using the lagg! Literally unplug ever Ethernet cable except the one you're using. The networking is your problem. If you don't know how to set it up or debug it don't use it.

Sent from my Nexus 5X using Tapatalk



[gcs8]

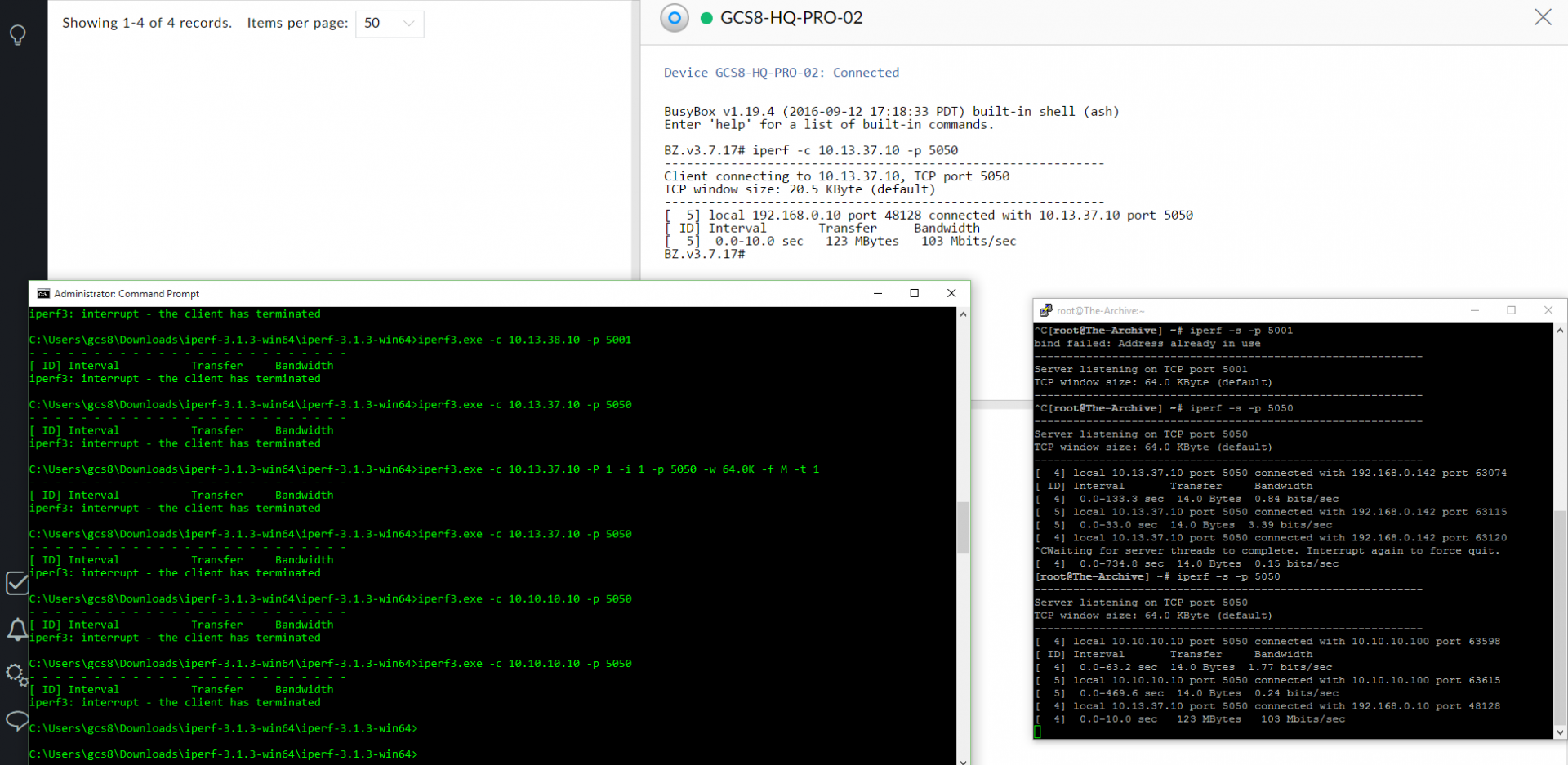

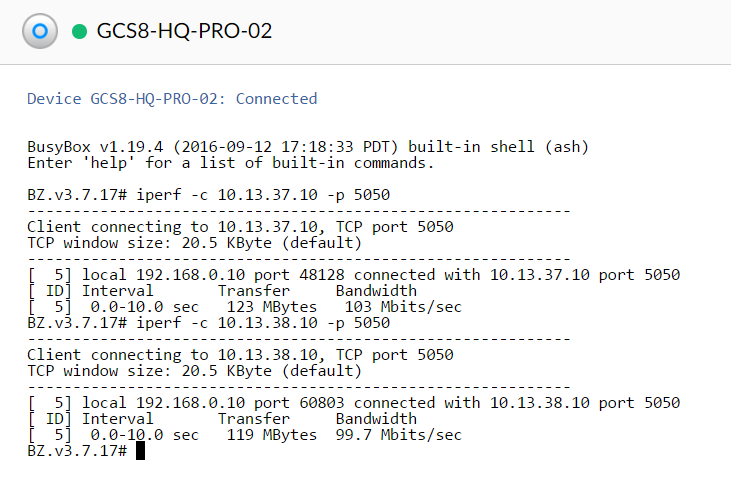

might be iperf3, it works from my AP.



[gcs8]

Also did the lagg just for fun



[SweetAndLow]

Not really working, you are only getting 10% of your maximum speed.

Sent from my Nexus 5X using Tapatalk



[gcs8]

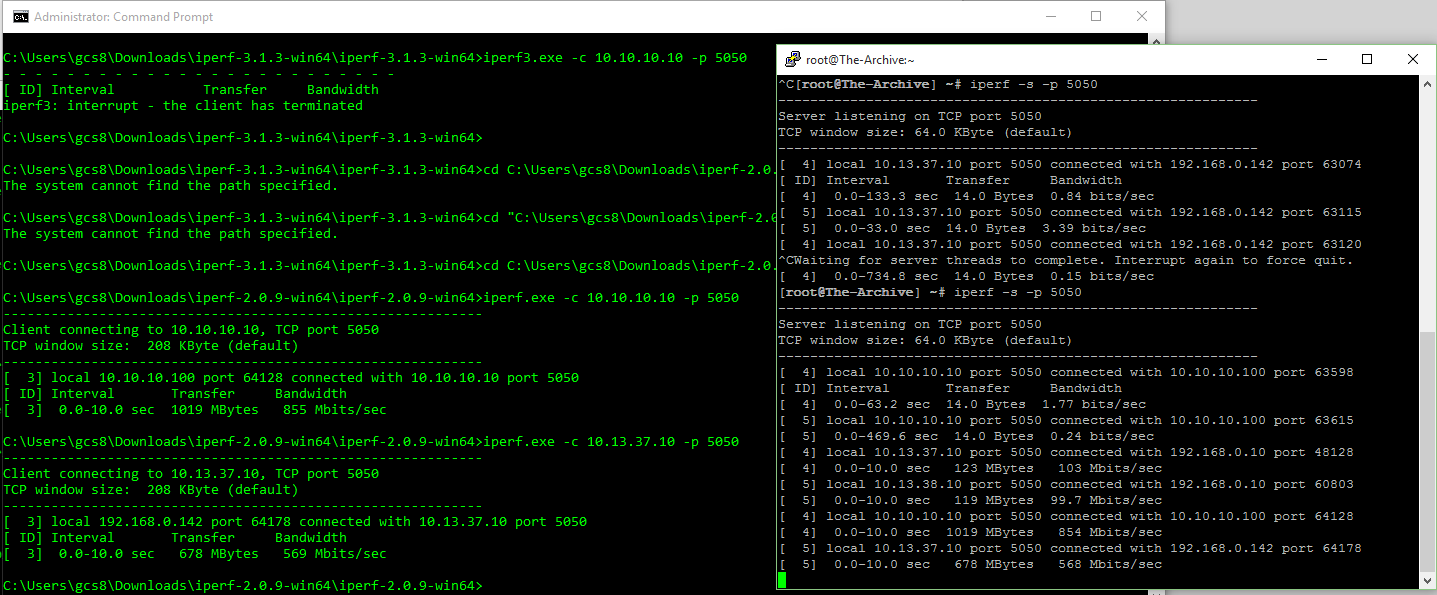

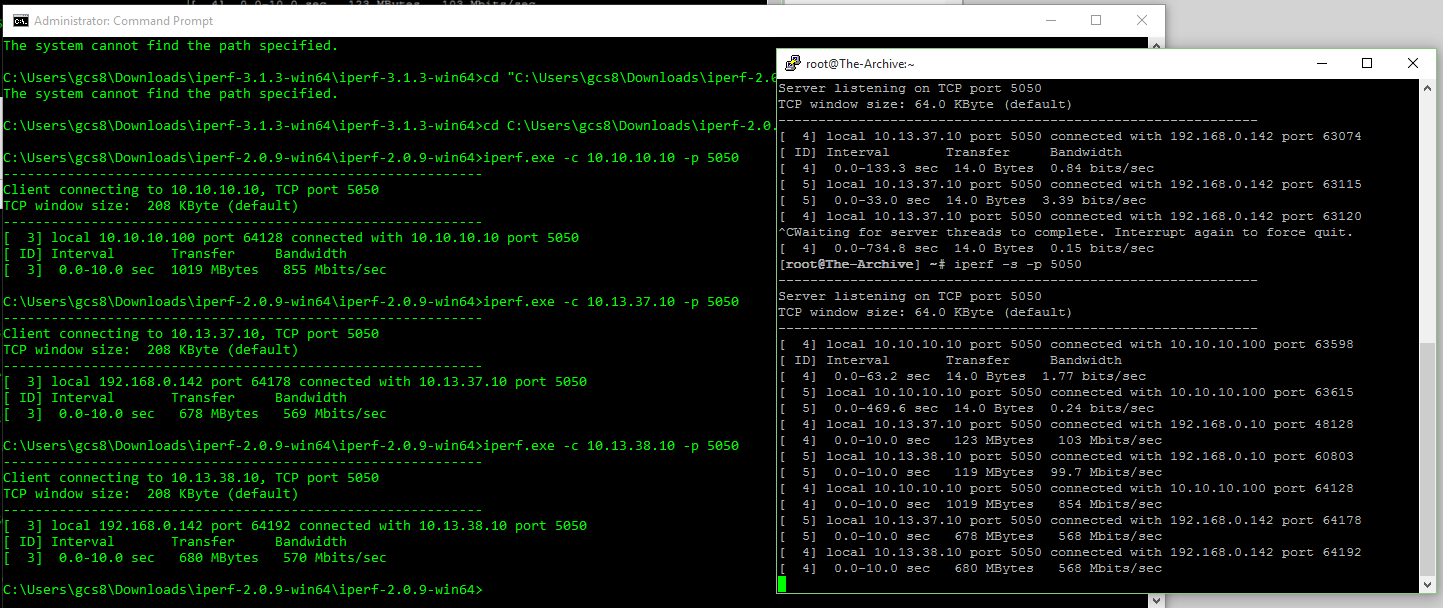

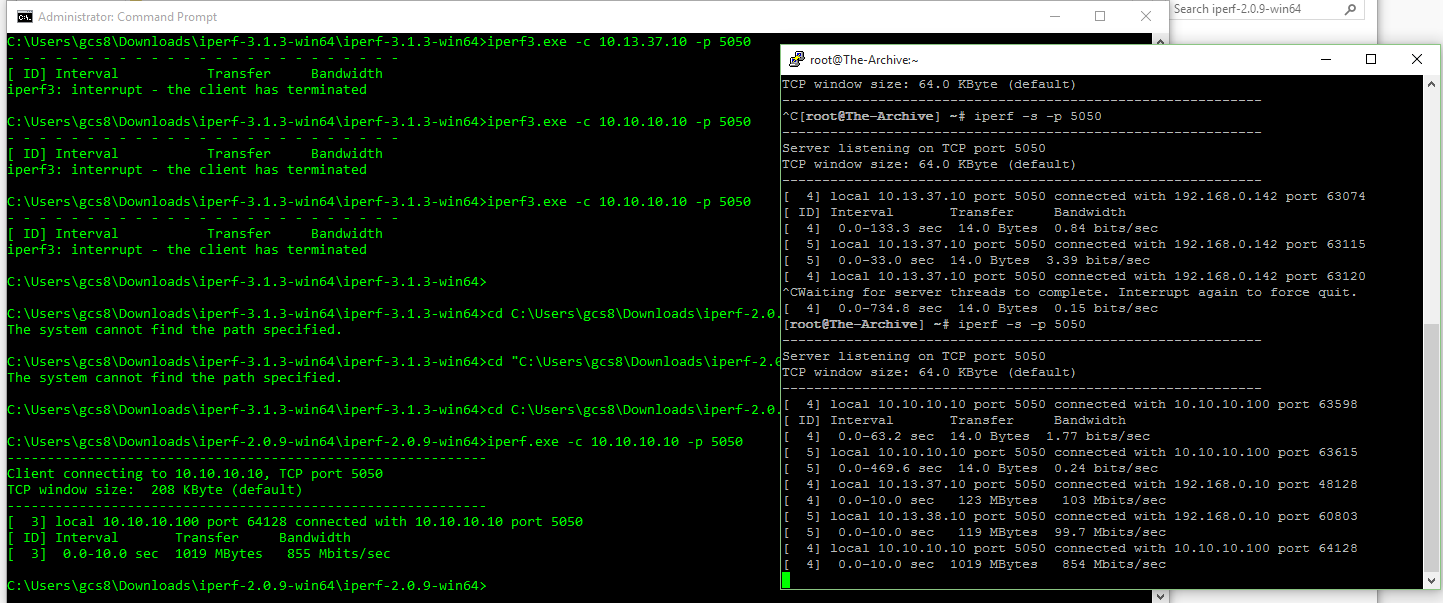

ok, it was an issue with iperf3, went back to iperf 2.0.9

eth to eth

10G to 1g

10G to lagg



[gcs8]

Yeah, the access points are not high on CPU power, it showed me that iperf was working FreeNAS side, and got me away from iperf3 desktop side.



[SweetAndLow]

Are you using wifi?

Sent from my Nexus 5X using Tapatalk



[gcs8]

hahahahah, no.



[SweetAndLow]

Why did you say access point?

Well it looks like your 10gig doesn't work. Your 1gig is working for the most part.

Sent from my Nexus 5X using Tapatalk
