can't import ZFS pool after power outage (loss)

Status
Not open for further replies.

madiseh

Cadet
Joined
Feb 26, 2018
Messages
9
Hello Guys
I need help.

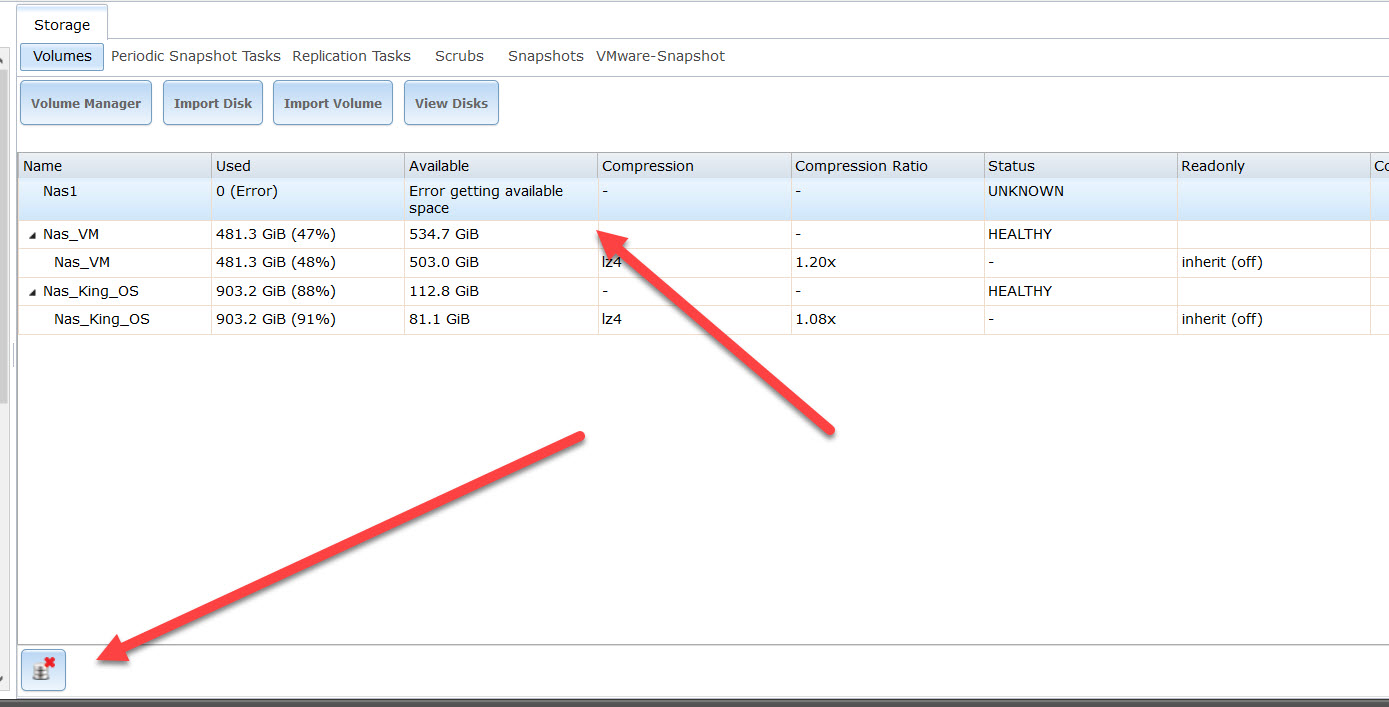

After power outage (loss) when I start FreeNAS on ESXi (VirtualMachine), one ZFS pool is not loaded.


After detaching the pool I cannot attach the pool again.

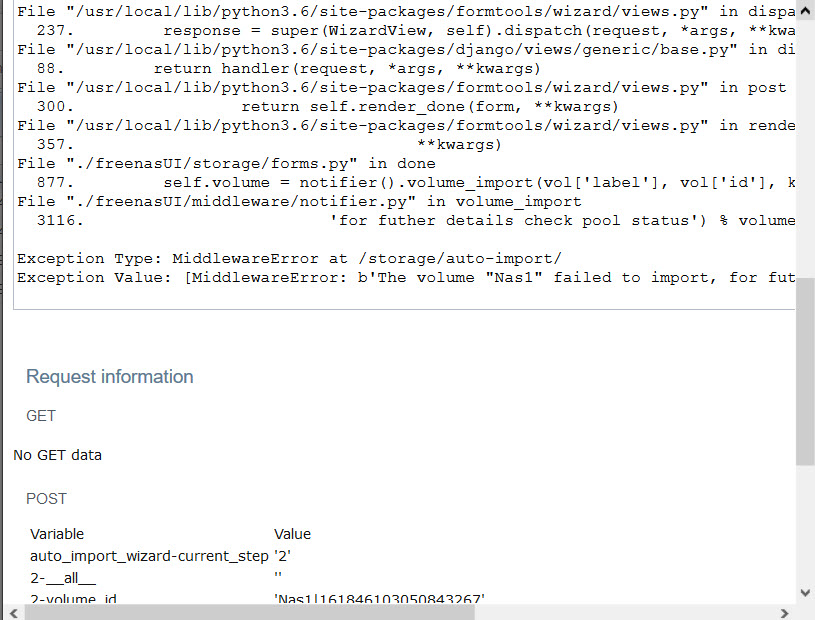

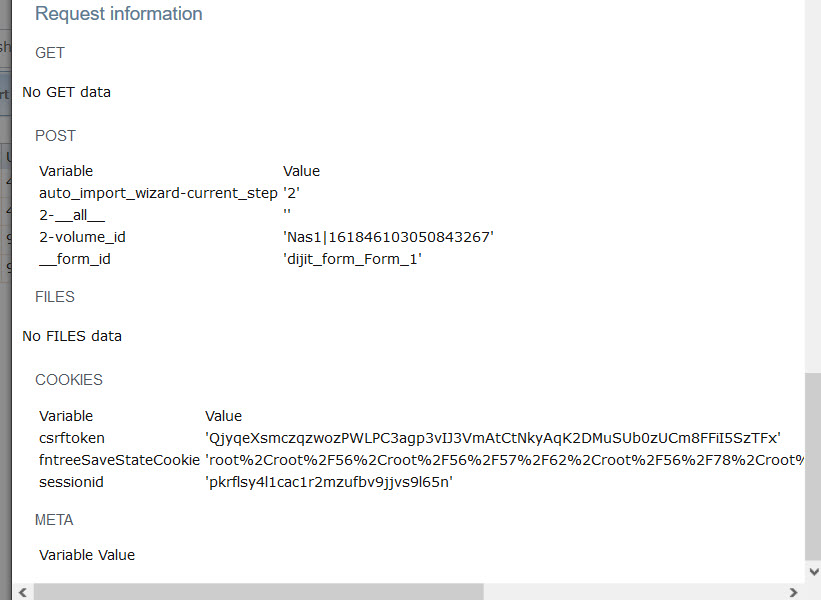

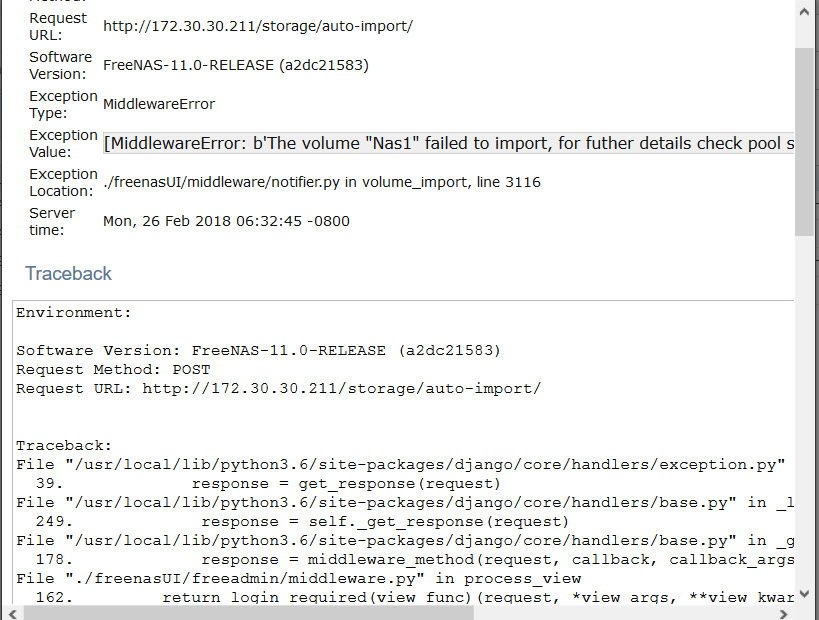

2018-02-26_18-00-22.jpg 2018-02-26_18-00-32.jpg 2018-02-26_18-00-43.jpg

After that I SSH to FreeNAS and run this code:
--nas1 is my pool
Code:

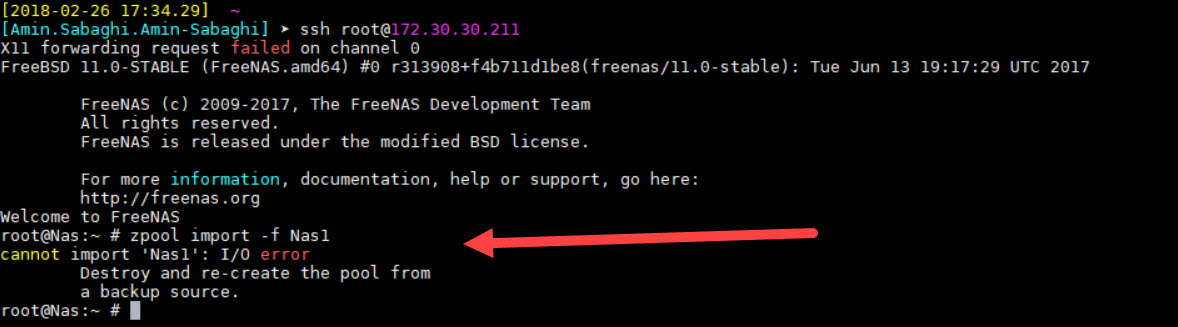

zpool import -f Nas1

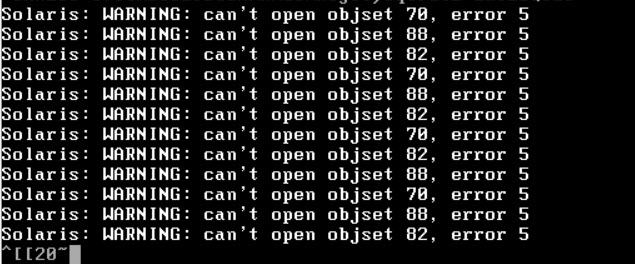

2018-02-26_17-55-07.jpg 2018-02-26_17-56-50.jpg

Unfortunately I do not have any backup from my data and very important data.

if possible please help.
sincerely yours

Last edited by a moderator:

Nick2253

Wizard
Joined
Apr 21, 2014
Messages
1,633
I was helping troubleshoot someone with a similar error. Hopefully this thread helps: https://forums.freenas.org/index.php?threads/current-interruption-volume-does-not-mount-help.61553/

Unfortunately, in the end, we were not able to recover his data. Please don't take this as me rubbing salt in the wound, but even the best, most robust systems are not perfect, and backups are a critical piece of any storage solution. I hope that you take this to heart, and if you end up losing data, this will be the last time you have to suffer through it.


scrappy

Patron
Joined
Mar 16, 2017
Messages
347
Did you use a virtual disk or direct disk passthrough for your FreeNAS zpool from ESXI?


madiseh

Cadet
Joined
Feb 26, 2018
Messages
9
I was helping troubleshoot someone with a similar error. Hopefully this thread helps: https://forums.freenas.org/index.php?threads/current-interruption-volume-does-not-mount-help.61553/

Unfortunately, in the end, we were not able to recover his data. Please don't take this as me rubbing salt in the wound, but even the best, most robust systems are not perfect, and backups are a critical piece of any storage solution. I hope that you take this to heart, and if you end up losing data, this will be the last time you have to suffer through it.
Dear nick
thank you for your quick response. I hope so for recovery my data;)
It's my fault. I get serious about your advice, and absolutely take a backup from my very very verimportant data.

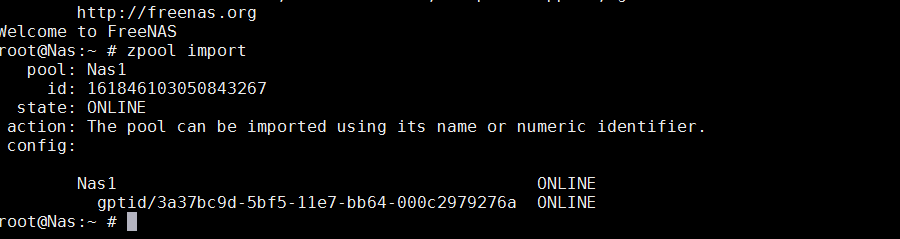

What is the output of zpool import

Dear rs225
Thank you for your time and kindness:)


Attachments

  • 2018-02-27_9-43-43.png
    14.6 KB · Views: 416

scrappy

Patron
Joined
Mar 16, 2017
Messages
347
Dear scrappy
Thank you for your attention:)
It's a virtual disk.
It is recommended to always use hardware disk passthrough for zfs unless you are using virtual disks for testing purposes only. I've read several posts like yours where the zpool gets corrupted resulting in data loss after the host machine loses power, or the system crashes etc.

Sent from my SM-N950U1 using Tapatalk


madiseh

Cadet
Joined
Feb 26, 2018
Messages
9

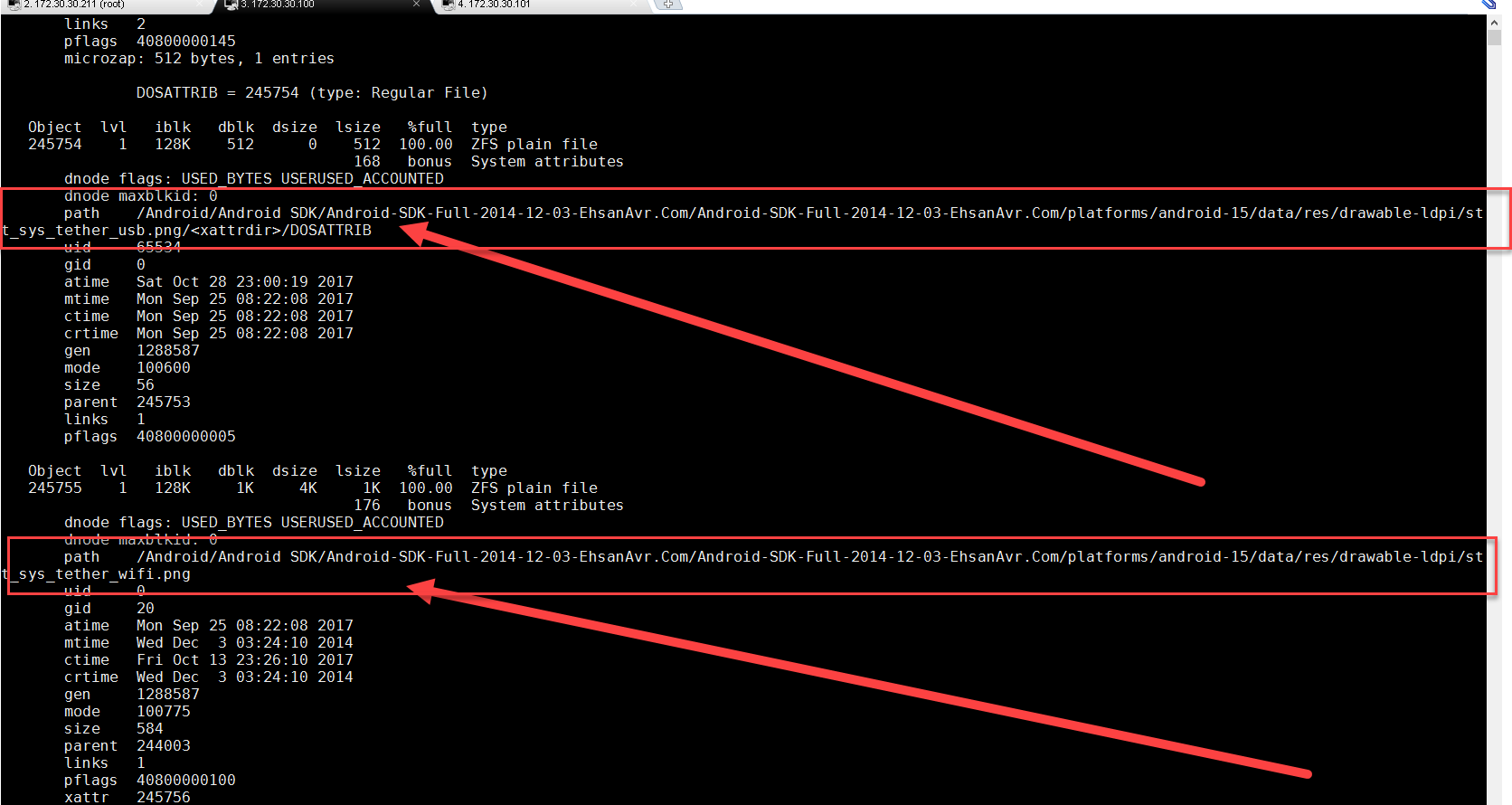

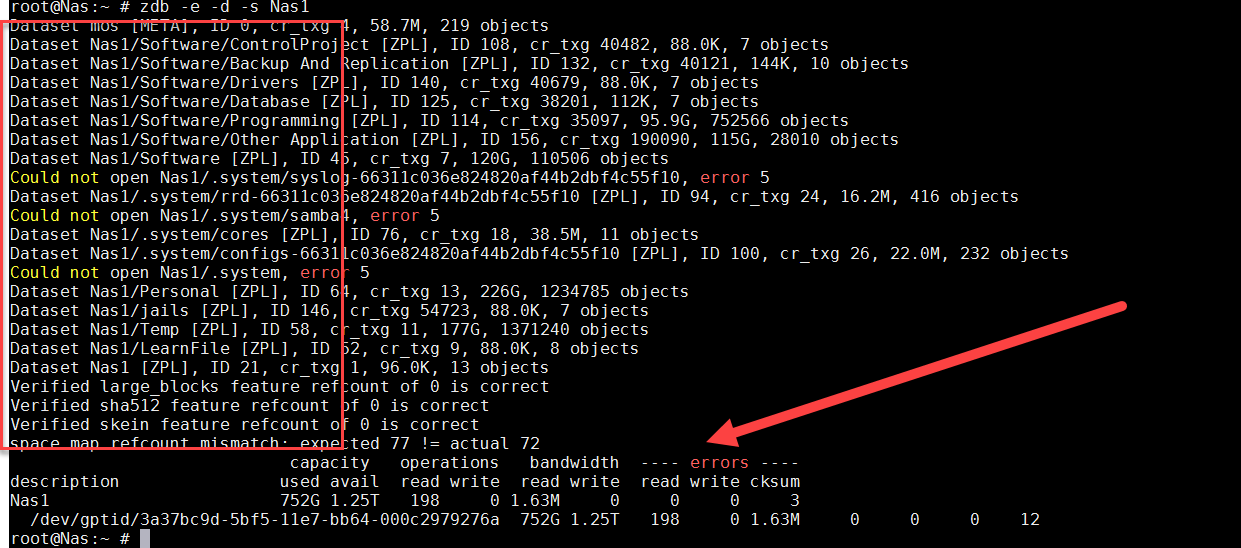

After some trying I received this error. My data is here but I cannot access it.
For example how can I access Nas1/Personal (dataset).
If possible please help me...
Really need to help.
Thanks




Last edited by a moderator:

rs225

Guru
Joined
Jun 28, 2014
Messages
878
You will need to post the output of zdb -l -u /dev/gptid/xxxxx (your disks ID), and it will need to be pasted in a CODE block, not as a picture.

It doesn't look good. Has any one ever seen a pool brought back from the I/O error state?


madiseh

Cadet
Joined
Feb 26, 2018
Messages
9
You will need to post the output of zdb -l -u /dev/gptid/xxxxx (your disks ID), and it will need to be pasted in a CODE block, not as a picture.

It doesn't look good. Has any one ever seen a pool brought back from the I/O error state?

Thanks for your reply. I hope that with your reply I give good result :)
Code:
root@Nas:~ # zdb -l -u /dev/gptid/3a37bc9d-5bf5-11e7-bb64-000c2979276a
--------------------------------------------
LABEL 0
--------------------------------------------
	version: 5000
	name: 'Nas1'
	state: 0
	txg: 3769314
	pool_guid: 161846103050843267
	hostid: 4136230323
	hostname: 'Nas.ons.local'
	top_guid: 3783523086985774304
	guid: 3783523086985774304
	vdev_children: 1
	vdev_tree:
		type: 'disk'
		id: 0
		guid: 3783523086985774304
		path: '/dev/gptid/3a37bc9d-5bf5-11e7-bb64-000c2979276a'
		whole_disk: 1
		metaslab_array: 38
		metaslab_shift: 34
		ashift: 12
		asize: 2196870791168
		is_log: 0
		create_txg: 4
	features_for_read:
		com.delphix:hole_birth
		com.delphix:embedded_data
Uberblock[0]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769600
		guid_sum = 3945369190036617571
		timestamp = 1519547834 UTC = Sun Feb 25 00:37:14 2018
Uberblock[1]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769601
		guid_sum = 3945369190036617571
		timestamp = 1519547841 UTC = Sun Feb 25 00:37:21 2018
Uberblock[2]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769602
		guid_sum = 3945369190036617571
		timestamp = 1519547846 UTC = Sun Feb 25 00:37:26 2018
Uberblock[3]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769603
		guid_sum = 3945369190036617571
		timestamp = 1519547852 UTC = Sun Feb 25 00:37:32 2018
Uberblock[4]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769604
		guid_sum = 3945369190036617571
		timestamp = 1519547858 UTC = Sun Feb 25 00:37:38 2018
Uberblock[5]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769605
		guid_sum = 3945369190036617571
		timestamp = 1519547863 UTC = Sun Feb 25 00:37:43 2018
Uberblock[6]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769606
		guid_sum = 3945369190036617571
		timestamp = 1519547869 UTC = Sun Feb 25 00:37:49 2018
Uberblock[7]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769607
		guid_sum = 3945369190036617571
		timestamp = 1519547875 UTC = Sun Feb 25 00:37:55 2018
Uberblock[8]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769608
		guid_sum = 3945369190036617571
		timestamp = 1519547881 UTC = Sun Feb 25 00:38:01 2018
Uberblock[9]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769609
		guid_sum = 3945369190036617571
		timestamp = 1519547887 UTC = Sun Feb 25 00:38:07 2018
Uberblock[10]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769610
		guid_sum = 3945369190036617571
		timestamp = 1519547892 UTC = Sun Feb 25 00:38:12 2018
Uberblock[11]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769611
		guid_sum = 3945369190036617571
		timestamp = 1519547898 UTC = Sun Feb 25 00:38:18 2018
Uberblock[12]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769612
		guid_sum = 3945369190036617571
		timestamp = 1519547904 UTC = Sun Feb 25 00:38:24 2018
Uberblock[13]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769613
		guid_sum = 3945369190036617571
		timestamp = 1519547911 UTC = Sun Feb 25 00:38:31 2018
Uberblock[14]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769614
		guid_sum = 3945369190036617571
		timestamp = 1519547917 UTC = Sun Feb 25 00:38:37 2018
Uberblock[15]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769615
		guid_sum = 3945369190036617571
		timestamp = 1519547923 UTC = Sun Feb 25 00:38:43 2018
Uberblock[16]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769584
		guid_sum = 3945369190036617571
		timestamp = 1519547730 UTC = Sun Feb 25 00:35:30 2018
Uberblock[17]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769585
		guid_sum = 3945369190036617571
		timestamp = 1519547737 UTC = Sun Feb 25 00:35:37 2018
Uberblock[18]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769586
		guid_sum = 3945369190036617571
		timestamp = 1519547744 UTC = Sun Feb 25 00:35:44 2018
Uberblock[19]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769587
		guid_sum = 3945369190036617571
		timestamp = 1519547751 UTC = Sun Feb 25 00:35:51 2018
Uberblock[20]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769588
		guid_sum = 3945369190036617571
		timestamp = 1519547757 UTC = Sun Feb 25 00:35:57 2018
Uberblock[21]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769589
		guid_sum = 3945369190036617571
		timestamp = 1519547763 UTC = Sun Feb 25 00:36:03 2018
Uberblock[22]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769590
		guid_sum = 3945369190036617571
		timestamp = 1519547769 UTC = Sun Feb 25 00:36:09 2018
Uberblock[23]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769591
		guid_sum = 3945369190036617571
		timestamp = 1519547776 UTC = Sun Feb 25 00:36:16 2018
Uberblock[24]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769592
		guid_sum = 3945369190036617571
		timestamp = 1519547782 UTC = Sun Feb 25 00:36:22 2018
Uberblock[25]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769593
		guid_sum = 3945369190036617571
		timestamp = 1519547788 UTC = Sun Feb 25 00:36:28 2018
Uberblock[26]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769594
		guid_sum = 3945369190036617571
		timestamp = 1519547794 UTC = Sun Feb 25 00:36:34 2018
Uberblock[27]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769595
		guid_sum = 3945369190036617571
		timestamp = 1519547801 UTC = Sun Feb 25 00:36:41 2018
Uberblock[28]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769596
		guid_sum = 3945369190036617571
		timestamp = 1519547807 UTC = Sun Feb 25 00:36:47 2018
Uberblock[29]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769597
		guid_sum = 3945369190036617571
		timestamp = 1519547813 UTC = Sun Feb 25 00:36:53 2018
Uberblock[30]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769598
		guid_sum = 3945369190036617571
		timestamp = 1519547820 UTC = Sun Feb 25 00:37:00 2018
Uberblock[31]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769599
		guid_sum = 3945369190036617571
		timestamp = 1519547828 UTC = Sun Feb 25 00:37:08 2018
--------------------------------------------
LABEL 1
--------------------------------------------
	version: 5000
	name: 'Nas1'
	state: 0
	txg: 3769314
	pool_guid: 161846103050843267
	hostid: 4136230323
	hostname: 'Nas.ons.local'
	top_guid: 3783523086985774304
	guid: 3783523086985774304
	vdev_children: 1
	vdev_tree:
		type: 'disk'
		id: 0
		guid: 3783523086985774304
		path: '/dev/gptid/3a37bc9d-5bf5-11e7-bb64-000c2979276a'
		whole_disk: 1
		metaslab_array: 38
		metaslab_shift: 34
		ashift: 12
		asize: 2196870791168
		is_log: 0
		create_txg: 4
	features_for_read:
		com.delphix:hole_birth
		com.delphix:embedded_data
Uberblock[0]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769600
		guid_sum = 3945369190036617571
		timestamp = 1519547834 UTC = Sun Feb 25 00:37:14 2018
Uberblock[1]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769601
		guid_sum = 3945369190036617571
		timestamp = 1519547841 UTC = Sun Feb 25 00:37:21 2018
Uberblock[2]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769602
		guid_sum = 3945369190036617571
		timestamp = 1519547846 UTC = Sun Feb 25 00:37:26 2018
Uberblock[3]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769603
		guid_sum = 3945369190036617571
		timestamp = 1519547852 UTC = Sun Feb 25 00:37:32 2018
Uberblock[4]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769604
		guid_sum = 3945369190036617571
		timestamp = 1519547858 UTC = Sun Feb 25 00:37:38 2018
Uberblock[5]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769605
		guid_sum = 3945369190036617571
		timestamp = 1519547863 UTC = Sun Feb 25 00:37:43 2018
Uberblock[6]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769606
		guid_sum = 3945369190036617571
		timestamp = 1519547869 UTC = Sun Feb 25 00:37:49 2018
Uberblock[7]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769607
		guid_sum = 3945369190036617571
		timestamp = 1519547875 UTC = Sun Feb 25 00:37:55 2018
Uberblock[8]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769608
		guid_sum = 3945369190036617571
		timestamp = 1519547881 UTC = Sun Feb 25 00:38:01 2018
Uberblock[9]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769609
		guid_sum = 3945369190036617571
		timestamp = 1519547887 UTC = Sun Feb 25 00:38:07 2018
Uberblock[10]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769610
		guid_sum = 3945369190036617571
		timestamp = 1519547892 UTC = Sun Feb 25 00:38:12 2018
Uberblock[11]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769611
		guid_sum = 3945369190036617571
		timestamp = 1519547898 UTC = Sun Feb 25 00:38:18 2018
Uberblock[12]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769612
		guid_sum = 3945369190036617571
		timestamp = 1519547904 UTC = Sun Feb 25 00:38:24 2018
Uberblock[13]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769613
		guid_sum = 3945369190036617571
		timestamp = 1519547911 UTC = Sun Feb 25 00:38:31 2018
Uberblock[14]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769614
		guid_sum = 3945369190036617571
		timestamp = 1519547917 UTC = Sun Feb 25 00:38:37 2018
Uberblock[15]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769615
		guid_sum = 3945369190036617571
		timestamp = 1519547923 UTC = Sun Feb 25 00:38:43 2018
Uberblock[16]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769616
		guid_sum = 3945369190036617571
		timestamp = 1519547929 UTC = Sun Feb 25 00:38:49 2018
Uberblock[17]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769617
		guid_sum = 3945369190036617571
		timestamp = 1519547935 UTC = Sun Feb 25 00:38:55 2018
Uberblock[18]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769586
		guid_sum = 3945369190036617571
		timestamp = 1519547744 UTC = Sun Feb 25 00:35:44 2018
Uberblock[19]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769587
		guid_sum = 3945369190036617571
		timestamp = 1519547751 UTC = Sun Feb 25 00:35:51 2018
Uberblock[20]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769588
		guid_sum = 3945369190036617571
		timestamp = 1519547757 UTC = Sun Feb 25 00:35:57 2018
Uberblock[21]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769589
		guid_sum = 3945369190036617571
		timestamp = 1519547763 UTC = Sun Feb 25 00:36:03 2018
Uberblock[22]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769590
		guid_sum = 3945369190036617571
		timestamp = 1519547769 UTC = Sun Feb 25 00:36:09 2018
Uberblock[23]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769591
		guid_sum = 3945369190036617571
		timestamp = 1519547776 UTC = Sun Feb 25 00:36:16 2018
Uberblock[24]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769592
		guid_sum = 3945369190036617571
		timestamp = 1519547782 UTC = Sun Feb 25 00:36:22 2018
Uberblock[25]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769593
		guid_sum = 3945369190036617571
		timestamp = 1519547788 UTC = Sun Feb 25 00:36:28 2018
Uberblock[26]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769594
		guid_sum = 3945369190036617571
		timestamp = 1519547794 UTC = Sun Feb 25 00:36:34 2018
Uberblock[27]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769595
		guid_sum = 3945369190036617571
		timestamp = 1519547801 UTC = Sun Feb 25 00:36:41 2018
Uberblock[28]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769596
		guid_sum = 3945369190036617571
		timestamp = 1519547807 UTC = Sun Feb 25 00:36:47 2018
Uberblock[29]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769597
		guid_sum = 3945369190036617571
		timestamp = 1519547813 UTC = Sun Feb 25 00:36:53 2018
Uberblock[30]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769438
		guid_sum = 3945369190036617571
		timestamp = 1519546760 UTC = Sun Feb 25 00:19:20 2018
Uberblock[31]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769439
		guid_sum = 3945369190036617571
		timestamp = 1519546770 UTC = Sun Feb 25 00:19:30 2018
--------------------------------------------
LABEL 2
--------------------------------------------
	version: 5000
	name: 'Nas1'
	state: 0
	txg: 3769314
	pool_guid: 161846103050843267
	hostid: 4136230323
	hostname: 'Nas.ons.local'
	top_guid: 3783523086985774304
	guid: 3783523086985774304
	vdev_children: 1
	vdev_tree:
		type: 'disk'
		id: 0
		guid: 3783523086985774304
		path: '/dev/gptid/3a37bc9d-5bf5-11e7-bb64-000c2979276a'
		whole_disk: 1
		metaslab_array: 38
		metaslab_shift: 34
		ashift: 12
		asize: 2196870791168
		is_log: 0
		create_txg: 4
	features_for_read:
		com.delphix:hole_birth
		com.delphix:embedded_data
Uberblock[0]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769600
		guid_sum = 3945369190036617571
		timestamp = 1519547834 UTC = Sun Feb 25 00:37:14 2018
Uberblock[1]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769601
		guid_sum = 3945369190036617571
		timestamp = 1519547841 UTC = Sun Feb 25 00:37:21 2018
Uberblock[2]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769602
		guid_sum = 3945369190036617571
		timestamp = 1519547846 UTC = Sun Feb 25 00:37:26 2018
Uberblock[3]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769603
		guid_sum = 3945369190036617571
		timestamp = 1519547852 UTC = Sun Feb 25 00:37:32 2018
Uberblock[4]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769604
		guid_sum = 3945369190036617571
		timestamp = 1519547858 UTC = Sun Feb 25 00:37:38 2018
Uberblock[5]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769605
		guid_sum = 3945369190036617571
		timestamp = 1519547863 UTC = Sun Feb 25 00:37:43 2018
Uberblock[6]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769606
		guid_sum = 3945369190036617571
		timestamp = 1519547869 UTC = Sun Feb 25 00:37:49 2018
Uberblock[7]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769607
		guid_sum = 3945369190036617571
		timestamp = 1519547875 UTC = Sun Feb 25 00:37:55 2018
Uberblock[8]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769608
		guid_sum = 3945369190036617571
		timestamp = 1519547881 UTC = Sun Feb 25 00:38:01 2018
Uberblock[9]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769609
		guid_sum = 3945369190036617571
		timestamp = 1519547887 UTC = Sun Feb 25 00:38:07 2018
Uberblock[10]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769610
		guid_sum = 3945369190036617571
		timestamp = 1519547892 UTC = Sun Feb 25 00:38:12 2018
Uberblock[11]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769611
		guid_sum = 3945369190036617571
		timestamp = 1519547898 UTC = Sun Feb 25 00:38:18 2018
Uberblock[12]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769612
		guid_sum = 3945369190036617571
		timestamp = 1519547904 UTC = Sun Feb 25 00:38:24 2018
Uberblock[13]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769613
		guid_sum = 3945369190036617571
		timestamp = 1519547911 UTC = Sun Feb 25 00:38:31 2018
Uberblock[14]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769614
		guid_sum = 3945369190036617571
		timestamp = 1519547917 UTC = Sun Feb 25 00:38:37 2018
Uberblock[15]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769615
		guid_sum = 3945369190036617571
		timestamp = 1519547923 UTC = Sun Feb 25 00:38:43 2018
Uberblock[16]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769616
		guid_sum = 3945369190036617571
		timestamp = 1519547929 UTC = Sun Feb 25 00:38:49 2018
Uberblock[17]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769617
		guid_sum = 3945369190036617571
		timestamp = 1519547935 UTC = Sun Feb 25 00:38:55 2018
Uberblock[18]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769586
		guid_sum = 3945369190036617571
		timestamp = 1519547744 UTC = Sun Feb 25 00:35:44 2018
Uberblock[19]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769587
		guid_sum = 3945369190036617571
		timestamp = 1519547751 UTC = Sun Feb 25 00:35:51 2018
Uberblock[20]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769588
		guid_sum = 3945369190036617571
		timestamp = 1519547757 UTC = Sun Feb 25 00:35:57 2018
Uberblock[21]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769589
		guid_sum = 3945369190036617571
		timestamp = 1519547763 UTC = Sun Feb 25 00:36:03 2018
Uberblock[22]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769590
		guid_sum = 3945369190036617571
		timestamp = 1519547769 UTC = Sun Feb 25 00:36:09 2018
Uberblock[23]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769591
		guid_sum = 3945369190036617571
		timestamp = 1519547776 UTC = Sun Feb 25 00:36:16 2018
Uberblock[24]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769592
		guid_sum = 3945369190036617571
		timestamp = 1519547782 UTC = Sun Feb 25 00:36:22 2018
Uberblock[25]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769593
		guid_sum = 3945369190036617571
		timestamp = 1519547788 UTC = Sun Feb 25 00:36:28 2018
Uberblock[26]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769594
		guid_sum = 3945369190036617571
		timestamp = 1519547794 UTC = Sun Feb 25 00:36:34 2018
Uberblock[27]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769595
		guid_sum = 3945369190036617571
		timestamp = 1519547801 UTC = Sun Feb 25 00:36:41 2018
Uberblock[28]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769596
		guid_sum = 3945369190036617571
		timestamp = 1519547807 UTC = Sun Feb 25 00:36:47 2018
Uberblock[29]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769597
		guid_sum = 3945369190036617571
		timestamp = 1519547813 UTC = Sun Feb 25 00:36:53 2018
Uberblock[30]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769598
		guid_sum = 3945369190036617571
		timestamp = 1519547820 UTC = Sun Feb 25 00:37:00 2018
Uberblock[31]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769599
		guid_sum = 3945369190036617571
		timestamp = 1519547828 UTC = Sun Feb 25 00:37:08 2018
--------------------------------------------
LABEL 3
--------------------------------------------
	version: 5000
	name: 'Nas1'
	state: 0
	txg: 3769314
	pool_guid: 161846103050843267
	hostid: 4136230323
	hostname: 'Nas.ons.local'
	top_guid: 3783523086985774304
	guid: 3783523086985774304
	vdev_children: 1
	vdev_tree:
		type: 'disk'
		id: 0
		guid: 3783523086985774304
		path: '/dev/gptid/3a37bc9d-5bf5-11e7-bb64-000c2979276a'
		whole_disk: 1
		metaslab_array: 38
		metaslab_shift: 34
		ashift: 12
		asize: 2196870791168
		is_log: 0
		create_txg: 4
	features_for_read:
		com.delphix:hole_birth
		com.delphix:embedded_data
Uberblock[0]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769600
		guid_sum = 3945369190036617571
		timestamp = 1519547834 UTC = Sun Feb 25 00:37:14 2018
Uberblock[1]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769601
		guid_sum = 3945369190036617571
		timestamp = 1519547841 UTC = Sun Feb 25 00:37:21 2018
Uberblock[2]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769602
		guid_sum = 3945369190036617571
		timestamp = 1519547846 UTC = Sun Feb 25 00:37:26 2018
Uberblock[3]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769603
		guid_sum = 3945369190036617571
		timestamp = 1519547852 UTC = Sun Feb 25 00:37:32 2018
Uberblock[4]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769604
		guid_sum = 3945369190036617571
		timestamp = 1519547858 UTC = Sun Feb 25 00:37:38 2018
Uberblock[5]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769605
		guid_sum = 3945369190036617571
		timestamp = 1519547863 UTC = Sun Feb 25 00:37:43 2018
Uberblock[6]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769606
		guid_sum = 3945369190036617571
		timestamp = 1519547869 UTC = Sun Feb 25 00:37:49 2018
Uberblock[7]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769607
		guid_sum = 3945369190036617571
		timestamp = 1519547875 UTC = Sun Feb 25 00:37:55 2018
Uberblock[8]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769608
		guid_sum = 3945369190036617571
		timestamp = 1519547881 UTC = Sun Feb 25 00:38:01 2018
Uberblock[9]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769609
		guid_sum = 3945369190036617571
		timestamp = 1519547887 UTC = Sun Feb 25 00:38:07 2018
Uberblock[10]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769610
		guid_sum = 3945369190036617571
		timestamp = 1519547892 UTC = Sun Feb 25 00:38:12 2018
Uberblock[11]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769611
		guid_sum = 3945369190036617571
		timestamp = 1519547898 UTC = Sun Feb 25 00:38:18 2018
Uberblock[12]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769612
		guid_sum = 3945369190036617571
		timestamp = 1519547904 UTC = Sun Feb 25 00:38:24 2018
Uberblock[13]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769613
		guid_sum = 3945369190036617571
		timestamp = 1519547911 UTC = Sun Feb 25 00:38:31 2018
Uberblock[14]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769614
		guid_sum = 3945369190036617571
		timestamp = 1519547917 UTC = Sun Feb 25 00:38:37 2018
Uberblock[15]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769615
		guid_sum = 3945369190036617571
		timestamp = 1519547923 UTC = Sun Feb 25 00:38:43 2018
Uberblock[16]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769616
		guid_sum = 3945369190036617571
		timestamp = 1519547929 UTC = Sun Feb 25 00:38:49 2018
Uberblock[17]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769617
		guid_sum = 3945369190036617571
		timestamp = 1519547935 UTC = Sun Feb 25 00:38:55 2018
Uberblock[18]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769586
		guid_sum = 3945369190036617571
		timestamp = 1519547744 UTC = Sun Feb 25 00:35:44 2018
Uberblock[19]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769587
		guid_sum = 3945369190036617571
		timestamp = 1519547751 UTC = Sun Feb 25 00:35:51 2018
Uberblock[20]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769588
		guid_sum = 3945369190036617571
		timestamp = 1519547757 UTC = Sun Feb 25 00:35:57 2018
Uberblock[21]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769589
		guid_sum = 3945369190036617571
		timestamp = 1519547763 UTC = Sun Feb 25 00:36:03 2018
Uberblock[22]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769590
		guid_sum = 3945369190036617571
		timestamp = 1519547769 UTC = Sun Feb 25 00:36:09 2018
Uberblock[23]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769591
		guid_sum = 3945369190036617571
		timestamp = 1519547776 UTC = Sun Feb 25 00:36:16 2018
Uberblock[24]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769592
		guid_sum = 3945369190036617571
		timestamp = 1519547782 UTC = Sun Feb 25 00:36:22 2018
Uberblock[25]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769593
		guid_sum = 3945369190036617571
		timestamp = 1519547788 UTC = Sun Feb 25 00:36:28 2018
Uberblock[26]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769594
		guid_sum = 3945369190036617571
		timestamp = 1519547794 UTC = Sun Feb 25 00:36:34 2018
Uberblock[27]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769595
		guid_sum = 3945369190036617571
		timestamp = 1519547801 UTC = Sun Feb 25 00:36:41 2018
Uberblock[28]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769596
		guid_sum = 3945369190036617571
		timestamp = 1519547807 UTC = Sun Feb 25 00:36:47 2018
Uberblock[29]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769597
		guid_sum = 3945369190036617571
		timestamp = 1519547813 UTC = Sun Feb 25 00:36:53 2018
Uberblock[30]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769598
		guid_sum = 3945369190036617571
		timestamp = 1519547820 UTC = Sun Feb 25 00:37:00 2018
Uberblock[31]
		magic = 0000000000bab10c
		version = 5000
		txg = 3769599
		guid_sum = 3945369190036617571
		timestamp = 1519547828 UTC = Sun Feb 25 00:37:08 2018
root@Nas:~ #

and this is result of this syntax
Code:
root@Nas:~ # zdb -e -d -s Nas1
Dataset mos [META], ID 0, cr_txg 4, 58.7M, 219 objects
Dataset Nas1/Software/ControlProject [ZPL], ID 108, cr_txg 40482, 88.0K, 7 objects
Dataset Nas1/Software/Backup And Replication [ZPL], ID 132, cr_txg 40121, 144K, 10 objects
Dataset Nas1/Software/Drivers [ZPL], ID 140, cr_txg 40679, 88.0K, 7 objects
Dataset Nas1/Software/Database [ZPL], ID 125, cr_txg 38201, 112K, 7 objects
Dataset Nas1/Software/Programming [ZPL], ID 114, cr_txg 35097, 95.9G, 752566 objects
Dataset Nas1/Software/Other Application [ZPL], ID 156, cr_txg 190090, 115G, 28010 objects
Dataset Nas1/Software [ZPL], ID 45, cr_txg 7, 120G, 110506 objects
Could not open Nas1/.system/syslog-66311c036e824820af44b2dbf4c55f10, error 5
Dataset Nas1/.system/rrd-66311c036e824820af44b2dbf4c55f10 [ZPL], ID 94, cr_txg 24, 16.2M, 416 objects
Could not open Nas1/.system/samba4, error 5
Dataset Nas1/.system/cores [ZPL], ID 76, cr_txg 18, 38.5M, 11 objects
Dataset Nas1/.system/configs-66311c036e824820af44b2dbf4c55f10 [ZPL], ID 100, cr_txg 26, 22.0M, 232 objects
Could not open Nas1/.system, error 5
Dataset Nas1/Personal [ZPL], ID 64, cr_txg 13, 226G, 1234785 objects
Dataset Nas1/jails [ZPL], ID 146, cr_txg 54723, 88.0K, 7 objects
Dataset Nas1/Temp [ZPL], ID 58, cr_txg 11, 177G, 1371240 objects
Dataset Nas1/LearnFile [ZPL], ID 52, cr_txg 9, 88.0K, 8 objects
Dataset Nas1 [ZPL], ID 21, cr_txg 1, 96.0K, 13 objects
Verified large_blocks feature refcount of 0 is correct
Verified sha512 feature refcount of 0 is correct
Verified skein feature refcount of 0 is correct
space map refcount mismatch: expected 77 != actual 72
							capacity   operations   bandwidth  ---- errors ----
description				used avail  read write  read write  read write cksum
Nas1					   752G 1.25T   198	 0 1.63M	 0	 0	 0	 3
  /dev/gptid/3a37bc9d-5bf5-11e7-bb64-000c2979276a  752G 1.25T   198	 0 1.63M	 0	 0	 0	12
root@Nas:~ #

Last edited by a moderator:

Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,194
It looks like spacemap corruption. Importing the pool read-only might allow you to read everything off the pool.


rs225

Guru
Joined
Jun 28, 2014
Messages
878
It looks like some write caching was going on, so your metadata is scrambled.

I've never seen it work, but you can try each of these to see if any work or give an error beside "one or more devices is currently unavailable".
Code:
zpool import -o readonly=on -T 3769617 Nas1
zpool import -o readonly=on -T 3769616 Nas1
zpool import -o readonly=on -T 3769615 Nas1


madiseh

Cadet
Joined
Feb 26, 2018
Messages
9
It looks like some write caching was going on, so your metadata is scrambled.

I've never seen it work, but you can try each of these to see if any work or give an error beside "one or more devices is currently unavailable".
Code:
zpool import -o readonly=on -T 3769617 Nas1
zpool import -o readonly=on -T 3769616 Nas1
zpool import -o readonly=on -T 3769615 Nas1

thanks for your reply
after two day
i cant get result of this syntax
Code:
zpool import -o readonly=on -T 3769617 Nas1

how much time to get result ?
and this is dmesg result now
Code:
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 02 b8 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 01 b8 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 00 38 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 00 18 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 00 a8 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 00 d8 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 00 58 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 01 c8 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 02 38 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 02 78 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error
(da2:mpt0:0:2:0): UNMAP. CDB: 42 00 00 00 00 00 00 01 98 00
(da2:mpt0:0:2:0): CAM status: SCSI Status Error
(da2:mpt0:0:2:0): SCSI status: Check Condition
(da2:mpt0:0:2:0): SCSI sense: Vendor Specific asc:0,0 (No additional sense information)
(da2:mpt0:0:2:0): Error 5, Unretryable error


Status
Not open for further replies.
Top
