Benchmark on Windows 2016 bhyve VM

Western Digital Drives - The Preferred Drives of FreeNAS and TrueNAS CORE
Status
Not open for further replies.

Tino Zidore

Member
Joined
Nov 23, 2015
Messages
30
Hi

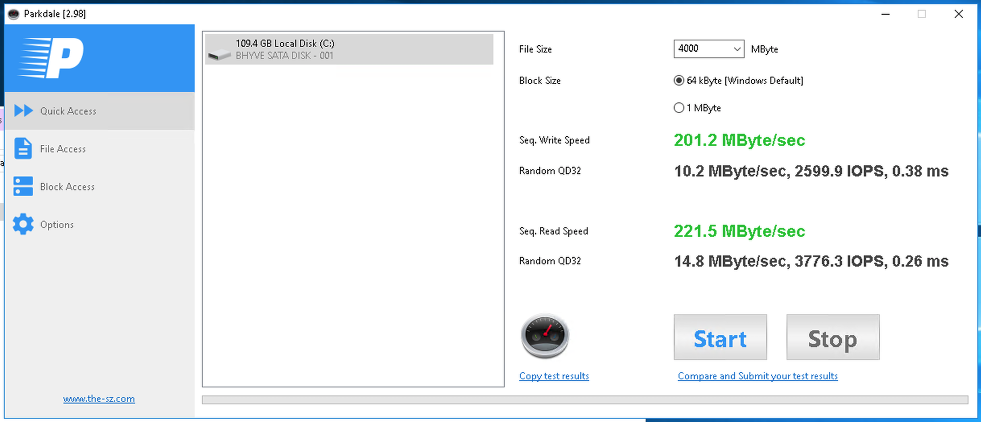

I was wondering if anyone could explain to me why the attached image benchmarks on my Windows Server 2016 is so low.

Freenas system:
Supermicro SuperServer 2027PR-DC0TR
Intel(R) Xeon(R) CPU E5-2690 v2 @ 3.00GHz
128 GB RAM

The VM_TANK:
2 mirrored vdevs with 2 x SanDisk SDSSDH31000G

I have made a zvol on the VM_TANK for the Windows server 2016.
The VM has:
8 x vCPUs
8192 MB RAM

The faster read/write and IOPS speed of the 4 mirrored SSDs should be more than enough to handle a zvol or am I wrong?

Anyone having a similar setup with other results?

The VM is running just fine but I wonder why the benchmark is this low?

See attached image.


Attachments

kdragon75

Dedicated Sage
Joined
Aug 7, 2016
Messages
2,464
What is the ZFS record size on the zvol?


Tino Zidore

Member
Joined
Nov 23, 2015
Messages
30
It is 16K

VM_TANK/vms/dc01 type volume -
VM_TANK/vms/dc01 creation Tue Jun 5 19:45 2018 -
VM_TANK/vms/dc01 used 29.4G -
VM_TANK/vms/dc01 available 1.32T -
VM_TANK/vms/dc01 referenced 12.7G -
VM_TANK/vms/dc01 compressratio 1.43x -
VM_TANK/vms/dc01 reservation none default
VM_TANK/vms/dc01 volsize 110G local
VM_TANK/vms/dc01 volblocksize 16K -
VM_TANK/vms/dc01 checksum on default
VM_TANK/vms/dc01 compression lz4 inherited from VM_TANK
VM_TANK/vms/dc01 readonly off default
VM_TANK/vms/dc01 copies 1 default
VM_TANK/vms/dc01 refreservation none default
VM_TANK/vms/dc01 primarycache all default
VM_TANK/vms/dc01 secondarycache all default
VM_TANK/vms/dc01 usedbysnapshots 16.7G -
VM_TANK/vms/dc01 usedbydataset 12.7G -
VM_TANK/vms/dc01 usedbychildren 0 -
VM_TANK/vms/dc01 usedbyrefreservation 0 -
VM_TANK/vms/dc01 logbias latency default
VM_TANK/vms/dc01 dedup off default
VM_TANK/vms/dc01 mlslabel -
VM_TANK/vms/dc01 sync standard local
VM_TANK/vms/dc01 refcompressratio 1.40x -
VM_TANK/vms/dc01 written 824M -
VM_TANK/vms/dc01 logicalused 41.4G -
VM_TANK/vms/dc01 logicalreferenced 17.8G -
VM_TANK/vms/dc01 volmode default default
VM_TANK/vms/dc01 snapshot_limit none default
VM_TANK/vms/dc01 snapshot_count none default
VM_TANK/vms/dc01 redundant_metadata all default
VM_TANK/vms/dc01 org.freenas:description local

Last edited:
