I moved over to TrueNAS-SCALE-23.10.1 over the past week and noticing a very bad performance regression.
I have a replication task to backup my main pool to an external USB 3.0 drive. I rotate through USB drives and store one off site for disaster recovery. I'm attempting to perform a fresh replication from scratch (empty dataset) and the performance is incredibly slow, thrashing between 70 MiB/s to only 10 MiB/s. This is causing a replication task for about 3 TiB to take days.
The USB drive/pool is a 1 x DISK | 1 wide | 4.55 TiB configuration. The USB pool is encrypted at the root. The source pool is 1 x RAIDZ2 | 6 wide | 2.73 TiB with no encryption.
The USB drive itself can do sustained sequential writes of 150 MiB/s or more, so that's not the bottleneck. I'm trying to figure out what is occurring before reverting back to TrueNas CORE (which didn't have this problem).

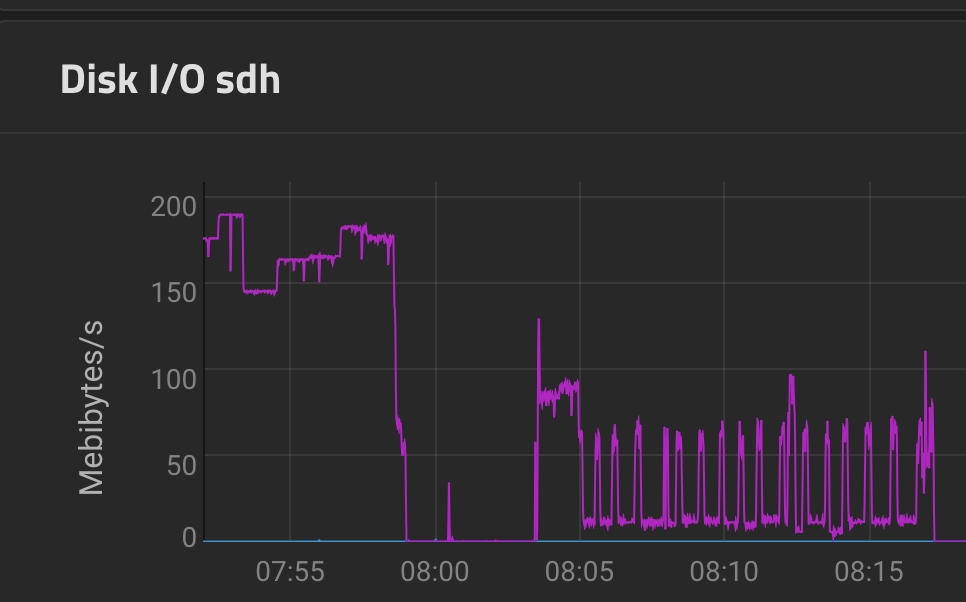

Graph of drive throughput below. The first part shows a sequential write test, followed by a replication task start around 08:03. The replication task seems to work OK for about 4 minutes (90MiB/s sustained), and then it starts to thrash.
Note that advanced power management is disabled for all drives.

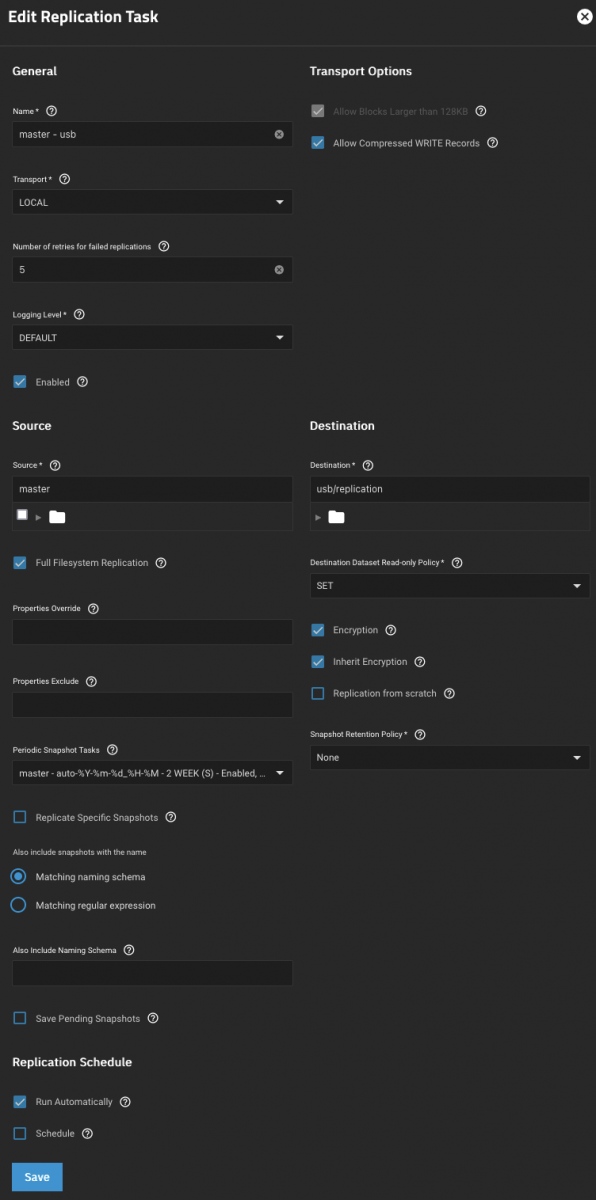

Replication task configuration below:
System info:
RAM: 32 GiB ECC
CPU: i3-4160 CPU @ 3.60GHz
Motherboard: Supermicro X10SL7-F
USB dataset settings:
Source dataset settings:
I have a replication task to backup my main pool to an external USB 3.0 drive. I rotate through USB drives and store one off site for disaster recovery. I'm attempting to perform a fresh replication from scratch (empty dataset) and the performance is incredibly slow, thrashing between 70 MiB/s to only 10 MiB/s. This is causing a replication task for about 3 TiB to take days.
The USB drive/pool is a 1 x DISK | 1 wide | 4.55 TiB configuration. The USB pool is encrypted at the root. The source pool is 1 x RAIDZ2 | 6 wide | 2.73 TiB with no encryption.
The USB drive itself can do sustained sequential writes of 150 MiB/s or more, so that's not the bottleneck. I'm trying to figure out what is occurring before reverting back to TrueNas CORE (which didn't have this problem).
Graph of drive throughput below. The first part shows a sequential write test, followed by a replication task start around 08:03. The replication task seems to work OK for about 4 minutes (90MiB/s sustained), and then it starts to thrash.
Note that advanced power management is disabled for all drives.
Replication task configuration below:
System info:
RAM: 32 GiB ECC
CPU: i3-4160 CPU @ 3.60GHz
Motherboard: Supermicro X10SL7-F
USB dataset settings:
Code:
root@nas[~]# zfs get all usb NAME PROPERTY VALUE SOURCE usb type filesystem - usb creation Tue Jan 9 8:26 2024 - usb used 75.5G - usb available 4.33T - usb referenced 192K - usb compressratio 1.09x - usb mounted yes - usb quota none default usb reservation none default usb recordsize 128K default usb mountpoint /mnt/usb default usb sharenfs off default usb checksum on default usb compression lz4 local usb atime off local usb devices on default usb exec on default usb setuid on default usb readonly off default usb zoned off default usb snapdir hidden default usb aclmode discard local usb aclinherit passthrough local usb createtxg 1 - usb canmount on default usb xattr on default usb copies 1 default usb version 5 - usb utf8only off - usb normalization none - usb casesensitivity sensitive - usb vscan off default usb nbmand off default usb sharesmb off default usb refquota none default usb refreservation none default usb guid xxxxxxxxx - usb primarycache all default usb secondarycache all default usb usedbysnapshots 0B - usb usedbydataset 192K - usb usedbychildren 75.5G - usb usedbyrefreservation 0B - usb logbias latency default usb objsetid 54 - usb dedup off default usb mlslabel none default usb sync standard default usb dnodesize legacy default usb refcompressratio 1.00x - usb written 192K - usb logicalused 81.9G - usb logicalreferenced 69K - usb volmode default default usb filesystem_limit none default usb snapshot_limit none default usb filesystem_count none default usb snapshot_count none default usb snapdev hidden default usb acltype posix local usb context none default usb fscontext none default usb defcontext none default usb rootcontext none default usb relatime on default usb redundant_metadata all default usb overlay on default usb encryption aes-256-gcm - usb keylocation prompt local usb keyformat hex - usb pbkdf2iters 0 default usb encryptionroot usb - usb keystatus available - usb special_small_blocks 0 default
Source dataset settings:
Code:
root@nas[~]# zfs get all master NAME PROPERTY VALUE SOURCE master type filesystem - master creation Sat Feb 1 8:49 2020 - master used 3.04T - master available 7.64T - master referenced 122M - master compressratio 1.34x - master mounted yes - master quota none default master reservation none default master recordsize 128K local master mountpoint /mnt/master default master sharenfs off local master checksum on local master compression lz4 local master atime off local master devices on default master exec off local master setuid on default master readonly off local master zoned off default master snapdir hidden local master aclmode passthrough local master aclinherit passthrough local master createtxg 1 - master canmount on default master xattr on default master copies 1 local master version 5 - master utf8only off - master normalization none - master casesensitivity sensitive - master vscan off default master nbmand off default master sharesmb off local master refquota none default master refreservation none default master guid xxxxxxxxx - master primarycache all default master secondarycache all default master usedbysnapshots 559K - master usedbydataset 122M - master usedbychildren 3.04T - master usedbyrefreservation 0B - master logbias latency default master objsetid 21 - master dedup off local master mlslabel none default master sync standard local master dnodesize legacy default master refcompressratio 1.00x - master written 0 - master logicalused 3.63T - master logicalreferenced 122M - master volmode default default master filesystem_limit none default master snapshot_limit none default master filesystem_count none default master snapshot_count none default master snapdev hidden local master acltype nfsv4 default master context none default master fscontext none default master defcontext none default master rootcontext none default master relatime on default master redundant_metadata all default master overlay on default master encryption off default master keylocation none default master keyformat none default master pbkdf2iters 0 default master special_small_blocks 0 local master snapshots_changed Tue Jan 9 8:17:17 2024 - master org.freenas:description local master org.freebsd.ioc:active yes local
