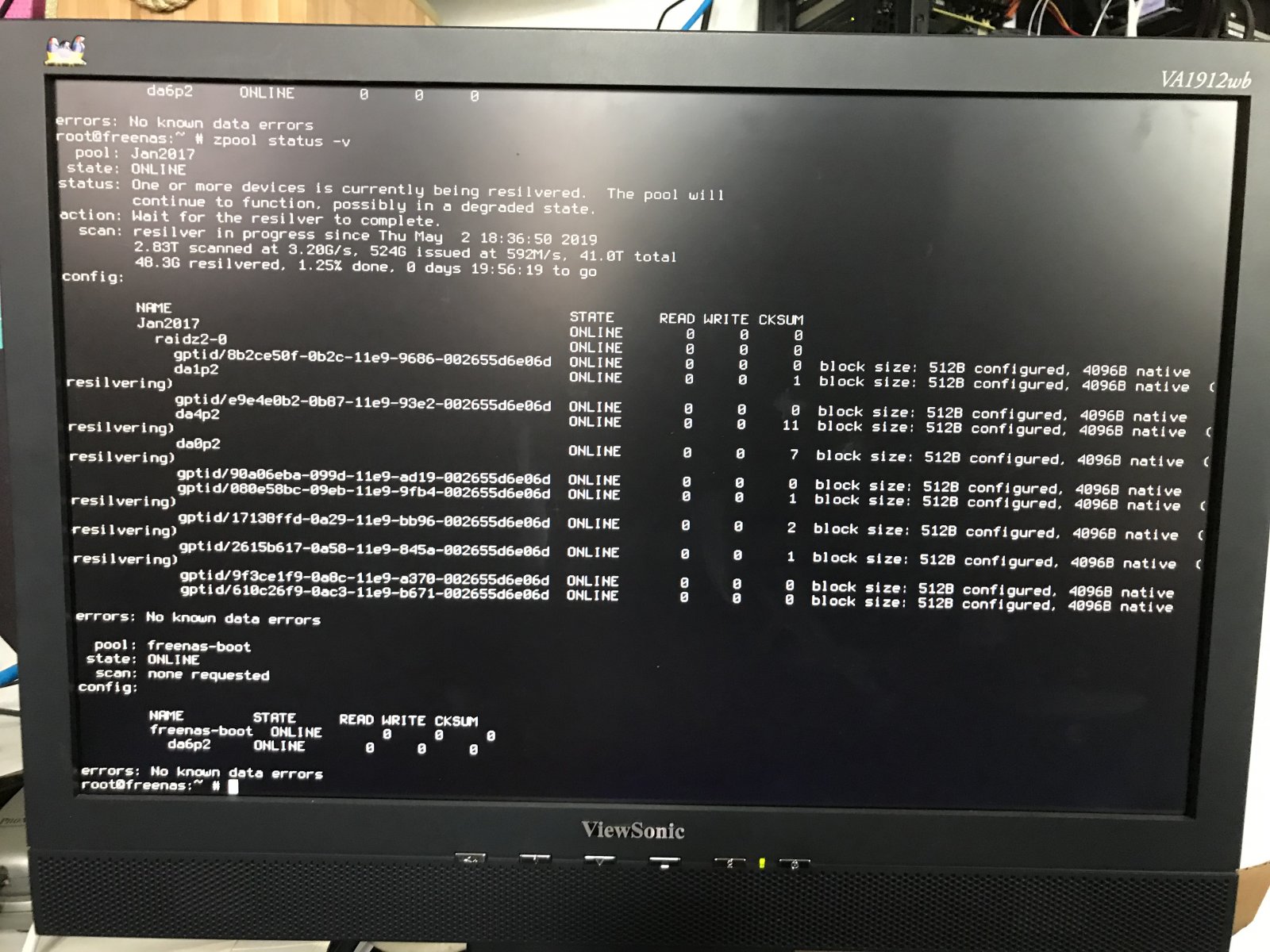

I ordered a LSI SAS Contrroller with an IBM Expander. I read that I could just hook my drives up to them and FreeNAS would see them with no issue. Once I booted up 4 of the 11 drives began resilvering. This went to about 2% and then crashed the computer. I removed the drives from the new controller/expander an put the drives back to the motherboard SATA ports and the Asmedia controller. The thing is I don't remember the exact order that each specific drive went to each specific SATA port (I was under the impression it wasn't supposed to make a difference). Now when booting up- 6 of the 11 drives are resilvering. It crashed arund 1% and that's when I kept it turned off and now I'm writing this post. I just ordered a SuperMicro server motherboard, ECC RAM, and Intel Xeon CPU. I didn't have time to record any info, but I did take the attached picture. Hardware info should be in my signature. I was running 11.2-U3, but that started crashing when I started doing transfers from macOS (for no reason I can explain). I rolled back to 11.1-U5 and it was running stable until I added the SAS/Expander. Please help.
-
Important Announcement for the TrueNAS Community.
The TrueNAS Community has now been moved. This forum will now become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums
6 of 11 drives resilvering and then crashing with reboot
- Thread starter DCswitch
- Start date
When I installed 11.1-U5 - I did it from scratch and did not upload a configuration file. I never got around to adding back any tunables. You can see I joined in Dec 2013. I have been running FreeNAS stable/successfully for more than 5 years on this same hardware. What the heck is going on?
Last edited:
2nd-in-charge
Explorer
- Joined
- Jan 10, 2017
- Messages
- 94
What controller and what firmware?
I would disconnect the drives and run memtest. Note that all resilvering drives have checksum errors.
LSI SAS 9207-8i SATA/SAS 6Gb/s PCI-E 3.0 Host Bus Adapter IT Mode SAS9207-8i US and
IBM 46M0997 ServeRAID Expansion Adapter 16-Port SAS Expander
Latest firmware from online- it was version 20 from 2015/2016.
Running a memory test is the one thing I haven't tested and I can, but my new (used) SuperMicro Server motherboard is being shipped now. I already have ECC memory and two Intel Xeon CPUs waiting for it. I'm thinking I should just wait for the motherboard to arrive. I feel that my particular setup wants the drives in a certain order and that involves connecting them to each port in the right order. I say this because I have changed HDD's in the past with this setup. I used to have 4 TB drives and I upgraded them all to 8 TB. I remember having to change failing drives and if I put the drives out of order than it would resilver. Back then it was okay because it was only one drive at a time. This time it's scary because it's trying to do 6 at the same time. I want to figure out which 5 drives are okay right now, tag them, and then try putting the other 6 in a different order (on different SATA ports). I'm not touching anything though until I hear from more people.
IBM 46M0997 ServeRAID Expansion Adapter 16-Port SAS Expander
Latest firmware from online- it was version 20 from 2015/2016.
Running a memory test is the one thing I haven't tested and I can, but my new (used) SuperMicro Server motherboard is being shipped now. I already have ECC memory and two Intel Xeon CPUs waiting for it. I'm thinking I should just wait for the motherboard to arrive. I feel that my particular setup wants the drives in a certain order and that involves connecting them to each port in the right order. I say this because I have changed HDD's in the past with this setup. I used to have 4 TB drives and I upgraded them all to 8 TB. I remember having to change failing drives and if I put the drives out of order than it would resilver. Back then it was okay because it was only one drive at a time. This time it's scary because it's trying to do 6 at the same time. I want to figure out which 5 drives are okay right now, tag them, and then try putting the other 6 in a different order (on different SATA ports). I'm not touching anything though until I hear from more people.
2nd-in-charge
Explorer
- Joined
- Jan 10, 2017
- Messages
- 94
Could be a problem with this? Or the breakout cables to SATA drives?
Updating firmware on those is no walk in the park.
https://forums.servethehome.com/ind...ders-60-ibm-lsi-chip-intel-alternative.11365/
This just should not be happening with direct attached drives.
Jailer
Not strong, but bad
- Joined
- Sep 12, 2014
- Messages
- 4,977
You still haven't answered the original question. There are 2 types of firmware available, IR and IT. Which version did you flash your card with?
This Pool was probably, originally created with FreeNAS version 9 and upgraded through the years. I don't think I created the original pool via the GUI, so is it possible it's not retaining drive information/location unless it's placed in a specific order when connected to each SATA port?
Jailer
Not strong, but bad
- Joined
- Sep 12, 2014
- Messages
- 4,977
That shouldn't matter. With so many checksum errors I'd look to the cabling before I went any further.
I just flashed the firmware on the IBM Expander card- it's on 634a now. The version I had was old and known to cause problems. A problem I read about is that you won't be able to see certain drives. I never had that problem however, so I'm not sure if that was the root of the problem. I'm going to wait to hear some more suggestions before I turn on the FreeNAS.
In this post: https://forums.servethehome.com/ind...0-ibm-lsi-chip-intel-alternative.11365/page-7
DanielWood writes that he got lots of errors and the only thing that fixed it was disabling NCQ system-wide. Can someone reading this please advise.
DanielWood writes that he got lots of errors and the only thing that fixed it was disabling NCQ system-wide. Can someone reading this please advise.
@Chris Moore Chris- do you mind giving me some advice or perhaps you could reach out to someone that could be helpful here?
Chris Moore
Hall of Famer
- Joined
- May 2, 2015
- Messages
- 10,080
When you say that you updated the firmware, are you talking about the firmware in the SAS expander?
I really don't understand what wend wrong with your configuration. There must have been something strange with the previous configuration before you moved to the SAS expander. It should have been seamless. I moved my pool from a pair of SAS controllers with six drives on each controller to a SAS expander configuration and there was no trouble with that.
What kind of controller were your drives connected to before?
@Chris Moore I don't know what went wrong either, but it got scary for me. I thought I had a backup, but it turns out I didn't. I am now building a 2nd FreeNAS as my backup and I'll be putting that offline in another location to protect from fire/theft/ransomware/etc and so I never have to feel stress like this ever again. I need to make sure I do everything right moving forward from here to give the best chance of not losing a lifetime of data. The previous configuration was using the 6 SATA connections on my motherboard and Asmedia controllers for the other 5 drives. It worked great for many years. I knew I was using non-ECC memory and cheap SATA controllers, so I finally decided to do it right. Moving over to the SAS controller is where all the trouble started. I updated the firmware only on the LSI controller, but not on the IBM expander (I didn't know that was possible) when I did the change and all the problems started. As of now- I have updated the IBM expander as well to the latest - 364a. I know many people said they had lots of problems from not upgrading the expander firmware, so that could fix this alone. Although- I remember moving a drive to the wrong SATA port in the past and then having the FreeNAS do a long resilver as if the drive was foreign to it. It makes me suspect that my build needs to have the drives in a specific port order. Moving forward- I don't want to turn it on until I have all the hardware upgraded and I have a plan in place. I have already received one of the SuperMicro motherboards and I'm waiting on the 2nd one to arrive within a few days. The new cables will be here Friday, so I can begin testing all the new (used) hardware thoroughly before I hook up any of the drives. Do you know if SuperMicro has a diagnostic disk for their motherboards? I really appreciate your input- thank you.
pro lamer
Guru
- Joined
- Feb 16, 2018
- Messages
- 626
The screenshot you provided suggests it too.
Edit: three of the drives that don't use gptid are affected (but more of the drives may need to be kept in particular order).
There are ways to escape from this but I'm not experienced enough to know whether it's a good moment to do this...
