Volume 1 state is Degraded. One or more devices has been removed

[bernd67]

Then use it to replace the failed drive. https://www.ixsystems.com/documentation/freenas/11.1/storage.html#replacing-a-failed-drive



[sretalla]

Now you follow the process to replace the bad disk with ada0



[bernd67]

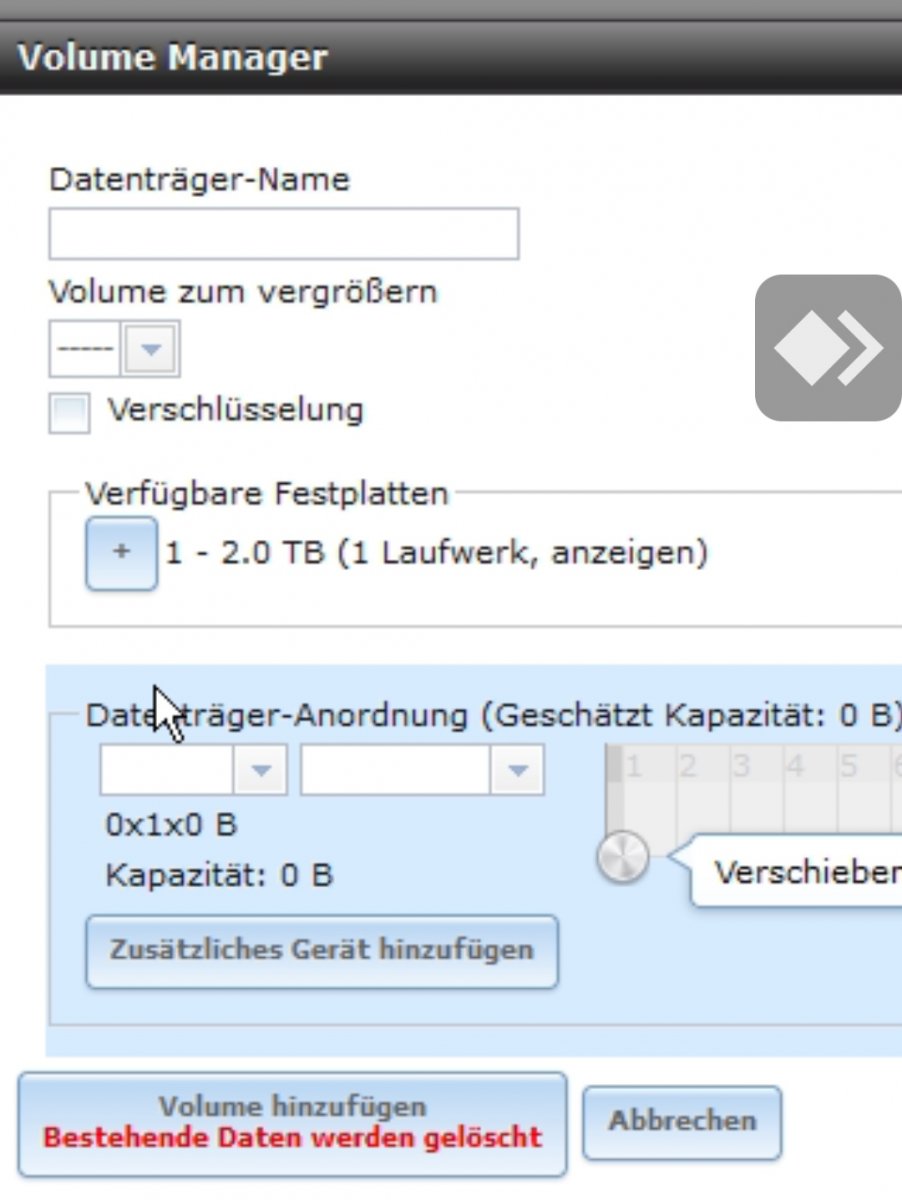

As docu tells i should use volume Manager..but volume Manager tells me i could add a 2tb disk... The size of the new and old disks..
I assume i have to add the replaced disk Here to the Pool. Should i give Name ada0 here? Other things to do? And perform? Data ist still available through Explorer share ..



[bernd67]

Before physically removing the failed device, go to Storage ‣ Volumes. Select the volume name. At the bottom of the interface are several icons, one of which is Volume Status. Click the Volume Status icon and locate the failed disk. Then perform these steps:...


Or should i perform Import.. In Datenträger?

I do not finden storage.Volumes... Only storage volume Manager.. . Zeige Datenträger.. Zeige Festplatten..



[bernd67]

What ist the difference between Import disk and add a disk in volume Manager (to Pool)?



[sretalla]

You need to start sharing some screens with us... I have no idea what mess you're talking about here.

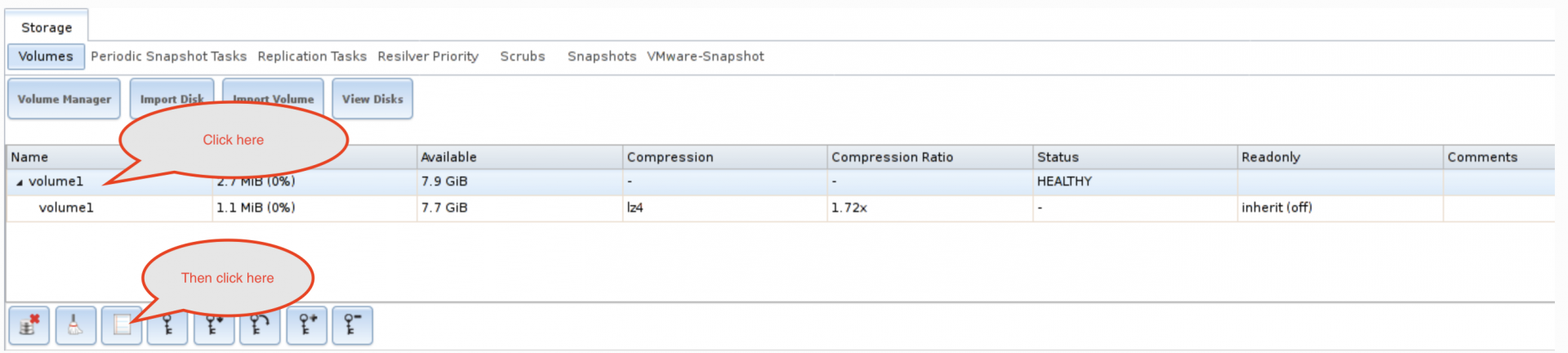

The process would be to view the pool status for the degraded mirror pool, then on the disk that's unavailable, replace it...

8. Storage — FreeNAS®11.1-U7 User Guide Table of Contents

www.ixsystems.com



[sretalla]

What ist the difference between Import disk and add a disk in volume Manager (to Pool)?

There's no difference in the sense that you don't want to do either of those things right now.



[bernd67]

If I Choose Import disk I could Import disk0
But which file System Type to use then



[sretalla]

What ist the difference between Import disk and add a disk in volume Manager (to Pool)?

For future reference (but forget it now):

Import a disk is to be used for a non-ZFS disk to bring its contents into a ZFS pool.

Add a disk (I'm not really sure this is even a thing) will add an additional VDEV to your pool... CAUTION... adding a single drive as a VDEV to an existing pool will make that pool vulnerable to complete loss with the failure of that disk.

In the version of FreeNAS you have, you can't remove drives from a pool once added.



[sretalla]

If I Choose Import disk I could Import disk0
But which file System Type to use then

That's absolutely nothing to do with fixing your broken mirrored pool.... why are you talking about it?



[bernd67]

How to add a Screenshot here?



[sretalla]

If you're using Windows... use the Prt Scrn button and then CTRL + V in the window or use the clipping tool and paste it in as you're typing.



[bernd67]

I do not find the Tab volume status..



[sretalla]

I do not find the Tab volume status..



[bernd67]

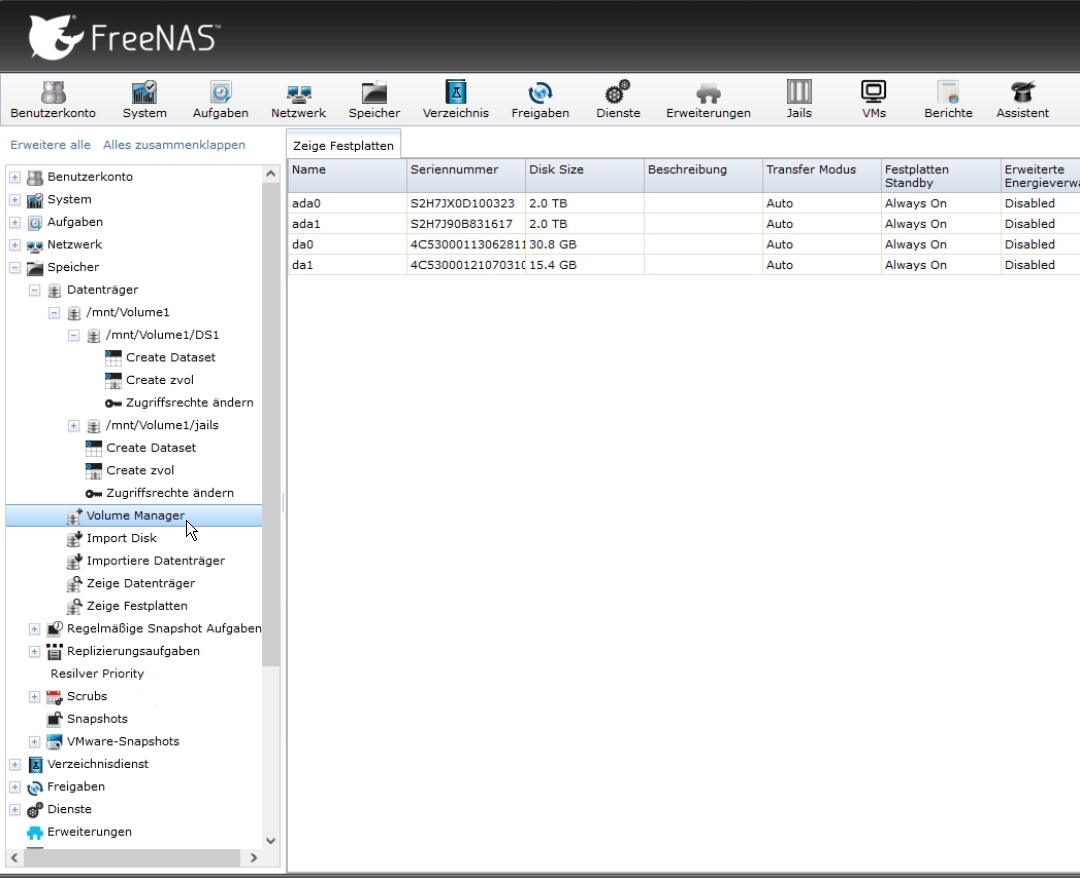

Hope Attachments included now



[bernd67]

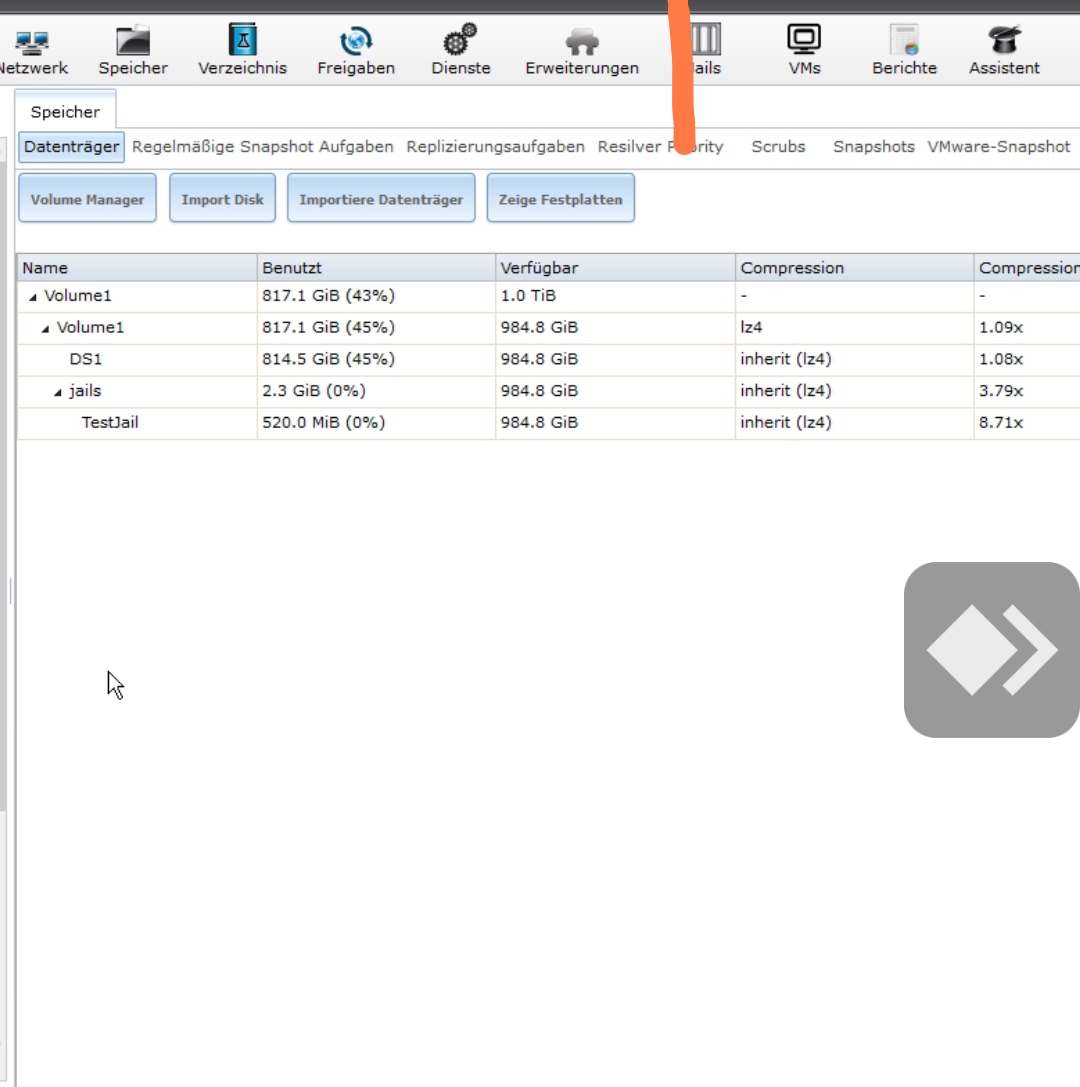

Next Screenshot to your Question. Thank you!
Now I found the Attach File Button here..



[bernd67]

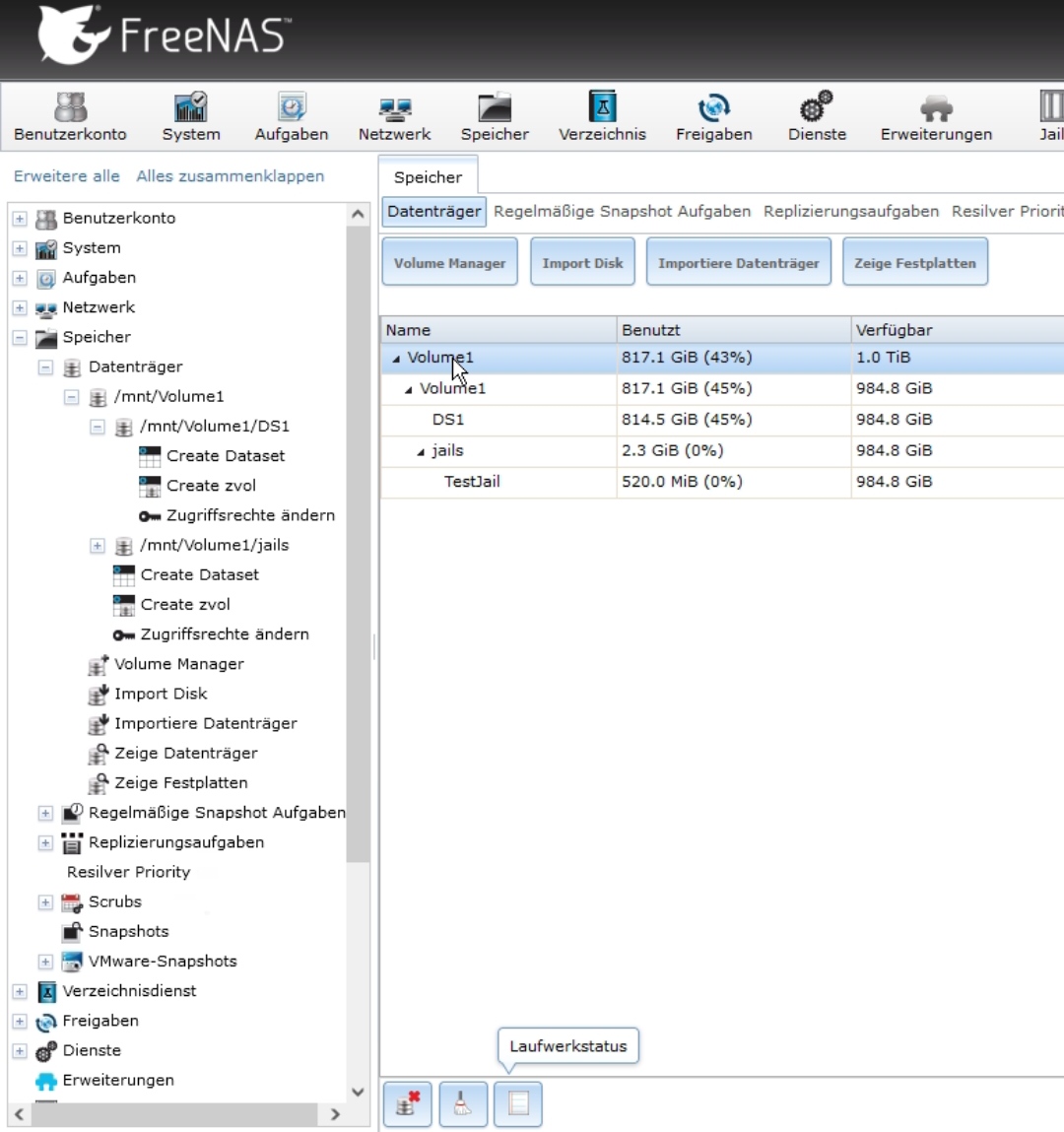

I hope a better over view now..
I die not realize the small Icons before..
What to do next?



[bernd67]

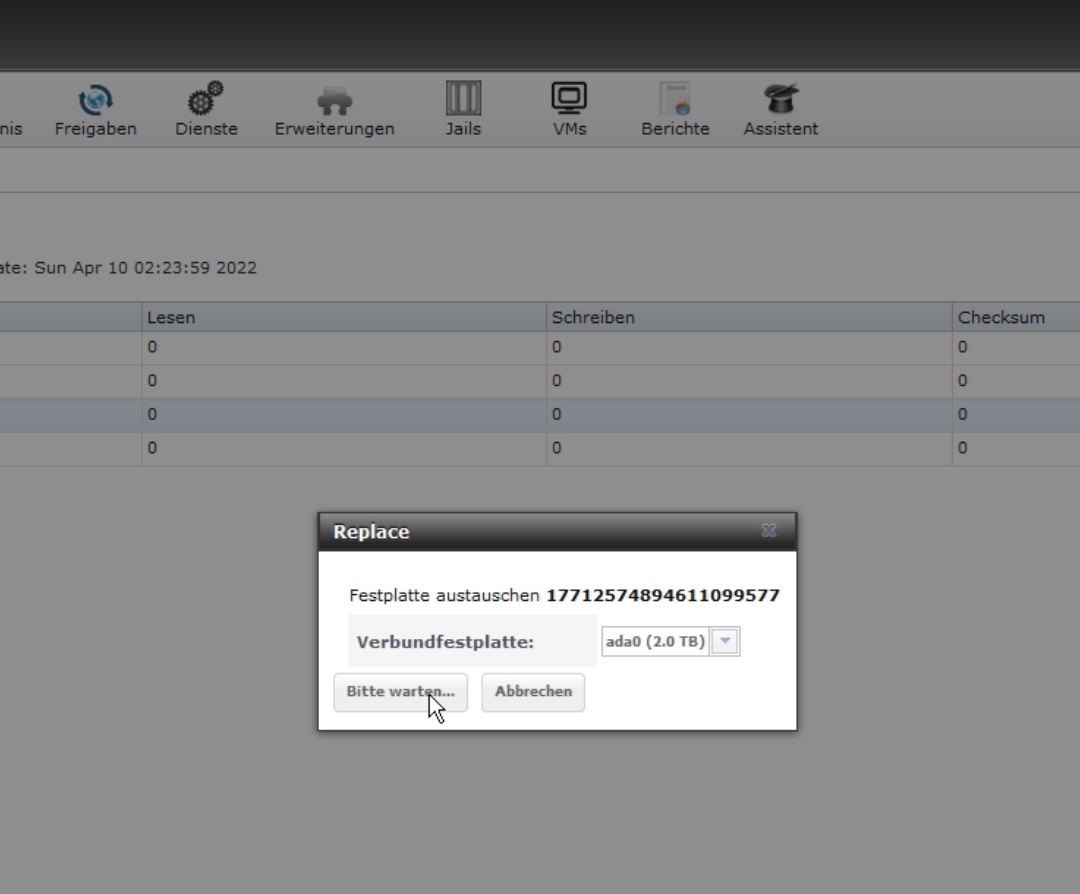

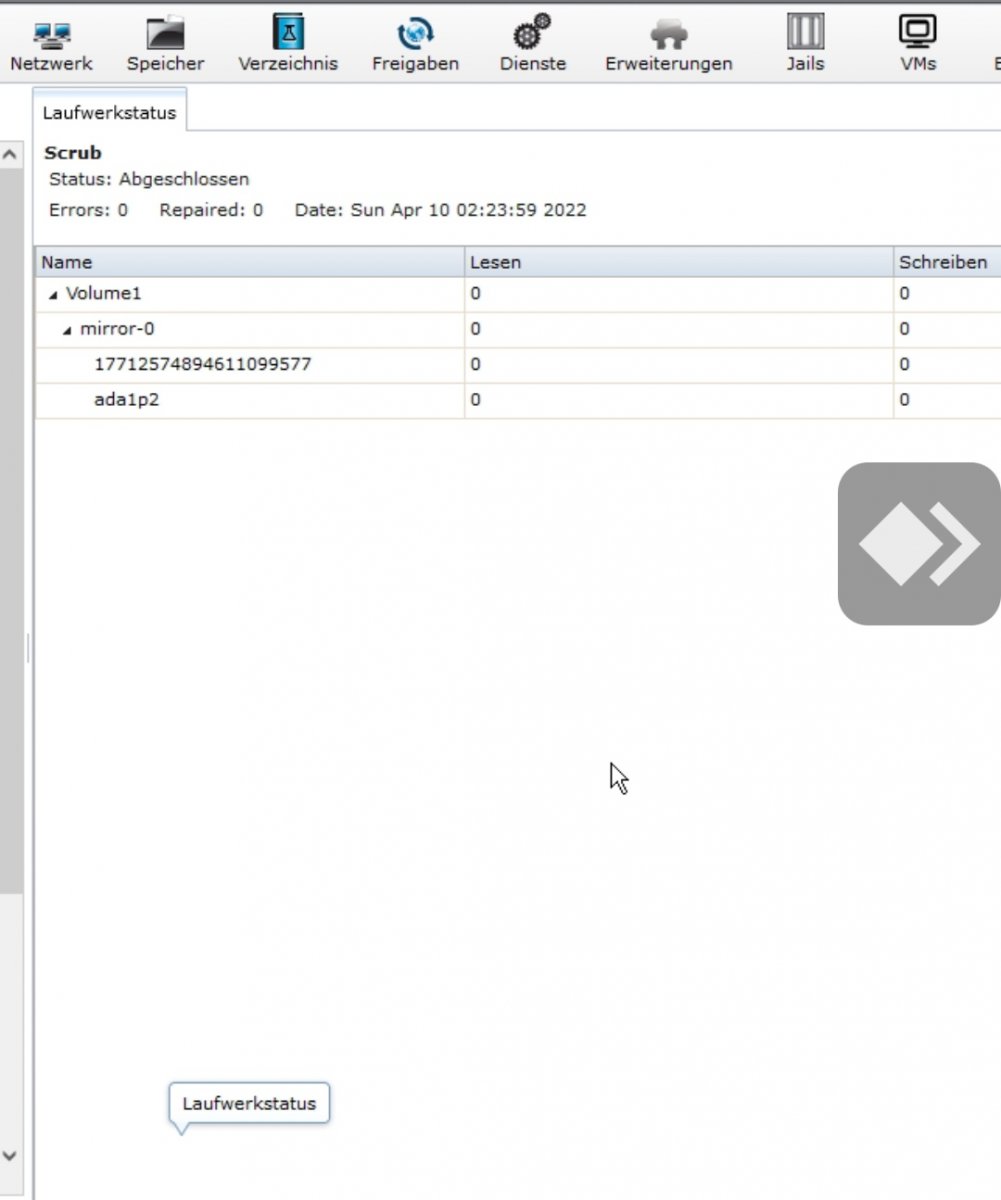

Should I use the small Button "replace"...... In volume 1 mirror 0 and on the numner 177..9577?? ? Ada1p2 I hope the other one ist hopefully still Containing my data..?



[bernd67]

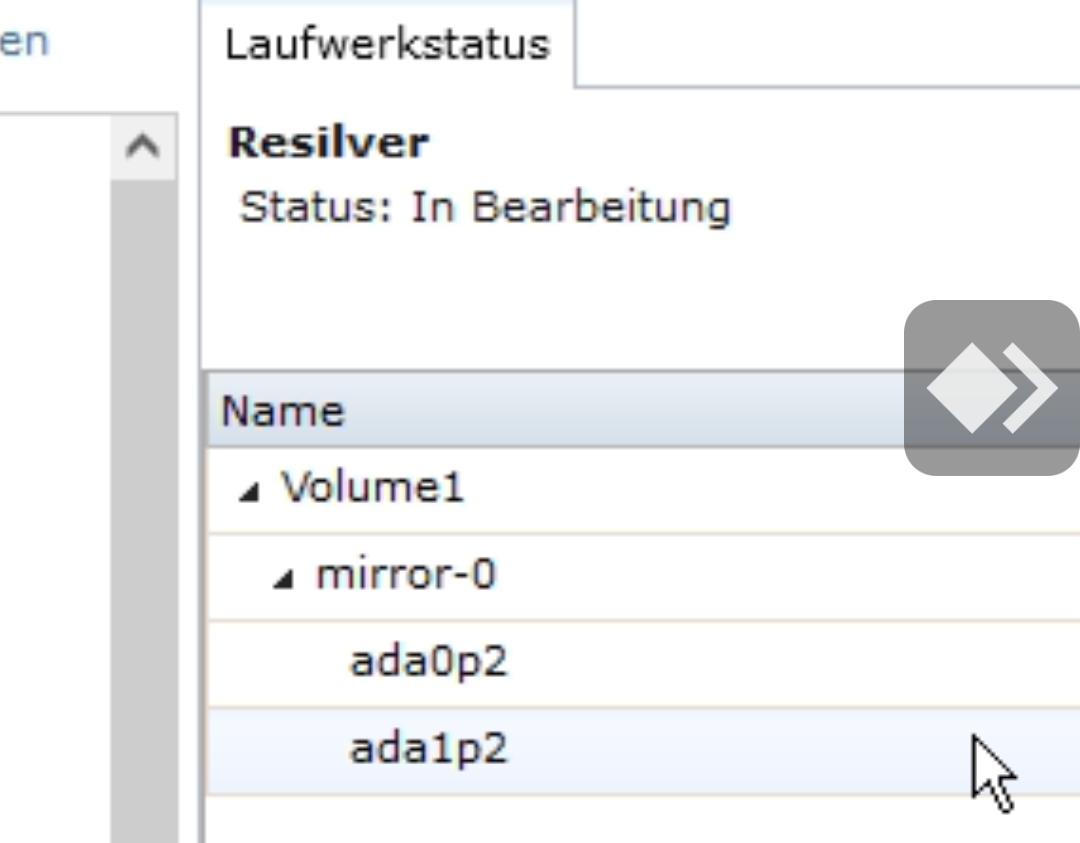

New status is.. After press Button replace

Re silver running!



[bernd67]

Mail..
volume Volume1 state is ONLINE: One or more devices is currently being resilvered. The pool will continue to function, possibly in a degraded state.

.. Progress 94 percent..
