VM problems

[Charlie86]

Hi,

I want to run VM machine on my FreeNAS box

I have

Intel(R) Core(TM) i5 CPU 650 @ 3.20GHz

16GB of ram.

All I want from this VM is DNS server.

I use this tutorial watch

But when I try to power up VM I always get State: STOPPED.

Is problem in my old CPU or could be something else?



[dlavigne]

Which version of FreeNAS?
Does the CPU meet the requirements test at https://www.ixsystems.com/documentation/freenas/11.2/virtualmachines.html?
Is the Start on Boot box checked for the VM?(it has a slightly different name if you're on 11.2 instead of 11.2).



[Charlie86]

Hi,

I am running FreeNAS-11.1-U6.3

Since EPT and UG features are shown, CPU is fine.

[root@freenas ~]# grep VT-x /var/run/dmesg.boot
VT-x: (disabled in BIOS) PAT,HLT,MTF,PAUSE,EPT,UG,VPID

About start on boot box, I am not sure where this is. If you mean "Autostart" check box in VM settings, then yes it is checked.

When I press start I even get green message on top of the screen "VM Started“

Is there any log files available?



[dlavigne]

It's called Wait to Boot in 11.1: https://www.ixsystems.com/documentation/freenas/11.1/vms.html#creating-vms. Is that box unchecked?



[Charlie86]

Found it. Yes it was unchecked, just check it but VM still won't start



[dlavigne]

Anything in /var/log/messages when it fails to start? Also, which OS is installed into the VM?



[Charlie86]

Hi,

When I try to start VM in log file doesn't appear any new messages.

OS in VM is ubuntu-18.04.1.0-live-server-amd64.

Should this maybe be problem with permissions? I mention permissions because I am greenhorn in FreeNAS and have lots of problems with them :)



[Mlovelace]

Hi,

I am running FreeNAS-11.1-U6.3

Since EPT and UG features are shown, CPU is fine.

[root@freenas ~]# grep VT-x /var/run/dmesg.boot
VT-x: (disabled in BIOS) PAT,HLT,MTF,PAUSE,EPT,UG,VPID

About start on boot box, I am not sure where this is. If you mean "Autostart" check box in VM settings, then yes it is checked.

When I press start I even get green message on top of the screen "VM Started“

Is there any log files available?

VT-x: (disabled in BIOS) PAT,HLT,MTF,PAUSE,EPT,UG,VPID... I'll give you a hint ;)



[Charlie86]

When I see yours post, I was like 100% this is it.

I enable VT-x in BIOS

Now output shows

[root@freenas ~]# grep VT-x /var/run/dmesg.boot
VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID

But VM still Won't start. :(

also no log messages. I am lost.



[Mlovelace]

Does it boot into the efi screen or the VM won't start at all?



[Charlie86]

UPDATE:

Just destroyed old VM and create new one.

Now VM starts, and I am able to connect to it via VNC, but still get some errors.

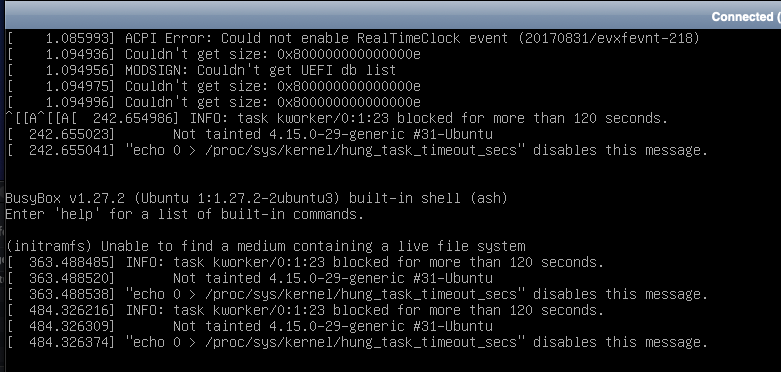

Screenshot below



[Mlovelace]

UPDATE:

Just destroyed old VM and create new one.

Now VM starts, and I am able to connect to it via VNC, but still get some errors.

Screenshot below
View attachment 28146

Are you using the 64bit ubuntu ISO? Did you select UEFI for boot method?



[Frederic996]

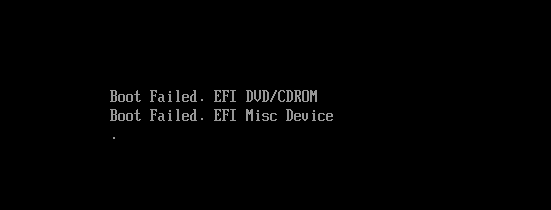

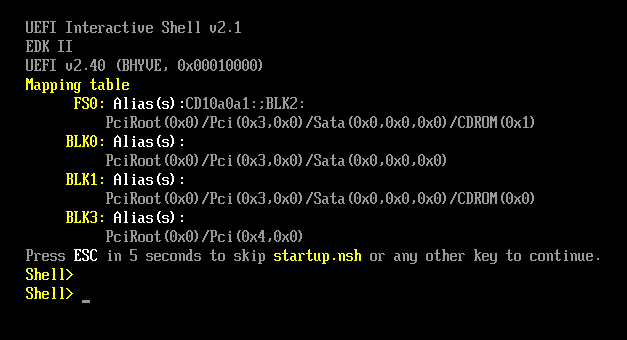

Hi everyone, I apologize if I reopen an old thread but I have an equal problem, my vm does not start remains in boot efi.
I also tried to manually select in the boot file, but I'm not successful.
Installed version Freenas 11.3 U2
operating system to be installed on Windows 7

cmd--> grep output VT-x /var/run/dmesg.boot
"VT-x: PAT, HLT, MTF, PAUSE, EPT, UG, VPID"



[Patrick M. Hausen]

Windows 7 64 Bit? You cannot run 32 Bit on FreeNAS ...



[Frederic996]

[QUOTE = "Patrick M. Hausen, post: 580527, membro: 34727"]
Windows 7 64 bit? Non è possibile eseguire 32 bit su FreeNAS ...
[/ CITAZIONE]
Yes, I’m run windows7 64bit, but don’t work
