I have read the forums and watched Lawrance systems video on Vlan and jails and i still can not figure this out.
so.
Here is the setup
UDM Pro 10G copper to my USW-PRO-24-POE Port 26 (ALL)
USW-PRO-24-POE Port 26 fiber to my Truenas Core (cxgb1) (ALL)
UDM Pro port 1 to US-8-60W port 1 (ALL)

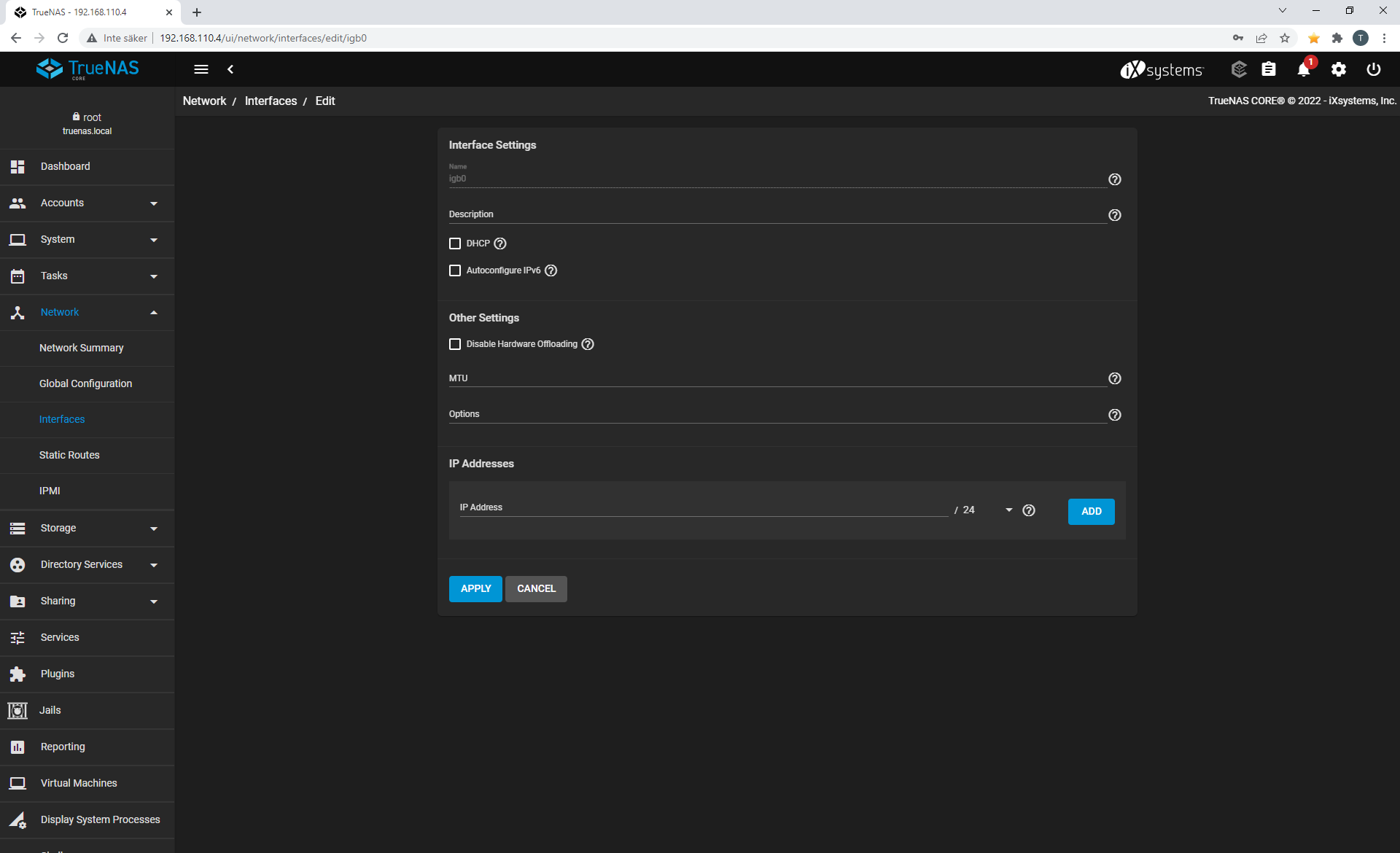

US-8-60W port 4 (Vlan 30) to my Truenas core igb0

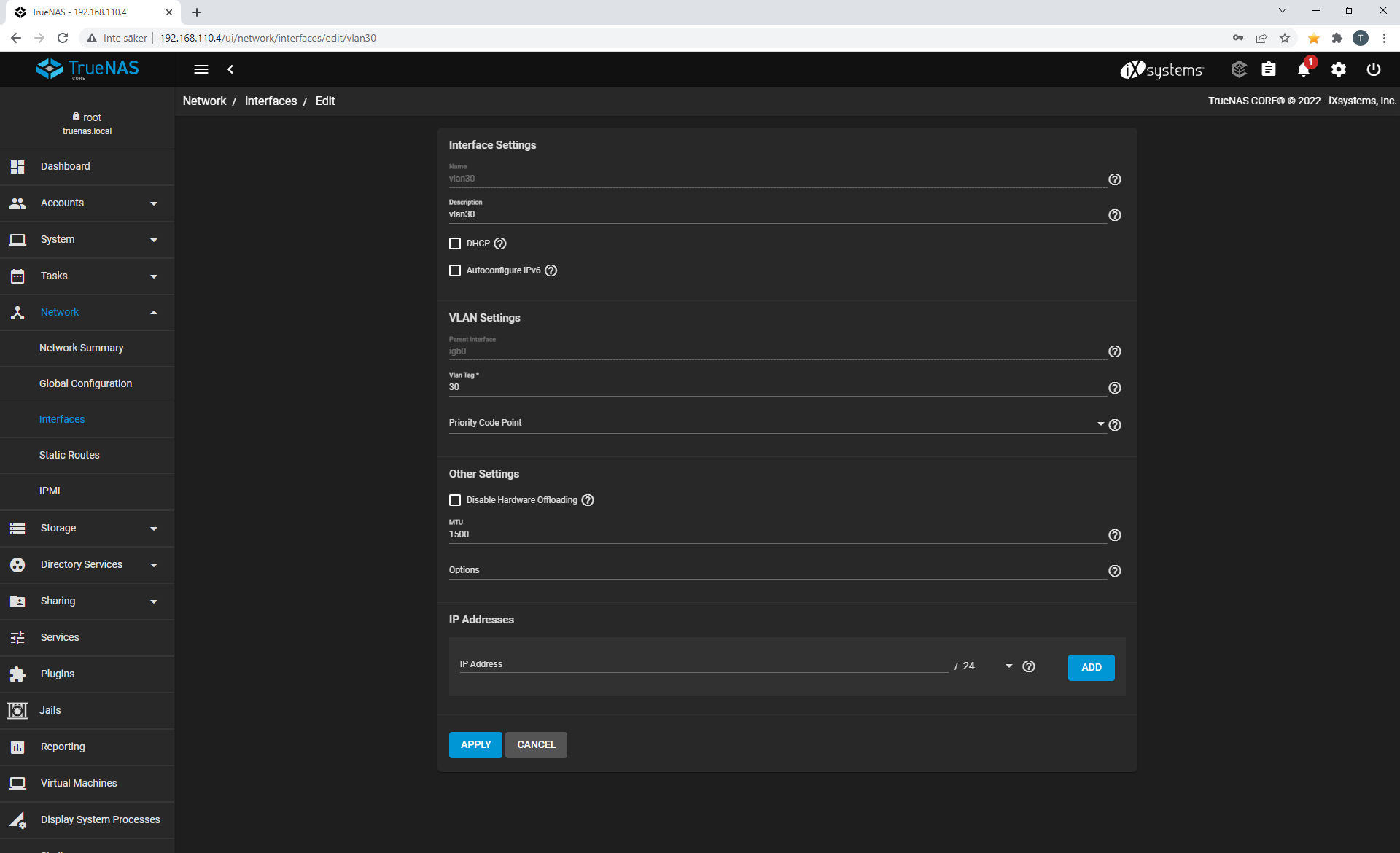

i have setup a vlan30 on parent igb0

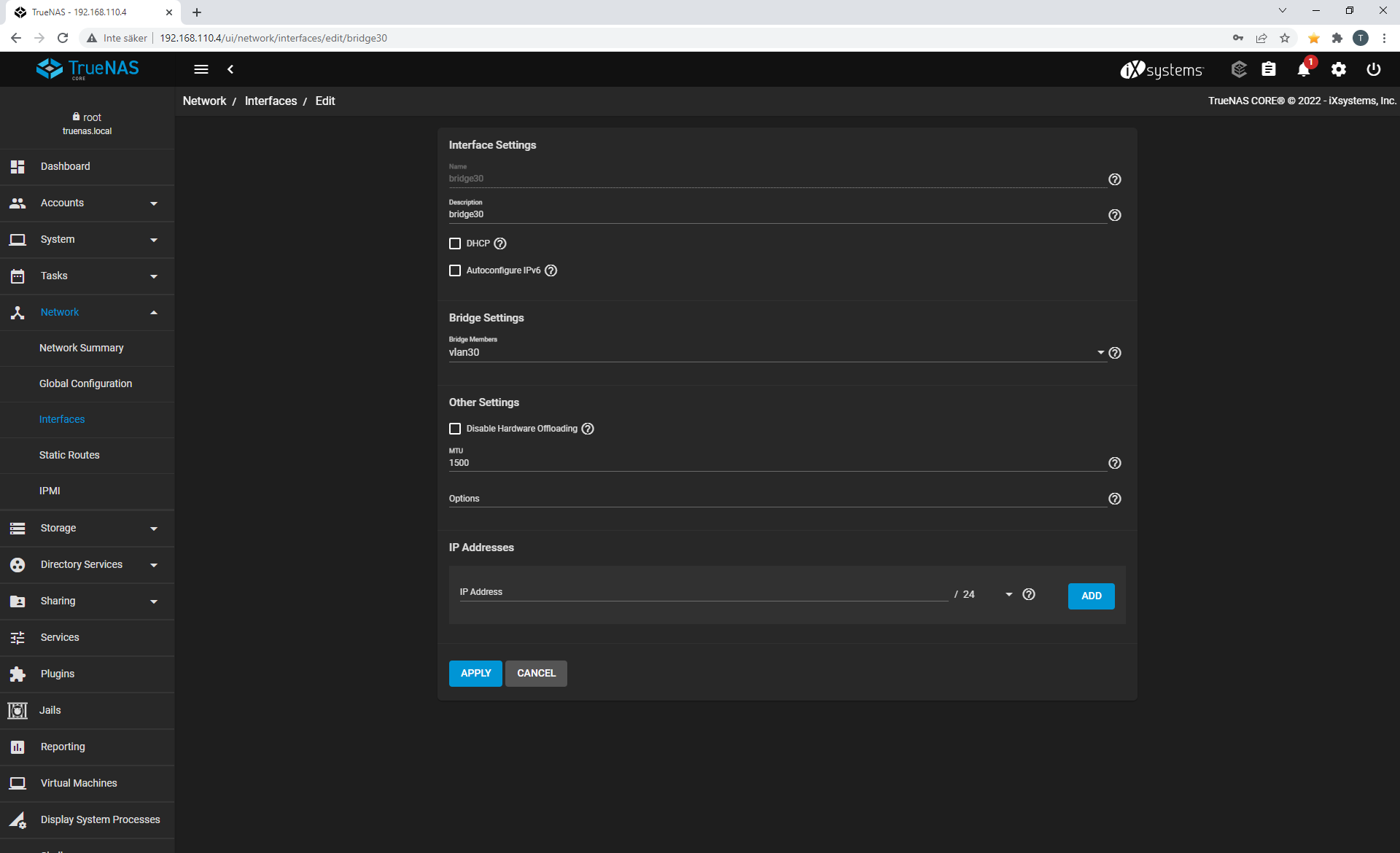

i have then bridged a bridge30 on vlan30

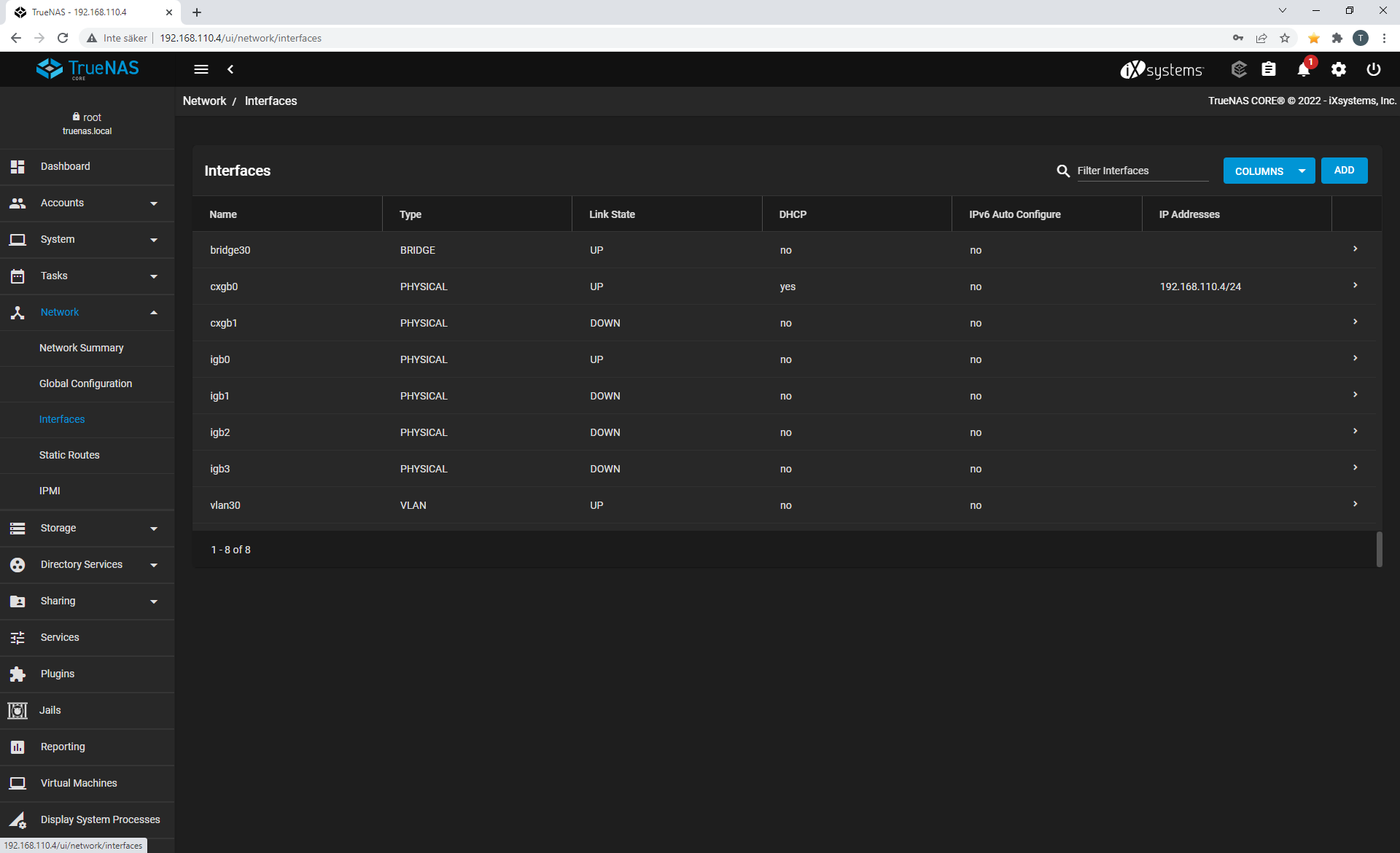

linkstates are up

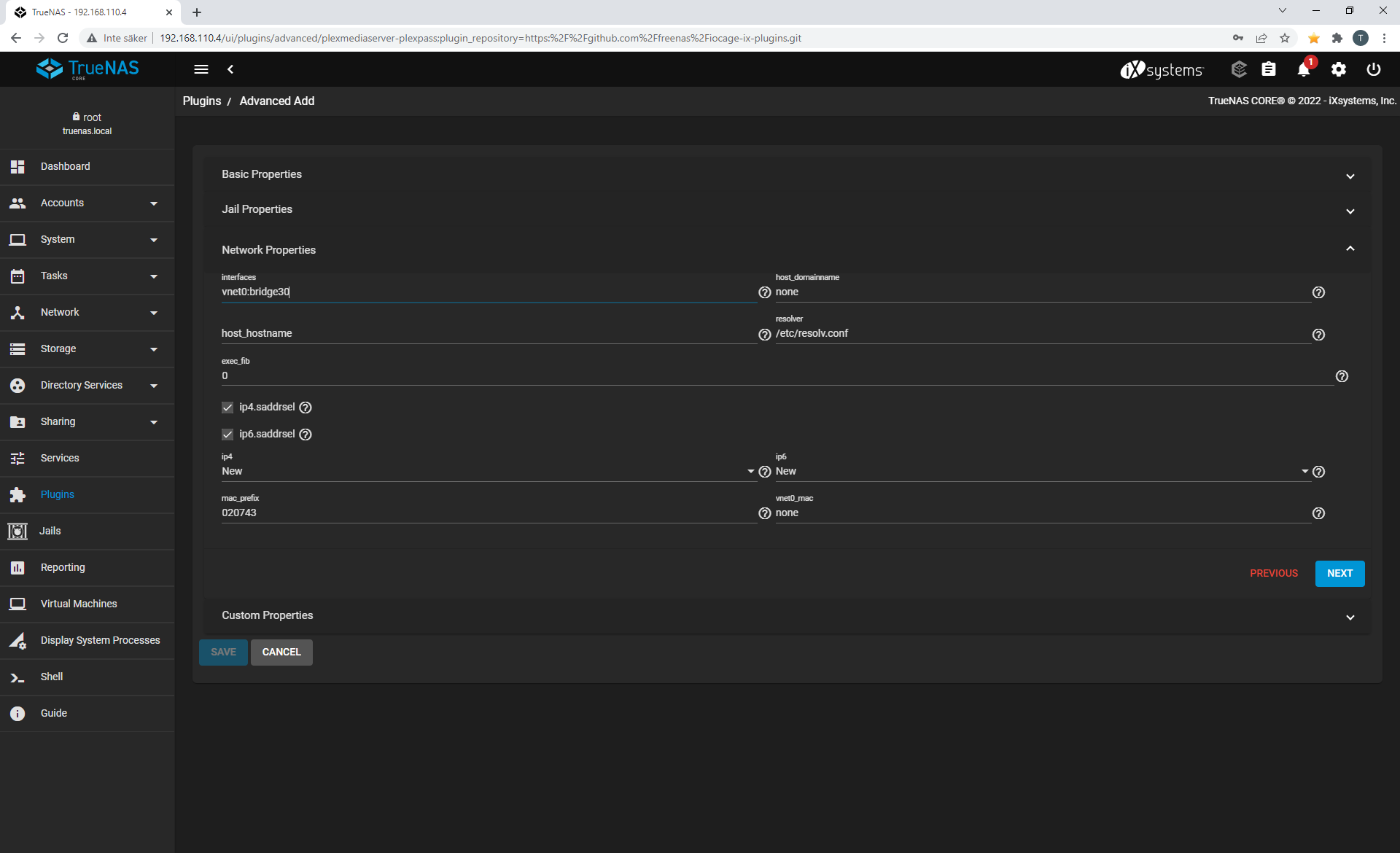

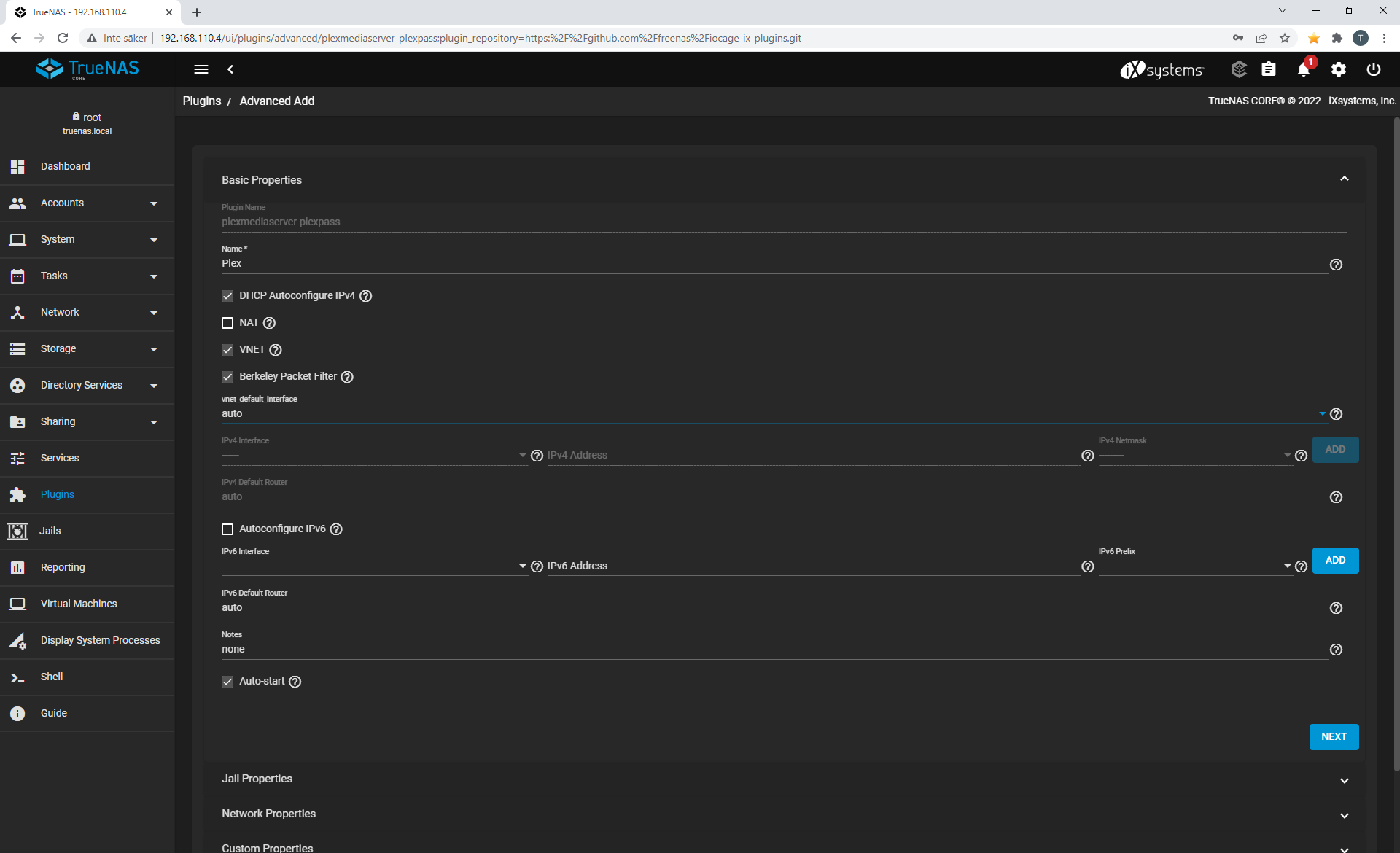

problem is that when using bridge30 in jails they dont get the tagged vlan address range, they get the main lan range
i have only found 2 ways of getting the vlan30 ip range. One is if I in a virtual machine uses igb0
or if I reinstall the server and dont touch the interfaces because then they are all set to DHCP
then i can use the igb0 in jails and it is working somewhat
why is the jails ignoring the settings ??
so.
Here is the setup
UDM Pro 10G copper to my USW-PRO-24-POE Port 26 (ALL)
USW-PRO-24-POE Port 26 fiber to my Truenas Core (cxgb1) (ALL)
UDM Pro port 1 to US-8-60W port 1 (ALL)
US-8-60W port 4 (Vlan 30) to my Truenas core igb0
i have setup a vlan30 on parent igb0
i have then bridged a bridge30 on vlan30
linkstates are up
problem is that when using bridge30 in jails they dont get the tagged vlan address range, they get the main lan range
i have only found 2 ways of getting the vlan30 ip range. One is if I in a virtual machine uses igb0
or if I reinstall the server and dont touch the interfaces because then they are all set to DHCP
then i can use the igb0 in jails and it is working somewhat
why is the jails ignoring the settings ??
