SOLVED Virtualization - Boot Failed. EFI Hard Drive - HassOS

[Spencer Skinner]

Hi,

Running TrueNAS-12.0-U8.1

I have been attempting to deploy a HassOS VM (I known the plugin exists, I would like to run it in a VM).

I have been following this guide, its from a few versions back but people still seem to have good success with it -

Alternative way of running HassOS (full OS) on FreeNAS (without iocage or Docker)

Been trying to do this on TrueNAS-12.0-U8.1. I have used the generic x86 image and have tried the converted image method from the original guide. Issue is I keep getting Boot Failed. EFI Misc Device or Boot Failed. EFI Hard drive. I have no idea what I am missing - anyone else had this issue...

community.home-assistant.io

I have been able to confirm my image works by simply adding the image as a raw file to the VM and the VM boots fine to that image file. The issue comes when I DD the image to the ZVol, the command runs, I start the VM and then I get the error Boot Failed. EFI Hard Drive. After a min it pops me into the EFI shell, now ordinarily from here I would go to Boot Maintenance Manager and Boot From File and select the boot file. The issue I have is the file doesnt work.

This boots me to a blank screen which then just shoves me back into the EFI shell again after a while. I feel like something must be wrong with the DD process or is there a simple fix for this?


As a side note I have also had success booting into the generic x86 image that HA provide when adding it as a raw file. Unsure if there is a need for the VDI->IMG conversion anymore?

Many Thanks
Spencer



[Spencer Skinner]

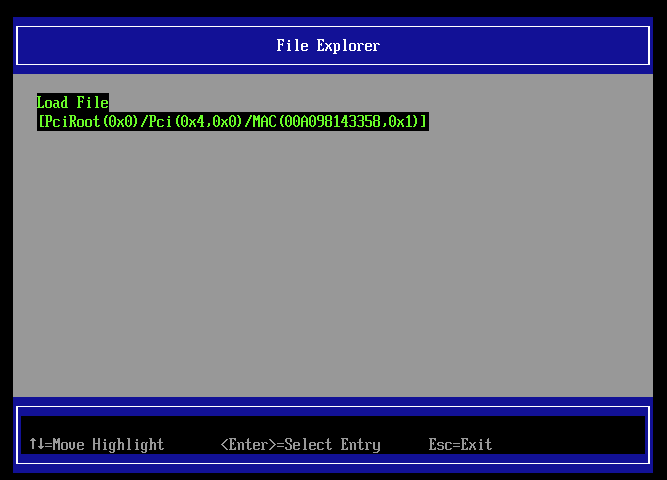

It should be noted, the boot file shown in the above image is the NIC, so the drive is not even detected.



[Spencer Skinner]

Problem solved - Issue was my severely lacking reading skills, I had a mistake in my dd command my of was point to /mnt/.... not /dev/.... at the zvol
