SOLVED Various SCSI sense errors during scrubbing
- Thread starter tobiasbp
- Start date
- Status
I have booted the machine off of a USB stick with the latest Ubuntu installer. I have installed the package zfsutils-linux, imported the zpool and started a scrub. I will report back.
The scrub mysteriously finishes in 19/20 minutes (Scrubbed twice). I see no errors in dmesg or in the log at /var/log/syslog.
Code:
pool: ultraman state: ONLINE scan: scrub repaired 0 in 0h19m with 0 errors on Mon Aug 28 11:51:56 2017 ... ...
zpool history makes me none the wiser (Reveals nothing wrong):
Code:
... ... 2017-08-28.10:44:49 zpool import -f ultraman 2017-08-28.10:45:20 zpool clear ultraman 2017-08-28.10:45:37 zpool scrub ultraman 2017-08-28.11:32:26 zpool scrub ultraman 2017-08-28.12:41:35 zpool export ultraman ... ...
I made a script listing the most interesting (in this regard) data from each drive. I think I have finally found something (I'm exited!).
The drive with the highest occurence of errors (da3/WX11DC61YDPV) is the ONLY drive of device type WDC WD60EFRX-68L0BN1. But wait, there's more: 3 drives i have previously pulled from the server because of high frequency of errors, are ALL of that same type (WDC WD60EFRX-68L0BN1).
I have offlined the disk i suspect (da3/WX11DC61YDPV) and started a scrub.
These are the data (from smartctl) for all my disks (In the system):
Code:
/dev/da0 Model Family: Western Digital Gold Device Model: WDC WD6002FRYZ-01WD5B0 Firmware Version: 01.01M02 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da1 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da2 Model Family: Western Digital Gold Device Model: WDC WD6002FRYZ-01WD5B0 Firmware Version: 01.01M02 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da3 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68L0BN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da4 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da5 Device Model: WDC WD6002FFWX-68TZ4N0 Firmware Version: 83.H0A83 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da6 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da7 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da8 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da9 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da10 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da11 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da12 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da13 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da14 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da15 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da16 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da17 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da18 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da19 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da20 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da21 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da22 Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 Firmware Version: 82.00A82 User Capacity: 6,001,175,126,016 bytes [6.00 TB] ----------- /dev/da23 Model Family: Western Digital Gold Device Model: WDC WD6002FRYZ-01WD5B0 Firmware Version: 01.01M02 User Capacity: 6,001,175,126,016 bytes [6.00 TB] -----------
Last edited:
Armed with my new theory of disks of type (WD60EFRX-68L0BN1) being the culprit, I have found several other threads on the forum describing the same symptoms on the same type of disk. I have posted to the other threads hoping to bring people with the same issue together.
Maybe I should start a new thread focusing on the type of disk (WD60EFRX-68L0BN1)?
Maybe I should start a new thread focusing on the type of disk (WD60EFRX-68L0BN1)?
- Joined
- Feb 15, 2014
- Messages
- 20,194
Feel free to compile whatever you find in a thread. I'd be interested in finding out what exactly is going on.
The scrub finished with 0 errors and no entries for SCSI errors in dmesg. This happened only once before, when I ran on 12 degraded mirrors (12, not 24 disks):
Code:
scan: scrub repaired 0 in 14h52m with 0 errors on Tue Aug 29 03:47:00 2017
I'm now running on a degraded mirror. I will add a spare disk of type WD60EFRX-68L0BN1 (The type of disk which I suspect is causing the problems) to the pool. Having done that, I expect errors to occur again.
I will order a 6TB WD disk, making sure it is NOT of type WD60EFRX-68L0BN1 for replacement. The same model disk, of type WD60EFRX-68MYMN1 appears not to cause problems in my configuration.
Unsolved: Scrubbing a pool with a disk of type WD60EFRX-68L0BN1 in it will cause SCSI errors. BUT, errors (few in comparison ) will also appear on drives of other types (See previously posted list of disks in my zpool). Having no disk of type WD60EFRX-68L0BN1 in the zpool, results in error free scrubs. That is, there appears to be side effects of the problems caused by disks of type WD60EFRX-68L0BN1.
I'm aware of three types of the WD60EFRX.
This is the status of each type in regards to this thread:
WD60EFRX-68L0BN1 (Bad in current system)
WD60EFRX-68MYMN1 (No problems in current system)
WD60EFRX-68TGBN1 (Have not tried in current system)
Does anyone know of other types of WD60EFRX (This should really be a new thread)?
This is the status of each type in regards to this thread:
WD60EFRX-68L0BN1 (Bad in current system)
WD60EFRX-68MYMN1 (No problems in current system)
WD60EFRX-68TGBN1 (Have not tried in current system)
Does anyone know of other types of WD60EFRX (This should really be a new thread)?
Stux
MVP
- Joined
- Jun 2, 2016
- Messages
- 4,419
68MYMN1 is the Firmware after the update in this page: https://support.wdc.com/knowledgebase/answer.aspx?ID=11756
Perhaps try that firmware update procedure. 68L0bN1 could be an older firmware than 68MYMN1, since L comes before M ;)
It does not appear to be the case. I have updated my list of known drive types with rough dates of manufacture. The problematic drives are the newest:
The udated list of drive types:
I'm aware of three types of the WD60EFRX.
This is the status of each type in regards to this thread:
- WD60EFRX-68L0BN1 (Bad in current system. Manufactured august/september 2016)
- WD60EFRX-68MYMN1 (No problems in current system. Manufactured before june 2015)
- WD60EFRX-68TGBN1 (Have not tried in current system. Manufactured before june 2015)
Last edited:
Stux
MVP
- Joined
- Jun 2, 2016
- Messages
- 4,419
Makes this a live issue. And would explain why you managed to find half a dozen people possibly the same results. Good thing that most threads contain the SMART info which contains the extended model number.
Might have to get WD to admit there is an issue.
Might have to get WD to admit there is an issue.
I think I will create a new post regarding these drives once I can (hopefully) document the behaviour.
I'm planning to:
- Re-adding a bad drive to my zpool (Expect errors to reappear, not only on bad drive).
- Replace bad drive with new WD Red Pro (Expect errors on all drives to disappear).
- Create zpool of only bad drives (Expect lots of errors. Only on the zpool of bad drives?).
- Move bad zpool to other machine with same backplanes (Expect errors to happen)
- Connect zpool of bad drives directly to motherboard, bypassing backplanes (Expect errors to disapper since I have another FreeNAS machine with a single bad disk with no errors running off of an older backplane with no SAS expander).
Last edited:
Morpheus187
Explorer
- Joined
- Mar 11, 2016
- Messages
- 61
I have the same disks in use as you
7x
and 1x
Everything runs fine since ~12'000 hours I just got one error so far on da2 ( which is a 68L0BN1 drive )
But I guess that's just a normal hdd hickup. But I will keep your findings in my mind, maybe there is an issue with that disk. Maybe the issue only shows up with more than 8 drives?
7x
Code:
Model Family: Western Digital Red Device Model: WDC WD60EFRX-68L0BN1 LU WWN Device Id: 5 0014ee 0596e991f Firmware Version: 82.00A82
and 1x
Code:
Model Family: Western Digital Red Device Model: WDC WD60EFRX-68MYMN1 LU WWN Device Id: 5 0014ee 2b745e38b Firmware Version: 82.00A82
Everything runs fine since ~12'000 hours I just got one error so far on da2 ( which is a 68L0BN1 drive )
Code:
(da2:mpr0:0:2:0): READ(16). CDB: 88 00 00 00 00 01 37 a5 79 a0 00 00 00 38 00 00 (da2:mpr0:0:2:0): CAM status: SCSI Status Error (da2:mpr0:0:2:0): SCSI status: Check Condition (da2:mpr0:0:2:0): SCSI sense: MEDIUM ERROR asc:11,0 (Unrecovered read error) (da2:mpr0:0:2:0): Info: 0x137a579a0 (da2:mpr0:0:2:0): Error 5, Unretryable error
But I guess that's just a normal hdd hickup. But I will keep your findings in my mind, maybe there is an issue with that disk. Maybe the issue only shows up with more than 8 drives?
Stux
MVP
- Joined
- Jun 2, 2016
- Messages
- 4,419
Hard drive hiccups are not normal.
For testing purposes, I have installed a disk of type WD60EFRX-68L0BN1 ("bad") in the machine with the 24 drive zpool. The disk is not part of the zpool. It is connected through one of the backplanes. The disk is currently at /dev/da3.
I have started at run with badblocks on it to see what happens. If running badblocks on the drive results in no SCSI errors being thrown, would it not suggest that the error is ZFS related? Let me hear your thoughts.
I have started at run with badblocks on it to see what happens. If running badblocks on the drive results in no SCSI errors being thrown, would it not suggest that the error is ZFS related? Let me hear your thoughts.
Code:
[root@ultraman] ~# badblocks -p 4 -b 4096 -wsv /dev/da3 Checking for bad blocks in read-write mode From block 0 to 1465130645 Testing with pattern 0xaa: set_o_direct: Inappropriate ioctl for device ...
Stux
MVP
- Joined
- Jun 2, 2016
- Messages
- 4,419
It could be related to how deep the queues get. dd will not do much to it.
You could also try solnet array tester
You could also try solnet array tester
I'm working on documenting the issue. I finished the 1st test. My expectations held true.
I added a "bad" drive (da26) to the zpool and scrubbed. These were the SCSI errors reported in dmesg.
As I expected, most errors were reported on the "bad" drive (da26). But, errors were also reported on other drives.
This is the state of the zpool after the scrub. The drive in mirror-5 with 3 in CKSUM (a2851364-184c-11e7-ae9d-0025901ef244) is drive da10 which had an error in dmesg. That drive is of the "good" type WD60EFRX-68MYMN1:
I added a "bad" drive (da26) to the zpool and scrubbed. These were the SCSI errors reported in dmesg.
Code:
[root@ultraman] ~# dmesg | grep -i scsi\ status\ error | sort | uniq -c 1 (da10:mps0:0:22:0): CAM status: SCSI Status Error 1 (da11:mps0:0:23:0): CAM status: SCSI Status Error 1 (da12:mps0:0:24:0): CAM status: SCSI Status Error 1 (da16:mps0:0:28:0): CAM status: SCSI Status Error 1 (da17:mps0:0:29:0): CAM status: SCSI Status Error 1 (da19:mps0:0:31:0): CAM status: SCSI Status Error 1 (da20:mps0:0:32:0): CAM status: SCSI Status Error 1 (da22:mps0:0:34:0): CAM status: SCSI Status Error 3 (da26:mps0:0:9:0): CAM status: SCSI Status Error 1 (da7:mps0:0:19:0): CAM status: SCSI Status Error 1 (da9:mps0:0:21:0): CAM status: SCSI Status Error
As I expected, most errors were reported on the "bad" drive (da26). But, errors were also reported on other drives.
This is the state of the zpool after the scrub. The drive in mirror-5 with 3 in CKSUM (a2851364-184c-11e7-ae9d-0025901ef244) is drive da10 which had an error in dmesg. That drive is of the "good" type WD60EFRX-68MYMN1:
Code:
pool: ultraman state: ONLINE status: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected. action: Determine if the device needs to be replaced, and clear the errors using 'zpool clear' or replace the device with 'zpool replace'. see: http://illumos.org/msg/ZFS-8000-9P scan: scrub repaired 1.04M in 15h11m with 0 errors on Wed Aug 30 23:55:26 2017 config: NAME STATE READ WRITE CKSUM ultraman ONLINE 0 0 0 mirror-0 ONLINE 0 0 0 gptid/2e00ac23-183d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/6e71919e-1618-11e7-a3b7-0025901ef244 ONLINE 0 0 0 mirror-1 ONLINE 0 0 0 gptid/6f22c98c-1618-11e7-a3b7-0025901ef244 ONLINE 0 0 0 gptid/6fe54bfe-1618-11e7-a3b7-0025901ef244 ONLINE 0 0 0 mirror-2 ONLINE 0 0 0 gptid/70bfd5c6-1618-11e7-a3b7-0025901ef244 ONLINE 0 0 0 gptid/a20e4ec0-8c8d-11e7-ac97-0cc47a5312f0 ONLINE 0 0 0 mirror-3 ONLINE 0 0 0 gptid/7ad0f185-1619-11e7-a3b7-0025901ef244 ONLINE 0 0 0 gptid/9e899578-183c-11e7-ae9d-0025901ef244 ONLINE 0 0 0 mirror-4 ONLINE 0 0 0 gptid/427c2189-184c-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/4342a98c-184c-11e7-ae9d-0025901ef244 ONLINE 0 0 0 mirror-5 ONLINE 0 0 0 gptid/a1ab9a69-184c-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/a2851364-184c-11e7-ae9d-0025901ef244 ONLINE 0 0 3 mirror-6 ONLINE 0 0 0 gptid/0dcbcccd-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/0e9ed582-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 mirror-7 ONLINE 0 0 0 gptid/2b56cf1c-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/2c2a1c62-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 mirror-8 ONLINE 0 0 0 gptid/69718320-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/6a4e6afa-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 mirror-9 ONLINE 0 0 0 gptid/8fccb2c6-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/90b48d70-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 mirror-10 ONLINE 0 0 0 gptid/aeda4f88-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/afb5bfc3-184d-11e7-ae9d-0025901ef244 ONLINE 0 0 0 mirror-11 ONLINE 0 0 0 gptid/bca6e4f0-1b71-11e7-ae9d-0025901ef244 ONLINE 0 0 0 gptid/d06f5f86-7b79-11e7-b91b-0cc47a5312f0 ONLINE 0 0 0 errors: No known data errors
Stux
MVP
- Joined
- Jun 2, 2016
- Messages
- 4,419

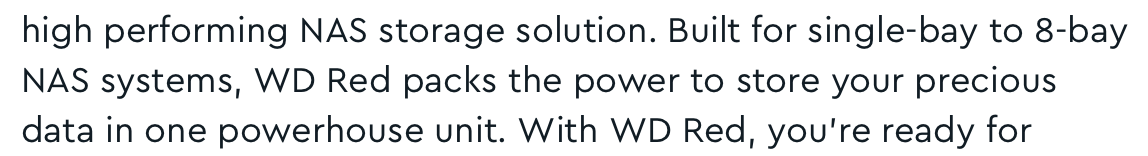

For it to be a valid failure, it needs to be an 8 drive system... since WD only say that their drives are certified for 8 drive systems :(
They could wave it away if it were more as "drive vibrations not being able to be handled" or something... and who knows... maybe this whole drive vibration thing and "8 drive limit" is not totally marketing bs.
https://www.wdc.com/products/internal-storage/wd-red.html
They could wave it away if it were more as "drive vibrations not being able to be handled" or something... and who knows... maybe this whole drive vibration thing and "8 drive limit" is not totally marketing bs.
https://www.wdc.com/products/internal-storage/wd-red.html
