Unknown icon in my dataset.

[Fred974]

Hi,

I just use the dataset replication to copy picture dataset from my old FreeNAS to my new TrueNAS. Vi ssh I can see all the picture in TrueNAS but I have no idea what this padlock mean in the UI

Could anyone please advise? I don't think its locked as I can see all the data in ssh.

Thank you



[winnielinnie]

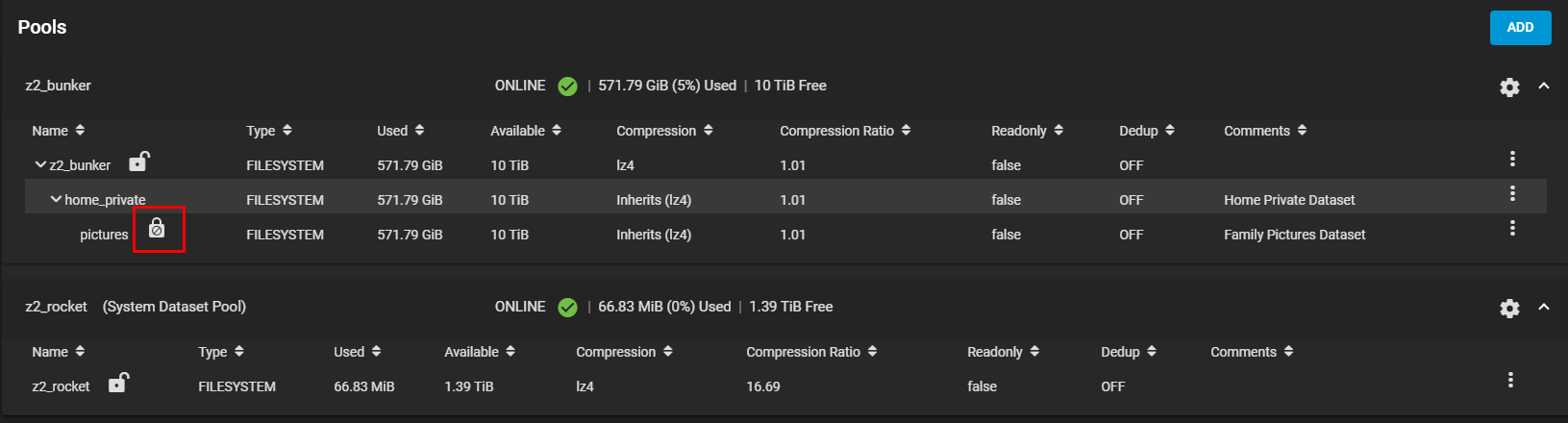

That icon signifies a non-encrypted dataset nested underneath an encrypted parent dataset.

• z2_bunker
  • home_private
    • pictures

To help illustrate, I used red to symbolize encryped, and green to symbolized non-encrypted.

A lack of any icon means that the dataset is inheriting the encryption (or non-encryption) properties of its parent.



[Fred974]

@winnielinnie Thank you very much for your explanation. The colour did help. Is there a way to encrypt the dataset after the replication is done? Or can I run the replication task and for the encryption process?

Thank you



[ornias]

Encryption something that can't be changed except at creation time, you can however rename "pictures" to something like "oldpictures" and use zfs-send-recieve to create a new (encrypted) dataset from it :)



[Fred974]

@ornias thank you for the reply. could you show me what that command would look like please?



[Fred974]

Will this be ok?
I redone the replication task and I have all the picture in dataset called picturestmp.
I am planning to rung this command:

Code:

zfs send tank/pictures@snap1 | zfs recv tank/pictures

The dataset 'pictures' was manually created an had inherited the encryption from the parent.
Is the above the correct command?



[Fred974]

all sorted thank you
