System boots and runs but in the logs "Error 22, Unretryable error"

[slayer99199]

I should note that despite this error, my system boots and is otherwise running normally. Should I just ignore this or is this a problem?

OS Version:
FreeNAS-11.2-U4.1
(Build Date: May 10, 2019 21:33)
Processor:
Intel(R) Core(TM) i3-6300 CPU @ 3.80GHz (4 cores)
Memory:
16 GiB
Motherboard:
ASRock C236 WSI

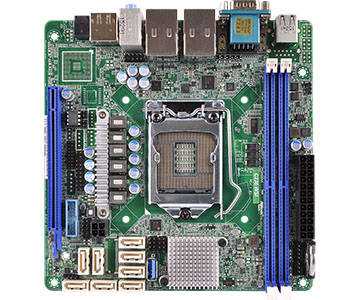

I have 8 disks in 2 pools connected to 8 SATA slots on my motherboard (I don't have an external SATA card...yet). So my boot drive is actually a 256GB SSD connected via a SATA-to-USB connector and from there to the on board internal USB (you can see it to the right of the SATA ports in this image):

The error:

Code:

VT(efifb): resolution 800x600
CPU: Intel(R) Core(TM) i3-6300 CPU @ 3.80GHz (3792.15-MHz K8-class CPU)
Structured Extended Features3=0xc000000<IBPB,STIBP>
avail memory = 16226922496 (15475 MB)
Timecounter "TSC-low" frequency 1896073183 Hz quality 1000
pcib0: _OSC returned error 0x10
orm0: <ISA Option ROM> at iomem 0xc0000-0xcffff on isa0
ugen0.2: <SanDisk Ultra Fit> at usbus0
umass0: <SanDisk Ultra Fit, class 0/0, rev 2.10/1.00, addr 1> on usbus0
ugen0.3: <SABRENT SABRENT> at usbus0
umass1: <SABRENT SABRENT, class 0/0, rev 3.10/a0.00, addr 2> on usbus0
(probe0:umass-sim1:1:0:0): REPORT LUNS. CDB: a0 00 00 00 00 00 00 00 00 10 00 00
(probe0:umass-sim1:1:0:0): CAM status: SCSI Status Error
(probe0:umass-sim1:1:0:0): SCSI status: Check Condition
(probe0:umass-sim1:1:0:0): SCSI sense: ILLEGAL REQUEST asc:20,0 (Invalid command operation code)
(probe0:umass-sim1:1:0:0): Error 22, Unretryable error
da1 at umass-sim1 bus 1 scbus10 target 0 lun 0
da1: < SABRENT 2210> Fixed Direct Access SPC-4 SCSI device
da1: Serial Number 000000123AD2
da1: 400.000MB/s transfers
da1: 238475MB (488397168 512 byte sectors)
da1: quirks=0x2<NO_6_BYTE>
epair0a: Ethernet address: 02:e4:d0:00:05:0a
epair0b: Ethernet address: 02:e4:d0:00:06:0b

SanDisk is where I store my configuration backups.



[Chris Moore]

Code:

ugen0.2: <SanDisk Ultra Fit> at usbus0
umass0: <SanDisk Ultra Fit, class 0/0, rev 2.10/1.00, addr 1> on usbus0

I was wondering about that... Thanks for clarifying.

SanDisk is where I store my configuration backups.

All the errors you are having are related back to the "SABRENT":

Code:

ugen0.3: <SABRENT SABRENT> at usbus0
umass1: <SABRENT SABRENT, class 0/0, rev 3.10/a0.00, addr 2> on usbus0

What is made by SABRENT? Is that the SSD or the USB enclosure for the SSD? It could be that the enclosure is going bad. I have had that happen to me. I have one sitting on my desk right now that I was contemplating throwing in the garbage because I just don't know if it is worth the effort to attempt to exercise the warranty. For me, the SSD is fine but the enclosure it junk. I replaced the enclosure and I am still using the SSD.

I have 8 disks in 2 pools

PS. Not related to your problem, but this is probably not the best configuration. Still, it may be fine for what you are doing.



[slayer99199]

I was wondering about that... Thanks for clarifying.

All the errors you are having are related back to the "SABRENT":

What is made by SABRENT? Is that the SSD or the USB enclosure for the SSD? It could be that the enclosure is going bad. I have had that happen to me. I have one sitting on my desk right now that I was contemplating throwing in the garbage because I just don't know if it is worth the effort to attempt to exercise the warranty. For me, the SSD is fine but the enclosure it junk. I replaced the enclosure and I am still using the SSD.

It's a Samsung SSD. I'm not using an enclosure (the SSD actually resides internally to my server in my drive cages with my other disks), I'm using a SATA-to-USB adapter. But thanks for pointing it out. I went back to the online store and confirmed....the adapter is a Sabrent.

https://www.microcenter.com/product/487040/usb-31-to-ssd-25-sata-hard-drive-adapter

The reason I chose this configuration is that I'm using all 8 of my motherboard's SATA connections and I didn't want to purchase another SATA card. Now I know USB drives (as in thumb drives) are not recommended or supported by FreeNAS....but I didn't think that would necessarily apply to this configuration (using a SSD drive connected via USB).

PS. Not related to your problem, but this is probably not the best configuration. Still, it may be fine for what you are doing.

I have one pool with 5 disks and the other with 3. I added the other 3 disks a few weeks ago as I was running out of space and I had 4 HGST 4TB disks lying around for another project (so I have one spare).

I found some additional information on the error in relation to protected formatting so I ran the following:

Code:

root@freenas:~ # smartctl -d sat -i /dev/da1
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Samsung based SSDs
Device Model:     Samsung SSD 850 EVO 250GB
Serial Number:    S21NNSAG526920D
LU WWN Device Id: 5 002538 da02d99a4
Firmware Version: EMT01B6Q
User Capacity:    250,059,350,016 bytes [250 GB]
Sector Size:      512 bytes logical/physical
Rotation Rate:    Solid State Device
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4c
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Sun Aug 11 17:17:56 2019 EDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

At this point I'm not prepared to go through a major upgrade as I have a new PC purchase scheduled this year (waiting for the next AMD Threadrippers). I bought myself some time by adding the 2nd pool (giving me 32TB RAW). I figure when it's time to upgrade, I"ll replace the mobo, CPU, memory, and add a couple of SATA cards (my Rosewill case supports 15 disks). If this is not "bad" for my system, I'd like to let it ride as long as I can until I need to upgrade my entire system.
