Hi Everyone,

I started testing all my new hardware this weekend and as I was going through the thread below on burning in your drives I came across a weird value on one of my drives.

https://forums.freenas.org/index.php?threads/how-to-hard-drive-burn-in-testing.21451/

The spin up time raw value was high it seemed. Ive looked around and cant seem to find much on the value and what it could mean for the drive. Here are the results any input would be helpful.

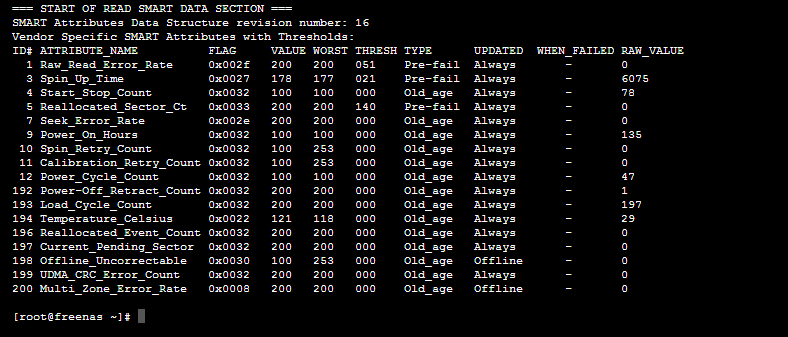

=== START OF READ SMART DATA SECTION ===
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0
3 Spin_Up_Time 0x0027 178 177 021 Pre-fail Always - 6075
4 Start_Stop_Count 0x0032 100 100 000 Old_age Always - 78
5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0
7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0
9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 135
10 Spin_Retry_Count 0x0032 100 253 000 Old_age Always - 0
11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0
12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 47
192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 1
193 Load_Cycle_Count 0x0032 200 200 000 Old_age Always - 197
194 Temperature_Celsius 0x0022 121 118 000 Old_age Always - 29
196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0
197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0
198 Offline_Uncorrectable 0x0030 100 253 000 Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0
200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 0


flyinfitz1

Explorer
Joined
Mar 29, 2013
Messages
91


Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
No problem here ;)

The value is in ms so this drive takes roughly 6 sec to spin-up.


flyinfitz1

Explorer
Joined
Mar 29, 2013
Messages
91
Seems like a long time to get rolling at the right RPM correct? Id rather go through the hassle of an RMA now before data is on the drives if anythng looks out of wack. Thanks for the prompt response.


Bidule0hm

Server Electronics Sorcerer
Joined
Aug 5, 2013
Messages
3,710
Not at all, my drives are between 6.0 and 6.2 seconds, perfectly normal ;)


flyinfitz1

Explorer
Joined
Mar 29, 2013
Messages
91
Great thanks!
