Config in my signature, been working for years. After upgrade following happens. FreeNAS boots, but no disks visible. I boot from SATA DOM so it comes from Motherboard. But all of the drives is on SAS2 backplane. I get all of the warnings about datasets missing, etc.

It's not always the case. It may take full shutdown and start up and disks appear and pools registered/found by FreeNAS. But most of the time they are not.

Any suggestion on what to look for?


katit

Contributor
Joined
Jun 16, 2015
Messages
162
Here is more information, not sure if it's related, but maybe.
I also recently installed 2x new

22TB WD Red Pro NAS​

Could it be that SAS2 backplane doesn't like them?
Here is the story.. Installed them. Started to go through burn-in process (takes FOREVER)
Then, system experienced power off shutdown (don't ask..) in a middle of burn in (step 5)
I restarted burn-in process
On step 3 there was bunch of error on drives popping up
Then GUI fell off (couldn't login - forgot what the error was). No SSH either. But shares worked.

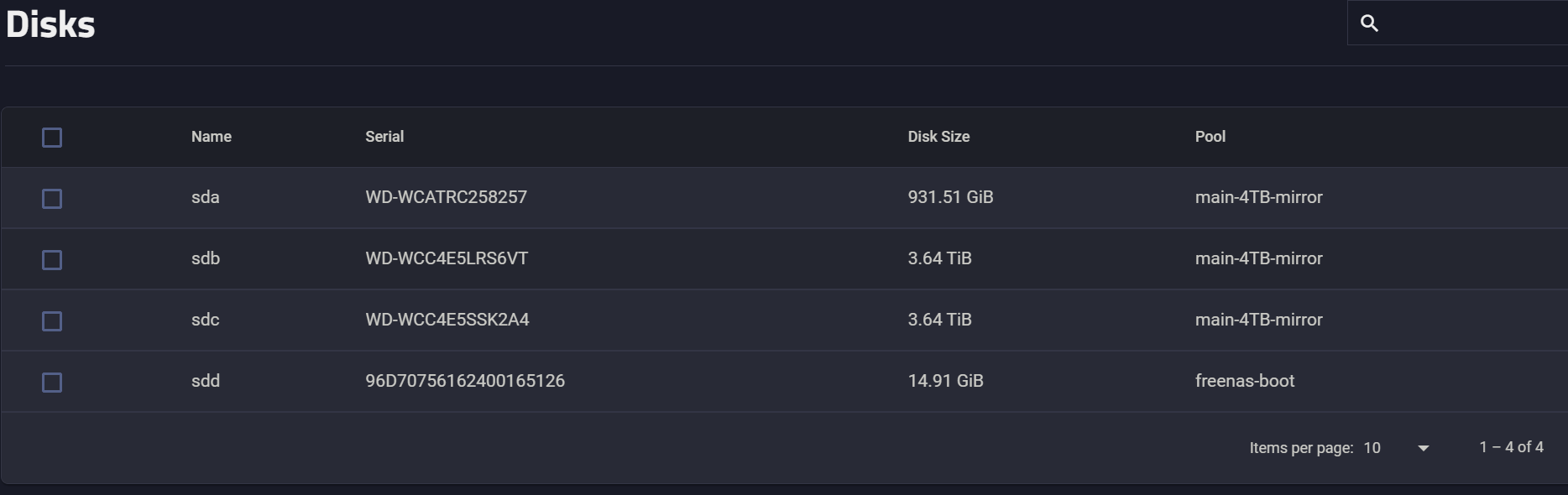

I rebooted few times to get my drives visible (see original post) - so now I see all except for those 2x 22TB drives.

Is it known for those newer big drives to not play with SAS2?
