Hi forum,
I hope someone can help me here. I don't know why and couldn't figure out aufterwards why this happened.
I have set up the vaultwarden app from truecharts. That ran without issues for months. Even the updates didn't change anything on this. Then I had to restart TrueNAS and the story begins.
For normal vaultwarden scales up three pods (afaik, and not in this specific order):
1. postgresql database
2. pgbnouncer
3. web interface / app
All of a sudden (from my view) after the restart, the PVC and trigger to start the postgres database pod disappeared. I absolutely have no clue where I should start from now.
The good thing (hopefully) is, that I take snapshots from the whole pool my apps are stored. But they are only kept for 2 weeks (until now - need to change this to 4 to win some more time for investigation).
Now what I hope to find here:
How can I recreate the database POD?

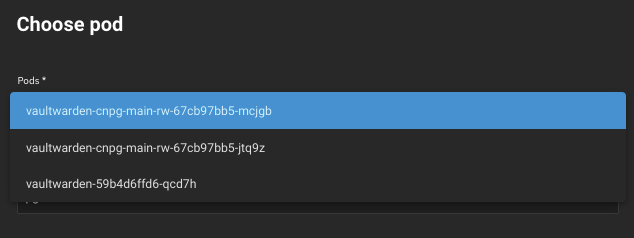

When I start the App via GUI I get this:
vaultwarden-cnpg-main-rw-67cb97bb5-mcjgb is the pgbouncer pod appears twice, because I set it to 2 replications.
But how it should look like is:
This vaultwarden2 app I set up yesterday to find diffs in config or anywhere else - but I had no luck until now.

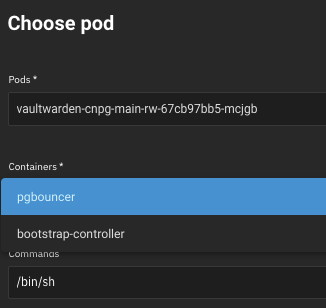

So for now the pgbouncer of the original installation cannot connect to the postgresql database as it is not loading anymore. From what I see it should have two PODs with this naming schema: "vaultwarden-cnpg-main-[1,2]". In these PODs I should be able to open the shell within it with the postgres user. Within the "vaultwarden-cnpg-main-rw" PODs I can only open the shell with the so called pgbouncer user:

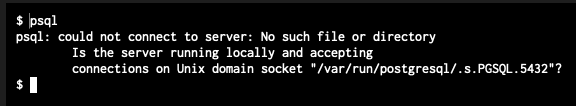

If I now want to get into psql, I get this:
\
what seems logical to me, as there is no psql instance started for this app.
I also cannot connect to it with via pgadmin with the stored connection string:
While the one for the new installed vaultwarden2 works like a charm.
I now hop, I could just restore an older configuration that still worked, as I have the snapshots and the original pvc config:
Both entries "vaultwarden-cnpg-main-3" and "vaultwarden-cnpg-main-3-wal" are new because I started to change configurations in kind of a small panic attack (shame on me!).
With zfs I still find snapshots:
So please, could someone give me some advice how to proceed and regain access to the database? That alone would be more than enough, as I would then upgrade the app to an external cloudnative-pg app in the same step. A psql dump would be all I need.
I hope someone can help me here. I don't know why and couldn't figure out aufterwards why this happened.
I have set up the vaultwarden app from truecharts. That ran without issues for months. Even the updates didn't change anything on this. Then I had to restart TrueNAS and the story begins.
For normal vaultwarden scales up three pods (afaik, and not in this specific order):
1. postgresql database
2. pgbnouncer
3. web interface / app
All of a sudden (from my view) after the restart, the PVC and trigger to start the postgres database pod disappeared. I absolutely have no clue where I should start from now.
The good thing (hopefully) is, that I take snapshots from the whole pool my apps are stored. But they are only kept for 2 weeks (until now - need to change this to 4 to win some more time for investigation).
Now what I hope to find here:
How can I recreate the database POD?
When I start the App via GUI I get this:
Code:
sudo k3s kubectl get pods -n ix-vaultwarden NAME READY STATUS RESTARTS AGE vaultwarden-cnpg-main-rw-67cb97bb5-mcjgb 1/1 Running 0 22h vaultwarden-cnpg-main-rw-67cb97bb5-jtq9z 1/1 Running 0 22h vaultwarden-59b4d6ffd6-qcd7h 0/1 CrashLoopBackOff 32 (2m12s ago) 148m
vaultwarden-cnpg-main-rw-67cb97bb5-mcjgb is the pgbouncer pod appears twice, because I set it to 2 replications.
But how it should look like is:
Code:
sudo k3s kubectl get pods -n ix-vaultwarden2 NAME READY STATUS RESTARTS AGE vaultwarden2-cnpg-main-1 1/1 Running 0 22h vaultwarden2-cnpg-main-2 1/1 Running 0 22h vaultwarden2-67d9d75557-vwt9v 1/1 Running 0 17h
This vaultwarden2 app I set up yesterday to find diffs in config or anywhere else - but I had no luck until now.
So for now the pgbouncer of the original installation cannot connect to the postgresql database as it is not loading anymore. From what I see it should have two PODs with this naming schema: "vaultwarden-cnpg-main-[1,2]". In these PODs I should be able to open the shell within it with the postgres user. Within the "vaultwarden-cnpg-main-rw" PODs I can only open the shell with the so called pgbouncer user:
If I now want to get into psql, I get this:
what seems logical to me, as there is no psql instance started for this app.
I also cannot connect to it with via pgadmin with the stored connection string:
Code:
sudo ~/tcdbinfo.sh Application Username Password Address Port vaultwarden2 vaultwarden X1...dsA vaultwarden2-cnpg-main-rw.ix-vaultwarden2.svc.cluster.local 5432 vaultwarden vaultwarden XT...zBe vaultwarden-cnpg-main-rw.ix-vaultwarden.svc.cluster.local 5432
While the one for the new installed vaultwarden2 works like a charm.
I now hop, I could just restore an older configuration that still worked, as I have the snapshots and the original pvc config:
Code:
sudo k3s kubectl get pvc -n ix-vaultwarden NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE vaultwarden-cnpg-main-2 Bound pvc-3e041ee9-33e4-461f-808b-76430b4817a2 256Gi RWO ix-storage-class-vaultwarden 110d vaultwarden-cnpg-main-2-wal Bound pvc-ff17e601-abea-42e4-a512-b55844733e36 256Gi RWO ix-storage-class-vaultwarden 110d vaultwarden-cnpg-main-3-wal Bound pvc-411c0fd5-b260-43fd-9fce-186b5c87550a 256Gi RWO ix-storage-class-vaultwarden 5d vaultwarden-cnpg-main-3 Bound pvc-a7924aab-952a-4bf3-ad19-2745c8cebeb0 256Gi RWO ix-storage-class-vaultwarden 5d vaultwarden-data Bound pvc-7b598f15-d5d0-4cfd-8a53-31b0020e6570 256Gi RWO ix-storage-class-vaultwarden 110d
Both entries "vaultwarden-cnpg-main-3" and "vaultwarden-cnpg-main-3-wal" are new because I started to change configurations in kind of a small panic attack (shame on me!).
With zfs I still find snapshots:
Code:
zfs list -t snapshot | grep pvc-3e041ee9-33e4-461f-808b-76430b4817a2 vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@ix-applications-backup-system-update--2023-06-21_15:55:03 2.30M - 9.73M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202307310600-auto 984K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202308070600-auto 624K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202308140600-auto 636K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202308210600-auto 1.07M - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202308280600-auto 304K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202308300000-auto 112K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202308310000-auto 136K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309010000-auto 736K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309020000-auto 136K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309030000-auto 120K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309040000-auto 236K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309040600-auto 208K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309050000-auto 672K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309060000-auto 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@ix-applications-backup-system-update--2023-09-06_11:38:45 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309070000-auto 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309080000-auto 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309090000-auto 128K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309100000-auto 124K - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309110000-auto 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309110600-auto 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309120000-auto 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@93 0B - 10.1M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-3e041ee9-33e4-461f-808b-76430b4817a2@202309130000-auto 0B - 10.1M -
Code:
zfs list -t snapshot | grep pvc-ff17e601-abea-42e4-a512-b55844733e36 vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@ix-applications-backup-system-update--2023-06-21_15:55:03 708K - 740K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202307310600-auto 1.01M - 1.04M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202308070600-auto 836K - 868K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202308140600-auto 880K - 912K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202308210600-auto 780K - 812K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202308280600-auto 824K - 856K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202308300000-auto 584K - 868K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202308310000-auto 368K - 820K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309010000-auto 588K - 788K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309020000-auto 260K - 936K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309030000-auto 160K - 928K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309040000-auto 128K - 836K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309040600-auto 128K - 844K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309050000-auto 688K - 880K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309060000-auto 0B - 1.09M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@ix-applications-backup-system-update--2023-09-06_11:38:45 0B - 1.09M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309070000-auto 0B - 1.06M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309080000-auto 0B - 1.06M - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309090000-auto 192K - 912K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309100000-auto 112K - 816K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309110000-auto 0B - 804K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309110600-auto 0B - 804K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309120000-auto 0B - 804K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@93 0B - 804K - vm-apps-ssd/ix-applications/releases/vaultwarden/volumes/pvc-ff17e601-abea-42e4-a512-b55844733e36@202309130000-auto 0B - 804K -
So please, could someone give me some advice how to proceed and regain access to the database? That alone would be more than enough, as I would then upgrade the app to an external cloudnative-pg app in the same step. A psql dump would be all I need.
