help me please
Please give details on how to deal with the command
Please give details on how to deal with the command
-
Important Announcement for the TrueNAS Community.
The TrueNAS Community has now been moved. This forum has become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums

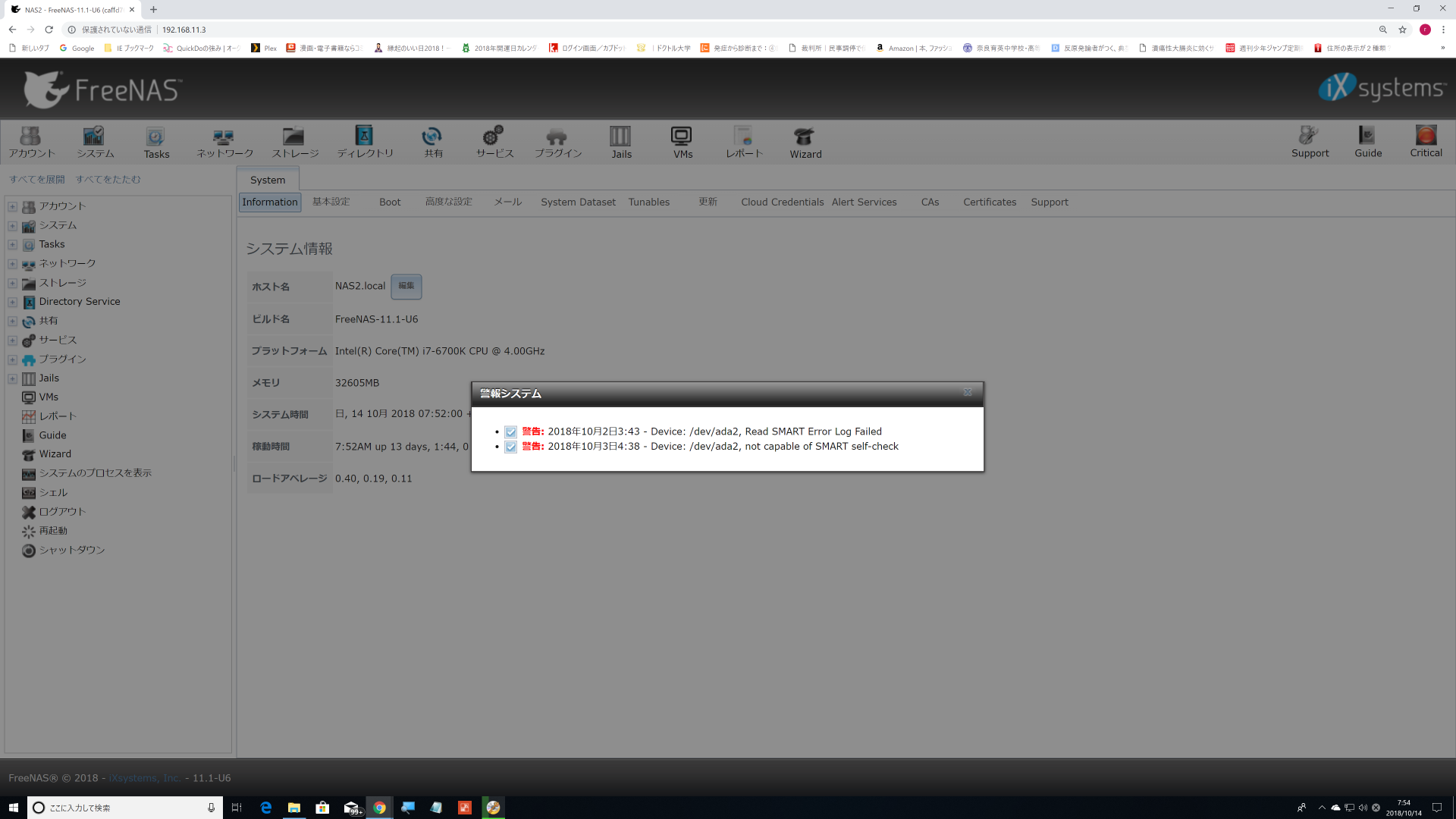

Read SMART Error Log Failed & not capable of SMART self-check
- Thread starter taizo yoshdia
- Start date
-
- Tags
- smart error
- Status
Chris Moore
Hall of Famer
- Joined
- May 2, 2015
- Messages
- 10,080
I think you need to give a better explanation of what the problem is. I don't think anyone is going to take this seriously if you don't explain.
taizo yoshdia
Dabbler
- Joined
- Mar 7, 2017
- Messages
- 23
MorkaiTheWolf
Dabbler
- Joined
- Aug 8, 2018
- Messages
- 32
What is the printout from
That will provide more helpful information in order to assist. Also, more details on the build would be helpful.
smartctl -x /dev/ada2That will provide more helpful information in order to assist. Also, more details on the build would be helpful.
taizo yoshdia
Dabbler
- Joined
- Mar 7, 2017
- Messages
- 23
I do not know well because the shell does not scroll I got a warning.
MorkaiTheWolf
Dabbler
- Joined
- Aug 8, 2018
- Messages
- 32
Could try to SSH into the server and you should be able to scroll through your results there vs using the built in freenas shell.
Otherwise, you could print your output directly to a file
Example command for my system:
That created the smart.txt file that I can ftp off or review in an editor.
Otherwise, you could print your output directly to a file
smartctl -x /dev/ada2 > /yourdirectory/filenameExample command for my system:
smartctl -x /dev/da2 > /mnt/Jails/jails/scripts/smart.txtThat created the smart.txt file that I can ftp off or review in an editor.
taizo yoshdia
Dabbler
- Joined
- Mar 7, 2017
- Messages
- 23
It may be because it was after I checked with SeaTools Bootable, but since warning disappeared, thank you.
I do smartctl -x /dev/ada2
I do smartctl -x /dev/ada2
taizo yoshdia
Dabbler
- Joined
- Mar 7, 2017
- Messages
- 23
taizo yoshdia
Dabbler
- Joined
- Mar 7, 2017
- Messages
- 23
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Seagate IronWolf
Device Model: ST10000VN0004-2GS11L
Serial Number: ZJV09EN2
LU WWN Device Id: 5 000c50 0afccabbb
Firmware Version: SC60
User Capacity: 10,000,831,348,736 bytes [10.0 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database [for details use: -P show]
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Mon Oct 29 10:54:29 2018 JST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 567) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off supp
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 907) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x50bd) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-- 069 064 044 - 8223136
3 Spin_Up_Time PO---- 087 086 000 - 0
4 Start_Stop_Count -O--CK 099 099 020 - 1132
5 Reallocated_Sector_Ct PO--CK 100 100 010 - 0
7 Seek_Error_Rate POSR-- 080 060 045 - 93473017
9 Power_On_Hours -O--CK 096 096 000 - 3847
10 Spin_Retry_Count PO--C- 100 100 097 - 0
12 Power_Cycle_Count -O--CK 100 100 020 - 831
187 Reported_Uncorrect -O--CK 100 100 000 - 0
188 Command_Timeout -O--CK 094 001 000 - 639960481791
190 Airflow_Temperature_Cel -O---K 065 044 040 - 35 (Min/Max 31/40)
192 Power-Off_Retract_Count -O--CK 100 100 000 - 832
193 Load_Cycle_Count -O--CK 100 100 000 - 1267
194 Temperature_Celsius -O---K 035 056 000 - 35 (0 19 0 0 0)
195 Hardware_ECC_Recovered -O-RC- 016 001 000 - 8223136
197 Current_Pending_Sector -O--C- 100 100 000 - 0
198 Offline_Uncorrectable ----C- 100 100 000 - 0
199 UDMA_CRC_Error_Count -OSRCK 200 185 000 - 287685
200 Multi_Zone_Error_Rate PO---K 100 100 001 - 0
240 Head_Flying_Hours ------ 100 253 000 - 3676 (201 114 0)
241 Total_LBAs_Written ------ 100 253 000 - 66786746827
242 Total_LBAs_Read ------ 100 253 000 - 65290458923
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 5 Ext. Comprehensive SMART error log
0x04 GPL R/O 256 Device Statistics log
0x04 SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x08 GPL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x0c GPL R/O 2048 Pending Defects log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x13 GPL R/O 1 SATA NCQ Send and Receive log
0x15 GPL R/W 1 Rebuild Assist log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x24 GPL R/O 768 Current Device Internal Status Data log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa1 GPL,SL VS 24 Device vendor specific log
0xa2 GPL VS 16320 Device vendor specific log
0xa4 GPL,SL VS 160 Device vendor specific log
0xa6 GPL VS 192 Device vendor specific log
0xa8-0xa9 GPL,SL VS 136 Device vendor specific log
0xab GPL VS 1 Device vendor specific log
0xad GPL VS 16 Device vendor specific log
0xbe-0xbf GPL VS 65535 Device vendor specific log
0xc1 GPL,SL VS 8 Device vendor specific log
0xc3 GPL,SL VS 32 Device vendor specific log
0xc9 GPL,SL VS 8 Device vendor specific log
0xca GPL,SL VS 16 Device vendor specific log
0xd1 GPL VS 336 Device vendor specific log
0xd2 GPL VS 10000 Device vendor specific log
0xd4 GPL VS 2048 Device vendor specific log
0xda GPL,SL VS 1 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA
# 1 Extended offline Interrupted (host reset) 00% 3464 -
# 2 Extended offline Interrupted (host reset) 00% 3464 -
# 3 Extended offline Interrupted (host reset) 00% 3464 -
# 4 Short offline Completed without error 00% 3463 -
# 5 Short offline Completed without error 00% 3463 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 522 (0x020a)
SCT Support Level: 1
Device State: Active (0)
Current Temperature: 35 Celsius
Power Cycle Min/Max Temperature: 31/40 Celsius
Lifetime Min/Max Temperature: 19/56 Celsius
Under/Over Temperature Limit Count: 0/264
SCT Temperature History Version: 2
Temperature Sampling Period: 3 minutes
Temperature Logging Interval: 59 minutes
Min/Max recommended Temperature: 10/25 Celsius
Min/Max Temperature Limit: 0/70 Celsius
Temperature History Size (Index): 128 (15)
Index Estimated Time Temperature Celsius
16 2018-10-24 05:59 35 ****************
17 2018-10-24 06:58 35 ****************
18 2018-10-24 07:57 36 *****************
19 2018-10-24 08:56 36 *****************
20 2018-10-24 09:55 37 ******************
21 2018-10-24 10:54 37 ******************
22 2018-10-24 11:53 37 ******************
23 2018-10-24 12:52 38 *******************
... ..( 2 skipped). .. *******************
26 2018-10-24 15:49 38 *******************
27 2018-10-24 16:48 39 ********************
28 2018-10-24 17:47 38 *******************
29 2018-10-24 18:46 38 *******************
30 2018-10-24 19:45 38 *******************
31 2018-10-24 20:44 36 *****************
32 2018-10-24 21:43 35 ****************
33 2018-10-24 22:42 35 ****************
34 2018-10-24 23:41 34 ***************
35 2018-10-25 00:40 34 ***************
36 2018-10-25 01:39 34 ***************
37 2018-10-25 02:38 33 **************
38 2018-10-25 03:37 33 **************
39 2018-10-25 04:36 32 *************
40 2018-10-25 05:35 32 *************
41 2018-10-25 06:34 32 *************
42 2018-10-25 07:33 33 **************
43 2018-10-25 08:32 34 ***************
44 2018-10-25 09:31 33 **************
45 2018-10-25 10:30 35 ****************
46 2018-10-25 11:29 35 ****************
47 2018-10-25 12:28 36 *****************
... ..( 2 skipped). .. *****************
50 2018-10-25 15:25 36 *****************
51 2018-10-25 16:24 37 ******************
52 2018-10-25 17:23 37 ******************
53 2018-10-25 18:22 36 *****************
54 2018-10-25 19:21 36 *****************
55 2018-10-25 20:20 35 ****************
56 2018-10-25 21:19 35 ****************
57 2018-10-25 22:18 34 ***************
58 2018-10-25 23:17 34 ***************
59 2018-10-26 00:16 34 ***************
60 2018-10-26 01:15 33 **************
61 2018-10-26 02:14 33 **************
62 2018-10-26 03:13 33 **************
63 2018-10-26 04:12 32 *************
... ..( 2 skipped). .. *************
66 2018-10-26 07:09 32 *************
67 2018-10-26 08:08 33 **************
68 2018-10-26 09:07 32 *************
69 2018-10-26 10:06 33 **************
70 2018-10-26 11:05 34 ***************
71 2018-10-26 12:04 35 ****************
72 2018-10-26 13:03 36 *****************
73 2018-10-26 14:02 37 ******************
74 2018-10-26 15:01 38 *******************
... ..( 2 skipped). .. *******************
77 2018-10-26 17:58 38 *******************
78 2018-10-26 18:57 39 ********************
79 2018-10-26 19:56 38 *******************
80 2018-10-26 20:55 37 ******************
81 2018-10-26 21:54 37 ******************
82 2018-10-26 22:53 36 *****************
... ..( 7 skipped). .. *****************
90 2018-10-27 06:45 36 *****************
91 2018-10-27 07:44 37 ******************
92 2018-10-27 08:43 37 ******************
93 2018-10-27 09:42 38 *******************
94 2018-10-27 10:41 38 *******************
95 2018-10-27 11:40 37 ******************
96 2018-10-27 12:39 38 *******************
97 2018-10-27 13:38 39 ********************
... ..( 3 skipped). .. ********************
101 2018-10-27 17:34 39 ********************
102 2018-10-27 18:33 37 ******************
103 2018-10-27 19:32 36 *****************
104 2018-10-27 20:31 36 *****************
105 2018-10-27 21:30 35 ****************
106 2018-10-27 22:29 35 ****************
107 2018-10-27 23:28 35 ****************
108 2018-10-28 00:27 34 ***************
109 2018-10-28 01:26 34 ***************
110 2018-10-28 02:25 33 **************
111 2018-10-28 03:24 33 **************
112 2018-10-28 04:23 34 ***************
113 2018-10-28 05:22 32 *************
114 2018-10-28 06:21 32 *************
115 2018-10-28 07:20 32 *************
116 2018-10-28 08:19 33 **************
117 2018-10-28 09:18 34 ***************
118 2018-10-28 10:17 35 ****************
119 2018-10-28 11:16 36 *****************
120 2018-10-28 12:15 36 *****************
121 2018-10-28 13:14 37 ******************
122 2018-10-28 14:13 37 ******************
123 2018-10-28 15:12 38 *******************
124 2018-10-28 16:11 37 ******************
125 2018-10-28 17:10 37 ******************
126 2018-10-28 18:09 36 *****************
127 2018-10-28 19:08 37 ******************
0 2018-10-28 20:07 37 ******************
1 2018-10-28 21:06 35 ****************
2 2018-10-28 22:05 34 ***************
3 2018-10-28 23:04 34 ***************
4 2018-10-29 00:03 33 **************
... ..( 2 skipped). .. **************
7 2018-10-29 03:00 33 **************
8 2018-10-29 03:59 32 *************
... ..( 3 skipped). .. *************
12 2018-10-29 07:55 32 *************
13 2018-10-29 08:54 33 **************
14 2018-10-29 09:53 34 ***************
15 2018-10-29 10:52 35 ****************
SCT Error Recovery Control:
Read: 70 (7.0 seconds)
Write: 70 (7.0 seconds)
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) supported [please try: '-l defects']
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x000a 2 8963 Device-to-host register FISes sent due to a COMRESET
0x0001 2 8903 Command failed due to ICRC error
0x0003 2 8926 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0006 2 7 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
SCT capabilities: (0x50bd) SCT Status supported.
SCT Error Recovery Control supported.
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Seagate IronWolf
Device Model: ST10000VN0004-2GS11L
Serial Number: ZJV09EN2
LU WWN Device Id: 5 000c50 0afccabbb
Firmware Version: SC60
User Capacity: 10,000,831,348,736 bytes [10.0 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database [for details use: -P show]
ATA Version is: ACS-3 T13/2161-D revision 5
SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Mon Oct 29 10:54:29 2018 JST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM feature is: Unavailable
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 567) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off supp
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: ( 907) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x50bd) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate POSR-- 069 064 044 - 8223136
3 Spin_Up_Time PO---- 087 086 000 - 0
4 Start_Stop_Count -O--CK 099 099 020 - 1132
5 Reallocated_Sector_Ct PO--CK 100 100 010 - 0
7 Seek_Error_Rate POSR-- 080 060 045 - 93473017
9 Power_On_Hours -O--CK 096 096 000 - 3847
10 Spin_Retry_Count PO--C- 100 100 097 - 0
12 Power_Cycle_Count -O--CK 100 100 020 - 831
187 Reported_Uncorrect -O--CK 100 100 000 - 0
188 Command_Timeout -O--CK 094 001 000 - 639960481791
190 Airflow_Temperature_Cel -O---K 065 044 040 - 35 (Min/Max 31/40)
192 Power-Off_Retract_Count -O--CK 100 100 000 - 832
193 Load_Cycle_Count -O--CK 100 100 000 - 1267
194 Temperature_Celsius -O---K 035 056 000 - 35 (0 19 0 0 0)
195 Hardware_ECC_Recovered -O-RC- 016 001 000 - 8223136
197 Current_Pending_Sector -O--C- 100 100 000 - 0
198 Offline_Uncorrectable ----C- 100 100 000 - 0
199 UDMA_CRC_Error_Count -OSRCK 200 185 000 - 287685
200 Multi_Zone_Error_Rate PO---K 100 100 001 - 0
240 Head_Flying_Hours ------ 100 253 000 - 3676 (201 114 0)
241 Total_LBAs_Written ------ 100 253 000 - 66786746827
242 Total_LBAs_Read ------ 100 253 000 - 65290458923
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning
General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 5 Comprehensive SMART error log
0x03 GPL R/O 5 Ext. Comprehensive SMART error log
0x04 GPL R/O 256 Device Statistics log
0x04 SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x08 GPL R/O 2 Power Conditions log
0x09 SL R/W 1 Selective self-test log
0x0c GPL R/O 2048 Pending Defects log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x13 GPL R/O 1 SATA NCQ Send and Receive log
0x15 GPL R/W 1 Rebuild Assist log
0x21 GPL R/O 1 Write stream error log
0x22 GPL R/O 1 Read stream error log
0x24 GPL R/O 768 Current Device Internal Status Data log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xa1 GPL,SL VS 24 Device vendor specific log
0xa2 GPL VS 16320 Device vendor specific log
0xa4 GPL,SL VS 160 Device vendor specific log
0xa6 GPL VS 192 Device vendor specific log
0xa8-0xa9 GPL,SL VS 136 Device vendor specific log
0xab GPL VS 1 Device vendor specific log
0xad GPL VS 16 Device vendor specific log
0xbe-0xbf GPL VS 65535 Device vendor specific log
0xc1 GPL,SL VS 8 Device vendor specific log
0xc3 GPL,SL VS 32 Device vendor specific log
0xc9 GPL,SL VS 8 Device vendor specific log
0xca GPL,SL VS 16 Device vendor specific log
0xd1 GPL VS 336 Device vendor specific log
0xd2 GPL VS 10000 Device vendor specific log
0xd4 GPL VS 2048 Device vendor specific log
0xda GPL,SL VS 1 Device vendor specific log
0xe0 GPL,SL R/W 1 SCT Command/Status
0xe1 GPL,SL R/W 1 SCT Data Transfer
SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged
SMART Extended Self-test Log Version: 1 (1 sectors)
Num Test_Description Status Remaining LifeTime(hours) LBA
# 1 Extended offline Interrupted (host reset) 00% 3464 -
# 2 Extended offline Interrupted (host reset) 00% 3464 -
# 3 Extended offline Interrupted (host reset) 00% 3464 -
# 4 Short offline Completed without error 00% 3463 -
# 5 Short offline Completed without error 00% 3463 -
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
SCT Status Version: 3
SCT Version (vendor specific): 522 (0x020a)
SCT Support Level: 1
Device State: Active (0)
Current Temperature: 35 Celsius
Power Cycle Min/Max Temperature: 31/40 Celsius
Lifetime Min/Max Temperature: 19/56 Celsius
Under/Over Temperature Limit Count: 0/264
SCT Temperature History Version: 2
Temperature Sampling Period: 3 minutes
Temperature Logging Interval: 59 minutes
Min/Max recommended Temperature: 10/25 Celsius
Min/Max Temperature Limit: 0/70 Celsius
Temperature History Size (Index): 128 (15)
Index Estimated Time Temperature Celsius
16 2018-10-24 05:59 35 ****************
17 2018-10-24 06:58 35 ****************
18 2018-10-24 07:57 36 *****************
19 2018-10-24 08:56 36 *****************
20 2018-10-24 09:55 37 ******************
21 2018-10-24 10:54 37 ******************
22 2018-10-24 11:53 37 ******************
23 2018-10-24 12:52 38 *******************
... ..( 2 skipped). .. *******************
26 2018-10-24 15:49 38 *******************
27 2018-10-24 16:48 39 ********************
28 2018-10-24 17:47 38 *******************
29 2018-10-24 18:46 38 *******************
30 2018-10-24 19:45 38 *******************
31 2018-10-24 20:44 36 *****************
32 2018-10-24 21:43 35 ****************
33 2018-10-24 22:42 35 ****************
34 2018-10-24 23:41 34 ***************
35 2018-10-25 00:40 34 ***************
36 2018-10-25 01:39 34 ***************
37 2018-10-25 02:38 33 **************
38 2018-10-25 03:37 33 **************
39 2018-10-25 04:36 32 *************
40 2018-10-25 05:35 32 *************
41 2018-10-25 06:34 32 *************
42 2018-10-25 07:33 33 **************
43 2018-10-25 08:32 34 ***************
44 2018-10-25 09:31 33 **************
45 2018-10-25 10:30 35 ****************
46 2018-10-25 11:29 35 ****************
47 2018-10-25 12:28 36 *****************
... ..( 2 skipped). .. *****************
50 2018-10-25 15:25 36 *****************
51 2018-10-25 16:24 37 ******************
52 2018-10-25 17:23 37 ******************
53 2018-10-25 18:22 36 *****************
54 2018-10-25 19:21 36 *****************
55 2018-10-25 20:20 35 ****************
56 2018-10-25 21:19 35 ****************
57 2018-10-25 22:18 34 ***************
58 2018-10-25 23:17 34 ***************
59 2018-10-26 00:16 34 ***************
60 2018-10-26 01:15 33 **************
61 2018-10-26 02:14 33 **************
62 2018-10-26 03:13 33 **************
63 2018-10-26 04:12 32 *************
... ..( 2 skipped). .. *************
66 2018-10-26 07:09 32 *************
67 2018-10-26 08:08 33 **************
68 2018-10-26 09:07 32 *************
69 2018-10-26 10:06 33 **************
70 2018-10-26 11:05 34 ***************
71 2018-10-26 12:04 35 ****************
72 2018-10-26 13:03 36 *****************
73 2018-10-26 14:02 37 ******************
74 2018-10-26 15:01 38 *******************
... ..( 2 skipped). .. *******************
77 2018-10-26 17:58 38 *******************
78 2018-10-26 18:57 39 ********************
79 2018-10-26 19:56 38 *******************
80 2018-10-26 20:55 37 ******************
81 2018-10-26 21:54 37 ******************
82 2018-10-26 22:53 36 *****************
... ..( 7 skipped). .. *****************
90 2018-10-27 06:45 36 *****************
91 2018-10-27 07:44 37 ******************
92 2018-10-27 08:43 37 ******************
93 2018-10-27 09:42 38 *******************
94 2018-10-27 10:41 38 *******************
95 2018-10-27 11:40 37 ******************
96 2018-10-27 12:39 38 *******************
97 2018-10-27 13:38 39 ********************
... ..( 3 skipped). .. ********************
101 2018-10-27 17:34 39 ********************
102 2018-10-27 18:33 37 ******************
103 2018-10-27 19:32 36 *****************
104 2018-10-27 20:31 36 *****************
105 2018-10-27 21:30 35 ****************
106 2018-10-27 22:29 35 ****************
107 2018-10-27 23:28 35 ****************
108 2018-10-28 00:27 34 ***************
109 2018-10-28 01:26 34 ***************
110 2018-10-28 02:25 33 **************
111 2018-10-28 03:24 33 **************
112 2018-10-28 04:23 34 ***************
113 2018-10-28 05:22 32 *************
114 2018-10-28 06:21 32 *************
115 2018-10-28 07:20 32 *************
116 2018-10-28 08:19 33 **************
117 2018-10-28 09:18 34 ***************
118 2018-10-28 10:17 35 ****************
119 2018-10-28 11:16 36 *****************
120 2018-10-28 12:15 36 *****************
121 2018-10-28 13:14 37 ******************
122 2018-10-28 14:13 37 ******************
123 2018-10-28 15:12 38 *******************
124 2018-10-28 16:11 37 ******************
125 2018-10-28 17:10 37 ******************
126 2018-10-28 18:09 36 *****************
127 2018-10-28 19:08 37 ******************
0 2018-10-28 20:07 37 ******************
1 2018-10-28 21:06 35 ****************
2 2018-10-28 22:05 34 ***************
3 2018-10-28 23:04 34 ***************
4 2018-10-29 00:03 33 **************
... ..( 2 skipped). .. **************
7 2018-10-29 03:00 33 **************
8 2018-10-29 03:59 32 *************
... ..( 3 skipped). .. *************
12 2018-10-29 07:55 32 *************
13 2018-10-29 08:54 33 **************
14 2018-10-29 09:53 34 ***************
15 2018-10-29 10:52 35 ****************
SCT Error Recovery Control:
Read: 70 (7.0 seconds)
Write: 70 (7.0 seconds)
Device Statistics (GP/SMART Log 0x04) not supported
Pending Defects log (GP Log 0x0c) supported [please try: '-l defects']
SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x000a 2 8963 Device-to-host register FISes sent due to a COMRESET
0x0001 2 8903 Command failed due to ICRC error
0x0003 2 8926 R_ERR response for device-to-host data FIS
0x0004 2 0 R_ERR response for host-to-device data FIS
0x0006 2 7 R_ERR response for device-to-host non-data FIS
0x0007 2 0 R_ERR response for host-to-device non-data FIS
SCT capabilities: (0x50bd) SCT Status supported.
SCT Error Recovery Control supported.
MorkaiTheWolf
Dabbler
- Joined
- Aug 8, 2018
- Messages
- 32
We still need more details on your build. I see you mentioned that you're using 10TB Seagate Ironwolf drives but what kind of motherboard? Are you using an HBA (host bus adapter) to connect the drives?
A full printout of the your system would be very helpful.
A full printout of the your system would be very helpful.
Chris Moore
Hall of Famer
- Joined
- May 2, 2015
- Messages
- 10,080
You need to setup a method to connect to your system by SSH. Also, when you post long text listings, put it in code tags like this:
Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.1-STABLE amd64] (local build) Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Seagate IronWolf Device Model: ST10000VN0004-2GS11L Serial Number: ZJV09EN2 LU WWN Device Id: 5 000c50 0afccabbb Firmware Version: SC60 User Capacity: 10,000,831,348,736 bytes [10.0 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 7200 rpm Form Factor: 3.5 inches Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-3 T13/2161-D revision 5 SATA Version is: SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s) Local Time is: Mon Oct 29 10:54:29 2018 JST SMART support is: Available - device has SMART capability. SMART support is: Enabled AAM feature is: Unavailable APM feature is: Unavailable Rd look-ahead is: Enabled Write cache is: Enabled DSN feature is: Unavailable ATA Security is: Disabled, NOT FROZEN [SEC1] Wt Cache Reorder: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 0) The previous self-test routine completed without error or no self-test has ever been run. Total time to complete Offline data collection: ( 567) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off supp Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 1) minutes. Extended self-test routine recommended polling time: ( 907) minutes. Conveyance self-test routine recommended polling time: ( 2) minutes. SCT capabilities: (0x50bd) SCT Status supported. SCT Error Recovery Control supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 10 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE 1 Raw_Read_Error_Rate POSR-- 069 064 044 - 8223136 3 Spin_Up_Time PO---- 087 086 000 - 0 4 Start_Stop_Count -O--CK 099 099 020 - 1132 5 Reallocated_Sector_Ct PO--CK 100 100 010 - 0 7 Seek_Error_Rate POSR-- 080 060 045 - 93473017 9 Power_On_Hours -O--CK 096 096 000 - 3847 10 Spin_Retry_Count PO--C- 100 100 097 - 0 12 Power_Cycle_Count -O--CK 100 100 020 - 831 187 Reported_Uncorrect -O--CK 100 100 000 - 0 188 Command_Timeout -O--CK 094 001 000 - 639960481791 190 Airflow_Temperature_Cel -O---K 065 044 040 - 35 (Min/Max 31/40) 192 Power-Off_Retract_Count -O--CK 100 100 000 - 832 193 Load_Cycle_Count -O--CK 100 100 000 - 1267 194 Temperature_Celsius -O---K 035 056 000 - 35 (0 19 0 0 0) 195 Hardware_ECC_Recovered -O-RC- 016 001 000 - 8223136 197 Current_Pending_Sector -O--C- 100 100 000 - 0 198 Offline_Uncorrectable ----C- 100 100 000 - 0 199 UDMA_CRC_Error_Count -OSRCK 200 185 000 - 287685 200 Multi_Zone_Error_Rate PO---K 100 100 001 - 0 240 Head_Flying_Hours ------ 100 253 000 - 3676 (201 114 0) 241 Total_LBAs_Written ------ 100 253 000 - 66786746827 242 Total_LBAs_Read ------ 100 253 000 - 65290458923 ||||||_ K auto-keep |||||__ C event count ||||___ R error rate |||____ S speed/performance ||_____ O updated online |______ P prefailure warning General Purpose Log Directory Version 1 SMART Log Directory Version 1 [multi-sector log support] Address Access R/W Size Description 0x00 GPL,SL R/O 1 Log Directory 0x01 SL R/O 1 Summary SMART error log 0x02 SL R/O 5 Comprehensive SMART error log 0x03 GPL R/O 5 Ext. Comprehensive SMART error log 0x04 GPL R/O 256 Device Statistics log 0x04 SL R/O 8 Device Statistics log 0x06 SL R/O 1 SMART self-test log 0x07 GPL R/O 1 Extended self-test log 0x08 GPL R/O 2 Power Conditions log 0x09 SL R/W 1 Selective self-test log 0x0c GPL R/O 2048 Pending Defects log 0x10 GPL R/O 1 NCQ Command Error log 0x11 GPL R/O 1 SATA Phy Event Counters log 0x13 GPL R/O 1 SATA NCQ Send and Receive log 0x15 GPL R/W 1 Rebuild Assist log 0x21 GPL R/O 1 Write stream error log 0x22 GPL R/O 1 Read stream error log 0x24 GPL R/O 768 Current Device Internal Status Data log 0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log 0x80-0x9f GPL,SL R/W 16 Host vendor specific log 0xa1 GPL,SL VS 24 Device vendor specific log 0xa2 GPL VS 16320 Device vendor specific log 0xa4 GPL,SL VS 160 Device vendor specific log 0xa6 GPL VS 192 Device vendor specific log 0xa8-0xa9 GPL,SL VS 136 Device vendor specific log 0xab GPL VS 1 Device vendor specific log 0xad GPL VS 16 Device vendor specific log 0xbe-0xbf GPL VS 65535 Device vendor specific log 0xc1 GPL,SL VS 8 Device vendor specific log 0xc3 GPL,SL VS 32 Device vendor specific log 0xc9 GPL,SL VS 8 Device vendor specific log 0xca GPL,SL VS 16 Device vendor specific log 0xd1 GPL VS 336 Device vendor specific log 0xd2 GPL VS 10000 Device vendor specific log 0xd4 GPL VS 2048 Device vendor specific log 0xda GPL,SL VS 1 Device vendor specific log 0xe0 GPL,SL R/W 1 SCT Command/Status 0xe1 GPL,SL R/W 1 SCT Data Transfer SMART Extended Comprehensive Error Log Version: 1 (5 sectors) No Errors Logged SMART Extended Self-test Log Version: 1 (1 sectors) Num Test_Description Status Remaining LifeTime(hours) LBA # 1 Extended offline Interrupted (host reset) 00% 3464 - # 2 Extended offline Interrupted (host reset) 00% 3464 - # 3 Extended offline Interrupted (host reset) 00% 3464 - # 4 Short offline Completed without error 00% 3463 - # 5 Short offline Completed without error 00% 3463 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. SCT Status Version: 3 SCT Version (vendor specific): 522 (0x020a) SCT Support Level: 1 Device State: Active (0) Current Temperature: 35 Celsius Power Cycle Min/Max Temperature: 31/40 Celsius Lifetime Min/Max Temperature: 19/56 Celsius Under/Over Temperature Limit Count: 0/264 SCT Temperature History Version: 2 Temperature Sampling Period: 3 minutes Temperature Logging Interval: 59 minutes Min/Max recommended Temperature: 10/25 Celsius Min/Max Temperature Limit: 0/70 Celsius Temperature History Size (Index): 128 (15) Index Estimated Time Temperature Celsius 16 2018-10-24 05:59 35 **************** 17 2018-10-24 06:58 35 **************** 18 2018-10-24 07:57 36 ***************** 19 2018-10-24 08:56 36 ***************** 20 2018-10-24 09:55 37 ****************** 21 2018-10-24 10:54 37 ****************** 22 2018-10-24 11:53 37 ****************** 23 2018-10-24 12:52 38 ******************* ... ..( 2 skipped). .. ******************* 26 2018-10-24 15:49 38 ******************* 27 2018-10-24 16:48 39 ******************** 28 2018-10-24 17:47 38 ******************* 29 2018-10-24 18:46 38 ******************* 30 2018-10-24 19:45 38 ******************* 31 2018-10-24 20:44 36 ***************** 32 2018-10-24 21:43 35 **************** 33 2018-10-24 22:42 35 **************** 34 2018-10-24 23:41 34 *************** 35 2018-10-25 00:40 34 *************** 36 2018-10-25 01:39 34 *************** 37 2018-10-25 02:38 33 ************** 38 2018-10-25 03:37 33 ************** 39 2018-10-25 04:36 32 ************* 40 2018-10-25 05:35 32 ************* 41 2018-10-25 06:34 32 ************* 42 2018-10-25 07:33 33 ************** 43 2018-10-25 08:32 34 *************** 44 2018-10-25 09:31 33 ************** 45 2018-10-25 10:30 35 **************** 46 2018-10-25 11:29 35 **************** 47 2018-10-25 12:28 36 ***************** ... ..( 2 skipped). .. ***************** 50 2018-10-25 15:25 36 ***************** 51 2018-10-25 16:24 37 ****************** 52 2018-10-25 17:23 37 ****************** 53 2018-10-25 18:22 36 ***************** 54 2018-10-25 19:21 36 ***************** 55 2018-10-25 20:20 35 **************** 56 2018-10-25 21:19 35 **************** 57 2018-10-25 22:18 34 *************** 58 2018-10-25 23:17 34 *************** 59 2018-10-26 00:16 34 *************** 60 2018-10-26 01:15 33 ************** 61 2018-10-26 02:14 33 ************** 62 2018-10-26 03:13 33 ************** 63 2018-10-26 04:12 32 ************* ... ..( 2 skipped). .. ************* 66 2018-10-26 07:09 32 ************* 67 2018-10-26 08:08 33 ************** 68 2018-10-26 09:07 32 ************* 69 2018-10-26 10:06 33 ************** 70 2018-10-26 11:05 34 *************** 71 2018-10-26 12:04 35 **************** 72 2018-10-26 13:03 36 ***************** 73 2018-10-26 14:02 37 ****************** 74 2018-10-26 15:01 38 ******************* ... ..( 2 skipped). .. ******************* 77 2018-10-26 17:58 38 ******************* 78 2018-10-26 18:57 39 ******************** 79 2018-10-26 19:56 38 ******************* 80 2018-10-26 20:55 37 ****************** 81 2018-10-26 21:54 37 ****************** 82 2018-10-26 22:53 36 ***************** ... ..( 7 skipped). .. ***************** 90 2018-10-27 06:45 36 ***************** 91 2018-10-27 07:44 37 ****************** 92 2018-10-27 08:43 37 ****************** 93 2018-10-27 09:42 38 ******************* 94 2018-10-27 10:41 38 ******************* 95 2018-10-27 11:40 37 ****************** 96 2018-10-27 12:39 38 ******************* 97 2018-10-27 13:38 39 ******************** ... ..( 3 skipped). .. ******************** 101 2018-10-27 17:34 39 ******************** 102 2018-10-27 18:33 37 ****************** 103 2018-10-27 19:32 36 ***************** 104 2018-10-27 20:31 36 ***************** 105 2018-10-27 21:30 35 **************** 106 2018-10-27 22:29 35 **************** 107 2018-10-27 23:28 35 **************** 108 2018-10-28 00:27 34 *************** 109 2018-10-28 01:26 34 *************** 110 2018-10-28 02:25 33 ************** 111 2018-10-28 03:24 33 ************** 112 2018-10-28 04:23 34 *************** 113 2018-10-28 05:22 32 ************* 114 2018-10-28 06:21 32 ************* 115 2018-10-28 07:20 32 ************* 116 2018-10-28 08:19 33 ************** 117 2018-10-28 09:18 34 *************** 118 2018-10-28 10:17 35 **************** 119 2018-10-28 11:16 36 ***************** 120 2018-10-28 12:15 36 ***************** 121 2018-10-28 13:14 37 ****************** 122 2018-10-28 14:13 37 ****************** 123 2018-10-28 15:12 38 ******************* 124 2018-10-28 16:11 37 ****************** 125 2018-10-28 17:10 37 ****************** 126 2018-10-28 18:09 36 ***************** 127 2018-10-28 19:08 37 ****************** 0 2018-10-28 20:07 37 ****************** 1 2018-10-28 21:06 35 **************** 2 2018-10-28 22:05 34 *************** 3 2018-10-28 23:04 34 *************** 4 2018-10-29 00:03 33 ************** ... ..( 2 skipped). .. ************** 7 2018-10-29 03:00 33 ************** 8 2018-10-29 03:59 32 ************* ... ..( 3 skipped). .. ************* 12 2018-10-29 07:55 32 ************* 13 2018-10-29 08:54 33 ************** 14 2018-10-29 09:53 34 *************** 15 2018-10-29 10:52 35 **************** SCT Error Recovery Control: Read: 70 (7.0 seconds) Write: 70 (7.0 seconds) Device Statistics (GP/SMART Log 0x04) not supported Pending Defects log (GP Log 0x0c) supported [please try: '-l defects'] SATA Phy Event Counters (GP Log 0x11) ID Size Value Description 0x000a 2 8963 Device-to-host register FISes sent due to a COMRESET 0x0001 2 8903 Command failed due to ICRC error 0x0003 2 8926 R_ERR response for device-to-host data FIS 0x0004 2 0 R_ERR response for host-to-device data FIS 0x0006 2 7 R_ERR response for device-to-host non-data FIS 0x0007 2 0 R_ERR response for host-to-device non-data FIS SCT capabilities: (0x50bd) SCT Status supported. SCT Error Recovery Control supported.
Chris Moore
Hall of Famer
- Joined
- May 2, 2015
- Messages
- 10,080
Now that I have the output in readable format, it is clear from this line:
You have a cabling problem that is causing UDMA CRC errors.
- Status
Similar threads
- Locked
