NOOB: power for motherboard SATA drive, SuperMicro 4U CSE-846 24 Bay SAS2 BP X9DRi-F

Western Digital Drives - The Preferred Drives of FreeNAS and TrueNAS CORE

esamett

Patron
Joined
May 28, 2011
Messages
345

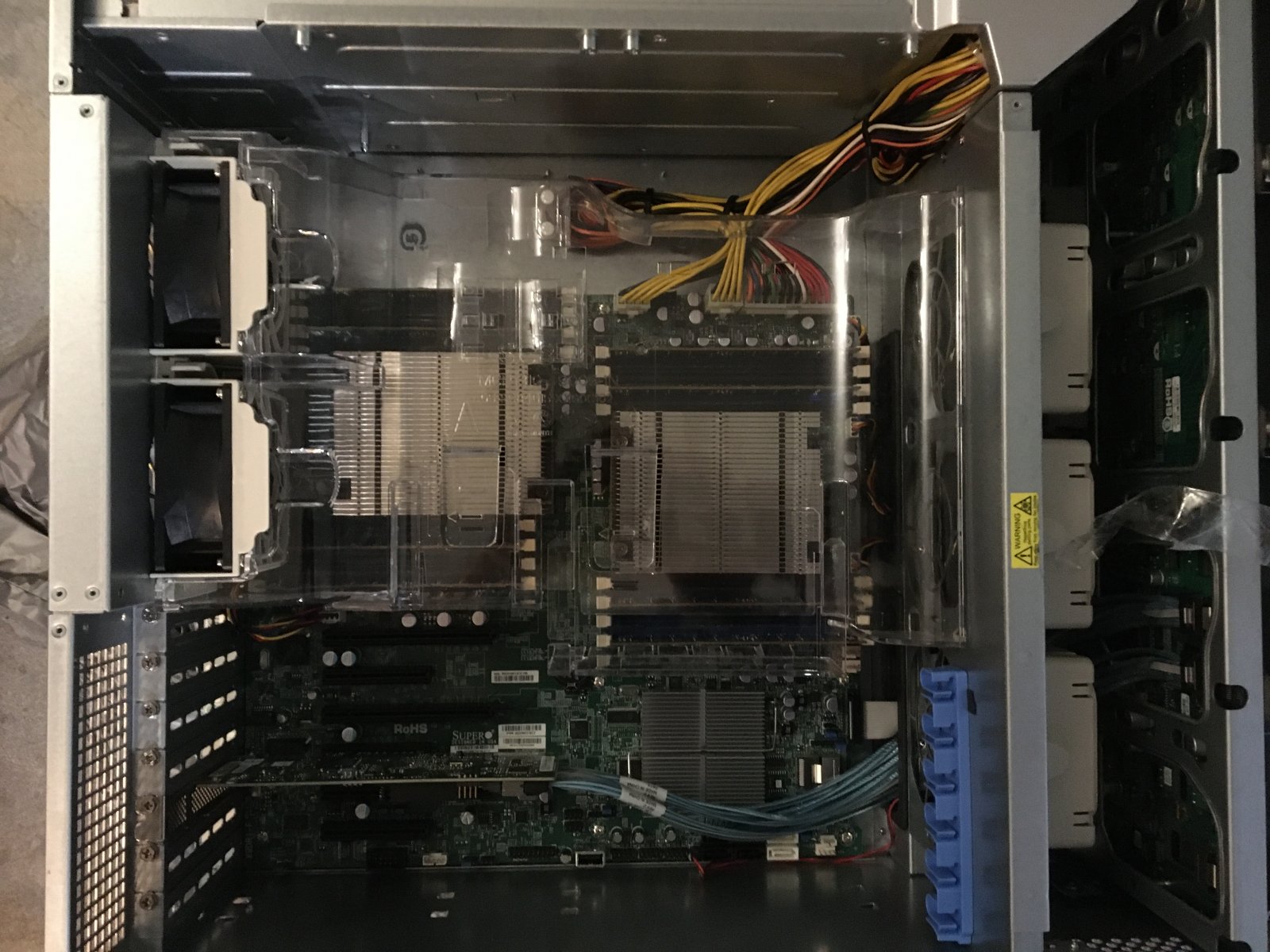

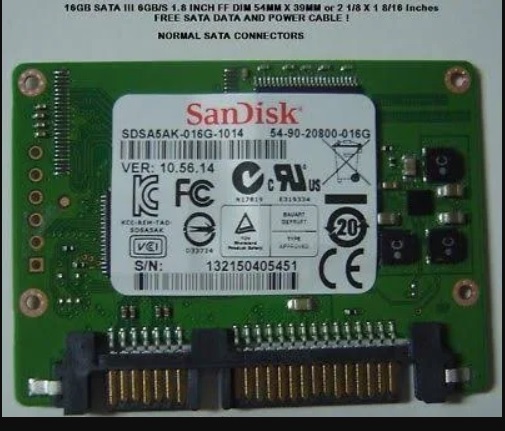

My first time working with server hardware. I am trying to move my 22 disk FreeNAS server frankenstein setup to a single server. I would like to use the on-board SATA ports for my two half-size ssd boot drives (photo attached)rather than using two drive bays up front. I'm not seeing any consumer type power connectors. (photo attached) Any advice woyld be appreciated.


Attachments

  • half size ssd.jpg
    half size ssd.jpg
    75.2 KB · Views: 343
  • top view.JPG
    top view.JPG
    298.7 KB · Views: 346

G8One2

Patron
Joined
Jan 2, 2017
Messages
242
You need a SuperMicro SataDOM. I dont think what you have will work


esamett

Patron
Joined
May 28, 2011
Messages
345

G8One2

Patron
Joined
Jan 2, 2017
Messages
242

esamett

Patron
Joined
May 28, 2011
Messages
345
Confused NOOB
The Sc846 case has room for internal drives. Per manual:

3.5”

MCP-220-84601-0N

2.5
MCP-220-00051-0N

MCP-220-84601-0N

The manual however doesn’t clarify how you are supposed to plug them in to the redundant supply or power distribution board. Amazon listings for these parts doesn’t show wiring.


esamett

Patron
Joined
May 28, 2011
Messages
345

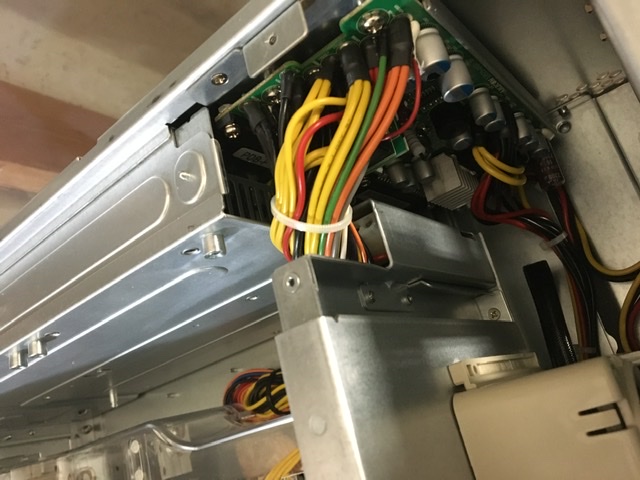

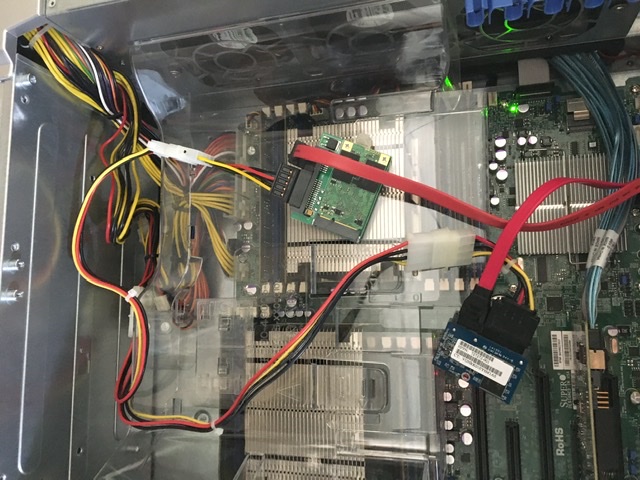

Solved: there is a free Molex connector hidden inside cover for power distributor board. Super micro specs that up to 4 drives may be run through them. Y connector and adapter and good to go. Unfortunately these are small format ssd and won’t screw in to standard bay.


Attachments

  • 361EF2E7-7361-4D8B-8EE0-4D12324DC21C.jpeg
    95.3 KB · Views: 391
  • 5BFBBB45-6DFC-46D2-B67C-2DEA8BF1755C.jpeg
    119.6 KB · Views: 357
  • A8445FAC-72DB-499A-9019-76D32360F693.jpeg
    130 KB · Views: 351
