Hello everyone, I meet some issue about nvme temperature record in Report page.

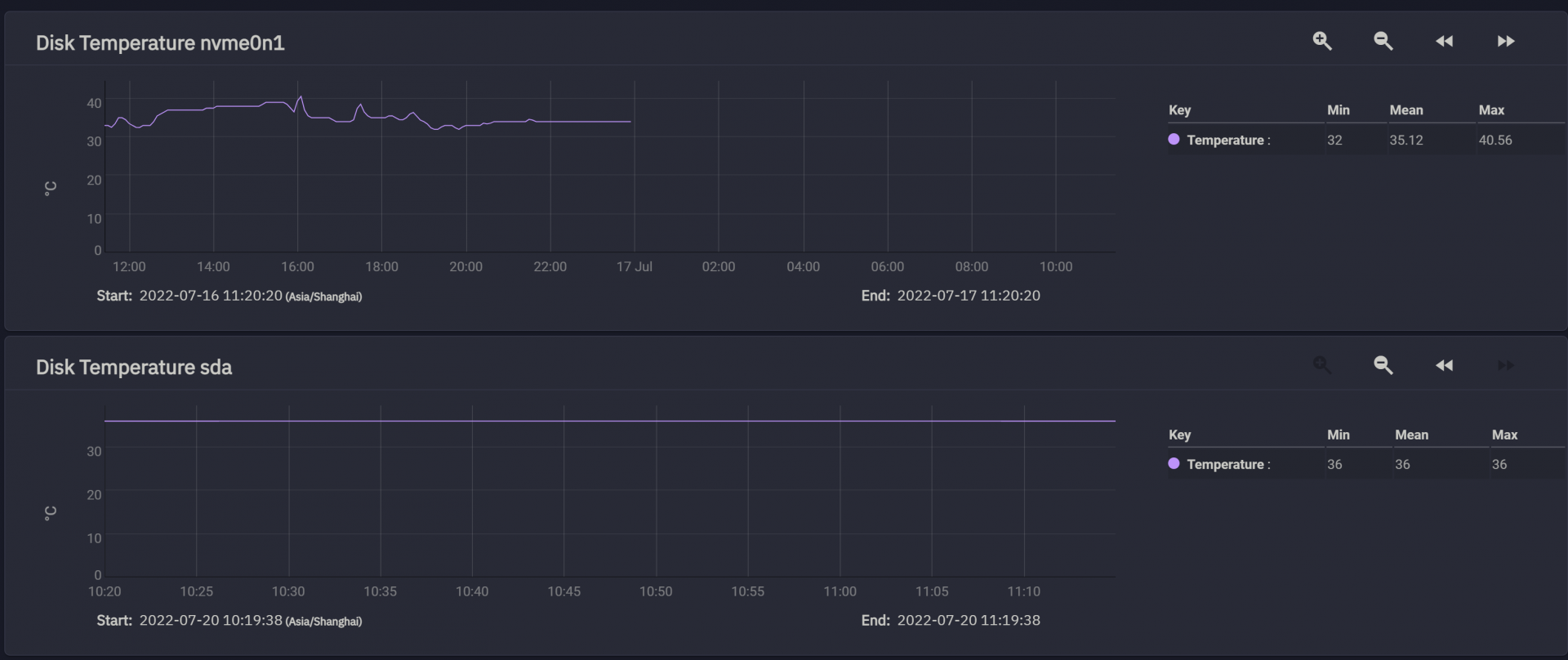

From one day, no record is stored but history is there as the fig. shows.
HDDs is normally monitored.
Also I run the smartctl, the result is here:
"NVMe Status 0x13" is mentioned in SMART, is it the cause? Do I need do something on hardware, like replace nvme ssd?
If anyone has an ideas for things to check, appreciate any help.
Thanks, Jason
From one day, no record is stored but history is there as the fig. shows.
HDDs is normally monitored.
Also I run the smartctl, the result is here:
root@HomeServer-Truenas[~]# smartctl -a /dev/nvme0n1
smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.120+truenas] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Number: J.ZAO 5 SERIES 1TB SSD
Serial Number: MDB132T000657
Firmware Version: V1.19.B3
PCI Vendor/Subsystem ID: 0x1d97
IEEE OUI Identifier: 0x3a5a27
Total NVM Capacity: 1,024,209,543,168 [1.02 TB]
Unallocated NVM Capacity: 0
Controller ID: 0
NVMe Version: 1.4
Number of Namespaces: 1
Namespace 1 Size/Capacity: 1,024,209,543,168 [1.02 TB]
Namespace 1 Formatted LBA Size: 512
Namespace 1 IEEE EUI-64: 3a5a27 0500000291
Local Time is: Wed Jul 20 11:23:26 2022 CST
Firmware Updates (0x02): 1 Slot
Optional Admin Commands (0x0017): Security Format Frmw_DL Self_Test
Optional NVM Commands (0x004c): DS_Mngmt Wr_Zero Timestmp
Log Page Attributes (0x0e): Cmd_Eff_Lg Ext_Get_Lg Telmtry_Lg
Maximum Data Transfer Size: 32 Pages
Warning Comp. Temp. Threshold: 81 Celsius
Critical Comp. Temp. Threshold: 85 Celsius
Supported Power States
St Op Max Active Idle RL RT WL WT Ent_Lat Ex_Lat
0 + 5.00W - - 0 0 0 0 5 700
Supported LBA Sizes (NSID 0x1)
Id Fmt Data Metadt Rel_Perf
0 + 512 0 3
=== START OF SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
SMART/Health Information (NVMe Log 0x02)
Critical Warning: 0x00
Temperature: 36 Celsius
Available Spare: 100%
Available Spare Threshold: 10%
Percentage Used: 0%
Data Units Read: 77,006 [39.4 GB]
Data Units Written: 1,029,643 [527 GB]
Host Read Commands: 2,296,268
Host Write Commands: 24,730,790
Controller Busy Time: 1
Power Cycles: 29
Power On Hours: 281
Unsafe Shutdowns: 2
Media and Data Integrity Errors: 0
Error Information Log Entries: 0
Warning Comp. Temperature Time: 0
Critical Comp. Temperature Time: 0
Read 16 entries from Error Information Log failed: NVMe Status 0x13
root@HomeServer-Truenas[~]#
smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.10.120+truenas] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Number: J.ZAO 5 SERIES 1TB SSD
Serial Number: MDB132T000657
Firmware Version: V1.19.B3
PCI Vendor/Subsystem ID: 0x1d97
IEEE OUI Identifier: 0x3a5a27
Total NVM Capacity: 1,024,209,543,168 [1.02 TB]
Unallocated NVM Capacity: 0
Controller ID: 0
NVMe Version: 1.4
Number of Namespaces: 1
Namespace 1 Size/Capacity: 1,024,209,543,168 [1.02 TB]
Namespace 1 Formatted LBA Size: 512
Namespace 1 IEEE EUI-64: 3a5a27 0500000291
Local Time is: Wed Jul 20 11:23:26 2022 CST
Firmware Updates (0x02): 1 Slot
Optional Admin Commands (0x0017): Security Format Frmw_DL Self_Test
Optional NVM Commands (0x004c): DS_Mngmt Wr_Zero Timestmp
Log Page Attributes (0x0e): Cmd_Eff_Lg Ext_Get_Lg Telmtry_Lg
Maximum Data Transfer Size: 32 Pages
Warning Comp. Temp. Threshold: 81 Celsius
Critical Comp. Temp. Threshold: 85 Celsius
Supported Power States
St Op Max Active Idle RL RT WL WT Ent_Lat Ex_Lat
0 + 5.00W - - 0 0 0 0 5 700
Supported LBA Sizes (NSID 0x1)
Id Fmt Data Metadt Rel_Perf
0 + 512 0 3
=== START OF SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
SMART/Health Information (NVMe Log 0x02)
Critical Warning: 0x00
Temperature: 36 Celsius
Available Spare: 100%
Available Spare Threshold: 10%
Percentage Used: 0%
Data Units Read: 77,006 [39.4 GB]
Data Units Written: 1,029,643 [527 GB]
Host Read Commands: 2,296,268
Host Write Commands: 24,730,790
Controller Busy Time: 1
Power Cycles: 29
Power On Hours: 281
Unsafe Shutdowns: 2
Media and Data Integrity Errors: 0
Error Information Log Entries: 0
Warning Comp. Temperature Time: 0
Critical Comp. Temperature Time: 0
Read 16 entries from Error Information Log failed: NVMe Status 0x13
root@HomeServer-Truenas[~]#
"NVMe Status 0x13" is mentioned in SMART, is it the cause? Do I need do something on hardware, like replace nvme ssd?
If anyone has an ideas for things to check, appreciate any help.
Thanks, Jason
