Network doesn't come back up after reboot

R

Russell Coight

Explorer
Joined
Jul 3, 2014
Messages
53
Hello,

I've got a weird problem that I'm hoping someone can help me with please.

Whenever my TrueNAS server is rebooted, the network doesn't come back up. I have to reset the network connection in the CLI menu and then it's fine.

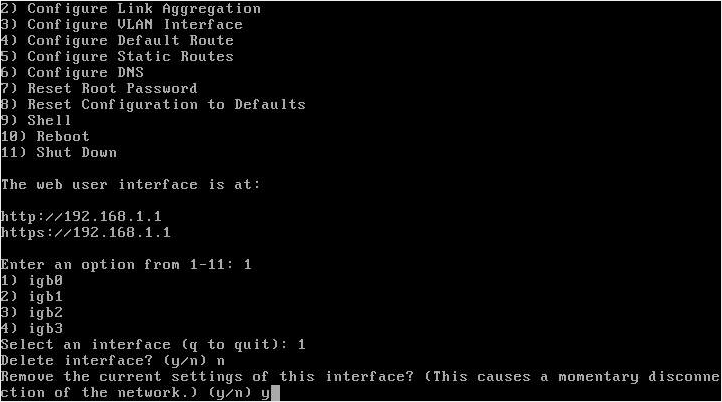

I press 1 to configure network interfaces then choose the options below, set the IP/SM and it comes back.
2021-08-12 23_09_46-Clipboard.png


The correct IP is listed on the console.
A jail comes up but not the TrueNAS IP.

TrueNAS version
12.0-U5
Motherboard make and model
Supermicro A1ASi-2750F
CPU make and model
Intel Atom C2750
RAM quantity
16GB ECC
Hard drives, quantity, model numbers, and RAID configuration, including boot drives
Storage: 4 x 4TB Western Digital WD40EFRX mirrored
Boot: Supermicro SATA DOM
Hard disk controllers
Motherboard only
Network cards
Motherboard only

Side question, does anyone know if it's possible to increase the console resolution with iKVM?

Thanks

Last edited:
R

Russell Coight

Explorer
Joined
Jul 3, 2014
Messages
53
Here's the dmesg output.

Lot's of arpresolve: can't allocate llinfo for 192.168.1.254 on igb0 truenas errors, could this be the problem? What does it mean?

Code:
---<<BOOT>>---
Copyright (c) 1992-2020 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
        The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 12.2-RELEASE-p9 2ee62d665f0(HEAD) TRUENAS amd64
FreeBSD clang version 10.0.1 (git@github.com:llvm/llvm-project.git llvmorg-10.0.1-0-gef32c611aa2)
VT(vga): text 80x25
CPU: Intel(R) Atom(TM) CPU  C2750  @ 2.40GHz (2400.06-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x406d8  Family=0x6  Model=0x4d  Stepping=8
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x43d8e3bf<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,MOVBE,POPCNT,TSCDLT,AESNI,RDRAND>
  AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
  AMD Features2=0x101<LAHF,Prefetch>
  Structured Extended Features=0x2282<TSCADJ,SMEP,ERMS,NFPUSG>
  Structured Extended Features3=0xc000400<MD_CLEAR,IBPB,STIBP>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
real memory  = 17179869184 (16384 MB)
avail memory = 16360046592 (15602 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <INTEL  TIANO   >
WARNING: L1 data cache covers fewer APIC IDs than a core (0 < 1)
FreeBSD/SMP: Multiprocessor System Detected: 8 CPUs
FreeBSD/SMP: 1 package(s) x 8 core(s)
random: unblocking device.
ioapic0 <Version 2.0> irqs 0-23 on motherboard
Launching APs: 3 1 2 4 7 5 6
Timecounter "TSC-low" frequency 1200029100 Hz quality 1000
random: entropy device external interface
random: registering fast source Intel Secure Key RNG
random: fast provider: "Intel Secure Key RNG"
kbd1 at kbdmux0
mlx5en: Mellanox Ethernet driver 3.5.2 (September 2019)
nexus0
vtvga0: <VT VGA driver> on motherboard
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS> on motherboard
padlock0: No ACE support.
cryptosoft0: <software crypto> on motherboard
acpi0: <ALASKA A M I > on motherboard
acpi0: Power Button (fixed)
cpu0: <ACPI CPU> on acpi0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 350
Event timer "HPET1" frequency 14318180 Hz quality 340
Event timer "HPET2" frequency 14318180 Hz quality 340
atrtc0: <AT realtime clock> port 0x70-0x77 irq 8 on acpi0
atrtc0: Warning: Couldn't map I/O.
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
attimer0: <AT timer> port 0x40-0x43,0x50-0x53 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
Timecounter "ACPI-safe" frequency 3579545 Hz quality 850
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x408-0x40b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> mem 0xdf2c0000-0xdf2dffff irq 16 at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
pcib2: <ACPI PCI-PCI bridge> at device 0.0 on pci1
pci2: <ACPI PCI bus> on pcib2
vgapci0: <VGA-compatible display> port 0xd000-0xd07f mem 0xde000000-0xdeffffff,0xdf000000-0xdf01ffff irq 16 at device 0.0 on pci2
vgapci0: Boot video device
pcib3: <ACPI PCI-PCI bridge> mem 0xdf2a0000-0xdf2bffff irq 16 at device 2.0 on pci0
pci3: <ACPI PCI bus> on pcib3
xhci0: <XHCI (generic) USB 3.0 controller> mem 0xdf100000-0xdf101fff irq 17 at device 0.0 on pci3
xhci0: 64 bytes context size, 32-bit DMA
xhci0: Unable to map MSI-X table
usbus0 on xhci0
usbus0: 5.0Gbps Super Speed USB v3.0
pcib4: <ACPI PCI-PCI bridge> mem 0xdf280000-0xdf29ffff irq 20 at device 3.0 on pci0
pci4: <ACPI PCI bus> on pcib4
pci0: <base peripheral, IOMMU> at device 15.0 (no driver attached)
igb0: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe0c0-0xe0df mem 0xdf260000-0xdf27ffff,0xdf2ec000-0xdf2effff irq 20 at device 20.0 on pci0
igb0: Using 1024 TX descriptors and 1024 RX descriptors
igb0: Using 8 RX queues 8 TX queues
igb0: Using MSI-X interrupts with 9 vectors
igb0: Ethernet address: ac:1f:6b:00:20:00
igb1: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe0a0-0xe0bf mem 0xdf240000-0xdf25ffff,0xdf2e8000-0xdf2ebfff irq 21 at device 20.1 on pci0
igb1: Using 1024 TX descriptors and 1024 RX descriptors
igb1: Using 8 RX queues 8 TX queues
igb1: Using MSI-X interrupts with 9 vectors
igb1: Ethernet address: ac:1f:6b:00:20:01
igb2: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe080-0xe09f mem 0xdf220000-0xdf23ffff,0xdf2e4000-0xdf2e7fff irq 22 at device 20.2 on pci0
igb2: Using 1024 TX descriptors and 1024 RX descriptors
igb2: Using 8 RX queues 8 TX queues
igb2: Using MSI-X interrupts with 9 vectors
igb2: Ethernet address: ac:1f:6b:00:20:02
igb3: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe060-0xe07f mem 0xdf200000-0xdf21ffff,0xdf2e0000-0xdf2e3fff irq 23 at device 20.3 on pci0
igb3: Using 1024 TX descriptors and 1024 RX descriptors
igb3: Using 8 RX queues 8 TX queues
igb3: Using MSI-X interrupts with 9 vectors
igb3: Ethernet address: ac:1f:6b:00:20:03
ehci0: <Intel Avoton USB 2.0 controller> mem 0xdf2f3000-0xdf2f33ff irq 23 at device 22.0 on pci0
usbus1: EHCI version 1.0
usbus1 on ehci0
usbus1: 480Mbps High Speed USB v2.0
ahci0: <Intel Avoton AHCI SATA controller> port 0xe150-0xe157,0xe140-0xe143,0xe130-0xe137,0xe120-0xe123,0xe040-0xe05f mem 0xdf2f2000-0xdf2f27ff irq 19 at device 23.0 on pci0
ahci0: AHCI v1.30 with 4 3Gbps ports, Port Multiplier not supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
ahcich2: <AHCI channel> at channel 2 on ahci0
ahcich3: <AHCI channel> at channel 3 on ahci0
ahci1: <Intel Avoton AHCI SATA controller> port 0xe110-0xe117,0xe100-0xe103,0xe0f0-0xe0f7,0xe0e0-0xe0e3,0xe020-0xe03f mem 0xdf2f1000-0xdf2f17ff irq 19 at device 24.0 on pci0
ahci1: AHCI v1.30 with 2 6Gbps ports, Port Multiplier not supported
ahcich4: <AHCI channel> at channel 0 on ahci1
ahcich5: <AHCI channel> at channel 1 on ahci1
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
apei0: <ACPI Platform Error Interface> on acpi0
uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
uart1: <16550 or compatible> port 0x2f8-0x2ff irq 3 on acpi0
ipmi0: <IPMI System Interface> port 0xca2,0xca3 on acpi0
ipmi0: KCS mode found at io 0xca2 on acpi
ichwd0: <Intel Avoton/Rangeley SoC watchdog timer> on isa0
orm0: <ISA Option ROMs> at iomem 0xc0000-0xc7fff,0xc8000-0xc8fff pnpid ORM0000 on isa0
atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
coretemp0: <CPU On-Die Thermal Sensors> on cpu0
est0: <Enhanced SpeedStep Frequency Control> on cpu0
Timecounters tick every 1.000 msec
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
ipmi0: IPMI device rev. 1, firmware rev. 3.88, version 2.0, device support mask 0xbf
ipmi0: Number of channels 2
ipmi0: Attached watchdog
ipmi0: Establishing power cycle handler
ugen1.1: <Intel EHCI root HUB> at usbus1
Trying to mount root from zfs:freenas-boot/ROOT/12.0-U5 []...
Root mount waiting for: usbus0 usbus1 CAM
uhub0: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus1
ugen0.1: <0x1912 XHCI root HUB> at usbus0
uhub1: <0x1912 XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus0
ada0 at ahcich0 bus 0 scbus0 target 0 lun 0
ada0: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada0: Serial Number WD-WCC7K2SPHNXC
ada0: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 8192bytes)
ada0: Command Queueing enabled
ada0: 3815447MB (7814037168 512 byte sectors)
ada0: quirks=0x1<4K>
ada1 at ahcich1 bus 0 scbus1 target 0 lun 0
ada1: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada1: Serial Number WD-WCC7K7JATHFF
ada1: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 8192bytes)
ada1: Command Queueing enabled
ada1: 3815447MB (7814037168 512 byte sectors)
ada1: quirks=0x1<4K>
ada2 at ahcich3 bus 0 scbus3 target 0 lun 0
ada2: <SuperMicro SSD SOB20R> ACS-2 ATA SATA 3.x device
ada2: Serial Number SMC0515D90717B6K4990
ada2: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 512bytes)
ada2: Command Queueing enabled
ada2: 30208MB (61865984 512 byte sectors)
ada3 at ahcich4 bus 0 scbus4 target 0 lun 0
ada3: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada3: Serial Number WD-WCC7K4SP4XTK
ada3: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes)
ada3: Command Queueing enabled
ada3: 3815447MB (7814037168 512 byte sectors)
ada3: quirks=0x1<4K>
ada4 at ahcich5 bus 0 scbus5 target 0 lun 0
ada4: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada4: Serial Number WD-WCC7K1XNPRKE
ada4: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes)
ada4: Command Queueing enabled
ada4: 3815447MB (7814037168 512 byte sectors)
ada4: quirks=0x1<4K>
uhub1: 8 ports with 8 removable, self powered
Root mount waiting for: usbus1
Root mount waiting for: usbus1
uhub0: 8 ports with 8 removable, self powered
Root mount waiting for: usbus1
ugen1.2: <vendor 0x8087 product 0x07db> at usbus1
uhub2 on uhub0
uhub2: <vendor 0x8087 product 0x07db, class 9/0, rev 2.00/0.02, addr 2> on usbus1
Root mount waiting for: usbus1
uhub2: 4 ports with 4 removable, self powered
ugen1.3: <vendor 0x0764 OR1500ELCDRM1U> at usbus1
Root mount waiting for: usbus1
ugen1.4: <vendor 0x0557 product 0x7000> at usbus1
uhub3 on uhub2
uhub3: <vendor 0x0557 product 0x7000, class 9/0, rev 2.00/0.00, addr 4> on usbus1
uhub3: 4 ports with 3 removable, self powered
Root mount waiting for: usbus1
ugen1.5: <vendor 0x0557 product 0x2419> at usbus1
ukbd0 on uhub3
ukbd0: <vendor 0x0557 product 0x2419, class 0/0, rev 1.10/1.00, addr 5> on usbus1
kbd2 at ukbd0
ums0 on uhub3
ums0: <vendor 0x0557 product 0x2419, class 0/0, rev 1.10/1.00, addr 5> on usbus1
ums0: 3 buttons and [Z] coordinates ID=0
interface uhid.1 already present in the KLD 'kernel'!
linker_load_file: /boot/kernel/uhid.ko - unsupported file type
interface wmt.1 already present in the KLD 'kernel'!
linker_load_file: /boot/kernel/wmt.ko - unsupported file type
lo0: link state changed to UP
igb0: link state changed to UP
GEOM_MIRROR: Device mirror/swap0 launched (2/2).
GEOM_MIRROR: Device mirror/swap1 launched (2/2).
GEOM_ELI: Device mirror/swap0.eli created.
GEOM_ELI: Encryption: AES-XTS 128
GEOM_ELI:     Crypto: hardware
GEOM_ELI: Device mirror/swap1.eli created.
GEOM_ELI: Encryption: AES-XTS 128
GEOM_ELI:     Crypto: hardware
hwpmc: SOFT/16/64/0x67<INT,USR,SYS,REA,WRI> TSC/1/64/0x20<REA> IAP/2/40/0x3ff<INT,USR,SYS,EDG,THR,REA,WRI,INV,QUA,PRC> IAF/3/40/0x67<INT,USR,SYS,REA,WRI>
igb0: link state changed to DOWN
igb0: link state changed to UP
CPU: Intel(R) Atom(TM) CPU  C2750  @ 2.40GHz (2400.06-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x406d8  Family=0x6  Model=0x4d  Stepping=8
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x43d8e3bf<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,MOVBE,POPCNT,TSCDLT,AESNI,RDRAND>
  AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
  AMD Features2=0x101<LAHF,Prefetch>
  Structured Extended Features=0x2282<TSCADJ,SMEP,ERMS,NFPUSG>
  Structured Extended Features3=0xc000400<MD_CLEAR,IBPB,STIBP>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
Security policy loaded: MAC/ntpd (mac_ntpd)
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
bridge0: Ethernet address: 02:a8:f9:b5:2f:00
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
epair0a: Ethernet address: 02:ca:30:4d:f4:0a
epair0b: Ethernet address: 02:ca:30:4d:f4:0b
epair0a: link state changed to UP
epair0b: link state changed to UP
epair0a: changing name to 'vnet0.1'
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
igb0: link state changed to DOWN
bridge0: link state changed to UP
igb0: promiscuous mode enabled
vnet0.1: promiscuous mode enabled
lo0: link state changed to UP
igb0: link state changed to UP
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
root@nas:~ #

Last edited:
Spearfoot

Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,478
Russell Coight said:
Here's the dmesg output.

Lot's of arpresolve: can't allocate llinfo for 192.168.1.254 on igb0 truenas errors, could this be the problem? What does it mean?

Code:
---<<BOOT>>---
Copyright (c) 1992-2020 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
        The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 12.2-RELEASE-p9 2ee62d665f0(HEAD) TRUENAS amd64
FreeBSD clang version 10.0.1 (git@github.com:llvm/llvm-project.git llvmorg-10.0.1-0-gef32c611aa2)
VT(vga): text 80x25
CPU: Intel(R) Atom(TM) CPU  C2750  @ 2.40GHz (2400.06-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x406d8  Family=0x6  Model=0x4d  Stepping=8
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x43d8e3bf<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,MOVBE,POPCNT,TSCDLT,AESNI,RDRAND>
  AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
  AMD Features2=0x101<LAHF,Prefetch>
  Structured Extended Features=0x2282<TSCADJ,SMEP,ERMS,NFPUSG>
  Structured Extended Features3=0xc000400<MD_CLEAR,IBPB,STIBP>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
real memory  = 17179869184 (16384 MB)
avail memory = 16360046592 (15602 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <INTEL  TIANO   >
WARNING: L1 data cache covers fewer APIC IDs than a core (0 < 1)
FreeBSD/SMP: Multiprocessor System Detected: 8 CPUs
FreeBSD/SMP: 1 package(s) x 8 core(s)
random: unblocking device.
ioapic0 <Version 2.0> irqs 0-23 on motherboard
Launching APs: 3 1 2 4 7 5 6
Timecounter "TSC-low" frequency 1200029100 Hz quality 1000
random: entropy device external interface
random: registering fast source Intel Secure Key RNG
random: fast provider: "Intel Secure Key RNG"
kbd1 at kbdmux0
mlx5en: Mellanox Ethernet driver 3.5.2 (September 2019)
nexus0
vtvga0: <VT VGA driver> on motherboard
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS> on motherboard
padlock0: No ACE support.
cryptosoft0: <software crypto> on motherboard
acpi0: <ALASKA A M I > on motherboard
acpi0: Power Button (fixed)
cpu0: <ACPI CPU> on acpi0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 350
Event timer "HPET1" frequency 14318180 Hz quality 340
Event timer "HPET2" frequency 14318180 Hz quality 340
atrtc0: <AT realtime clock> port 0x70-0x77 irq 8 on acpi0
atrtc0: Warning: Couldn't map I/O.
atrtc0: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
attimer0: <AT timer> port 0x40-0x43,0x50-0x53 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
Timecounter "ACPI-safe" frequency 3579545 Hz quality 850
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x408-0x40b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> mem 0xdf2c0000-0xdf2dffff irq 16 at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
pcib2: <ACPI PCI-PCI bridge> at device 0.0 on pci1
pci2: <ACPI PCI bus> on pcib2
vgapci0: <VGA-compatible display> port 0xd000-0xd07f mem 0xde000000-0xdeffffff,0xdf000000-0xdf01ffff irq 16 at device 0.0 on pci2
vgapci0: Boot video device
pcib3: <ACPI PCI-PCI bridge> mem 0xdf2a0000-0xdf2bffff irq 16 at device 2.0 on pci0
pci3: <ACPI PCI bus> on pcib3
xhci0: <XHCI (generic) USB 3.0 controller> mem 0xdf100000-0xdf101fff irq 17 at device 0.0 on pci3
xhci0: 64 bytes context size, 32-bit DMA
xhci0: Unable to map MSI-X table
usbus0 on xhci0
usbus0: 5.0Gbps Super Speed USB v3.0
pcib4: <ACPI PCI-PCI bridge> mem 0xdf280000-0xdf29ffff irq 20 at device 3.0 on pci0
pci4: <ACPI PCI bus> on pcib4
pci0: <base peripheral, IOMMU> at device 15.0 (no driver attached)
igb0: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe0c0-0xe0df mem 0xdf260000-0xdf27ffff,0xdf2ec000-0xdf2effff irq 20 at device 20.0 on pci0
igb0: Using 1024 TX descriptors and 1024 RX descriptors
igb0: Using 8 RX queues 8 TX queues
igb0: Using MSI-X interrupts with 9 vectors
igb0: Ethernet address: ac:1f:6b:00:20:00
igb1: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe0a0-0xe0bf mem 0xdf240000-0xdf25ffff,0xdf2e8000-0xdf2ebfff irq 21 at device 20.1 on pci0
igb1: Using 1024 TX descriptors and 1024 RX descriptors
igb1: Using 8 RX queues 8 TX queues
igb1: Using MSI-X interrupts with 9 vectors
igb1: Ethernet address: ac:1f:6b:00:20:01
igb2: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe080-0xe09f mem 0xdf220000-0xdf23ffff,0xdf2e4000-0xdf2e7fff irq 22 at device 20.2 on pci0
igb2: Using 1024 TX descriptors and 1024 RX descriptors
igb2: Using 8 RX queues 8 TX queues
igb2: Using MSI-X interrupts with 9 vectors
igb2: Ethernet address: ac:1f:6b:00:20:02
igb3: <Intel(R) PRO/1000 PCI-Express Network Driver> port 0xe060-0xe07f mem 0xdf200000-0xdf21ffff,0xdf2e0000-0xdf2e3fff irq 23 at device 20.3 on pci0
igb3: Using 1024 TX descriptors and 1024 RX descriptors
igb3: Using 8 RX queues 8 TX queues
igb3: Using MSI-X interrupts with 9 vectors
igb3: Ethernet address: ac:1f:6b:00:20:03
ehci0: <Intel Avoton USB 2.0 controller> mem 0xdf2f3000-0xdf2f33ff irq 23 at device 22.0 on pci0
usbus1: EHCI version 1.0
usbus1 on ehci0
usbus1: 480Mbps High Speed USB v2.0
ahci0: <Intel Avoton AHCI SATA controller> port 0xe150-0xe157,0xe140-0xe143,0xe130-0xe137,0xe120-0xe123,0xe040-0xe05f mem 0xdf2f2000-0xdf2f27ff irq 19 at device 23.0 on pci0
ahci0: AHCI v1.30 with 4 3Gbps ports, Port Multiplier not supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
ahcich2: <AHCI channel> at channel 2 on ahci0
ahcich3: <AHCI channel> at channel 3 on ahci0
ahci1: <Intel Avoton AHCI SATA controller> port 0xe110-0xe117,0xe100-0xe103,0xe0f0-0xe0f7,0xe0e0-0xe0e3,0xe020-0xe03f mem 0xdf2f1000-0xdf2f17ff irq 19 at device 24.0 on pci0
ahci1: AHCI v1.30 with 2 6Gbps ports, Port Multiplier not supported
ahcich4: <AHCI channel> at channel 0 on ahci1
ahcich5: <AHCI channel> at channel 1 on ahci1
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
apei0: <ACPI Platform Error Interface> on acpi0
uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
uart1: <16550 or compatible> port 0x2f8-0x2ff irq 3 on acpi0
ipmi0: <IPMI System Interface> port 0xca2,0xca3 on acpi0
ipmi0: KCS mode found at io 0xca2 on acpi
ichwd0: <Intel Avoton/Rangeley SoC watchdog timer> on isa0
orm0: <ISA Option ROMs> at iomem 0xc0000-0xc7fff,0xc8000-0xc8fff pnpid ORM0000 on isa0
atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
coretemp0: <CPU On-Die Thermal Sensors> on cpu0
est0: <Enhanced SpeedStep Frequency Control> on cpu0
Timecounters tick every 1.000 msec
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
ipmi0: IPMI device rev. 1, firmware rev. 3.88, version 2.0, device support mask 0xbf
ipmi0: Number of channels 2
ipmi0: Attached watchdog
ipmi0: Establishing power cycle handler
ugen1.1: <Intel EHCI root HUB> at usbus1
Trying to mount root from zfs:freenas-boot/ROOT/12.0-U5 []...
Root mount waiting for: usbus0 usbus1 CAM
uhub0: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus1
ugen0.1: <0x1912 XHCI root HUB> at usbus0
uhub1: <0x1912 XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus0
ada0 at ahcich0 bus 0 scbus0 target 0 lun 0
ada0: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada0: Serial Number WD-WCC7K2SPHNXC
ada0: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 8192bytes)
ada0: Command Queueing enabled
ada0: 3815447MB (7814037168 512 byte sectors)
ada0: quirks=0x1<4K>
ada1 at ahcich1 bus 0 scbus1 target 0 lun 0
ada1: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada1: Serial Number WD-WCC7K7JATHFF
ada1: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 8192bytes)
ada1: Command Queueing enabled
ada1: 3815447MB (7814037168 512 byte sectors)
ada1: quirks=0x1<4K>
ada2 at ahcich3 bus 0 scbus3 target 0 lun 0
ada2: <SuperMicro SSD SOB20R> ACS-2 ATA SATA 3.x device
ada2: Serial Number SMC0515D90717B6K4990
ada2: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 512bytes)
ada2: Command Queueing enabled
ada2: 30208MB (61865984 512 byte sectors)
ada3 at ahcich4 bus 0 scbus4 target 0 lun 0
ada3: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada3: Serial Number WD-WCC7K4SP4XTK
ada3: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes)
ada3: Command Queueing enabled
ada3: 3815447MB (7814037168 512 byte sectors)
ada3: quirks=0x1<4K>
ada4 at ahcich5 bus 0 scbus5 target 0 lun 0
ada4: <WDC WD40EFRX-68N32N0 82.00A82> ACS-3 ATA SATA 3.x device
ada4: Serial Number WD-WCC7K1XNPRKE
ada4: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 8192bytes)
ada4: Command Queueing enabled
ada4: 3815447MB (7814037168 512 byte sectors)
ada4: quirks=0x1<4K>
uhub1: 8 ports with 8 removable, self powered
Root mount waiting for: usbus1
Root mount waiting for: usbus1
uhub0: 8 ports with 8 removable, self powered
Root mount waiting for: usbus1
ugen1.2: <vendor 0x8087 product 0x07db> at usbus1
uhub2 on uhub0
uhub2: <vendor 0x8087 product 0x07db, class 9/0, rev 2.00/0.02, addr 2> on usbus1
Root mount waiting for: usbus1
uhub2: 4 ports with 4 removable, self powered
ugen1.3: <vendor 0x0764 OR1500ELCDRM1U> at usbus1
Root mount waiting for: usbus1
ugen1.4: <vendor 0x0557 product 0x7000> at usbus1
uhub3 on uhub2
uhub3: <vendor 0x0557 product 0x7000, class 9/0, rev 2.00/0.00, addr 4> on usbus1
uhub3: 4 ports with 3 removable, self powered
Root mount waiting for: usbus1
ugen1.5: <vendor 0x0557 product 0x2419> at usbus1
ukbd0 on uhub3
ukbd0: <vendor 0x0557 product 0x2419, class 0/0, rev 1.10/1.00, addr 5> on usbus1
kbd2 at ukbd0
ums0 on uhub3
ums0: <vendor 0x0557 product 0x2419, class 0/0, rev 1.10/1.00, addr 5> on usbus1
ums0: 3 buttons and [Z] coordinates ID=0
interface uhid.1 already present in the KLD 'kernel'!
linker_load_file: /boot/kernel/uhid.ko - unsupported file type
interface wmt.1 already present in the KLD 'kernel'!
linker_load_file: /boot/kernel/wmt.ko - unsupported file type
lo0: link state changed to UP
igb0: link state changed to UP
GEOM_MIRROR: Device mirror/swap0 launched (2/2).
GEOM_MIRROR: Device mirror/swap1 launched (2/2).
GEOM_ELI: Device mirror/swap0.eli created.
GEOM_ELI: Encryption: AES-XTS 128
GEOM_ELI:     Crypto: hardware
GEOM_ELI: Device mirror/swap1.eli created.
GEOM_ELI: Encryption: AES-XTS 128
GEOM_ELI:     Crypto: hardware
hwpmc: SOFT/16/64/0x67<INT,USR,SYS,REA,WRI> TSC/1/64/0x20<REA> IAP/2/40/0x3ff<INT,USR,SYS,EDG,THR,REA,WRI,INV,QUA,PRC> IAF/3/40/0x67<INT,USR,SYS,REA,WRI>
igb0: link state changed to DOWN
igb0: link state changed to UP
CPU: Intel(R) Atom(TM) CPU  C2750  @ 2.40GHz (2400.06-MHz K8-class CPU)
  Origin="GenuineIntel"  Id=0x406d8  Family=0x6  Model=0x4d  Stepping=8
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x43d8e3bf<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,CX16,xTPR,PDCM,SSE4.1,SSE4.2,MOVBE,POPCNT,TSCDLT,AESNI,RDRAND>
  AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
  AMD Features2=0x101<LAHF,Prefetch>
  Structured Extended Features=0x2282<TSCADJ,SMEP,ERMS,NFPUSG>
  Structured Extended Features3=0xc000400<MD_CLEAR,IBPB,STIBP>
  VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID
  TSC: P-state invariant, performance statistics
Security policy loaded: MAC/ntpd (mac_ntpd)
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
bridge0: Ethernet address: 02:a8:f9:b5:2f:00
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
epair0a: Ethernet address: 02:ca:30:4d:f4:0a
epair0b: Ethernet address: 02:ca:30:4d:f4:0b
epair0a: link state changed to UP
epair0b: link state changed to UP
epair0a: changing name to 'vnet0.1'
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
igb0: link state changed to DOWN
bridge0: link state changed to UP
igb0: promiscuous mode enabled
vnet0.1: promiscuous mode enabled
lo0: link state changed to UP
igb0: link state changed to UP
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
arpresolve: can't allocate llinfo for 192.168.1.254 on igb0
root@nas:~ #
Click to expand...
Good morning! Sorry for your troubles...
Are you using VLANs?
Are you using LAGG groups? Or Bridges?
Do you have a gateway IP defined?
What kind of switch is the server connected to?

Any idea what these messages mean? Did you tinker with the loader setup on this system?
Code:
interface uhid.1 already present in the KLD 'kernel'!
linker_load_file: /boot/kernel/uhid.ko - unsupported file type
interface wmt.1 already present in the KLD 'kernel'!
linker_load_file: /boot/kernel/wmt.ko - unsupported file type

Please show ifconfig output, in code tags.

R

Russell Coight

Explorer
Joined
Jul 3, 2014
Messages
53
Spearfoot said:
Are you using VLANs?
Click to expand...

Thanks for the reply. Yep, my NAS is on VLAN1.

Are you using LAGG groups? Or Bridges?
Click to expand...

No

Do you have a gateway IP defined?
Click to expand...

Yes

What kind of switch is the server connected to?
Click to expand...

An UbiquitI EdgeSwitch.

Any idea what these messages mean? Did you tinker with the loader setup on this system? 'kernel'!

Code:
interface uhid.1 already present in the KLD
linker_load_file: /boot/kernel/uhid.ko - unsupported file type
interface wmt.1 already present in the KLD 'kernel'!
linker_load_file: /boot/kernel/wmt.ko - unsupported file type
Click to expand...

Nah I don't know what that means, I haven't tinkered with anything.

Please show ifconfig output, in code tags.
Click to expand...

Code:
igb0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: igb0
        options=a520b9<RXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6>
        ether ac:1f:6b:00:20:00
        inet 192.168.1.1 netmask 0xffffff00 broadcast 192.168.1.255
        media: Ethernet autoselect (1000baseT <full-duplex>)
        status: active
        nd6 options=9<PERFORMNUD,IFDISABLED>
igb1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: igb1
        options=e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
        ether ac:1f:6b:00:20:01
        media: Ethernet autoselect
        status: no carrier
        nd6 options=9<PERFORMNUD,IFDISABLED>
igb2: flags=8802<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
        options=e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
        ether ac:1f:6b:00:20:02
        media: Ethernet autoselect
        status: no carrier
        nd6 options=1<PERFORMNUD>
igb3: flags=8802<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
        options=e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCSUM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
        ether ac:1f:6b:00:20:03
        media: Ethernet autoselect
        status: no carrier
        nd6 options=1<PERFORMNUD>
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
        options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>
        inet6 ::1 prefixlen 128
        inet6 fe80::1%lo0 prefixlen 64 scopeid 0x5
        inet 127.0.0.1 netmask 0xff000000
        groups: lo
        nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
pflog0: flags=0<> metric 0 mtu 33160
        groups: pflog
bridge0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
        ether 02:a8:f9:b5:2f:00
        id 00:00:00:00:00:00 priority 32768 hellotime 2 fwddelay 15
        maxage 20 holdcnt 6 proto stp-rstp maxaddr 2000 timeout 1200
        root id 00:00:00:00:00:00 priority 32768 ifcost 0 port 0
        member: vnet0.2 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
                ifmaxaddr 0 port 8 priority 128 path cost 2000
        member: igb0 flags=143<LEARNING,DISCOVER,AUTOEDGE,AUTOPTP>
                ifmaxaddr 0 port 1 priority 128 path cost 20000
        groups: bridge
        nd6 options=1<PERFORMNUD>
vnet0.2: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> metric 0 mtu 1500
        description: associated with jail: UniFi_Controller as nic: epair0b
        options=8<VLAN_MTU>
        ether ae:1f:6b:13:df:28
        hwaddr 02:fa:7d:00:cf:0a
        groups: epair
        media: Ethernet 10Gbase-T (10Gbase-T <full-duplex>)
        status: active
        nd6 options=1<PERFORMNUD>

Last edited:
Spearfoot

Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,478
Russell Coight said:
Any ideas please Spearfoot?
Click to expand...
Not really... you do have a bridge setup, tied to your UniFi_Controller. But I've never used jails, so I don't have any suggestions to offer, other than perhaps try using a separate interface for jails?
Also is there any reason why my posts still need to be approved by a moderator?
Click to expand...
The forum is setup to require approvoal of users posts until they've reached a set number of posts; I've no idea what that threshold is.

You must log in or register to reply here.

Important Announcement for the TrueNAS Community.

The TrueNAS Community has now been moved. This forum will now become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums.

Related topics on forums.truenas.com for thread: "Network doesn't come back up after reboot"

Similar threads

W
Slow write speed to ZFS z2 (~700kb /s) and normal read speed (sat 1gbit). Reboot fixing it for a while
Replies
1
Views
702
sretalla
sretalla
M
access to mapped drive slow or just wont upload to it
Replies
1
Views
597
Samuel Tai
Samuel Tai
K
Boot issues - Unable to obtain IP/all pools disconnected on every reboot
Replies
2
Views
809
Killamus
K
S
Can't connect to TrueNas or its web interface
2
Replies
31
Views
11K
danb35
danb35
D
Does 80% rule apply to R10 SSDs?
Replies
9
Views
957
dpeley
D
Top
