need help with log

[marian78]

Hi,

need help wit my server log, because i dont know what does it mean...

i have instaled Freenas v9.2.1.7 x64 on Supermicro server SSG-6037R-E1R16L 3U DP.


When i restart or start server i got email with this:

"Fixed Direct Access SCSI-6 device"

This means that i have any problems with the controller? Need flash firmware to LSI card?


email server log:

Code:

fileserver2.workgroup kernel log messages:
> igb0: Ethernet address: 00:25:90:ca:3b:30
> igb1: Ethernet address: 00:25:90:ca:3b:31
> igb2: Ethernet address: 00:25:90:ca:3b:32
> igb3: Ethernet address: 00:25:90:ca:3b:33
> orm0: <ISA Option ROM> at iomem 0xc0000-0xc7fff on isa0
> ses0 at mps0 bus 0 scbus0 target 15 lun 0
> ses0: <LSI SAS2X28 0e12> Fixed Enclosure Services SCSI-5 device
> da0: <ATA WDC WD40EFRX-68W 0A80> Fixed Direct Access SCSI-6 device
> da0: Serial Number      WD-WCC4E1140612
> da0: 3815447MB (7814037168 512 byte sectors: 255H 63S/T 486401C)
> da1: <ATA WDC WD40EFRX-68W 0A80> Fixed Direct Access SCSI-6 device
> da1: Serial Number      WD-WCC4E1140618
> da1: 3815447MB (7814037168 512 byte sectors: 255H 63S/T 486401C)
> da2: <ATA WDC WD40EFRX-68W 0A80> Fixed Direct Access SCSI-6 device
> da2: Serial Number      WD-WCC4E1146619
> da2: 3815447MB (7814037168 512 byte sectors: 255H 63S/T 486401C)
> da3: <ATA WDC WD40EFRX-68W 0A80> Fixed Direct Access SCSI-6 device
> da3: Serial Number      WD-WCC4E1184479
> da3: 3815447MB (7814037168 512 byte sectors: 255H 63S/T 486401C)
> da4: <ATA WDC WD40EFRX-68W 0A80> Fixed Direct Access SCSI-6 device
> da4: Serial Number      WD-WCC4E1146088
> da4: 3815447MB (7814037168 512 byte sectors: 255H 63S/T 486401C)
> da5: <ATA WDC WD40EFRX-68W 0A80> Fixed Direct Access SCSI-6 device
> da5: Serial Number      WD-WCC4E1081054
> da5: 3815447MB (7814037168 512 byte sectors: 255H 63S/T 486401C)
> da6: <ATA WDC WD40EFRX-68W 0A80> Fixed Direct Access SCSI-6 device
> da6: Serial Number      WD-WCC4E1155638
> da6: 3815447MB (7814037168 512 byte sectors: 255H 63S/T 486401C)
> SMP: AP CPU #1 Launched!
> Timecounter "TSC-low" frequency 1250027244 Hz quality 1000
> Root mount waiting for: usbus1 usbus0
> Root mount waiting for: usbus1 usbus0
> uhid0: <American Power Conversion Smart-UPS 1500 FWUPS 08.3  ID18, class 0/0, rev 2.00/1.06, addr 3> on usbus1
> ugen1.4: <Generic> at usbus1
> umass0: <Generic Mass Storage, class 0/0, rev 2.00/1.03, addr 4> on usbus1
> umass0:  SCSI over Bulk-Only; quirks = 0x4101
> da7 at umass-sim0 bus 0 scbus8 target 0 lun 0
> da7: <Generic Flash Disk 8.07> Removable Direct Access SCSI-2 device
> da7: Serial Number 9381EB25
> da7: 40.000MB/s transfers
> da7: 3901MB (7989248 512 byte sectors: 255H 63S/T 497C)
> da7: quirks=0x2<NO_6_BYTE>
> vboxdrv: fAsync=0 offMin=0x30e offMax=0xe12
> ses0:  phy 0: parent 5003048000e7c43f addr 5003048000e7c42c
> ses0:  phy 0: parent 5003048000e7c43f addr 5003048000e7c42d
> ses0:  phy 0: parent 5003048000e7c43f addr 5003048000e7c42e
> ses0:  phy 0: parent 5003048000e7c43f addr 5003048000e7c42f
> ses0:  phy 0: parent 5003048000e7c43f addr 5003048000e7c430
> ses0:  phy 0: parent 5003048000e7c43f addr 5003048000e7c431
> ses0:  phy 0: parent 5003048000e7c43f addr 5003048000e7c432
> igb3: link state changed to DOWN
> igb1: link state changed to DOWN
> igb0: link state changed to DOWN
> igb2: link state changed to DOWN
> lagg0: link state changed to DOWN
> igb2: link state changed to UP
> lagg0: link state changed to UP
> igb1: link state changed to UP
> igb0: link state changed to UP
> igb3: link state changed to UP
> igb2: link state changed to DOWN
> igb3: link state changed to DOWN
> igb1: link state changed to DOWN
> igb0: link state changed to DOWN
> lagg0: link state changed to DOWN
> igb0: link state changed to UP
> lagg0: link state changed to UP
> igb2: link state changed to UP
> igb1: link state changed to UP
> igb3: link state changed to UP

-- End of security output --

I want to thank you in advance for your help.

Marian.

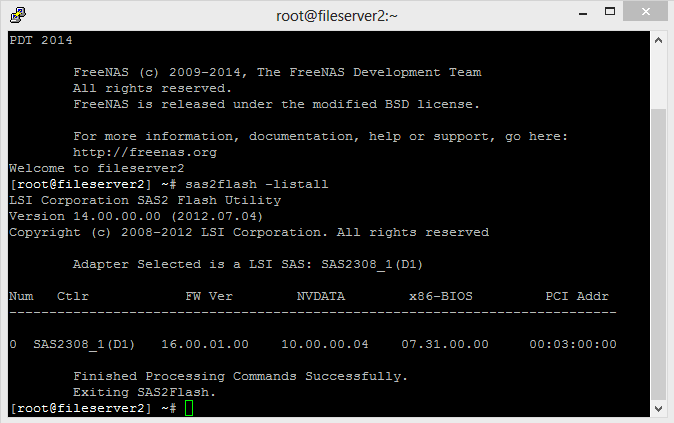

edit: i atteched output from sas2flash -listall



[marian78]

nobody can help? :(



[cyberjock]

I didn't respond because you listed a server model but included nothing else. And clearly your sig isn't your hardware so I had nothing to go on. I've taken the rather harsh (but time saving solution for me) of just ignoring posts that can't provide the basic stuff the forum rules ask for. Asking 10 people a day to follow the forum rules gets to be a little monotonous and wastes time.



[marian78]

Im so stupid, sorry for that... I hope that it will be correct now:

I need help with my server log (uploaded as "email_output.txt"), because i dont know what does it mean. When i restart or start server i got email with this: "Fixed Direct Access SCSI-6 device"

About server
SW info:
Freenas version: FreeNAS-9.2.1.7-RELEASE-x64 (fdbe9a0)

HW info:
Server: SUPERMICRO SSG-6037R-E1R16L 3U DP
Board: Super X9DRD-7LN4F-JBOD
CPU: Intel(R) Xeon(R) CPU E5-2609 v2 @ 2.50GHz
RAM: 24521MB DDR3 ECC REG
chipset: Intel® C602J Chipset
sas controler: SAS2 via LSI 2308; IT Mode/Pass-through
backplate: SAS2 / SATA3 single expander per backplane, backplane with single LSI SAS2X28 expander chip

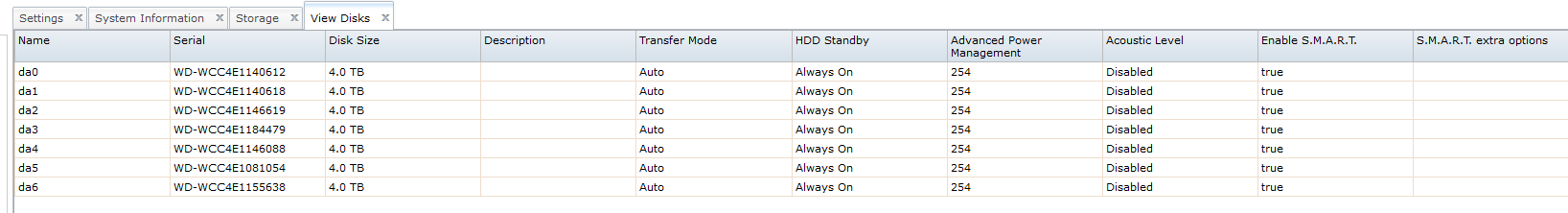

Disks info from Freenas UI, dmesg output, pciconf output, smart output is in uploaded file, because are too long.

And again sorry....

EDIT: i have second similar server (same Freenas settings). This second server send only short email report like this:

Code:

fileserver1.workgroup kernel log messages:
> SMP: AP CPU #2 Launched!
> Timecounter "TSC-low" frequency 1250024090 Hz quality 1000
> vboxdrv: fAsync=0 offMin=0x36a offMax=0xeef

-- End of security output --



[marian78]

Any suggestions, what does it mean and why i got on two same servers two different logs? :(



[dlavigne]

Do you reboot these servers or are they up all the time?



[marian78]

hi, thanks for your time.

these servers are up all time.



[dlavigne]

That particular log looks an awful lot like boot messages... Are you sure the system didn't reboot in the 24 hours before you received that email?



[marian78]

Hm, on server is not set periodic reboot, but i cant sit in front of server for 24/7 hours/days. How can i 100% check if it reboot? Some startup script in cron (like echo "reboot" >> /mnt/volume0/test/reboot_check.txt) ?



[cyberjock]

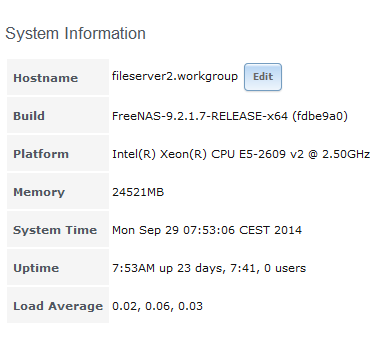

The command "uptime" will tell you how long since the last bootup occurred.



[marian78]

Thx for all for your time. Server is up for 23 days.
