move fans to motherboard, connection issues

[Pelle84]

Hi

i have a emc server that has 3 fans that at allways on 100% and i can figure out a way to control them.
i got 3 new fans that a whold like to connect but the motherboard has 6 pin connectors and not 4.

motherboard Intel S2600CP

do anyone know what this connector i called.
can i if i dont find the vonnectors use loose pins to the same colors as on the fans?

The fans have red,black,yellow and brown.
i have som 4 pin cable that have white and not brow, are they the same so i can conntect ass follows form fan to the motherboard.

Red=Red
Black=Black
Yellow=Yellow
Brown=White



[Redcoat]

Your motherboard manual is here: https://www.intel.com/content/dam/s...cp/sb/g26942005_s2600cp_p4000cp_tps_rev19.pdf

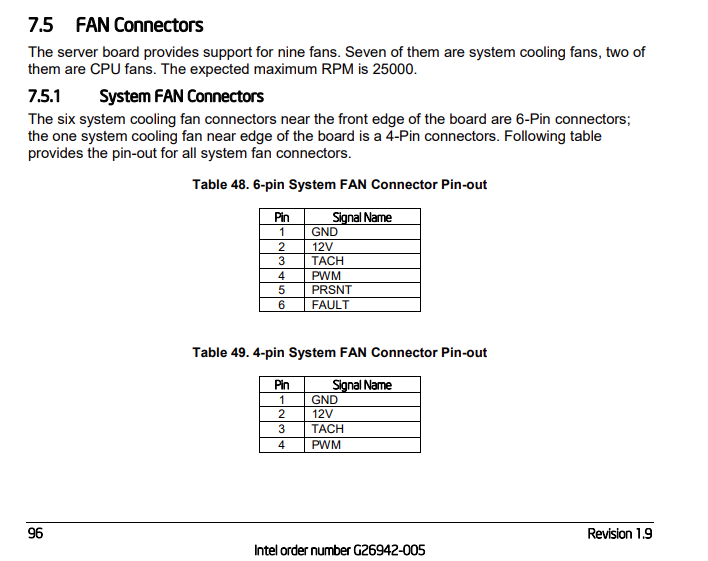

Fan header pinouts on page 96:

You need to match the above signals with those required by your fans and cable accordingly.



[Pelle84]

Thank you.
Now I have control of the wiring.


Try to figure out how many amps the motherboard can’t handle.

The 3 fans I got is 0,6 amps each, is this to much for the morherboard?

The original that are standing there at 3 amps but the are not on the motherboard.

Because this is the only way to get speed control with truenas based on my google search’s.



[Redcoat]

Can't help with the available motherboard power limit.

Have you thought about using a third party controller? There are posts on the forum about these, both hardware and scripts - search will find you lots of hits on the topic.



[Pelle84]

I have seached for it for this emc isilon x410 server that I have. But the only thing I found was that people had connected fans to the motherboard instead of the internal board. If ther are easier ways to get the fans to go slower under low load and ramp up when temperatures raise it had been great, but I haven’t found any easy way for this.



[Pelle84]

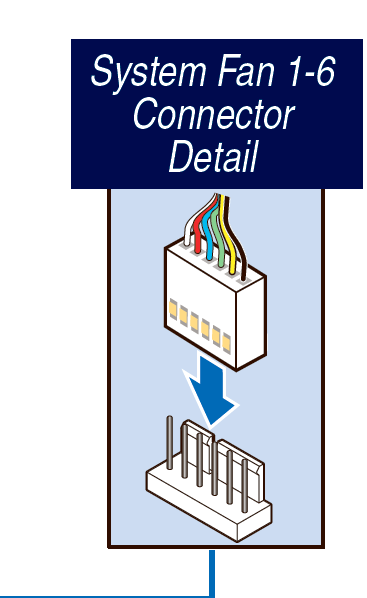

In the manual at point 15.5 page 173 that Redcoat added there is a schematics and in lower right it says fan 12V 4A.

This meen that the total fan load can be 4A on the mother board I ok.

So 3 fans at 0,6A =1,8A is no problem to use?



[Redcoat]

In the manual at point 15.5 page 173 that Redcoat added there is a schematics and in lower right it says fan 12V 4A.

Well done on finding that! I would make the same conclusion that you have as that page is for your specific mainboard.
Great job!!!
