I would like to block access to my switch on my LAN which has an IP address of 192.168.0.2 for the entire LAN and allow for a given address in the LAN, ie 192.168.0.5. How to make these rules? I've been struggling with it for 2 days and I can't think of anything.
-
Important Announcement for the TrueNAS Community.
The TrueNAS Community has now been moved. This forum will now become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums
Mikrotik and a firewall
- Thread starter adam23450
- Start date
jgreco
Resident Grinch
- Joined
- May 29, 2011
- Messages
- 18,680
Uh, what? How is your firewall going to do that? It is not between your client and your switch.
If you want to block access to a switch's management IP, you need one of the following:
1) have the switch's management port to be on the far side of the firewall (perhaps on a different VLAN routed by the firewall/router)
2) have the switch's management port ACL'd off by the switch's software that defines what hosts are allowed to access it
3) have the switch's silicon do filtering ("on-network firewalling")
These require progressively more advanced switches. The cheapest consumer-grade switches don't offer VLAN's, the lowest tier of IP-enabled switches may not allow ACL's for management, and it takes a mid-tier enterprise grade switch to do filtering.
If you want to block access to a switch's management IP, you need one of the following:
1) have the switch's management port to be on the far side of the firewall (perhaps on a different VLAN routed by the firewall/router)
2) have the switch's management port ACL'd off by the switch's software that defines what hosts are allowed to access it
3) have the switch's silicon do filtering ("on-network firewalling")
These require progressively more advanced switches. The cheapest consumer-grade switches don't offer VLAN's, the lowest tier of IP-enabled switches may not allow ACL's for management, and it takes a mid-tier enterprise grade switch to do filtering.
Will I do point 2 in the switchos software from mikrotik?
- Joined
- Dec 30, 2020
- Messages
- 2,134
Assuming the computer at 192.168.0.5 has two Ethernet ports, link the second port to the management interface of the Microtik switch with a crossover cable and define a static route. Configure the switch so that no traffic is routed between the management port and other ports.

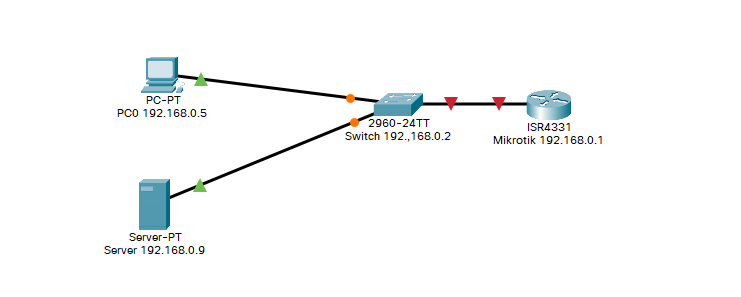

My network looks like this.
One more question.
How to restrict access to the management of FreeNas over the Internet also to the address 192.168.0.5
FreeNas has an IP address of 192.168.0.9
