I just upgraded my system a few weeks ago and all has been running great up until now.

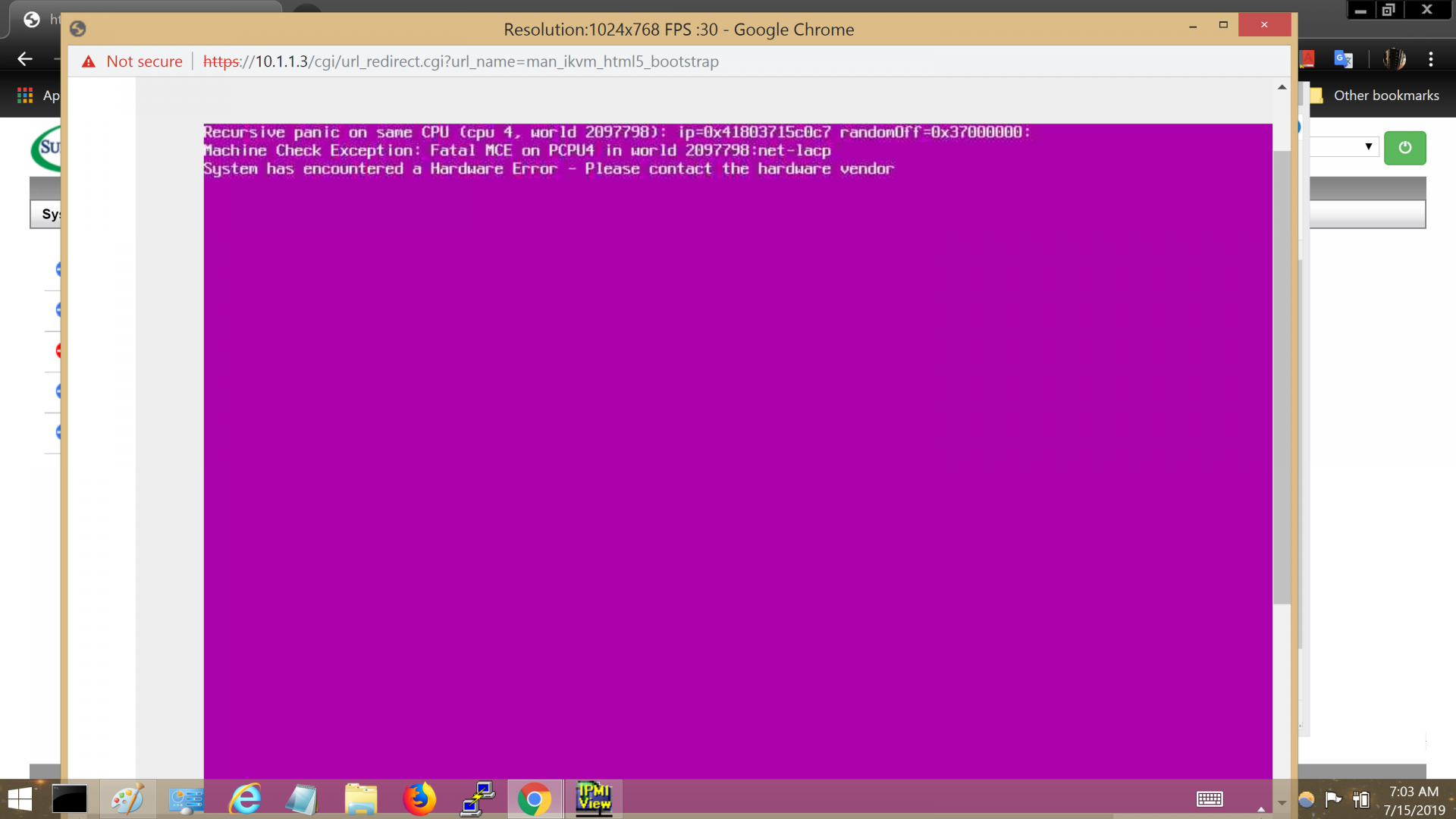

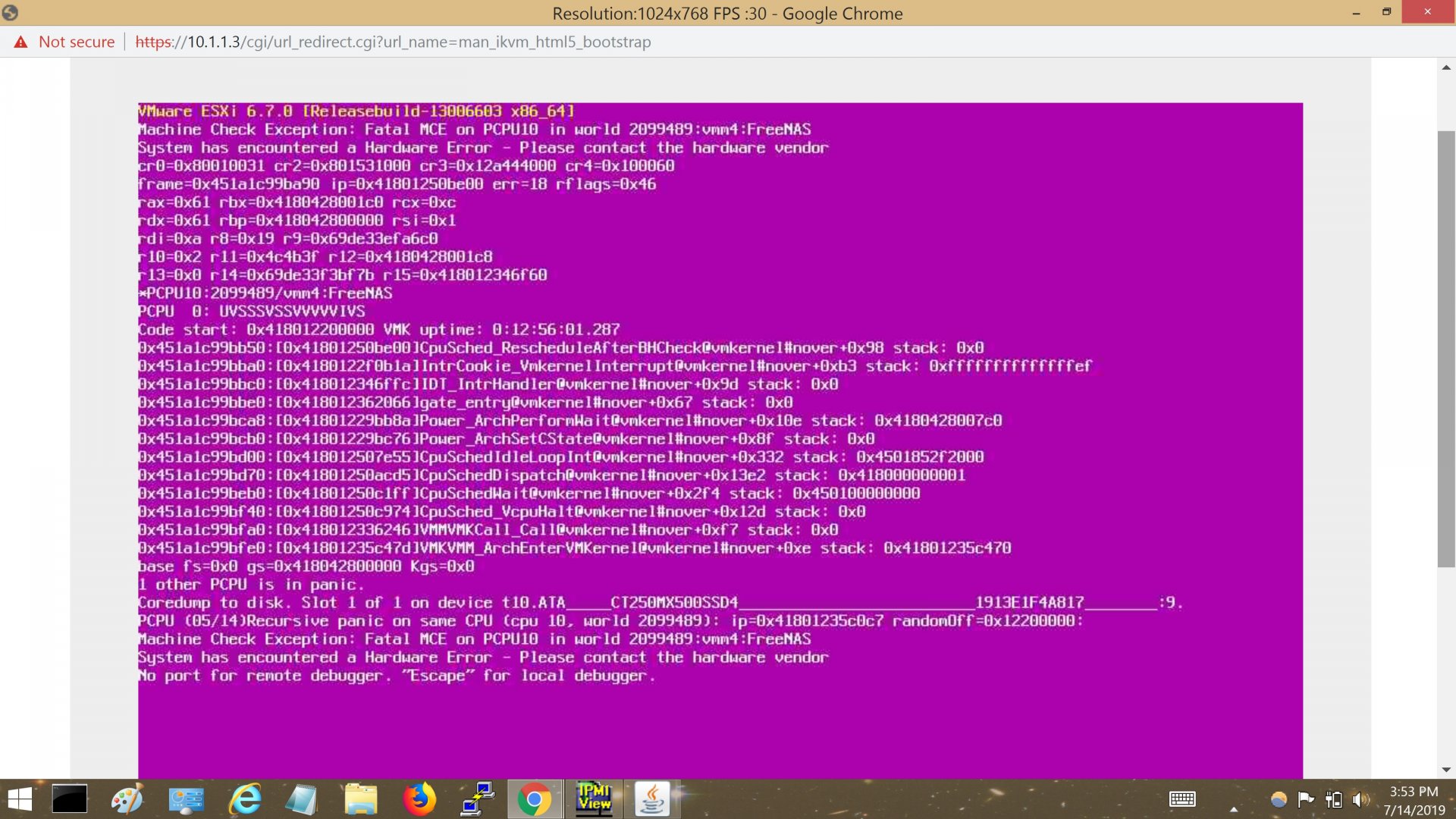

Yesterday I was out of town and noticed my Plex server was down. I came home and I found the first pic at the console IPMI.
I then power cycled system, and everything came back up just fine. I was working on my Zabbix VM all night without issue.

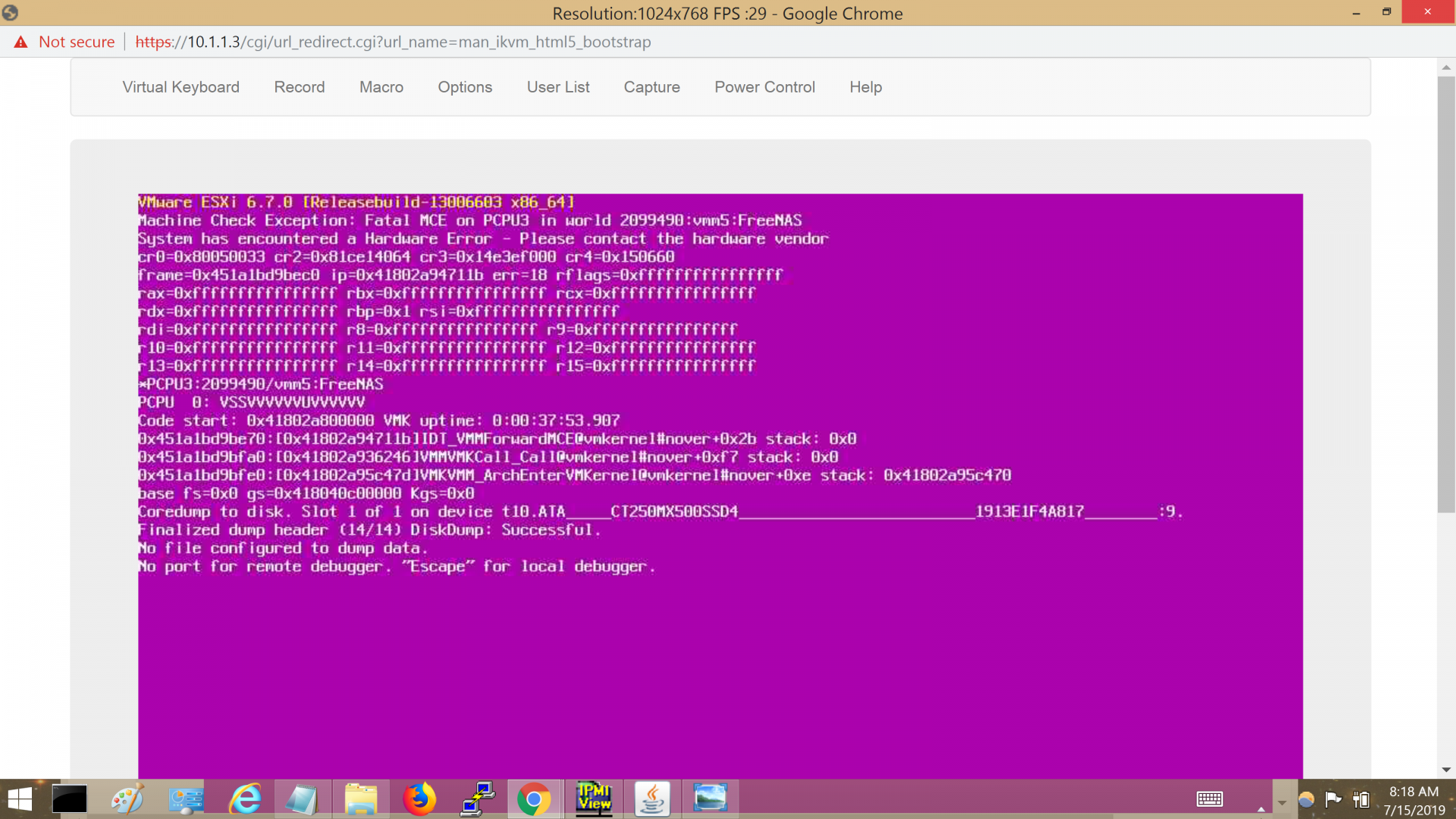

Well I just woke up this morning and found this. It happened again, although with a different output.
How do I troubleshoot this? Is there any way find some related logs?
Here's my complete build. In bold is the recently upgraded hardware.
FreeNAS Stable VM under ESXi 6.7
Supermicro M11SDV-8C+-TLN4F
AMD EPYC 3251 8 core/16 Thread 2.5 Ghz base/3.1 Ghz Turbo
64GB (2x32GB) Samsung DDR4 2133MHZ ECC RDIMM
250GB m.2 SATA SSD
LSI SAS 9207-8i PCI-E 3.0 HBA
6x4TB WD Red RAID Z2
Supermicro 920W Platinum PSU-SQ
Supermicro CSE-826BE16-R920LPB 2U Server
BPN-SAS2-826EL1 Backplane
A few things to note: I was previously running ESXi with a FreeNAS VM and that LSI card on a Supermicro Xeon-D 1521 board. I bought the LSI card off Ebay about 2 months ago when I made the transition from baremetal FreeNAS to ESXi. It was already in IT mode, although only on version 15.00. It was running on v15 up until a few days ago when I flashed it to the newest 20.0.07 firmware the other day. Everything seemed to be fine up until now.
EDIT: I just rebooted and everything appears to be fine for now. From the looks of the second pic, this appears to be a hardware CPU issue. What do yall think?
EDIT2: Ok, it just happened again. Im RMA'ing this mofo. Consider this post a report on model.
Yesterday I was out of town and noticed my Plex server was down. I came home and I found the first pic at the console IPMI.
I then power cycled system, and everything came back up just fine. I was working on my Zabbix VM all night without issue.
Well I just woke up this morning and found this. It happened again, although with a different output.
How do I troubleshoot this? Is there any way find some related logs?
Here's my complete build. In bold is the recently upgraded hardware.
FreeNAS Stable VM under ESXi 6.7
Supermicro M11SDV-8C+-TLN4F
AMD EPYC 3251 8 core/16 Thread 2.5 Ghz base/3.1 Ghz Turbo
64GB (2x32GB) Samsung DDR4 2133MHZ ECC RDIMM
250GB m.2 SATA SSD
LSI SAS 9207-8i PCI-E 3.0 HBA
6x4TB WD Red RAID Z2
Supermicro 920W Platinum PSU-SQ
Supermicro CSE-826BE16-R920LPB 2U Server
BPN-SAS2-826EL1 Backplane
A few things to note: I was previously running ESXi with a FreeNAS VM and that LSI card on a Supermicro Xeon-D 1521 board. I bought the LSI card off Ebay about 2 months ago when I made the transition from baremetal FreeNAS to ESXi. It was already in IT mode, although only on version 15.00. It was running on v15 up until a few days ago when I flashed it to the newest 20.0.07 firmware the other day. Everything seemed to be fine up until now.
EDIT: I just rebooted and everything appears to be fine for now. From the looks of the second pic, this appears to be a hardware CPU issue. What do yall think?
EDIT2: Ok, it just happened again. Im RMA'ing this mofo. Consider this post a report on model.
