LACP problem with ZYXEL switch

Conscripter

Cadet

Mar 15, 2020

Hello
I have bought ZYXEL GS1200-8 switch yesterday. In FreeNAS server I have Asrock H270M-ITX/ac main board with 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT LAN

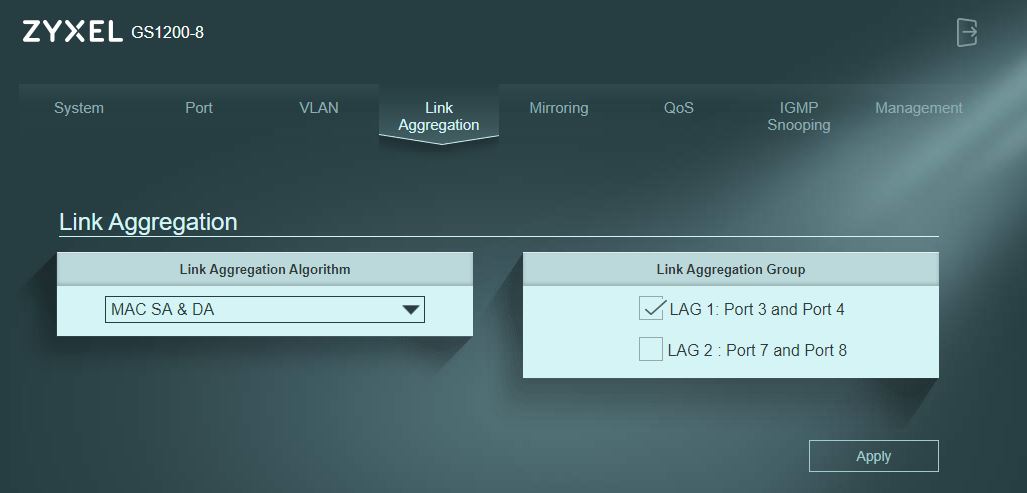

I tried to do the link aggregation like this

And in FreeNAS side like this
Link Aggregation
but not working.
Please help me!
Thank You

Basil Hendroff

Wizard

Mar 15, 2020

This recent thread may be relevant.
