Impaired rsync permissions support for Windows datasets

Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
Rsync fails when copying Windows datasets with the '-p' ('Preserve Permissions') option. And there are no plans to implement this option in the future, because "rsync targets primarily unix-like systems." Frankly, I don't blame the rsync team one bit for avoiding the Windows nightmare. :smile:

By implication, the '-p' option not working means the '-a' (Archive) and '-A' ('Preserve Extended Attributes') options are broken, too. From the rsync guide, here are the three options to be avoided:

Code:
-a, --archive   equals -rlptgoD (no -H, -A -X)
-p, --perms     Preserve permssions
-A, --acls     Preserve ACLs (implies -p)


This doesn't mean you can't use rsync! It just means you have to avoid using these particular options for Windows datasets. And, of course, live with any resulting consequences.

In shell scripts I use the fully enumerated' -a' option set, leaving off the 'p', like this: -rltgoD

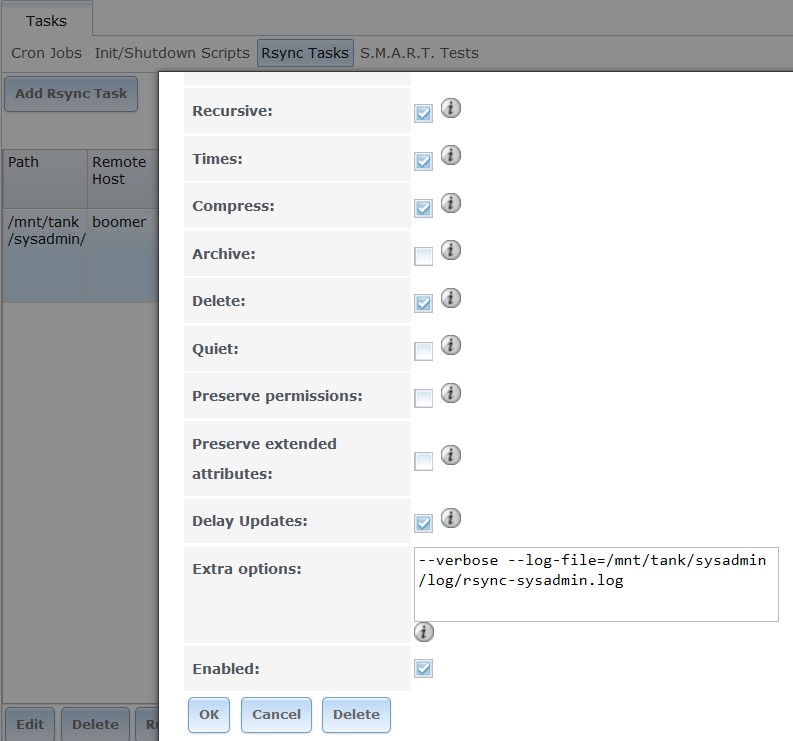

For Rsync Tasks in the GUI, uncheck the 'Archive:', 'Preserve permissions:', and 'Preserve extended attributes:' selections:


I've been using both shell scripts and Rsync Tasks configured this way for nearly a year with good results, so it's not like rsync is unusable.

Details available here: https://redmine.ixsystems.com/issues/7713

Last edited:

Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
Here is an rsync 'wrapper' script I wrote that avoids the problems discussed above. I use it to copy datasets between my three NAS systems (2 x FreeNAS and 1 x Synology Diskstation). You can download it from Pastbin here if you want to use it.

Code:
#!/bin/bash
#######################################################################
# A wrapper for invoking rsync to copy a source dataset to a destination
# dataset with options that are 'known to work' with FreeNAS/FreeBSD
# and Windows datasets. This means we have to avoid the '-p' (preserve
# permissions) option in all of its forms, per bug report 7713:
#
# https://bugs.freenas.org/issues/7713
#
# Command-line parameters:
#  1: Source dataset  R_SRC  (local system)  /mnt/tank/sharename/
#  2: Destination dataset  R_DEST  (local system)  /volume1/sharename
#  3: Log file  R_LOGFILE (local system)  /mnt/tank/sysadmin/log/push-log.log
#
# R_SRC or R_DEST may include user ID and hostname specifier
#
# Example usage, where 'boomer' is a FreeNAS server and 'bertrand' is
# a Synology Diskstation. Note that you should include a trailing slash
# only on the source dataset specifier:
#
# rsync-invoke.sh root@bertrand:/volume1/devtools/ /mnt/tank/devtools /mnt/tank/sysadmin/log/pull-from-bertrand.log
# rsync-invoke.sh /mnt/tank/devtools/ root@bertrand:/volume1/devtools /mnt/tank/sysadmin/log/push-to-bertrand.log
#
# Assumes SSH has been enabled and configured between the source
# and destination hosts.
#
# Invokes rsync with these SSH options to optimize transfer speed:
#
#  "-e ssh -T -c arcfour -o Compression=no -x"
#
# You may need to remove this altogether, or modify the encryption
# specifier (-c arcfour) to use a scheme available on your system.
#
# !!! WARNING !!!
# This script deletes files on the destination that don't exist
# on the source! Edit R_OPTIONS below and remove '--delete-during'
# and '--inplace' if you don't want this behavior!
#
# Tested with:
#  FreeNAS 9.3-STABLE
#  FreeNAS 9.10-STABLE
#  Synology DSM 5.x (as destination only)
#######################################################################

if [ $# -ne 3 ]
then
  echo "Error: not enough arguments!"
  echo "Usage is: $0 r_src r_dest r_logfile"
  exit 2
fi

R_SRC=$1
R_DEST=$2
R_LOGFILE=$3

# Options:
#  -r  recurse into directories
#  -l  copy symlinks as symlinks
#  -t  preserve modification times
#  -g  preserve group
#  -o  preserve owner
#  -D  preserve device and special files
#  -h  human readable progress
#  -v  increase verbosity

#  --delete-during  receiver deletes during the transfer
#  --inplace  write updated data directly to destination file
#  --log-file  specify log file

R_OPTIONS="-rltgoDhv --delete-during --inplace --log-file="${R_LOGFILE}

# Files to exclude:
#  .windows  FreeNAS ACL settings (?)
#  vmware.log  VMware virtual machine log files
#  vmware-*.log
#  @eaDir/  Synology extended attributes (?)
#  @eaDir
#  Thumbs.db  Windows system files

R_EXCLUDE="--exclude .windows --exclude vmware.log --exclude vmware-*.log --exclude @eaDir/ --exclude @eaDir --exclude Thumbs.db"

echo "$(date) Copy" ${R_SRC} "to" ${R_DEST} >> ${R_LOGFILE}
rsync ${R_OPTIONS} ${R_EXCLUDE} "-e ssh -T -c arcfour -o Compression=no -x" ${R_SRC} ${R_DEST}
echo "$(date) Copy completed" >> ${R_LOGFILE}
exit

Last edited:

melloa

Dedicated Sage
Joined
May 22, 2016
Messages
1,726

Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266

Penbrock

Member
Joined
May 27, 2017
Messages
26
I am trying this between to Freenas boxes. I downloaded it from pastbin, saved it in /root/ and chmod it with 777. owner is root: wheel
but when I try running it I get "Command not Found". I tried it with just rsync-invoke.sh src dst log, and ./root/rsync-invoke.sh src dst log with no luck
when I run it with sh rsync-invoke.sh src dst log I get ": not founde.sh: rsync-invoke.sh: 85: Syntax error: end of file unexpected (expecting "then")"

What am I doing wrong? I'm sure I missed something simple
Main server version: 9.10.2-u6
Dest server version: 11.2-u2


Penbrock

Member
Joined
May 27, 2017
Messages
26
I am trying this between to Freenas boxes. I downloaded it from pastbin, saved it in /root/ and chmod it with 777. owner is root: wheel
but when I try running it I get "Command not Found". I tried it with just rsync-invoke.sh src dst log, and ./root/rsync-invoke.sh src dst log with no luck
when I run it with sh rsync-invoke.sh src dst log I get ": not founde.sh: rsync-invoke.sh: 85: Syntax error: end of file unexpected (expecting "then")"

What am I doing wrong? I'm sure I missed something simple
Main server version: 9.10.2-u6
Dest server version: 11.2-u2
Skip that, it must have been something in the downloaded script. I manually pasted the lines into a file and it does run now..

How ever I must have something messed up in my DST field. After scanning all the files it errors out
Code:
./CopyNow.sh: line 89: root@10.0.1.198/mnt/UserHomes/HomeDrives: No such file or directory

According to the information, I did remove "-e ssh -T -c arcfour -o Compression=no -x" with no luck

I would love any help
Here is the command line I use
Code:
./CopyNow.sh /mnt/UserHomes/HomeDrives/ root@10.0.1.198:/mnt/UserHomes/HomeDrives /var/log/rsync-invoke.log


Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
Skip that, it must have been something in the downloaded script. I manually pasted the lines into a file and it does run now..

How ever I must have something messed up in my DST field. After scanning all the files it errors out
Code:
./CopyNow.sh: line 89: root@10.0.1.198/mnt/UserHomes/HomeDrives: No such file or directory

According to the information, I did remove "-e ssh -T -c arcfour -o Compression=no -x" with no luck

I would love any help
Here is the command line I use
Code:
./CopyNow.sh /mnt/UserHomes/HomeDrives/ root@10.0.1.198:/mnt/UserHomes/HomeDrives /var/log/rsync-invoke.log
Does /mnt/UserHomes/HomeDrives exist on the target server at IP 10.0.1.198? If UserHomes is a pool on your source server that you want to copy to your target server, you need to create it on the target server before you try to update it w/ rsync from the source.


Penbrock

Member
Joined
May 27, 2017
Messages
26
Yes they are on both. Infact I had used the rsync inside of Freenas to copy to the backup server but found out it does not keep the domain permissions. That is why I am trying this way.
I also tried deleting one folder in the UserHomes on the target to see if it just didn't like the fact that the folders and files where created by a different run of rsync


Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
Yes they are on both. Infact I had used the rsync inside of Freenas to copy to the backup server but found out it does not keep the domain permissions. That is why I am trying this way.
I also tried deleting one folder in the UserHomes on the target to see if it just didn't like the fact that the folders and files where created by a different run of rsync
Try changing the shebang (the first line in the script) from #!/bin/bash to #!/bin/sh. This is the only difference I see between the version I posted on pastebin and the version I use every day here on my systems.

The fact that you can't seem to use the ssh options concerns me. I wonder if you somehow have gotten a version of the script with DOS/Windows-style newlines (CR-LF pairs) instead of the plain UNIX-style newlines that FreeBSD/FreeNAS expect. Using any kind of Windows editor to edit the file can cause this.

Have you set up encryption keys so that you can use ssh to open a shell from the source server to the target (10.0.1.198) without entering a password?

Lastly, does the script write anything to the log? If so, post the log here (in 'code' tags). Perhaps that will help with troubleshooting.


Penbrock

Member
Joined
May 27, 2017
Messages
26
Try changing the shebang (the first line in the script) from #!/bin/bash to #!/bin/sh. This is the only difference I see between the version I posted on pastebin and the version I use every day here on my systems.

The fact that you can't seem to use the ssh options concerns me. I wonder if you somehow have gotten a version of the script with DOS/Windows-style newlines (CR-LF pairs) instead of the plain UNIX-style newlines that FreeBSD/FreeNAS expect. Using any kind of Windows editor to edit the file can cause this.

Have you set up encryption keys so that you can use ssh to open a shell from the source server to the target (10.0.1.198) without entering a password?

Lastly, does the script write anything to the log? If so, post the log here (in 'code' tags). Perhaps that will help with troubleshooting.
I changed the top line to #!/bin/sh . No change.

I did setup the key to ssh to 10.0.1.198. To test I run ssh root@10.0.1.198 and it does not prompt for a password it just connects. From there if I enter 'ls /mnt/UserHomes/HomeDrives/ ' I do see the sub folders I am trying to copy

Here is the log (top and end due to size)
Code:
Mon Feb 25 06:32:12 CST 2019 Copy /mnt/UserHomes/HomeDrives/ to root@10.0.1.198:/mnt/UserHomes/HomeDrives/
2019/02/25 06:32:12 [51596] building file list
2019/02/25 06:32:12 [51596] dr-xr-xr-x              8 2016/04/18 13:57:55 .
2019/02/25 06:32:12 [51596] drwxrwxrwx            334 2019/02/22 11:59:22 D1
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:30:58 D1/2815
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:33:35 D1/2816
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:34:40 D1/2817
2019/02/25 06:32:12 [51596] d---------              2 2018/12/10 06:36:38 D1/2818
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:38:09 D1/2819
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:39:24 D1/2820
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:40:47 D1/2821
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:43:39 D1/2822
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:44:30 D1/2823
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:45:35 D1/2824
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:49:42 D1/2825
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:50:34 D1/2826
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:51:08 D1/2827
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:51:40 D1/2828
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:52:13 D1/2829
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:23:13 D1/ATTin
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:27:53 D1/aames
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:27:53 D1/abrown
2019/02/25 06:32:12 [51596] d---------              2 2018/04/20 12:38:52 D1/acain
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:32:48 D1/acampanelli
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:23:15 D1/acarter
2019/02/25 06:32:13 [51596] d---------              4 2018/10/15 16:23:34 D1/acounterman
2019/02/25 06:32:13 [51596] -rw-rw-rw-         14.13K 2018/10/05 11:49:41 D1/acounterman/Copy of Amanda  MORE Funnel  2018 (4).xlsx
2019/02/25 06:32:13 [51596] -rw-rw-rw-         19.28K 2018/10/15 16:18:00 D1/acounterman/Mobility MORE Funnel  2018 Master.xlsx
2019/02/25 06:32:13 [51596] d---------              3 2019/01/15 13:36:48 D1/agarrison
2019/02/25 06:32:13 [51596] drwxrwxrwx              4 2019/01/15
……  cut out for size
….  cut end
2019/02/25 06:33:01 [51596] -rw-rw-rw-         64.16K 2017/07/17 09:59:47 IT/kcurtis/rsb01/walnutlawn/backup/duplicati-idcd41821f3e241dabe32496187bca983.dindex.zip.aes
2019/02/25 06:33:01 [51596] -rw-rw-rw-         60.20K 2017/07/17
2019/02/25 06:33:01 [51596] drwxrwxrwx              4 2016/04/05 07:28:54 Programmers
2019/02/25 06:33:01 [51596] d---------              2 2016/04/05 07:28:54 Programmers/jblakey
2019/02/25 06:33:01 [51596] d---------              2 2016/04/04 12:47:50 Programmers/jowen
2019/02/25 06:33:01 [51596] sent 4.28M bytes  received 15.94M bytes  408.50K bytes/sec
2019/02/25 06:33:01 [51596] total size is 1.01T  speedup is 50,093.26
Mon Feb 25 06:33:01 CST 2019 Copy completed



This is the script file I copied.

Code:
#!/bin/sh
#######################################################################
# A wrapper for invoking rsync to copy a source dataset to a destination
# dataset with options that are 'known to work' with FreeNAS/FreeBSD
# and Windows datasets. This means we have to avoid the '-p' (preserve
# permissions) option in all of its forms, per bug report 7713:
#
# https://bugs.freenas.org/issues/7713
#
# Command-line parameters:
#   1: Source dataset       R_SRC     (local system)  /mnt/tank/sharename/
#   2: Destination dataset  R_DEST    (local system)  /volume1/sharename
#   3: Log file             R_LOGFILE (local system) /mnt/tank/sysadmin/log/push-log.log
#
# R_SRC or R_DEST may include user ID and hostname specifier
#
# Example usage, where 'boomer' is a FreeNAS server and 'bertrand' is
# a Synology Diskstation. Note that you should include a trailing slash
# only on the source dataset specifier:
#
# rsync-invoke.sh root@bertrand:/volume1/devtools/ /mnt/tank/devtools
# /mnt/tank/sysadmin/log/pull-from-bertrand.log
# rsync-invoke.sh /mnt/tank/devtools/ root@bertrand:/volume1/devtools
# /mnt/tank/sysadmin/log/push-to-bertrand.log
#
# Assumes SSH has been enabled and configured between the source
# and destination hosts.
#
# Invokes rsync with these SSH options to optimize transfer speed:
#
#   "-e ssh -T -c arcfour -o Compression=no -x"
#
# You may need to remove this altogether, or modify the encryption
# specifier (-c arcfour) to use a scheme available on your system.
#
# !!! WARNING !!!
# This script deletes files on the destination that don't exist
# on the source! Edit R_OPTIONS below and remove '--delete-during'
# and '--inplace' if you don't want this behavior!
#
# Tested with:
#   FreeNAS 9.3-STABLE
#   FreeNAS 9.10-STABLE
#   Synology DSM 5.x (as destination only)
#######################################################################

if [ $# -ne 3 ]
then
  echo "Error: not enough arguments!"
  echo "Usage is: $0 r_src r_dest r_logfile"
  exit 2
fi

R_SRC=$1
R_DEST=$2
R_LOGFILE=$3

# Options:
#   -r  recurse into directories
#   -l  copy symlinks as symlinks
#   -t  preserve modification times
#   -g  preserve group
#   -o  preserve owner
#   -D  preserve device and special files
#   -h  human readable progress
#   -v  increase verbosity

#   --delete-during   receiver deletes during the transfer
#   --inplace         write updated data directly to destination file
#   --log-file        specify log file

R_OPTIONS="-rltgoDhv --delete-during --inplace --log-file="${R_LOGFILE}

# Files to exclude:
#   .windows      FreeNAS ACL settings (?)
#   vmware.log    VMware virtual machine log files
#   vmware-*.log
#   @eaDir/       Synology extended attributes (?)
#   @eaDir
#   Thumbs.db     Windows system files

R_EXCLUDE="--exclude .windows --exclude vmware.log --exclude vmware-*.log --exclude
@eaDir/ --exclude @eaDir --exclude Thumbs.db"

echo "$(date) Copy" ${R_SRC} "to" ${R_DEST} >> ${R_LOGFILE}
rsync ${R_OPTIONS} ${R_EXCLUDE} "-e ssh -T -c arcfour -o Compression=no -x" ${R_SRC}
# rsync ${R_OPTIONS} ${R_EXCLUDE}  ${R_SRC}
${R_DEST}
echo "$(date) Copy completed" >> ${R_LOGFILE}
exit


Any help would be great.

Last edited:

Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
I changed the top line to #!/bin/sh . No change.

I did setup the key to ssh to 10.0.1.198. To test I run ssh root@10.0.1.198 and it does not prompt for a password it just connects. From there if I enter 'ls /mnt/UserHomes/HomeDrives/ ' I do see the sub folders I am trying to copy

Here is the log (top and end due to size)
Code:
Mon Feb 25 06:32:12 CST 2019 Copy /mnt/UserHomes/HomeDrives/ to root@10.0.1.198:/mnt/UserHomes/HomeDrives/
2019/02/25 06:32:12 [51596] building file list
2019/02/25 06:32:12 [51596] dr-xr-xr-x              8 2016/04/18 13:57:55 .
2019/02/25 06:32:12 [51596] drwxrwxrwx            334 2019/02/22 11:59:22 D1
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:30:58 D1/2815
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:33:35 D1/2816
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:34:40 D1/2817
2019/02/25 06:32:12 [51596] d---------              2 2018/12/10 06:36:38 D1/2818
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:38:09 D1/2819
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:39:24 D1/2820
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:40:47 D1/2821
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:43:39 D1/2822
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:44:30 D1/2823
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:45:35 D1/2824
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:49:42 D1/2825
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:50:34 D1/2826
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:51:08 D1/2827
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:51:40 D1/2828
2019/02/25 06:32:12 [51596] d---------              2 2018/08/06 09:52:13 D1/2829
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:23:13 D1/ATTin
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:27:53 D1/aames
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:27:53 D1/abrown
2019/02/25 06:32:12 [51596] d---------              2 2018/04/20 12:38:52 D1/acain
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:32:48 D1/acampanelli
2019/02/25 06:32:12 [51596] d---------              2 2017/03/30 11:23:15 D1/acarter
2019/02/25 06:32:13 [51596] d---------              4 2018/10/15 16:23:34 D1/acounterman
2019/02/25 06:32:13 [51596] -rw-rw-rw-         14.13K 2018/10/05 11:49:41 D1/acounterman/Copy of Amanda  MORE Funnel  2018 (4).xlsx
2019/02/25 06:32:13 [51596] -rw-rw-rw-         19.28K 2018/10/15 16:18:00 D1/acounterman/Mobility MORE Funnel  2018 Master.xlsx
2019/02/25 06:32:13 [51596] d---------              3 2019/01/15 13:36:48 D1/agarrison
2019/02/25 06:32:13 [51596] drwxrwxrwx              4 2019/01/15
……  cut out for size
….  cut end
2019/02/25 06:33:01 [51596] -rw-rw-rw-         64.16K 2017/07/17 09:59:47 IT/kcurtis/rsb01/walnutlawn/backup/duplicati-idcd41821f3e241dabe32496187bca983.dindex.zip.aes
2019/02/25 06:33:01 [51596] -rw-rw-rw-         60.20K 2017/07/17
2019/02/25 06:33:01 [51596] drwxrwxrwx              4 2016/04/05 07:28:54 Programmers
2019/02/25 06:33:01 [51596] d---------              2 2016/04/05 07:28:54 Programmers/jblakey
2019/02/25 06:33:01 [51596] d---------              2 2016/04/04 12:47:50 Programmers/jowen
2019/02/25 06:33:01 [51596] sent 4.28M bytes  received 15.94M bytes  408.50K bytes/sec
2019/02/25 06:33:01 [51596] total size is 1.01T  speedup is 50,093.26
Mon Feb 25 06:33:01 CST 2019 Copy completed



This is the script file I copied.

Code:
#!/bin/sh
#######################################################################
# A wrapper for invoking rsync to copy a source dataset to a destination
# dataset with options that are 'known to work' with FreeNAS/FreeBSD
# and Windows datasets. This means we have to avoid the '-p' (preserve
# permissions) option in all of its forms, per bug report 7713:
#
# https://bugs.freenas.org/issues/7713
#
# Command-line parameters:
#   1: Source dataset       R_SRC     (local system)  /mnt/tank/sharename/
#   2: Destination dataset  R_DEST    (local system)  /volume1/sharename
#   3: Log file             R_LOGFILE (local system) /mnt/tank/sysadmin/log/push-log.log
#
# R_SRC or R_DEST may include user ID and hostname specifier
#
# Example usage, where 'boomer' is a FreeNAS server and 'bertrand' is
# a Synology Diskstation. Note that you should include a trailing slash
# only on the source dataset specifier:
#
# rsync-invoke.sh root@bertrand:/volume1/devtools/ /mnt/tank/devtools
# /mnt/tank/sysadmin/log/pull-from-bertrand.log
# rsync-invoke.sh /mnt/tank/devtools/ root@bertrand:/volume1/devtools
# /mnt/tank/sysadmin/log/push-to-bertrand.log
#
# Assumes SSH has been enabled and configured between the source
# and destination hosts.
#
# Invokes rsync with these SSH options to optimize transfer speed:
#
#   "-e ssh -T -c arcfour -o Compression=no -x"
#
# You may need to remove this altogether, or modify the encryption
# specifier (-c arcfour) to use a scheme available on your system.
#
# !!! WARNING !!!
# This script deletes files on the destination that don't exist
# on the source! Edit R_OPTIONS below and remove '--delete-during'
# and '--inplace' if you don't want this behavior!
#
# Tested with:
#   FreeNAS 9.3-STABLE
#   FreeNAS 9.10-STABLE
#   Synology DSM 5.x (as destination only)
#######################################################################

if [ $# -ne 3 ]
then
  echo "Error: not enough arguments!"
  echo "Usage is: $0 r_src r_dest r_logfile"
  exit 2
fi

R_SRC=$1
R_DEST=$2
R_LOGFILE=$3

# Options:
#   -r  recurse into directories
#   -l  copy symlinks as symlinks
#   -t  preserve modification times
#   -g  preserve group
#   -o  preserve owner
#   -D  preserve device and special files
#   -h  human readable progress
#   -v  increase verbosity

#   --delete-during   receiver deletes during the transfer
#   --inplace         write updated data directly to destination file
#   --log-file        specify log file

R_OPTIONS="-rltgoDhv --delete-during --inplace --log-file="${R_LOGFILE}

# Files to exclude:
#   .windows      FreeNAS ACL settings (?)
#   vmware.log    VMware virtual machine log files
#   vmware-*.log
#   @eaDir/       Synology extended attributes (?)
#   @eaDir
#   Thumbs.db     Windows system files

R_EXCLUDE="--exclude .windows --exclude vmware.log --exclude vmware-*.log --exclude
@eaDir/ --exclude @eaDir --exclude Thumbs.db"

echo "$(date) Copy" ${R_SRC} "to" ${R_DEST} >> ${R_LOGFILE}
rsync ${R_OPTIONS} ${R_EXCLUDE} "-e ssh -T -c arcfour -o Compression=no -x" ${R_SRC}
# rsync ${R_OPTIONS} ${R_EXCLUDE}  ${R_SRC}
${R_DEST}
echo "$(date) Copy completed" >> ${R_LOGFILE}
exit


Any help would be great.
One potential problem I see is that the R_EXCLUDE definition appears to 'wrap':
Code:
R_EXCLUDE="--exclude .windows --exclude vmware.log --exclude vmware-*.log --exclude
@eaDir/ --exclude @eaDir --exclude Thumbs.db"

This could simply be an artifact of the way you copied and pasted the code here on the forum. In any case, it should just be a single line, like this:
Code:
R_EXCLUDE="--exclude .windows --exclude vmware.log --exclude vmware-*.log --exclude @eaDir/ --exclude @eaDir --exclude Thumbs.db"

Looking at the first line of your log file:
Code:
Mon Feb 25 06:32:12 CST 2019 Copy /mnt/UserHomes/HomeDrives/ to root@10.0.1.198:/mnt/UserHomes/HomeDrives/
It looks like you may not be running the script correctly if you intend to copy subdirectories. You should call it without the slash on the destination path, like this:
Code:
./rsync-invoke.sh /mnt/UserHomes/HomeDrives/ root@10.0.1.198:/mnt/UserHomes/HomeDrives
Hope this helps...


Penbrock

Member
Joined
May 27, 2017
Messages
26
One potential problem I see is that the R_EXCLUDE definition appears to 'wrap':
Code:
R_EXCLUDE="--exclude .windows --exclude vmware.log --exclude vmware-*.log --exclude
@eaDir/ --exclude @eaDir --exclude Thumbs.db"

This could simply be an artifact of the way you copied and pasted the code here on the forum. In any case, it should just be a single line, like this:
Code:
R_EXCLUDE="--exclude .windows --exclude vmware.log --exclude vmware-*.log --exclude @eaDir/ --exclude @eaDir --exclude Thumbs.db"

Looking at the first line of your log file:
Code:
Mon Feb 25 06:32:12 CST 2019 Copy /mnt/UserHomes/HomeDrives/ to root@10.0.1.198:/mnt/UserHomes/HomeDrives/
It looks like you may not be running the script correctly if you intend to copy subdirectories. You should call it without the slash on the destination path, like this:
Code:
./rsync-invoke.sh /mnt/UserHomes/HomeDrives/ root@10.0.1.198:/mnt/UserHomes/HomeDrives
Hope this helps...
I fixed the wrapped line, and made sure the trailing / is removed. No change.

I think I will delete all the scripts and start from a fresh start. I'm sure I am doing something wrong no one else seems to have an issue with your great script


Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
...snip...In fact I had used the rsync inside of Freenas to copy to the backup server but found out it does not keep the domain permissions. That is why I am trying this way.
I missed this earlier statement of yours.

No matter how you use rsync -- via the GUI or from a shell script -- it's not going to copy Windows permissions; that's the subject of this thread. So I doubt it will have any better success with domain permissions.

Your best bet, once the files are copied to the new server, may simply be to manually reconfigure the permissions.


Penbrock

Member
Joined
May 27, 2017
Messages
26
OK thanks. Sorry I had thought the script was a work around to get the permissions to work.

Thanks for all the help


Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
Old thread, current doubt ...

Does this problem still exist in 11.3-RELEASE?
I honestly don't know... I installed 11.3-RELEASE on my test system last week and haven't had time to investigate this particular problem.


JDLH

Junior Member
Joined
Aug 10, 2019
Messages
20

Spearfoot

He of the long foot
Moderator
Joined
May 13, 2015
Messages
2,266
As of June 2020, the domain bugs.freenas.org redirects to a newer, Jira-based bug database, which doesn't seem to contain this bug report. But I found what looks like the same bug report at https://redmine.ixsystems.com/issues/7713: "Rsync over SSH 'PUSH' task works, 'PULL' task fails", dated 2015-01-27.
Yep, that's the bug report I participated in several years ago...


Phil1295

Junior Member
Joined
Sep 20, 2020
Messages
19
I tested and I can confirm that the rsync doesn't still preserve ACL permissions between two datasets on latest FreeNAS version
The worst: target files do not even get the target dataset inherited permissions on create, they get root/wheel permissions

Really makes rsync useless for SMB shares

Wired that such a basic feature is not present / fixed


anodos

Sambassador
iXsystems
Joined
Mar 6, 2014
Messages
7,258
I tested and I can confirm that the rsync doesn't still preserve ACL permissions between two datasets on latest FreeNAS version
The worst: target files do not even get the target dataset inherited permissions on create, they get root/wheel permissions

Really makes rsync useless for SMB shares

Wired that such a basic feature is not present / fixed
What arguments are you passing to rsync?

Top
