HELP - FreeNAS-x64-9.2.1.6 with nic intel onboard chipset 82579LM

[Guilherme]

Good night,
Sorry for my english,
I'm new to the forum and need help.
I'm running FreeNAS-x64-9.2.1.6-RELEASE via a USB stick.
My motherboard is an Asrock Z97E-ITX/ac. (Http://www.asrock.com/mb/Intel/Z97E-ITXac/?cat=Specifications)
She has a network card intel 82579LM Gigabit network connection, onboard, chipset is not recognized by the operating system.
Already tried installing Freebsd 9.2 and compile the module, source https://downloadcenter.intel.com/Detail_Desc.aspx?DwnldID=17509
I copied the file .ko to /boot/kernel/if_em.ko and put to boot from /boot/loader.conf in my FreeNAS
The service begins with the module operating system however the interface em0 is not up and is not recognized in /dev/XXX
Can anyone help me on this problem?
Freenas supports this nic?
Appreciate the attention already



[cyberjock]

Two things...

1. Can you post the output of "pciconf -lv"
2. Please read: https://bugs.freenas.org/issues/5105

At the end I commented that this is one reason why desktop motherboards aren't good choices. They use the desktop chips which (aside from not supporting the always important ECC) they may have NICs that aren't compatible with FreeNAS.

Unfortunately, you are most likely not going to be able to use that NIC. And as the developers wrote in the ticket, it's closed to Intel to fix. It appears that one of two things are going to happen to get you support.

1. Someone ports the driver to FreeBSD 9. In particular 9.3 and they do it before it's compiled for RELEASE status.
2. FreeNAS upgrades to be based on FreeBSD 10.



[Guilherme]

Hi friend.
Ty for reply
The output of "pciconf -lv"
hostb0@pci0:0:0:0: class=0x060000 card=0x0c001849 chip=0x0c008086 rev=0x06 hdr=0x00
vendor = 'Intel Corporation'
class = bridge
subclass = HOST-PCI
vgapci0@pci0:0:2:0: class=0x030000 card=0x04021849 chip=0x04028086 rev=0x06 hdr=0x00
vendor = 'Intel Corporation'
class = display
subclass = VGA
none0@pci0:0:3:0: class=0x040300 card=0x0c0c1849 chip=0x0c0c8086 rev=0x06 hdr=0x00
vendor = 'Intel Corporation'
class = multimedia
subclass = HDA
none1@pci0:0:20:0: class=0x0c0330 card=0x8cb11849 chip=0x8cb18086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = serial bus
subclass = USB
none2@pci0:0:22:0: class=0x078000 card=0x8cba1849 chip=0x8cba8086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = simple comms
none3@pci0:0:25:0: class=0x020000 card=0x15a11849 chip=0x15a18086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = network
subclass = ethernet
ehci0@pci0:0:26:0: class=0x0c0320 card=0x8cad1849 chip=0x8cad8086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = serial bus
subclass = USB
none4@pci0:0:27:0: class=0x040300 card=0x11501849 chip=0x8ca08086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = multimedia
subclass = HDA
pcib1@pci0:0:28:0: class=0x060400 card=0x8c901849 chip=0x8c908086 rev=0xd0 hdr=0x01
vendor = 'Intel Corporation'
class = bridge
subclass = PCI-PCI
pcib2@pci0:0:28:3: class=0x060400 card=0x8c961849 chip=0x8c968086 rev=0xd0 hdr=0x01
vendor = 'Intel Corporation'
class = bridge
subclass = PCI-PCI
ehci1@pci0:0:29:0: class=0x0c0320 card=0x8ca61849 chip=0x8ca68086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = serial bus
subclass = USB
isab0@pci0:0:31:0: class=0x060100 card=0x8cc41849 chip=0x8cc48086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = bridge
subclass = PCI-ISA
ahci0@pci0:0:31:2: class=0x010601 card=0x8c821849 chip=0x8c828086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = mass storage
subclass = SATA
none5@pci0:0:31:3: class=0x0c0500 card=0x8ca21849 chip=0x8ca28086 rev=0x00 hdr=0x00
vendor = 'Intel Corporation'
class = serial bus
subclass = SMBus
none6@pci0:2:0:0: class=0x028000 card=0x21231a3b chip=0x43b114e4 rev=0x03 hdr=0x00
vendor = 'Broadcom Corporation'
class = network



[cyberjock]

Yep.. follow the link above and then buy yourself another network card. :(



[Guilherme]

Very tank you for u help.

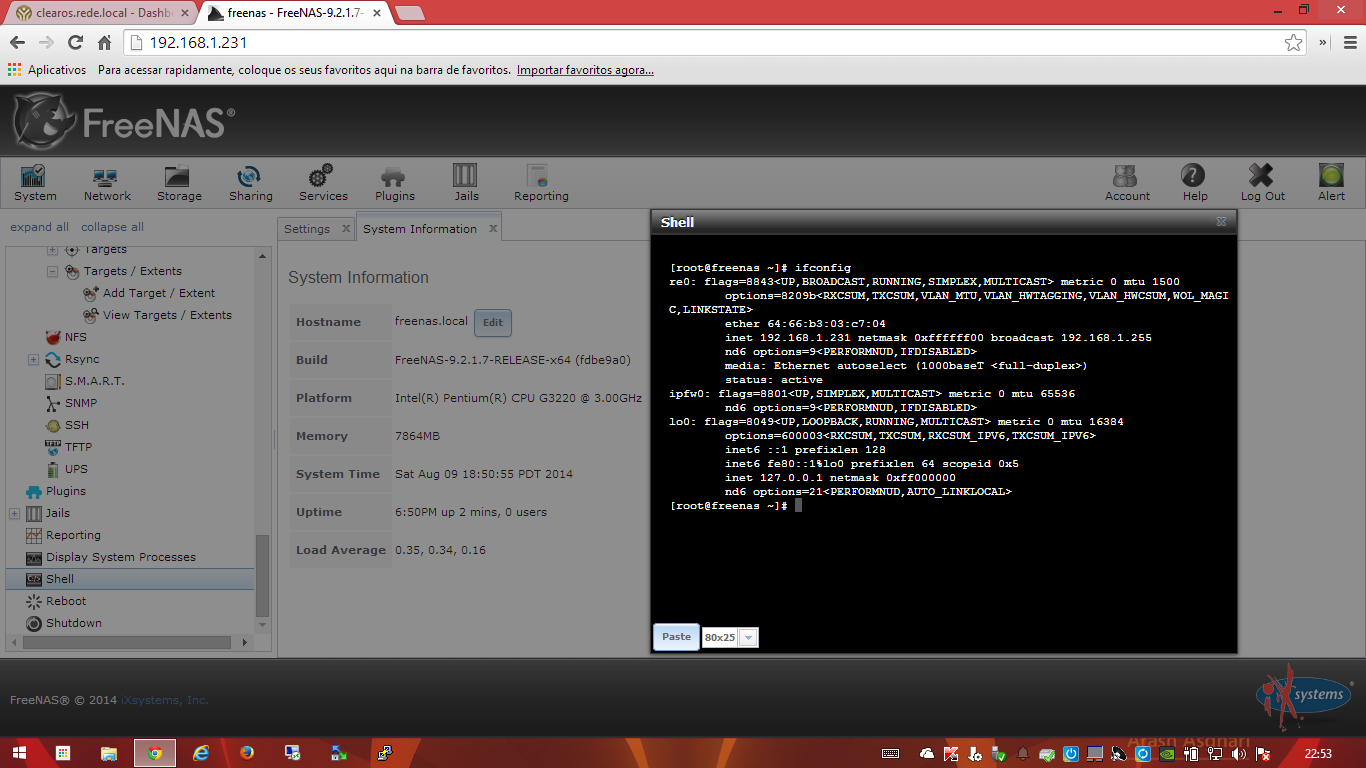

I bought one realtek pcie chipset r8169 and the system automatically recognized



[cyberjock]

ROFL.. Realtek.



[gpsguy]

An Intel Pro/1000 would have been a better choice. If you discover performance issues with the new NIC and/or discover that the Realtek 8169 isn't supported in a future version of FreeNAS, you definitely want to switch NIC's again. An OEM version of the Pro/1000 costs about $30 USD.
