Hard Drive issues (ATA Status Error), how to resolve knowing SMART results

Status
Not open for further replies.

Saa|3

Cadet
Joined
Jul 1, 2015
Messages
4
Hi all, looking for some help with the errors I have started to receive on my FreeNAS box, and specifically what the SMART data might be able to tell me. For a while I would get this error emailed to me every once in a while:

Code:
> (ada4:ahcich4:0:0:0): WRITE_FPDMA_QUEUED. ACB: 61 08 e0 1f b3 40 95 00 00 00 00 00
> (ada4:ahcich4:0:0:0): CAM status: ATA Status Error
> (ada4:ahcich4:0:0:0): ATA status: 41 (DRDY ERR), error: 10 (IDNF )
> (ada4:ahcich4:0:0:0): RES: 41 10 e0 1f b3 40 95 00 00 00 00
> (ada4:ahcich4:0:0:0): Retrying command


More recently I also get an error like this:

Code:
> (ada4:ahcich4:0:0:0): WRITE_FPDMA_QUEUED. ACB: 61 08 78 cb a9 40 9d 00 00 00 00 00
> (ada4:ahcich4:0:0:0): RES: 41 10 78 cb a9 40 9d 00 00 00 00


Searching this error on the forums here I found that it might be a SATA cable issue, so I replaced the cable and the error still appeared. I now realize it's probably a drive issue, and ran SMART tests to see what's up. I ran short and long tests on all my drives, and they all run with no errors. Below is the result on drive ADA4:

Code:
smartctl 6.3 2014-07-26 r3976 [FreeBSD 9.3-RELEASE-p16 amd64] (local build)
Copyright (C) 2002-14, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red
Device Model:     WDC WD40EFRX-68WT0N0
Firmware Version: 80.00A80
User Capacity:    4,000,787,030,016 bytes [4.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    5400 rpm
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2 (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Wed Jul  1 09:08:03 2015 MDT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (55260) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 552) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x703d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   172   169   021    Pre-fail  Always       -       8383
  4 Start_Stop_Count        0x0032   100   100   000    Old_age   Always       -       24
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   083   083   000    Old_age   Always       -       12471
10 Spin_Retry_Count        0x0032   100   253   000    Old_age   Always       -       0
11 Calibration_Retry_Count 0x0032   100   253   000    Old_age   Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       24
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       9
193 Load_Cycle_Count        0x0032   157   157   000    Old_age   Always       -       131565
194 Temperature_Celsius     0x0022   127   119   000    Old_age   Always       -       25
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   100   253   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%     12299         -
# 2  Short offline       Completed without error       00%     12289         -
# 3  Extended offline    Completed without error       00%     12035         -
# 4  Short offline       Completed without error       00%     12025         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


My main concern is line 193 Load_Cycle_Count, when searching this forum I have not yet seen such high values. In this thread:

https://forums.freenas.org/index.php?threads/cam-status-ata-status-error.16833/

it was deemed to be a potential issue on the drive. My concern is that I have such high values on all my drives. Running the SMART test on them all, they all have similar values, even though none of the others give me any errors (actually, ada5 gave me an error once in 2014 and once a few days ago).

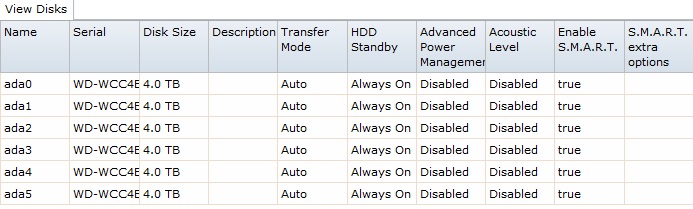

Not sure why I have such high values, I have my drives on all the time and they should not be spinning down:



The only thing I can think of is that in my BIOS I enabled staggered drive spinup, but my understanding is that just makes it easier on the power supply at boot.

Anything I'm missing with my setup that could be causing this? Or a way to determine if the ada4 drive I can have WD RMA? Thanks!


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,194
LCC is high, but not critical. Your drives must be from the infamous batch that was flashed with the wrong idle timer. Use wdidle or the red-specific tool to change it to 300 seconds.

But that's not the cause of your problems.

The only thing unusual with that SMART log is the small number of logged SMART tests. Did you only start running them recently?

I assume the drives are connected to the Intel PCH SATA controller, right?


Saa|3

Cadet
Joined
Jul 1, 2015
Messages
4
You're right, I haven't been running regular SMART tests yet. I will be setting that up, it's been on my to do list since I built the server (no excuse for waiting so long, I know). The drives are connected to the on-board SATA ports. I will look into changing this idle timer, or is it something I should address with a firmware flash?


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,194
You're right, I haven't been running regular SMART tests yet. I will be setting that up, it's been on my to do list since I built the server (no excuse for waiting so long, I know). The drives are connected to the on-board SATA ports. I will look into changing this idle timer, or is it something I should address with a firmware flash?
Nah, you can't even find new firmware versions for most disks. Just change the timer, that solved the problem for everyone afflicted.
By the way, what's the manufacturing date on the drives? Circa December 2013?

I haven't been running regular SMART tests yet. I will be setting that up, it's been on my to do list since I built the server (no excuse for waiting so long, I know)
Don't forget the scrubs.

It'll take you five minutes to set them all up. 1 to actually set the settings and 4 trying to remember on which weeks you're running scrubs and which weeks have SMART long tests.


Saa|3

Cadet
Joined
Jul 1, 2015
Messages
4
Yeah, scrubs I have been running since day 1 so I am covered on that, I just need to figure out how to schedule the SMART tests so they don't conflict with my every-three-weeks scrubs.

I bought the drives in early Dec 2013, so not sure what the manufacturing date is, but sounds like it would be close.

So should changing this timer setting resolve my issues with the ATA Status Error as well? Or will it just keep the SMART result from growing as fast, but I still have to deal with the drive itself somehow? Thanks for your quick help by the way!


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,194
So should changing this timer setting resolve my issues with the ATA Status Error as well?
No, that part is a mystery, unless other drives show something useful on their SMART logs.

Could be bad power or a number of other things.


Saa|3

Cadet
Joined
Jul 1, 2015
Messages
4
Hey all, just to update on my issue. I ran the wd5741 firmware utility on the drives that allowed it, which was 5 of my original 6 drives. I haven't yet seen if the LCC values have stabilized a bit, but what has happened is that my ATA errors have gone away. This was on the ADA5 drive, that was starting to have errors more often. The ADA4 drive I replaced, but since the SMART tests never found anything wrong with it, I think it might be good after the firmware flash as well. I might try it out once another one of my drives starts to fail.

Anyways, thanks for the help!
