[Ruff.Hi]

Badblocks is destructive when used to burn-in disks as advised in this thread, so there's always the chance of making a fat-fingered mistake and inadvertently erasing one or more drives in your pool. Everything will be okay, as long as you make absolutely sure you're working with the new drives and not the ones in your pool! :)

Thanks for the post. I could mention that having a redundant pool ... just in case a disk goes bad ... could be used for recovery from fat-finger-ness ... but I won't.

I'll just trust myself to double check that I am running against the new drives.

I'm lucky enough to have an old PC equipped with a Dell H200 HBA, just for this kind of work. Handy!

I am very close to replacing my current system with a newer system ... and your post gives me ideas about what to do with the old one. I can see if I can stand a FreeNAS install up on it. No ECC RAM ... but I won't be using it for any sort of pool.



[Stux]

I have a 24 bay system that is not full. I regularly throw a handful of drives into the hotswap caddies to do burnin for other systems, without worrying about how it affects the production nas.



[tbrezniak]

Has anybody ever seen the error operation not permitted while trying to open /dev/da2?

I get this error when trying to run the following command on several drives. The command that the error happens on is badblocks -ws /dev/da2.

Thanks for any help and for the great tutorial!



[Sakuru]

Has anybody ever seen the error operation not permitted while trying to open /dev/da2?

I get this error when trying to run the following command on several drives. The command that the error happens on is badblocks -ws /dev/da2.

Thanks for any help and for the great tutorial!

Are you running as root?



[tbrezniak]

Are you running as root?

I believe so. It lets me run the command on 3 of the 6 drives I am burning in. Is there a way to check to see if I am running it as root?



[CraigD]

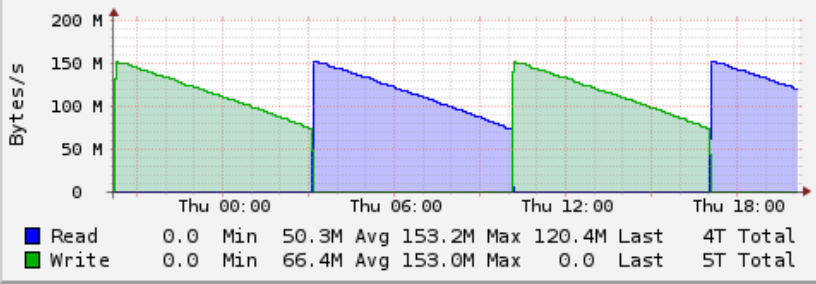

Here is a visual graph on how badblocks stressed my brand new WD red 3TB drive (most of the first two test patterns)

After seeing this, If it passes I am certain that tested drive will be great

Have Fun



[Deleted47050]

Here is a visual graph on how badblocks stressed my brand new WD red 3TB drive (most of the first two test patterns)

View attachment 15736

After seeing this, If it passes I am certain that tested drive will be great

Have Fun

How did you generate this graph?



[Deleted47050]

I believe so. It lets me run the command on 3 of the 6 drives I am burning in. Is there a way to check to see if I am running it as root?

What user are you logged in as?



[CraigD]

Here is a visual graph on how badblocks stressed my brand new WD red 3TB drive (most of the first two test patterns)

View attachment 15736

After seeing this, If it passes I am certain that tested drive will be great

Have Fun

How did you generate this graph?

In the GUI Reporting > Disk then use click the + - << >> buttons for time frame scale

Have Fun



[Deleted47050]

In the GUI Reporting > Disk then use click the + - << >> buttons for time frame scale

Have Fun

Oh nice, I was wondering if you were using some additional package or something, thanks for this.



[OiD]

Thanks a lot qwertymodo! All Zeroes :D



[Black Moses]

Now, before we can perform raw disk I/O, we need to enable the kernel geometry debug flags. This carries some inherent risk, and should probably not be done on a production system. This does not survive through a reboot, so when you're done, just reboot the machine to disable it:
sysctl kern.geom.debugflags=0x10

What's the benefit of this code before executing badblocks?!
If I test without it, am I losing anything?!
Thanks a lot.
N.B. I'm testing a new 8TB wd red, that hasn't been formatted before. On Ubuntu live cd



[Black Moses]

I think I found the answer in this thread (under Appendix B, Extra testing - Bad Blocks). Thought someone maybe interested in the answer.

If I'm using Ubuntu Livecd for testing a hard drive, I don't need to type in
Sysctl kern.geom.debugflags=0x10

before testing with badblocks.



[Stux]

IIRC it allows you to write to the full raw disk. Normally some parts, like the MBR are protected.



[Deleted47050]

I think I found the answer in this thread (under Appendix B, Extra testing - Bad Blocks). Thought someone maybe interested in the answer.

If I'm using Ubuntu Livecd for testing a hard drive, I don't need to type in
Sysctl kern.geom.debugflags=0x10

before testing with badblocks.

Is that the correct link? If I click on that, I am taken to an introduction post on the forum.



[Huib]

Thanks for this manual.
I did it differently on my previous system but just started badblocks on 3 new drives following this guide.

I guess I should stop staring at the progress though :(



[Black Moses]

Is that the correct link? If I click on that, I am taken to an introduction post on the forum.

The link is correct.
Here,s a screenshot from the topic header

Then I underlined the part that suggested using a Ubuntu Livecd enables me to do without the code
sysctl kern.geom.debugflags=0x10
Hearder

Part of the topic underlined



[Deleted47050]

Ok thanks for this. If I tap on that link in Tapatalk, I am taken to a different post. Oh well.


Sent from my iPhone using Tapatalk



[Spearfoot]

I have written a Bash script ('disk-burnin.sh') to automate the disk burn-in process , available on GitHub:

https://github.com/Spearfoot/disk-burnin-and-testing

I've tested the script on both FreeNAS/FreeBSD and Linux (Ubuntu). It uses smartctl to query the disk for its short and long test durations in minutes. From these it calculates sleep intervals (in seconds) for the two tests, adding a little extra time for a 'fudge factor'. Then it:

• Executes a short SMART test

• Sleeps until the short test finishes, then echoes SMART info to the logfile

• Executes a long SMART test
• Sleeps until the long test finishes, then echoes SMART info to the logfile
• Executes badblocks -b 4096 -wsv -o [bad blocks data file] /dev/[device ID]
• Executes a short SMART test
• Sleeps until the short test finishes, then echoes SMART info to the logfile
• Executes a long SMART test
• Sleeps until the long test finishes, then echoes SMART info to the logfile

As described earlier in the thread, it's a good idea to use tmux sessions for each individual drive, and on FreeNAS/FreeBSD you must run sysctl kern.geom.debugflags=0x10 to enable full disk write access.

I hope some of you will find this script useful. Here's the code, though I suggest you download it from GitHub instead of copying and pasting from the forum:

Code:

#!/usr/bin/env bash
########################################################################
#
# disk-burnin.sh
#
# A script to simplify the process of burning-in disks. Intended for use
# only on disks which do not contain valuable data, such as new disks or
# disks which are being tested or re-purposed.
#
# Be aware that:
#
#  1> This script runs the badblocks program in destructive mode, which
#  erases any data on the disk.
#
#  !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
#  !!!!!  WILL DESTROY THE DISK CONTENTS! BE CAREFUL!  !!!!!
#  !!!!! DO NOT RUN THIS SCRIPT ON DISKS CONTAINING DATA YOU VALUE !!!!!
#  !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
#
#  2> Run times for large disks can take several days to complete, so it
#  is a good idea to use tmux sessions to prevent mishaps.
#
#  3> Must be run as 'root'.
#
# Performs these steps:
#
#  1> Run SMART short test
#  2> Run SMART extended test
#  3> Run badblocks
#  4> Run SMART short test
#  5> Run SMART extended test
#
# The script sleeps after starting each SMART test, using a duration
# based on the polling interval reported by the disk, and adding an
# additional delay defined below to account for discrepancies.
#
# Full SMART information is pulled after each SMART test. All output
# except for the sleep command is echoed to both the screen and log file.
#
# You should monitor the burn-in progress and watch for errors, particularly
# any errors reported by badblocks, or these SMART errors:
#
#  5 Reallocated_Sector_Ct
# 196 Reallocated_Event_Count
# 197 Current_Pending_Sector
# 198 Offline_Uncorrectable
#
# These indicate possible problems with the drive. You therefore may
# wish to abort the remaining tests and proceed with an RMA exchange
# for new drives or discard old ones. Also please note that this list
# is not exhaustive.
#
# The script extracts the drive model and serial number and forms
# a log filename of the form 'burnin-[model]_[serial number].log'.
#
# badblocks is invoked with a block size of 4096, the -wsv options, and
# the -o option to instruct it to write the list of bad blocks found (if
# any) to a file named 'burnin-[model]_[serial number].bb'.
#
# The only required command-line argument is the device specifier, e.g.:
#
#  ./disk-burnin.sh sda
#
# ...will run the burn-in test on device /dev/sda
#
# You can run the script in 'dry run mode' (see below) to check the sleep
# duration calculations and to insure that the sequence of commands suits
# your needs. In 'dry runs' the script does not actually perform any
# SMART tests or invoke the sleep or badblocks programs. The script is
# distributed with 'dry runs' enabled, so you will need to edit the
# Dry_Run variable below, setting it to 0, in order to actually perform
# tests on drives.
#
# Before using the script on FreeBSD systems (including FreeNAS) you must
# first execute this sysctl command to alter the kernel's geometry debug
# flags. This allows badblocks to write to the entire disk:
#
#  sysctl kern.geom.debugflags=0x10
#
# Tested under:
#  FreeNAS 9.10.2 (FreeBSD 10.3-STABLE)
#  Ubuntu Server 16.04.2 LTS
#
# Tested on:
#  Intel DC S3700 SSD
#  Intel Model 320 Series SSD
#  HGST Deskstar NAS (HDN724040ALE640)
#  Hitachi/HGST Ultrastar 7K4000 (HUS724020ALE640)
#  Western Digital Re (WD4000FYYZ)
#  Western Digital Black (WD6001FZWX)
#
# Requires the smartmontools, available at https://www.smartmontools.org
#
# Uses: grep, pcregrep, awk, sed, tr, sleep, badblocks
#
# Written by Keith Nash, March 2017
#
########################################################################

if [ $# -ne 1 ]; then
  echo "Error: not enough arguments!"
  echo "Usage is: $0 drive_device_specifier"
  exit 2
fi

Drive=$1

# Set Dry_Run to a non-zero value to test out the script without actually
# running any tests: set it to zero when you are ready to burn-in disks.

Dry_Run=1

# Constants, in seconds, added to the short and extended test sleep duration.
# Edit to suit your needs and environment:

Short_Test_Extra_Delay=30
Extended_Test_Extra_Delay=300

# Directory specifiers for log and badblocks data files. Leave off the
# trailing slash:

Log_Dir="."
BB_Dir="."

########################################################################
#
# Prologue
#
########################################################################

Host_Name=$(hostname -s)

# Obtain the disk model and serial number:

Disk_Model=$(smartctl -i /dev/${Drive} | grep "Device Model" | awk '{print $3, $4, $5}' | sed -e 's/^[ \t]*//;s/[ \t]*$//')

if [ -z "$Disk_Model" ]; then
  Disk_Model=$(smartctl -i /dev/${Drive} | grep "Model Family" | awk '{print $3, $4, $5}' | sed -e 's/^[ \t]*//;s/[ \t]*$//')
fi

Disk_Model=$(tr ' ' '_' <<< ${Disk_Model})

Serial_Number=$(smartctl -i /dev/${Drive} | grep "Serial Number" | awk '{print $3}')

Serial_Number=$(tr ' ' '-' <<< ${Serial_Number})

# Form the log and bad blocks data filenames:

Log_File=$(tr ' ' '-' <<< "burnin-${Disk_Model}_${Serial_Number}.log")
Log_File=$(tr -s '-' <<< ${Log_File})
Log_File=$(tr -s '_' <<< ${Log_File})
Log_File=$Log_Dir/$Log_File

BB_File=$(tr ' ' '-' <<< "burnin-${Disk_Model}_${Serial_Number}.bb")
BB_File=$(tr -s '-' <<< ${BB_File})
BB_File=$(tr -s '_' <<< ${BB_File})
BB_File=$BB_Dir/$BB_File

# Query the short and extended test duration, in minutes. Use the values to
# caculate how long we should sleep after starting the SMART tests:

Short_Test_Minutes=$(smartctl -a /dev/${Drive} | pcregrep -M "Short self-test routine.*\n.*recommended polling time:" | awk '{print $5}' | sed -e 's/)//' | tr -d '\n')

Extended_Test_Minutes=$(smartctl -a /dev/${Drive} | pcregrep -M "Extended self-test routine.*\n.*recommended polling time:" | awk '{print $5}' | sed -e 's/)//' | tr -d '\n')

# If the extended test duration is short (less than 60 minutes), assume we have
# an SSD and set the extended test delay the same as the short test delay:

if (( $Extended_Test_Minutes < 60 )); then
  Extended_Test_Extra_Delay=$Short_Test_Extra_Delay
fi

Short_Test_Sleep=$((Short_Test_Minutes*60+Short_Test_Extra_Delay))
Extended_Test_Sleep=$((Extended_Test_Minutes*60+Extended_Test_Extra_Delay))

########################################################################
#
# Local functions
#
########################################################################

echo_str()
{
  echo $1 | tee -a ${Log_File}
}

push_header()
{
  echo_str "+-----------------------------------------------------------------------------"
}

run_short_test()
{
  push_header
  echo_str "+ Run SMART short test on drive /dev/${Drive}: $(date)"
  push_header
  if (( $Dry_Run == 0 )); then
  smartctl -t short /dev/$Drive | tee -a ${Log_File}
  echo_str "Sleep ${Short_Test_Sleep} seconds until the short test finishes"
  sleep ${Short_Test_Sleep}
  smartctl -a /dev/$Drive | tee -a ${Log_File}
  else
  echo_str "Dry run: would start the SMART short test and sleep ${Short_Test_Sleep} seconds until the test finishes"
  fi
  echo_str "Finished SMART short test on drive /dev/${Drive}: $(date)"
}

run_extended_test()
{
  push_header
  echo_str "+ Run SMART extended test on drive /dev/${Drive}: $(date)"
  push_header
  if (( $Dry_Run == 0 )); then
  smartctl -t long /dev/$Drive | tee -a ${Log_File}
  echo_str "Sleep ${Extended_Test_Sleep} seconds until the long test finishes"
  sleep ${Extended_Test_Sleep}
  smartctl -a /dev/$Drive | tee -a ${Log_File}
  else
  echo_str "Dry run: would start the SMART extended test and sleep ${Extended_Test_Sleep} seconds until the test finishes"
  fi
  echo_str "Finished SMART extended test on drive /dev/${Drive}: $(date)"
}

run_badblocks_test()
{
  push_header
  echo_str "+ Run badblocks test on drive /dev/${Drive}: $(date)"
  push_header
  if (( $Dry_Run == 0 )); then
#
#  This is the command which erases all data on the disk:
#
  badblocks -b 4096 -wsv -o ${BB_File} /dev/$Drive | tee -a ${Log_File}
  else
  echo_str "Dry run: would run badblocks -b 4096 -wsv -o ${BB_File} /dev/${Drive}"
  fi
  echo_str "Finished badblocks test on drive /dev/${Drive}: $(date)"
}

########################################################################
#
# Action begins here
#
########################################################################

rm $Log_File
push_header
echo_str "+ Started burn-in of /dev/${Drive} on ${Host_Name} : $(date)"
push_header

echo_str "Drive Model: ${Disk_Model}"
echo_str "Serial Number: ${Serial_Number}"
echo_str "Short test duration: ${Short_Test_Minutes} minutes"
echo_str "Short test sleep duration: ${Short_Test_Sleep} seconds (includes extra delay of ${Short_Test_Extra_Delay} seconds)"
echo_str "Extended test duration: ${Extended_Test_Minutes} minutes"
echo_str "Extended test sleep duration: ${Extended_Test_Sleep} seconds (includes extra delay of ${Extended_Test_Extra_Delay} seconds)"
echo_str "Log file: ${Log_File}"
echo_str "Bad blocks file: ${BB_File}"

run_short_test
run_extended_test
run_badblocks_test
run_short_test
run_extended_test

push_header
echo_str "+ Finished burn-in of /dev/${Drive} on ${Host_Name} : $(date)"
push_header



[RichTJ99]

Just a quick question. I am running through this again with a few more drives.

I am up to badblocks.

Code:

[root@freenas] ~# sysctl kern.geom.debugflags=0x10
kern.geom.debugflags: 16 -> 16
[root@freenas] ~# badblocks -b 4096 -ws /dev/ada2
Testing with pattern 0xaa: set_o_direct: Inappropriate ioctl for device
 26.12% done, 2:36:16 elapsed. (0/0/0 errors)

Do i need to do anything with the "inappropriate ioctl for devices'?

Or is that OK for a 6TB drive?

Thanks,
Rich
