SOLVED Encrypted pool "locked" locked after (probable) reboot.

[gessel]

FreeNAS-9.2.1.8-RELEASE-x64 (e625626)

This pool has been working for many years without problems. No changes were made recently, though it appears the server rebooted about 12 hours ago.

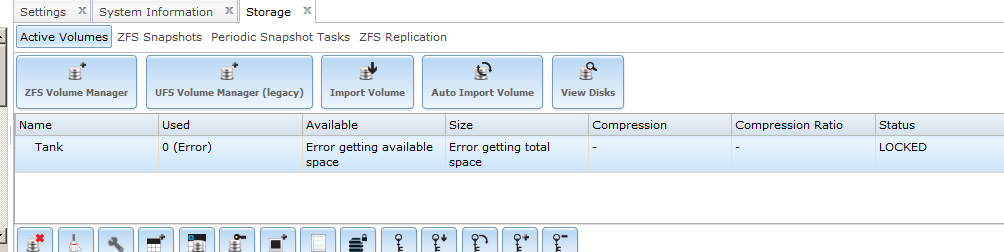

The "View Volumes" window shows "Tank | Locked | Locked ... etc"

View disks shows all disks.

Rebooting the server doesn't fix, though I see in the messages:




Apr 9 10:54:20 server kernel: GEOM_RAID5: Module loaded, version 1.1.20130907.44 (rev 5c6d2a159411)
Apr 9 10:54:20 server kernel: ZFS filesystem version: 5
Apr 9 10:54:20 server kernel: ZFS storage pool version: features support (5000)
Apr 9 10:54:20 server kernel: GEOM_ELI: Device da0p1.eli created.
Apr 9 10:54:20 server kernel: GEOM_ELI: Encryption: AES-XTS 256
Apr 9 10:54:20 server kernel: GEOM_ELI: Crypto: software
Apr 9 10:54:20 server kernel: GEOM_ELI: Device da1p1.eli created.
Apr 9 10:54:20 server kernel: GEOM_ELI: Encryption: AES-XTS 256
(etc)
Apr 9 10:54:20 server root: /etc/rc: WARNING: failed to start watchdogd
Apr 9 10:54:20 server root: /etc/rc: WARNING: failed precmd routine for vmware_guestd


# zpool status
no pools available

# zfs mount -a
#

(no output)

I'm not quite sure what to do next?



[gessel]

I'm not seeing the expected decrypt icons either, which might be a hint or a sign that I'm on completely the wrong page.



[gessel]

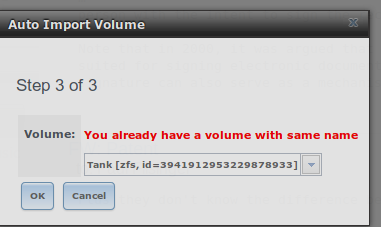

I tried "auto import volume" and used the .key and password seemingly successfully, but I get a "already have a volume with the same name" error. I was hoping not to recreate all my shares, which should be possible, no?



[gessel]

Oh strange, browser problem, I get the volume tiles using an old version of firefox on windows, but not on Linux with more current versions (!). Unfortunately the status seems a bit confused.
will try rebooting.

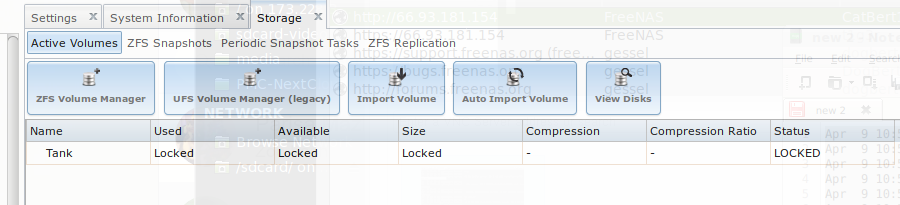

(status is locked, but the icon is "unlock")



[gessel]

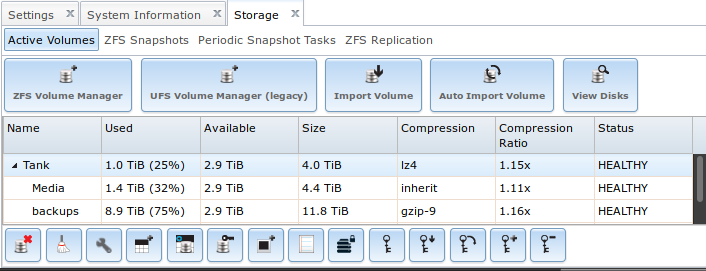

And then the "decrypt" icon appeared and all was well with the world.

So the lesson is that if the dynamic encrypted volume management icons aren't visible on the "view volumes" tab, try a different browser.



[gessel]

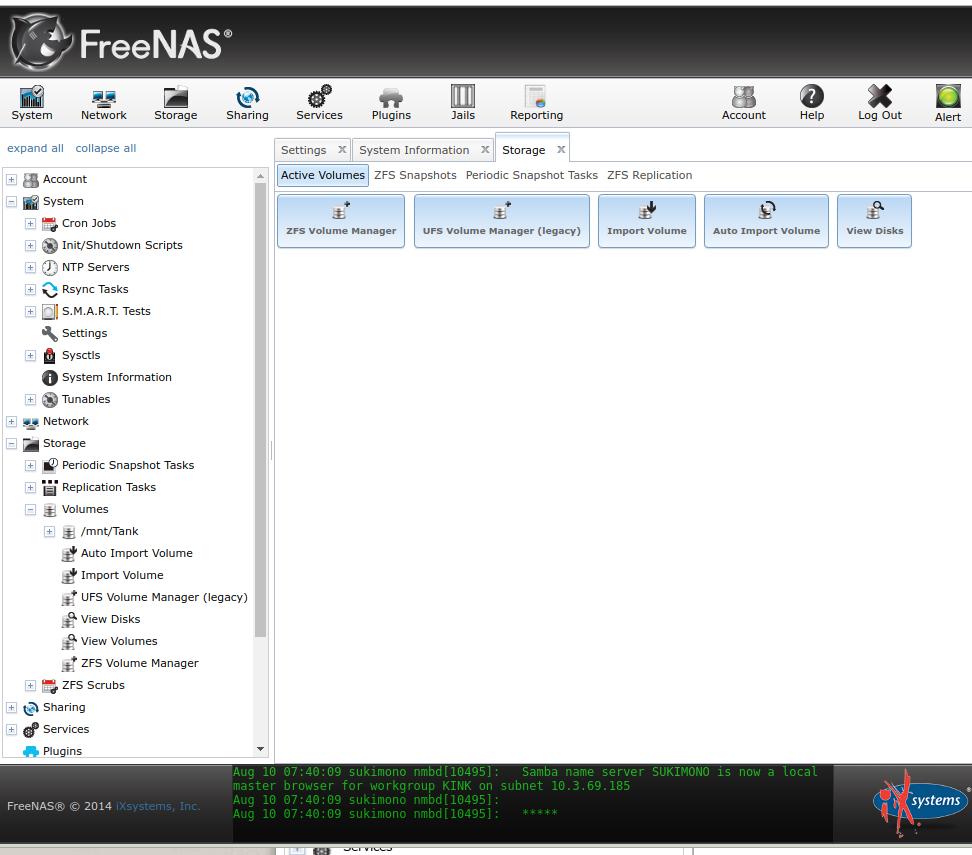

Chrome on Linux doesn't even show the volumes



[gessel]

If anyone else is running some absurdly old version of FreeNAS (9.x) and finds that modern browsers refuse to render some of the UI, Pale Moon still works (2022, 31.3.0.1 tested). I'm in part posting this for myself because every few years I need to figure this out again.
