Duplicate TrueNAS Server DataSet Configuration Question

[Thousandbuckle]

Hello all, I am running 2 TrueNAS 12.0-U7 servers

• Primary server (VolumeXL0 as a 8 x 4TB disk RaidZ2 with one data set
• Backup server (MegaPool) as a 6 x 16TB disk RaidZ2

I would like to setup a SnapShot Task then Replicate Task from (VolumeXL) to send the data to the server (MegaPool). I would like the data, jails, services, etc. to all be the same on the Backup as it is on the Target.

I am okay with the Snapshot and Replication tasks fom the primary server, my main question is how should I configure the DataSet on the Backup server (MegaPool)? Should I create a DataSet with the same name as the DataSet on the Primary server(VolumeXL) or does it matter?

Basically if my primary server VolumeXL were to take a dump from a HW or HD/Raid perspective, I could just switch over to the backup server (MegaPool) and I wouldnt miss a beat.



[winnielinnie]

Dataset and snapshot wise, it's possible to get a "perfect replica" on the backup server, so to speak.

As for seamlessly not missing a beat with this setup, not so sure, since you're dealing with two distinct servers and configs, and you cannot overwrite the top-level root dataset of the target server with a Replication Task. (Unless this has changed?)

You could try with the pseudo-root method, but that will not account for the iocage and .system datasets (since TrueNAS does not allow specifying a custom hierarchy for those: they always sit directly under the top-level root dataset.)

One possibility is to create two different Replication Tasks: one for iocage and the other for your data, to nest them both under the backup server's top-level root dataset. However, due to network configurations, I don't believe it's a matter of "just start up the jails and you're good."

Hopefully someone else has tried this setup before and tested it out to confirm it works seamlessly.



[Thousandbuckle]

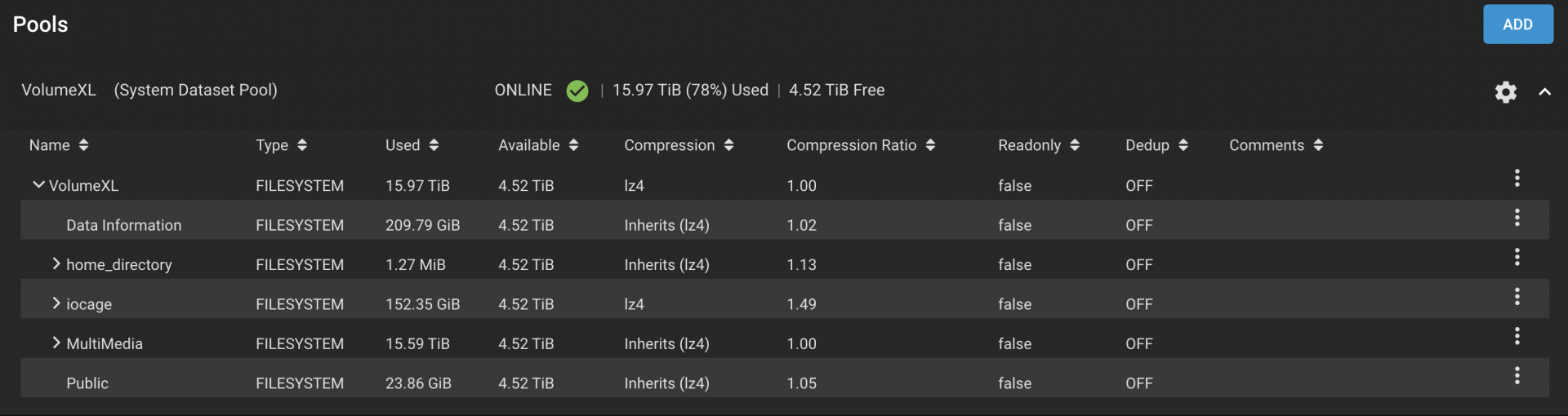

I thought that if I did a SnapShot of the DataSet top level that it would capture all of the necessary information needed such as the jails etc. So in my case in the image below if I SnapShot Volume XL DataSet then replicate that to the backup server that if I had the same config from Primary copied and imported to Backup (minus the IP address) then I would have an exact copy of the one server on the other.



[winnielinnie]

So in my case in the image below if I SnapShot Volume XL DataSet then replicate that to the backup server that if I had the same config from Primary copied and imported to Backup (minus the IP address) then I would have an exact copy of the one server on the other.

Try it. Though I think the Replication Task might complain about how it "cannot overwrite the top-level root dataset" on the backup server.

Otherwise, it might "nest" VolumeXL under VolumeXL on the target, so that the pool layout on the backup server might look like so:

• VolumeXL
  • VolumeXL
    • Data
    • home
    • iocage
    • multimedia
    • public

There are still configuration differences, which are housed in the "config file", that can be exported or found under the folder /data/, yet will not be touched / copied by any Replication Task.



[Thousandbuckle]

So on my Backup Server I created a new Pool with the same name (VolumeXL) as on my Primary server. Then on the Replication task only choose the individual folders to send to the new Pool (VolumeXL) I would imagine it would be nested properly.

I created a new Pool on the Backup Server with the same Pool name as on the Primary Server (VolumeXL). I have started the replication task to for just the individual data sets from the Primary and so far the structure looks correct. It will take about 5 days to replicate the snapshot then I can shutdown the primary server and bring up the backup and see how things work.

Thank you for your inputs.



[winnielinnie]

Then on the Replication task only choose the individual folders to send to the new Pool (VolumeXL) I would imagine it would be nested properly.

Other than those being "datasets" (not "folders"), sounds good! Share how it goes! But keep in mind there are differences between the servers: network, IP addresses, and other configs.
