Dataset using double the size of actuall files

[djb]

Hello,

i have a ZFS dataset in the truenas GUI used space is 100GB. over SMB share the same dataset , if i right click on the files and properties, are 47GB.
don't know what might caused that.

but i notice that snapshots are not deleted correctly after lifetime expires. for example i have every 5 minutes for lifetime 2 weeks, it should be about 4000 snapshots, under storage -> snapshots there are over 60 000 ! snapshots. (i don't know if it has to do).
i have checked the option for snapshoting recursive, so there are 8 datasets below the main dataset... but again assumming that is taking snapshots for each dataset, it should be about 32000 , not 60000.

any suggestions ? what i should check ?



[Ericloewe]

Screenshots and console output would be nice to illustrate what's going on. Don't get me wrong, it's always good to explain it in your own words, but it's easiest with everything in front of us.



[djb]

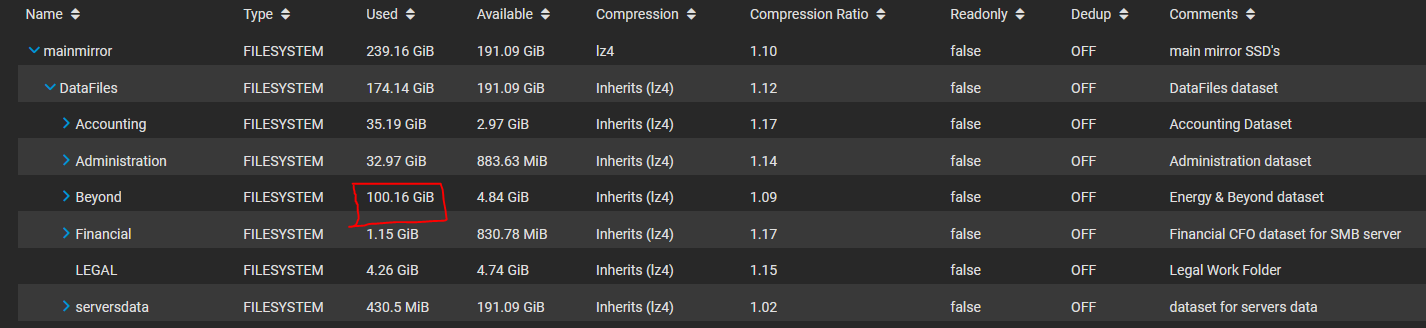

Datasets picture:

zfs list command returns the same results as the web UI

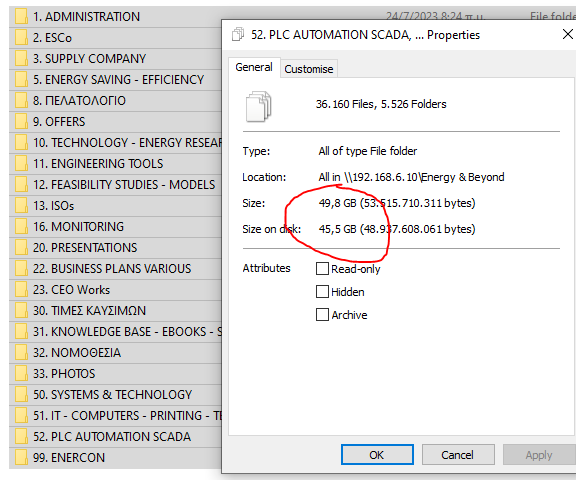

the windows SMB with properties on all files says different size:

if you need more data please advice accordingly.



[Ericloewe]

It'd be useful to see the output of zfs list -o space -r /mainmirror/DataFiles/Beyond



[djb]

It'd be useful to see the output of zfs list -o space -r /mainmirror/DataFiles/Beyond

thank you Eric,

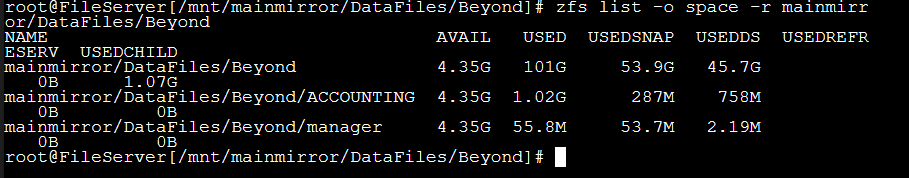

this is the results.



[Patrick M. Hausen]

So it's snapshots all the way down

You have active snapshots that take up roughly half of that space.



[djb]

So it's snapshots all the way down

You have active snapshots that take up roughly half of that space.

Hello !
So USEDSNAP is the snapshot size and USEDDS is the actual data ??

is still strange since on a week cycle, there is no 50GB new data, since snapshots are only the changes. i would expect 3-4GB changes in a course of a week. I will delete all and see how it goes.



[Ericloewe]

You can also do zfs list -o space -r -t snapshot /mainmirror/DataFiles/Beyond to see which snapshots are at fault, so to say, if any.



[djb]

You can also do zfs list -o space -r -t snapshot /mainmirror/DataFiles/Beyond to see which snapshots are at fault, so to say, if any.

Hello and good morning,

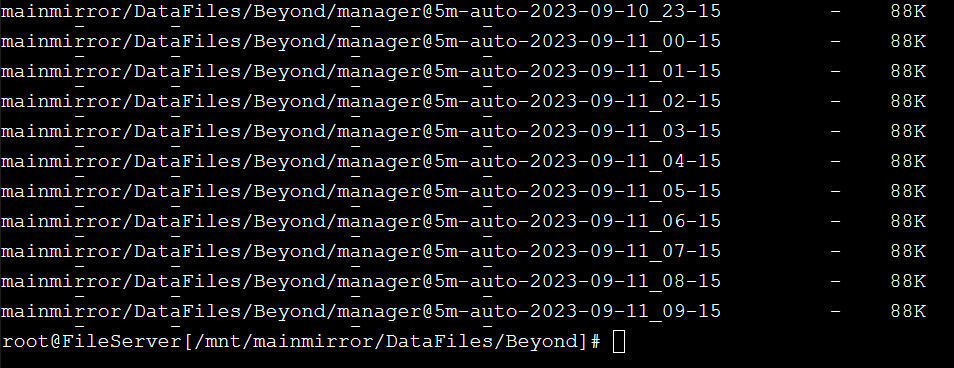

this command didn't populate all snapshots, but i can see all of them through the web UI , storage-> snapshots

since i'm doing every 5 minutes for retention 1 week, multiply by the datasets (nested as well) , i'm expecting 23000 snapshots by 88kb will not be over 1,6GB. also the new files added to the dataset, is not more than 3-4GB per week... so i still can't explain how from 49GB of data, on the dataset is using 97GB.

Do i need to run a pool scrub ? can this be old junk files didn't completed transfering or something ??



[Patrick M. Hausen]

The web shell is fundamentally broken beyond the most simple of tasks. Use ssh and you will see *all* snapshots.



[djb]

The web shell is fundamentally broken beyond the most simple of tasks. Use ssh and you will see *all* snapshots.

thank you Patrick ! is there any way to populate the results in smaller sections ? I'm using putty client with SSH as you suggested, but i'm not able to go back to first line all the way.



[Patrick M. Hausen]

Putty has a setting for the size of the scrollback buffer somewhere ... I have not used putty in years, so I cannot be more precise.



[Ericloewe]

Or you can just use less:
command | less



[djb]

Putty has a setting for the size of the scrollback buffer somewhere ... I have not used putty in years, so I cannot be more precise.

just increase the buffer lines from 2000 to 6000 and i was able to see all snapshots.
i had some "orphaned" snapshots from 2 years ago.... i just use their naming scheme and filter them through the web UI and delete them.
Thanks for all the help.

For future reference, the commands used is : zfs list -o space -r -t snapshot storagepool/dataset1/subdataset1
(no need to have "/" before the storagepool name.)



[Ericloewe]

(no need to have "/" before the storagepool name.)

Oops, yes, I frequently let those leak into zfs commands, but they should never have a leading slash.
