can't get FreeNAS to start up

[Rafael Morel]

the system begins to boot up but stays stuck in the menu. a picture will be attached as to where it stays locked on



[Rafael Morel]

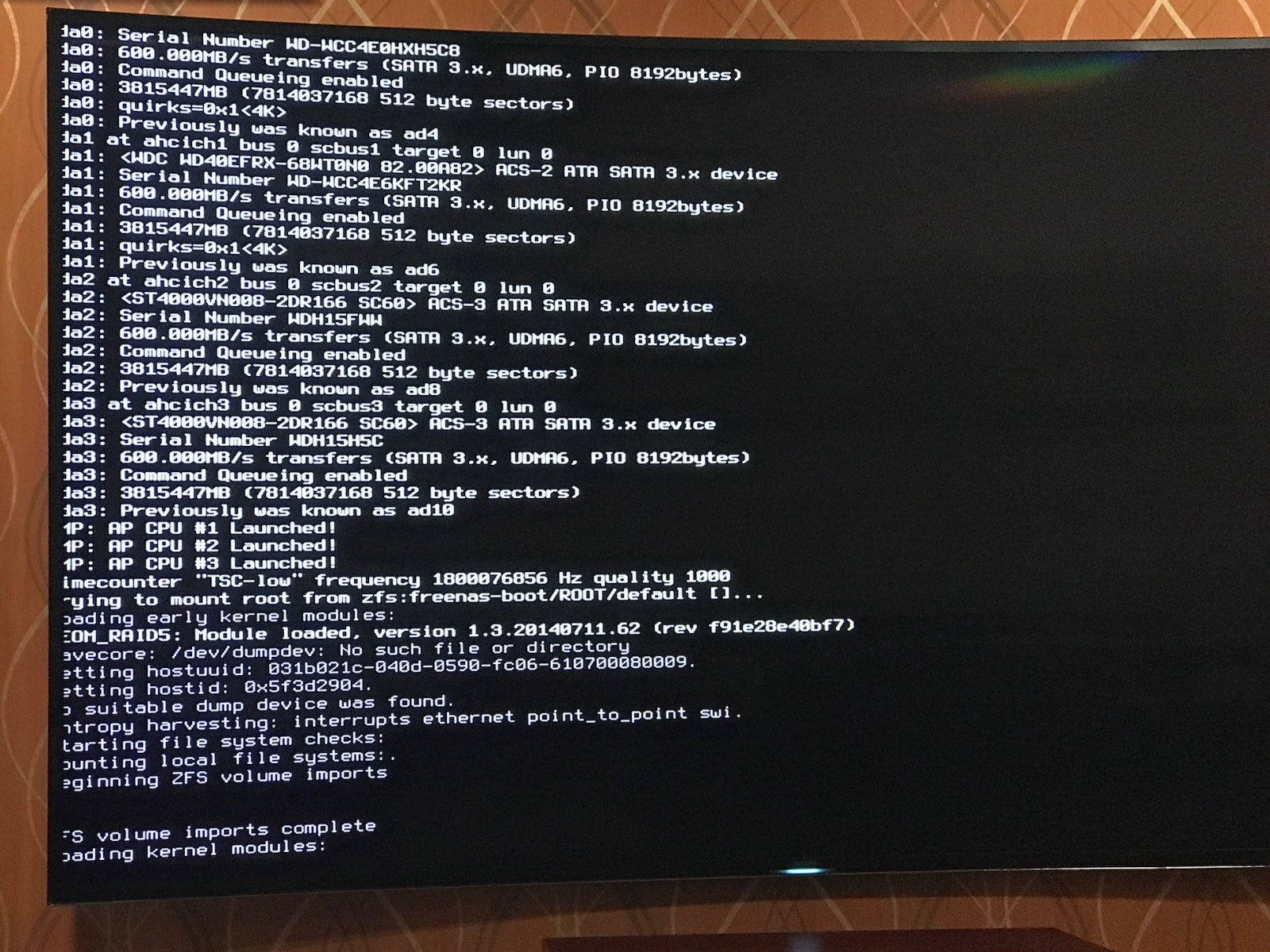

i don't know why i can't get the picture up loaded on here but the last two command lines i get are


fs volume imports complete
loading kernel modules

and it jus stays there i can type commands but nothing less loads



[SweetAndLow]

Read the forum rules.

Hardware specs and FreeNAS version needed.

Sent from my Nexus 5X using Tapatalk



[Rafael Morel]

FreeNAS version 9.10.2 u1

motherboard : gigabyte Z270n

processor: G4600 pentium

Ram: corsair vengeance lpx 16gb

harddrives: 2X seagate 4tb ironwolf
2x WD red 4tb

usb drive where FreeNAS is installed : sandisk cruiser fit cz33 16gb



[SweetAndLow]

Have you tried reading the hardware guides? I'm not completly sure but there is a very good chance your motherboard doesn't work. It has mostly gaming features and FreeNAS isn't very good at gaming. I suggest getting some hardware more focused on servers or workstations.



[Rafael Morel]

i didn't see anything in the hardware guides but i see someone else have the same issue as me same error code and boot and they got this error going from 9.3 to 9.10 so its odd.



[SweetAndLow]

i didn't see anything in the hardware guides but i see someone else have the same issue as me same error code and boot and they got this error going from 9.3 to 9.10 so its odd.

You mean you didn't see the constant suggestion to not use gaming hardware.

Sent from my Nexus 5X using Tapatalk



[MrToddsFriends]

See also this thread here in the same subforum and the bug report mentioned there:
https://forums.freenas.org/index.php?threads/stuck-on-loading-kernel-modules.50046/

Obviously FreeNAS 9.10.x (FreeBSD 10.3) is not able to boot on Kaby Lake systems.



[Ericloewe]

Why do you insist on writing "freeness" instead of FreeNAS? Please reign in that autocorrect.

Edit: For those wondering, I edited those to "FreeNAS". That's why they're gone.



[wblock]

i didn't see anything in the hardware guides but i see someone else have the same issue as me same error code and boot and they got this error going from 9.3 to 9.10 so its odd.

Which error code? All that was mentioned was being "stuck in the menu" and not even which menu. Help us help you by providing precise details.



[Rafael Morel]

Which error code? All that was mentioned was being "stuck in the menu" and not even which menu. Help us help you by providing precise details.

Hey sorry I've been trying to upload the picture off the boot error I am getting put it hasn't let me yet I will try again.



[Rafael Morel]

Hey sorry I've been trying to upload the picture off the boot error I am getting put it hasn't let me yet I will try again.

It stays stuck there and if I hit control C it starts to go thru more steps but then gets stuck again. And that's when I get the error codes it let me put up the first photo but it won't let me do the next few



[wblock]

"Stuck" but continues after ctrl-C makes me think it's a timeout. Is it attached to a network with a DHCP server? Does it continue booting if you wait for a minute or so?



[Rafael Morel]

"Stuck" but continues after ctrl-C makes me think it's a timeout. Is it attached to a network with a DHCP server? Does it continue booting if you wait for a minute or so?

it doesn't continue to boot if i wait



[toadman]

See also this thread here in the same subforum and the bug report mentioned there:
https://forums.freenas.org/index.php?threads/stuck-on-loading-kernel-modules.50046/

Obviously FreeNAS 9.10.x (FreeBSD 10.3) is not able to boot on Kaby Lake systems.

Yes, great pointer. Seems obvious at this point. Here is the bug from that thread... https://bugs.freenas.org/issues/20656

I suppose the OP could try a nightly that is using FreeBSD 11. (Mentioned in the bug thread.)



[Rafael Morel]



[Rafael Morel]

this is where mine get hung up



[wblock]

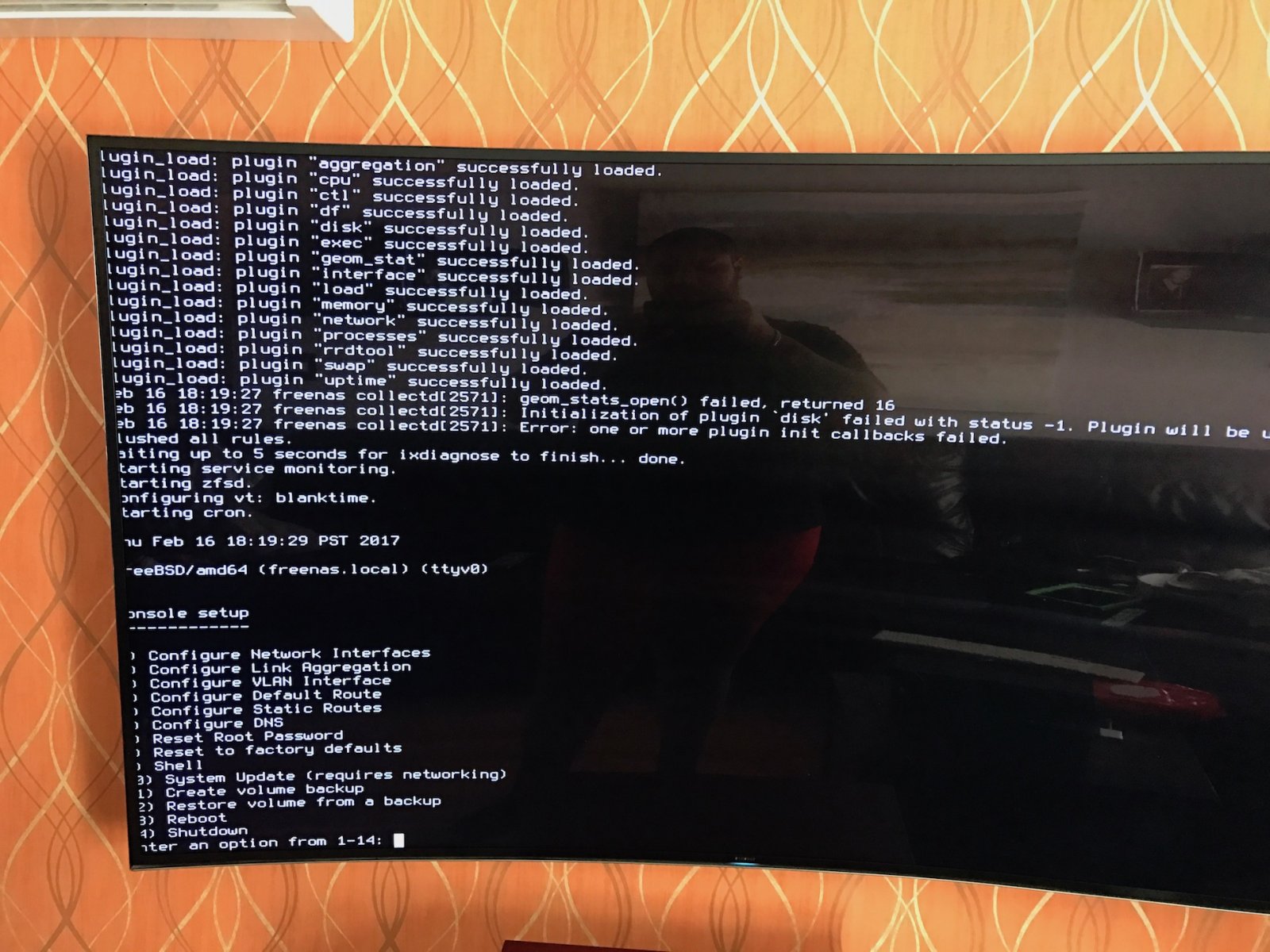

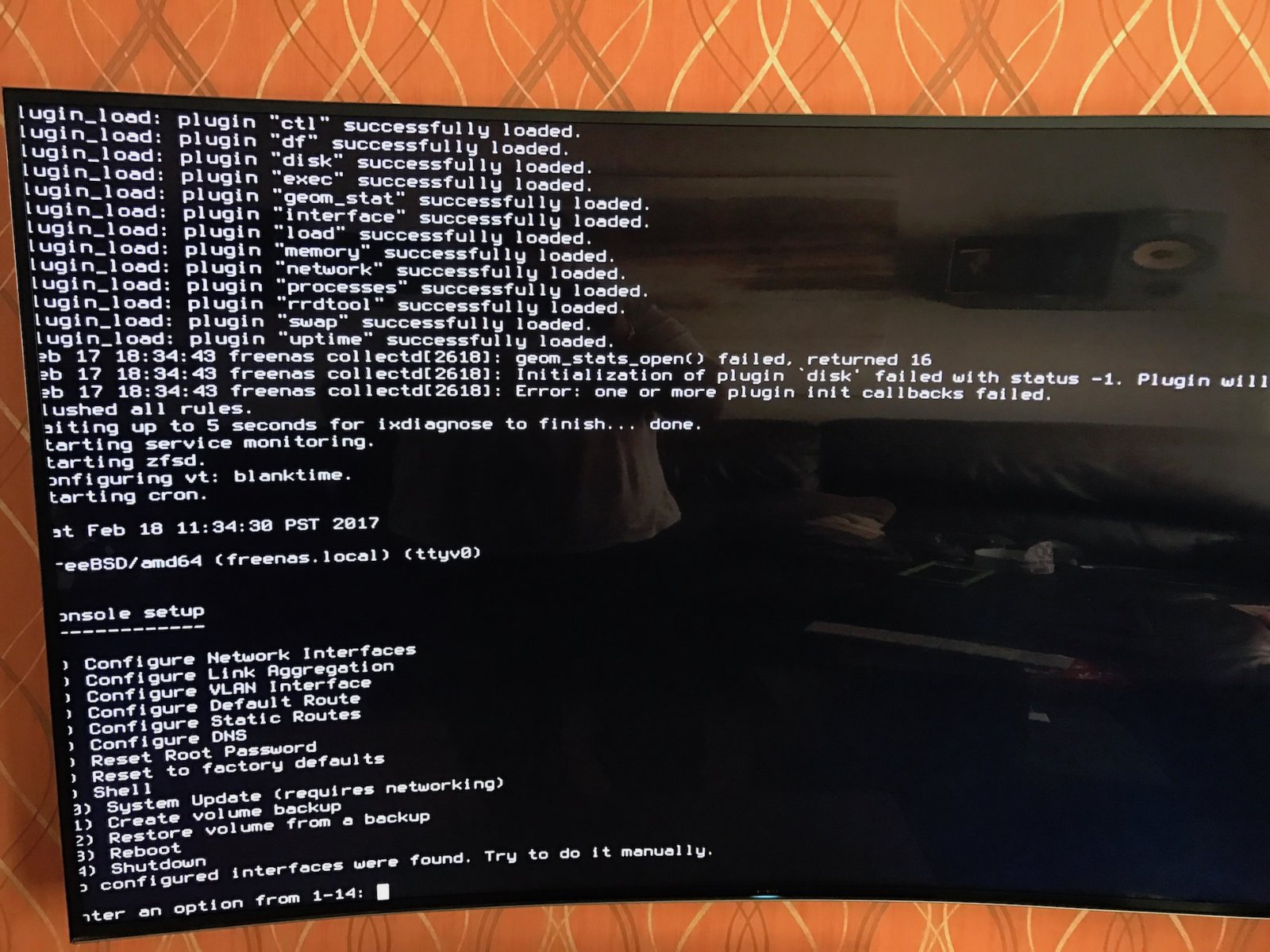

I am more lost than ever. The first one is waiting at the console menu. Can you type things? If so, it is working.

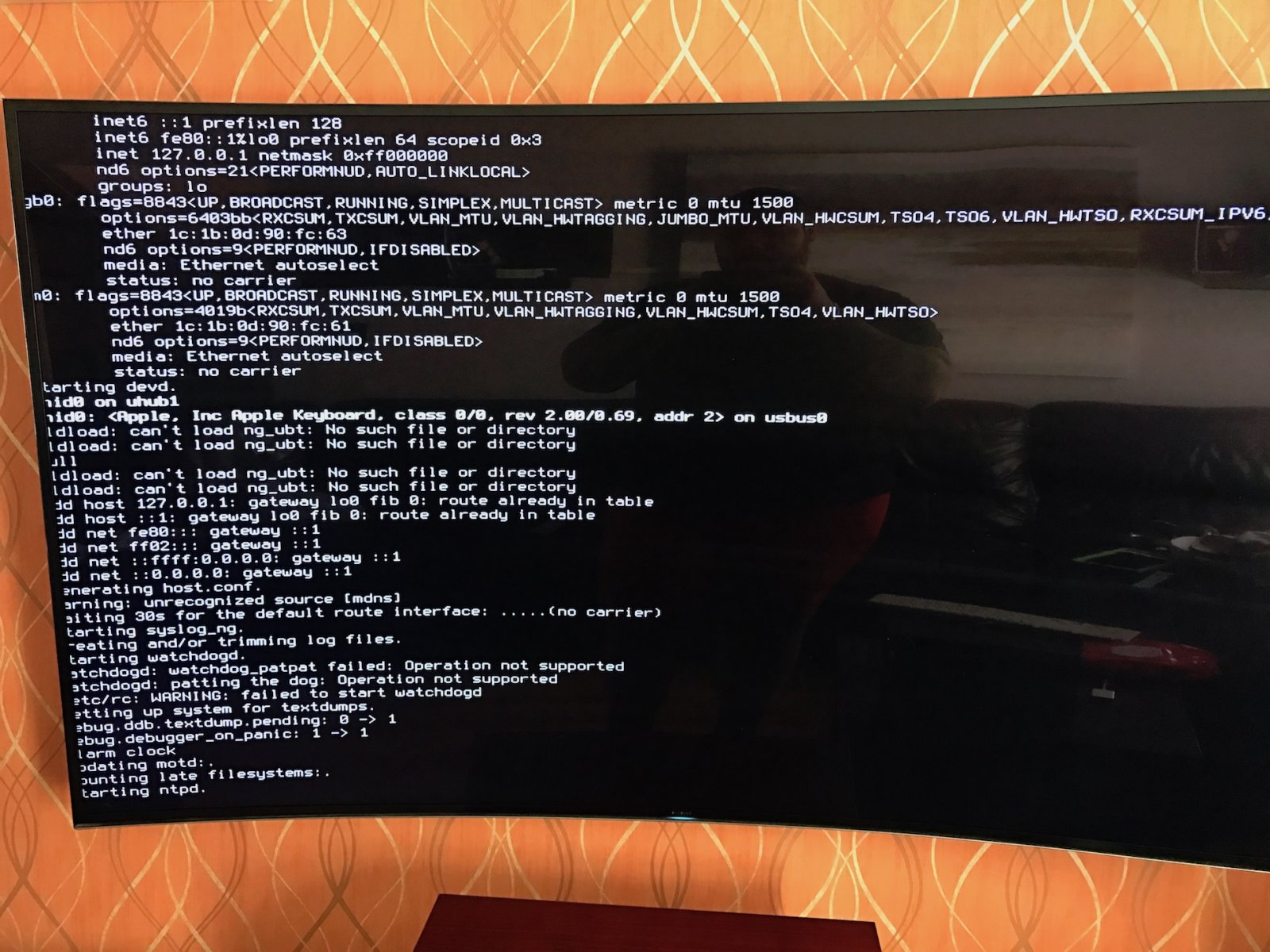

The second is stopping somewhere after NTPD startup. Press ctrl-T and see if it shows anything.



[Rafael Morel]

I am more lost than ever. The first one is waiting at the console menu. Can you type things? If so, it is working.

The second is stopping somewhere after NTPD startup. Press ctrl-T and see if it shows anything.

sorry about that the first picture is when after its hung up i press control c and it starts up again. could it be a kabylake support issue



[Rafael Morel]

I am more lost than ever. The first one is waiting at the console menu. Can you type things? If so, it is working.

The second is stopping somewhere after NTPD startup. Press ctrl-T and see if it shows anything.

thats the first screen it gets hung up on until i press control c, i will try the control T now
