Cannot Access FreeNAS Shares on Windows

NASOD6572

Dabbler
Joined
Sep 12, 2019
Messages
20
I recently build a NAS from an older PC. I had everything up and running well and could access all the shares within Windows. I did a few changes and reinstalled with dual boot flash drives.

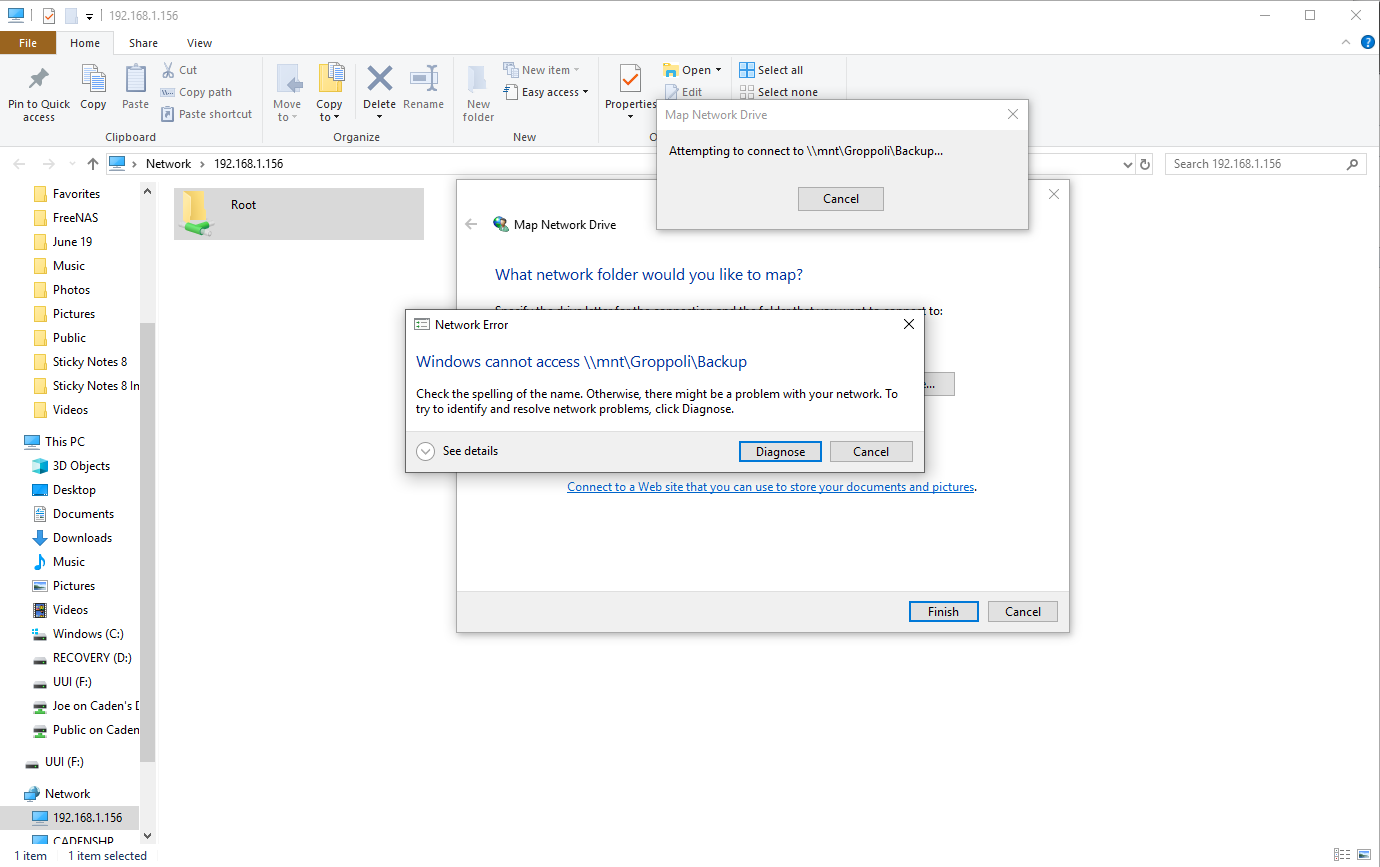

At first, everything was the same but I had a drive "degrade" for some reason, so I returned it and got a replacement. Got the drive in and repopulated it (Resilver). Prior to having the drive issue, is when the sharing problem came up. I am able to ping the NAS but nothing else.

At one point, the a share started to work but stopped again.

Any help would be GREAT!

Windows 10 Home

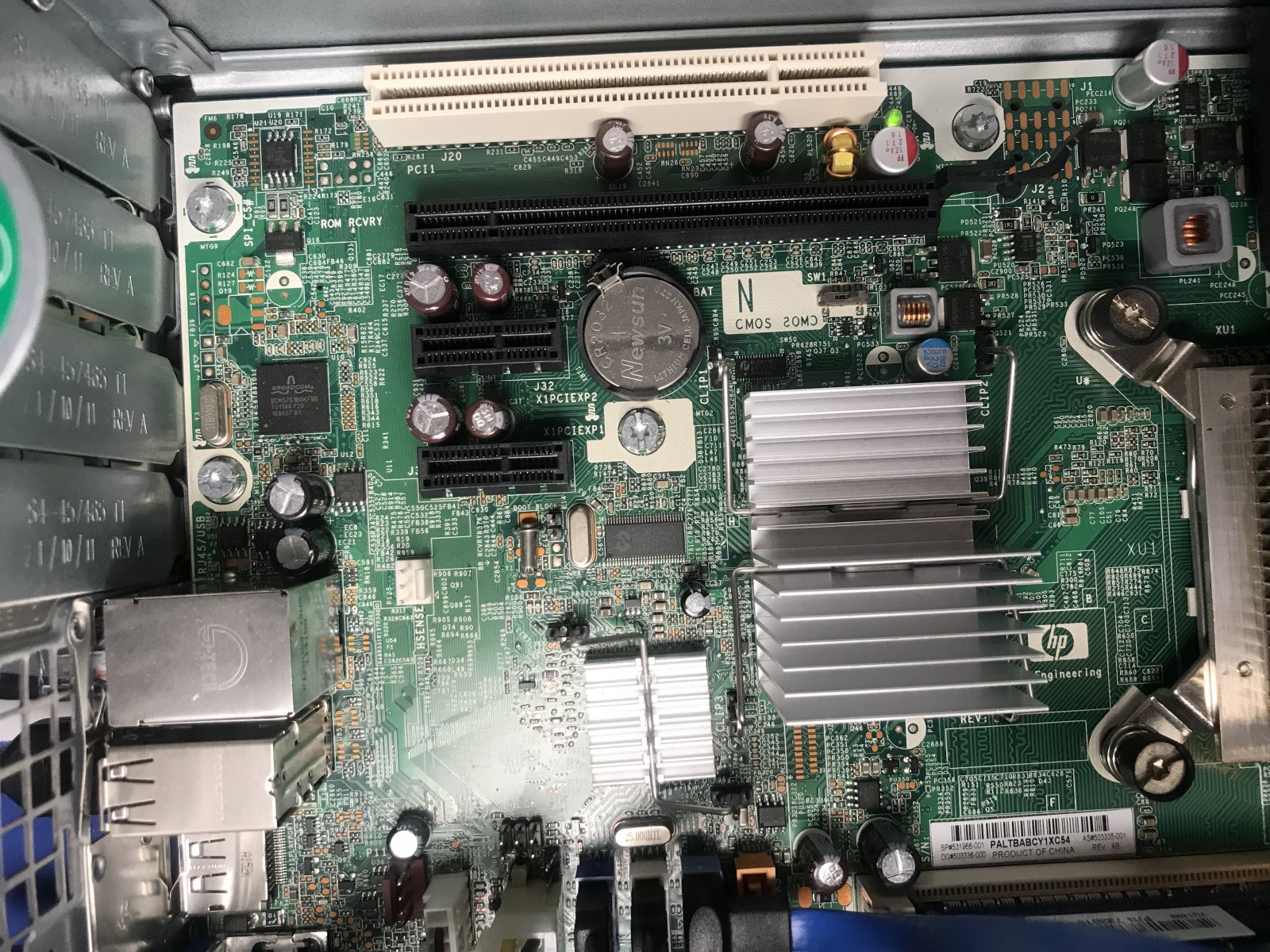

AMD Processor (unsure what else - I attached a picture of the board)
16Gb of Ram
Network card is onboard


Attachments

  • Capture 2.PNG
    Capture 2.PNG
    76.6 KB · Views: 362
  • Capture 3.PNG
    Capture 3.PNG
    85.5 KB · Views: 347
  • Capture.PNG
    69.6 KB · Views: 343
  • Hard drive.jpg
    Hard drive.jpg
    531.2 KB · Views: 340

anodos

Sambassador
iXsystems
Joined
Mar 6, 2014
Messages
9,554

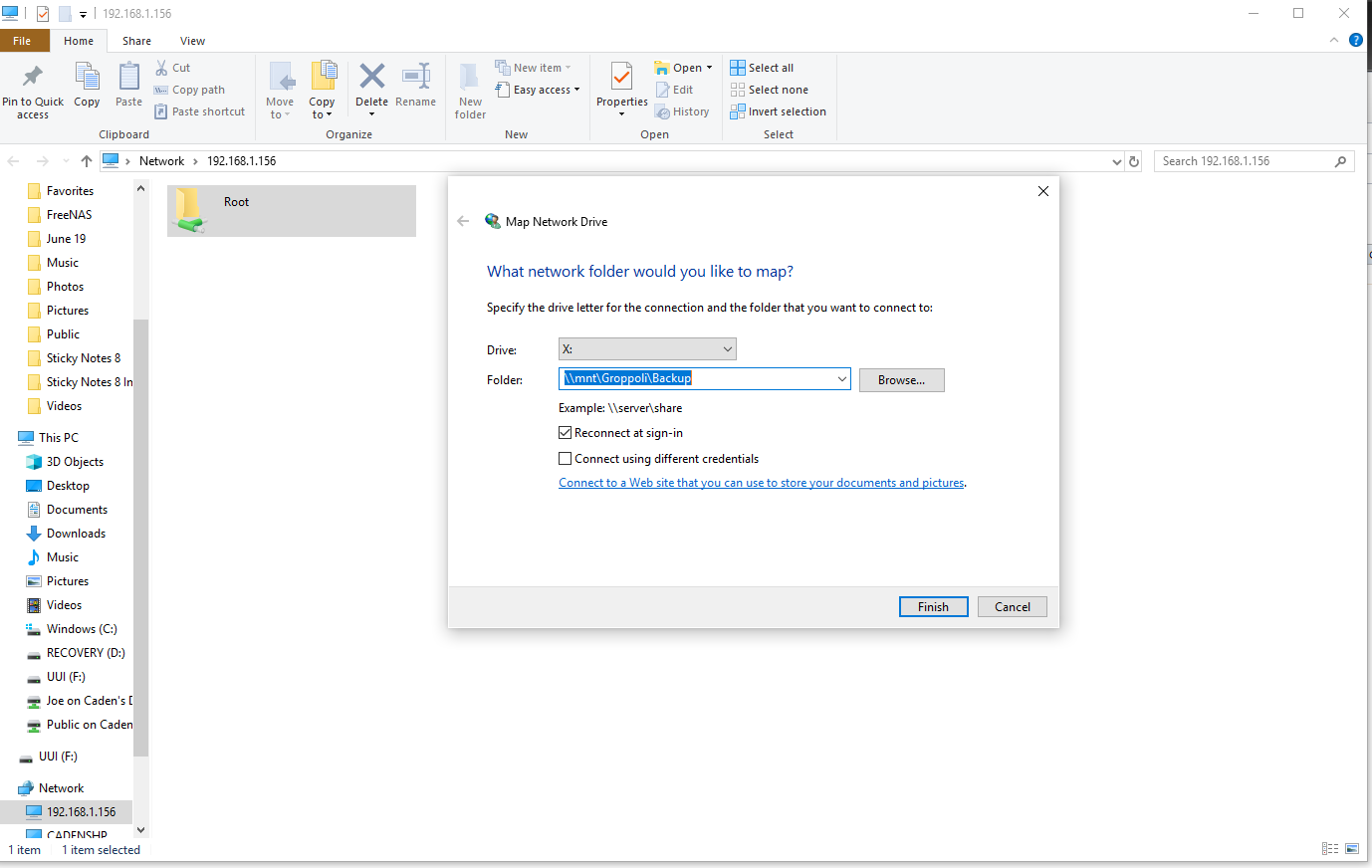

You're trying to map the filesystem path to the share. You need to map the \\<ip or hostname>\<share name> In your example \\192.168.1.156\Root.
