Adding a VDEV to Pool : Where is "Topology widget"

[aslbhr]

i am using TrueNAS-SCALE-22.02.4. i have red following in documentation

/scale/storage/pools/managepools/

"To add a VDEV to a pool: Click Manage Devices on the Topology widget to open the Devices screen. Click Add VDEV on the Devices screen. The Add Vdevs to Pool version of the Pool Manager screen opens."

Where is the "Manage Devices" , "Topology widget" and "Devices screen" ?



[sretalla]

i am using TrueNAS-SCALE-22.02.4

Then you need to consider upgrading so your system matches the instructions...

Also, those instructions seem to not be perfectly clear, so here's some help finding the items:

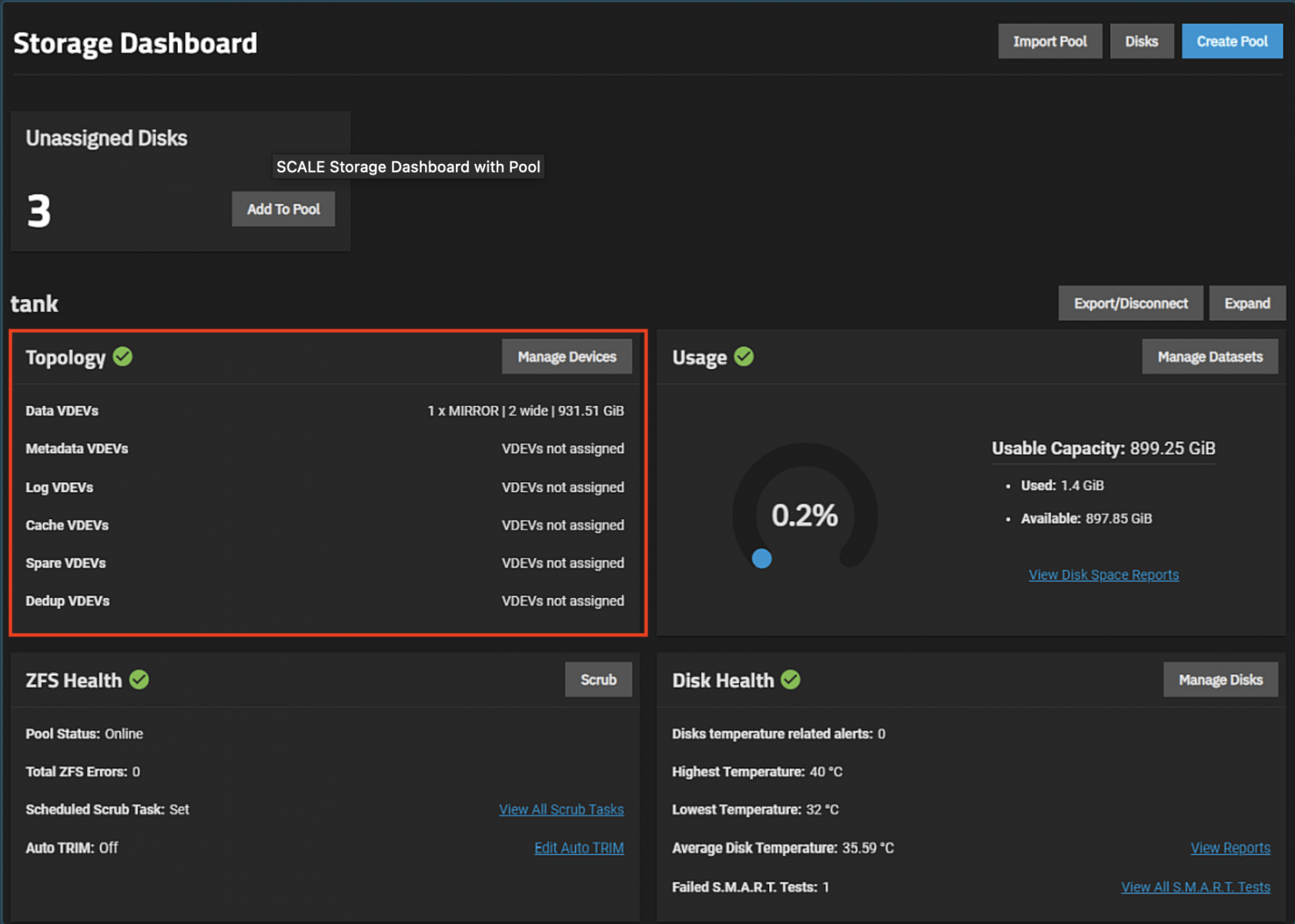

Topology WIdget:

Manage Devices Button:

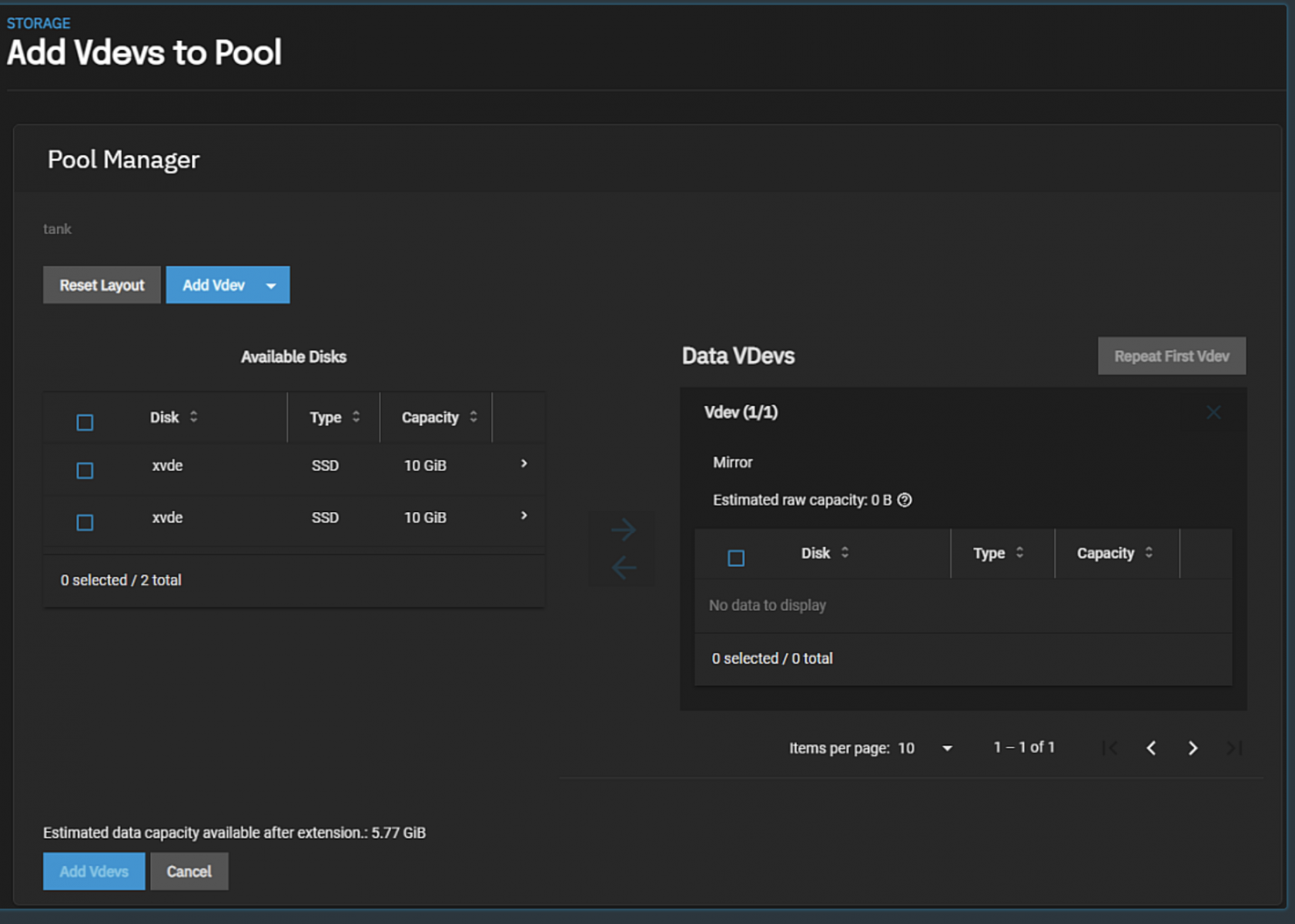

And what is being called the Devices Screen:



[aslbhr]

which version are you using ?



[sretalla]

which version are you using ?

TrueNAS-SCALE-22.12.3.1

TrueNAS-SCALE-22.12.3.2 is available, but I didn't update yet.
