Win10 unable to map new network share

[jeremyathompson]

Sir/Ma'am,
I'm unable to mount another share from my FreeNAS box. I have a working "FileShare" that I connect to using same u/p as my Win10 box.

After serious issues with the Plex plugin I built out a plex jail that I'm utilizing.

I removed all accounts/groups utilized with the plugin (plex, plexuser) and executed a "iocage clean -a" via shell, in addition to deleting the original plex dataset via GUI.

I recreated the "plex" user using the same U/GID as the "plex" user in the jail.

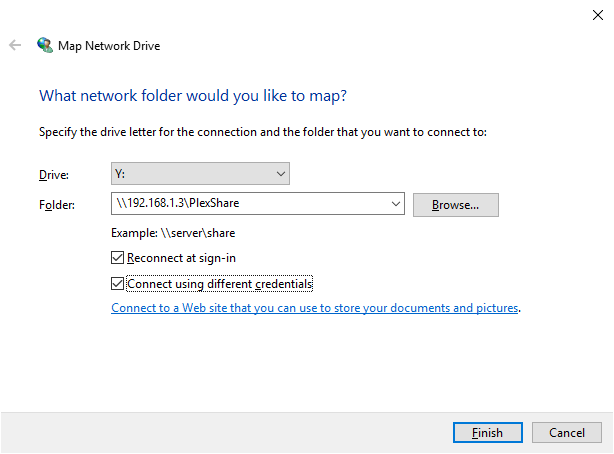

I attempt to map the drive using the windows process from explorer and input the u/p of the plex account and it will not connect. I just verified write and access permission to the FileShare.

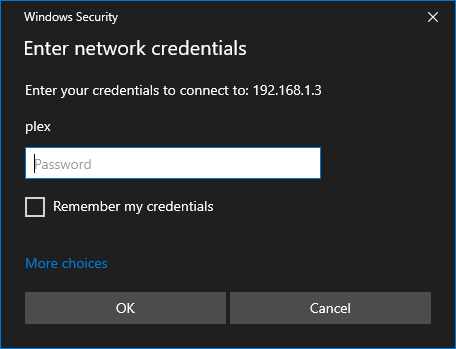

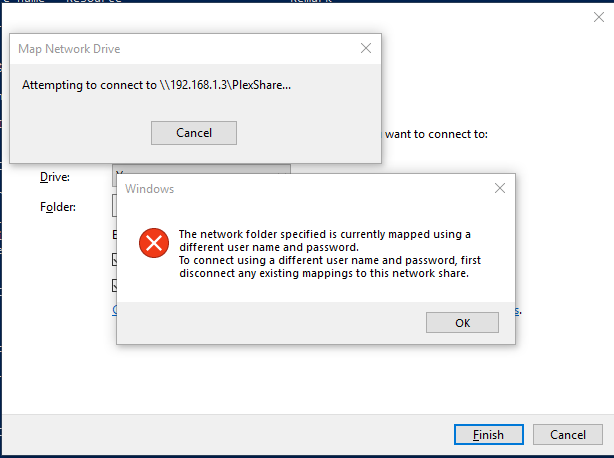

Creds window opens with "plex" already in the username. Password is super easy..."plexuser" and I've confirmed I'm not mistyping. I keep getting the prompt, see below -

However, I'm not mapped to anything else.

Code:

 net use
New connections will be remembered.


Status       Local     Remote                    Network

-------------------------------------------------------------------------------
OK           Z:        \\192.168.1.3\FileShare   Microsoft Windows Network
The command completed successfully.

Here's all the other information I could find during searches to provide.

Version:
FreeNAS-11.2-U7
Physical Memory:
8023 MiB
Model:
AMD Turion(tm) II Neo N54L Dual-Core Processor

Code:

net groupmap list
Guests (S-1-5-32-546) -> 90000003
Administrators (S-1-5-32-544) -> 90000001
plexuser (S-1-5-21-1928926315-406826938-4209093153-1001) -> 1001
plex (S-1-5-21-1928926315-406826938-4209093153-1003) -> plex
Users (S-1-5-32-545) -> 90000002
Fileshare (S-1-5-21-1928926315-406826938-4209093153-1000) -> Fileshare

Code:

net getlocalsid
SID for domain FREENAS is: S-1-5-21-1928926315-406826938-4209093153

Code:

testparm -s
Registered MSG_REQ_POOL_USAGE
Registered MSG_REQ_DMALLOC_MARK and LOG_CHANGED
Load smb config files from /usr/local/etc/smb4.conf
Processing section "[FileShare]"
Processing section "[PlexShare]"
Loaded services file OK.
Server role: ROLE_STANDALONE

# Global parameters
[global]
        aio max threads = 2
        deadtime = 15
        disable spoolss = Yes
        dns proxy = No
        dos charset = CP437
        hostname lookups = Yes
        kernel change notify = No
        lm announce = Yes
        load printers = No
        logging = file
        max log size = 51200
        max open files = 231032
        nsupdate command = /usr/local/bin/samba-nsupdate -g
        obey pam restrictions = Yes
        printcap name = /dev/null
        security = USER
        server min protocol = SMB2_02
        server role = standalone server
        server string = FreeNAS Server
        time server = Yes
        idmap config *: range = 90000001-100000000
        idmap config * : backend = tdb
        acl allow execute always = Yes
        create mask = 0666
        directory mask = 0777
        directory name cache size = 0
        dos filemode = Yes
        strict locking = No


[FileShare]
        aio write size = 0
        path = "/mnt/DataStore/FileShare"
        read only = No
        veto files = /.snapshot/.windows/.mac/.zfs/
        vfs objects = zfs_space zfsacl streams_xattr
        zfsacl:acesort = dontcare
        nfs4:chown = true
        nfs4:acedup = merge
        nfs4:mode = special


[PlexShare]
        aio write size = 0
        path = "/mnt/DataStore/plexmediafiles"
        read only = No
        veto files = /.snapshot/.windows/.mac/.zfs/
        vfs objects = zfs_space zfsacl streams_xattr
        zfsacl:acesort = dontcare
        nfs4:chown = true
        nfs4:acedup = merge
        nfs4:mode = special

Code:

pdbedit -L
plex:972:plex
jeremy:1000:jeremy

Code:

DataStore ls -al
total 49
drwxr-xr-x  5 root    wheel        5 Nov 24 16:05 .
drwxr-xr-x  3 root    wheel      128 Nov 24 15:51 ..
drwxrwx---+ 3 jeremy  Fileshare    5 Nov 22 18:22 FileShare
drwxr-xr-x  9 root    wheel       10 Nov 24 17:17 iocage
drwxrwx---+ 2 plex    plex         3 Nov 24 16:05 plexmediafiles

Code:

getfacl /mnt/DataStore
# file: /mnt/DataStore
# owner: root
# group: wheel
            owner@:rwxp--aARWcCos:-------:allow
            group@:r-x---a-R-c--s:-------:allow
         everyone@:r-x---a-R-c--s:-------:allow
root@freenas[/mnt/DataStore]# getfacl /mnt/DataStore/plexmediafiles
# file: /mnt/DataStore/plexmediafiles
# owner: plex
# group: plex
            owner@:rwxpDdaARWcCos:fd-----:allow
            group@:rwxpDdaARWcCos:fd-----:allow
         everyone@:--------------:fd-----:allow

Any help is appreciated.

Jt



[jeremyathompson]

Can't seem to delete this, but forgot I was working with windows. Restarted and unmapped the file share and it worked...

Kinda annoying. Sorry for time wasting.
