Hello,
I will start from my setup:
i3 8100, SM X11SCH, 64GB, 830 Pro + 2x 860Evo + 5x WD Red 4TB. It's being run by ESXi 7.0U3 (the most recent update). My TrueNAS Scale VM (RC downloaded two days ago) has 4 vCPU, 32GB RAM and UHD 630 which is passthroughed. For unkown to me reason I can't get HW transcoding working.

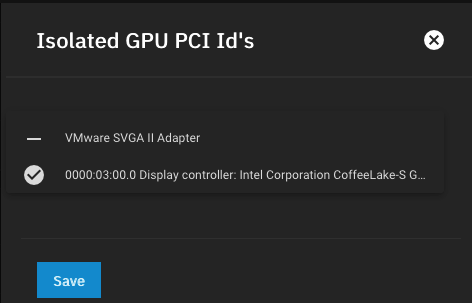

I can see that TrueNAS sees the GPU alongside with VMware adapter:

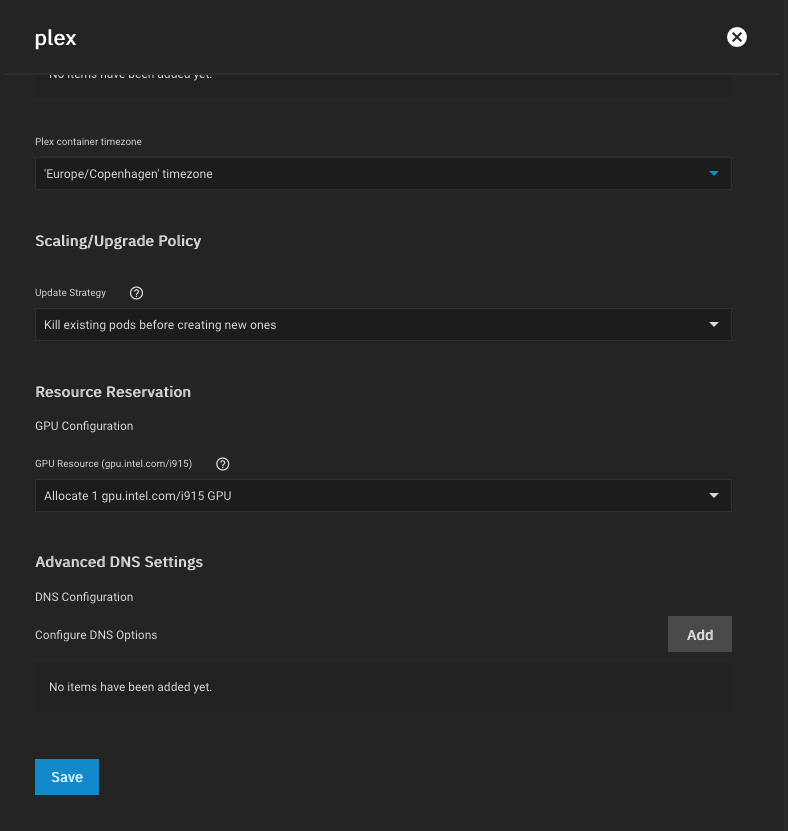

I am also allowed to add iGPU to Plex app (Official Chart):
I've tried to debug as much as possible on my own via some threads here that sounded similar. First thing I checked were middlewares:
Second thing was making sure that I have Intel GPU plugin which I have:

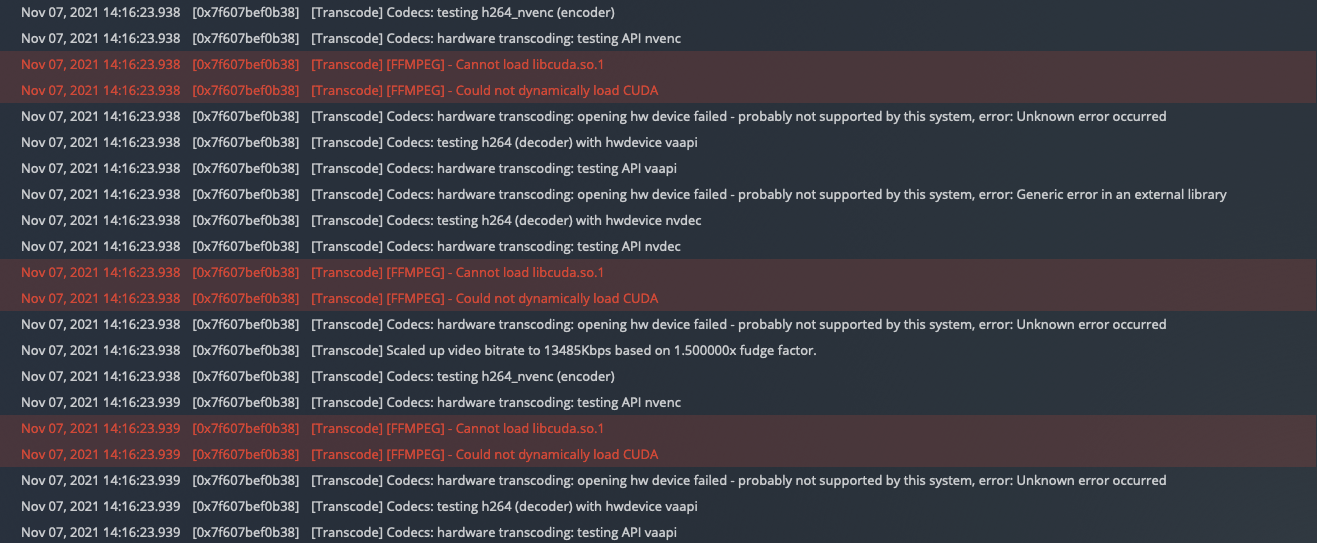

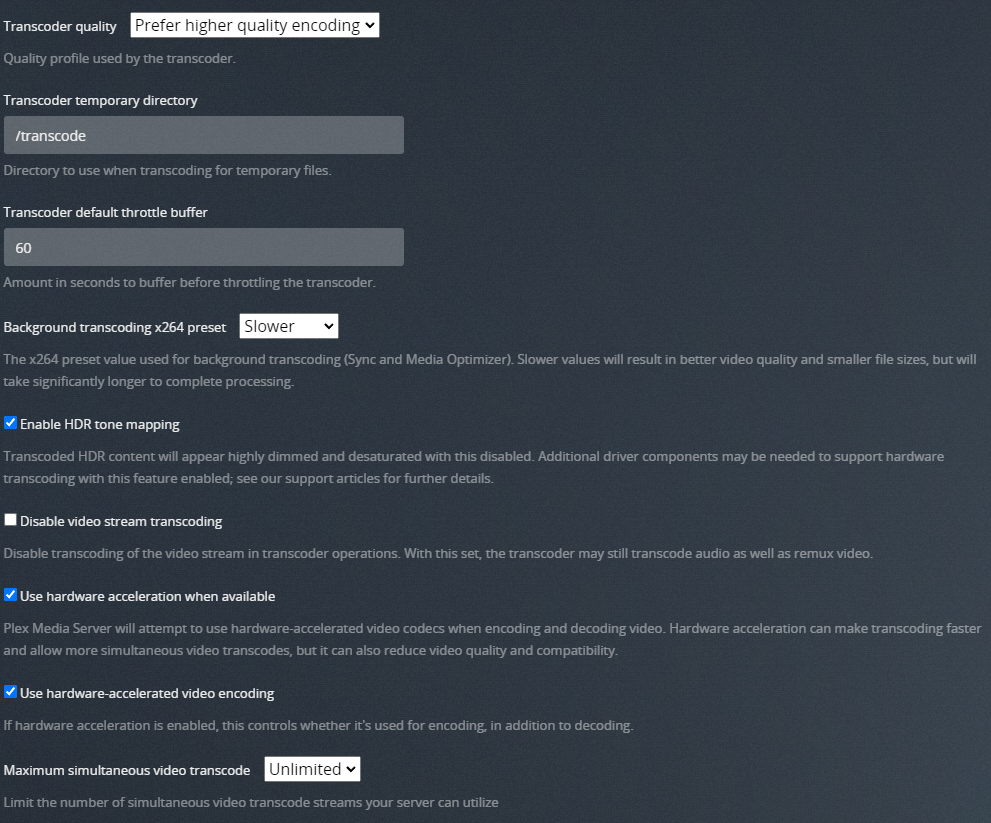

While trying transcode on different movies debug shows only following errors that are related to CUDA. I do not have nor had nvidia GPU in the system and it suprises me that there is random CUDA error:
One thread suggested that OS does not see iGPU and it disables the plugin (case with BMC graphics) but in my case it seems to be fixed as intel-gpu-plugin is running.
OS itself is as vanilla as possible. I've just installed TrueCharts and deployed TC qBittorrent and official Plex app. No further configuration was done yet as I wanted to have ready to go system rather than have just few things work the way I want.
I can provide a debug but I am afraid that it contains too much information. Let me know if it is safe to upload it and I will do it :)
Thank you for any help :)
I will start from my setup:
i3 8100, SM X11SCH, 64GB, 830 Pro + 2x 860Evo + 5x WD Red 4TB. It's being run by ESXi 7.0U3 (the most recent update). My TrueNAS Scale VM (RC downloaded two days ago) has 4 vCPU, 32GB RAM and UHD 630 which is passthroughed. For unkown to me reason I can't get HW transcoding working.
I can see that TrueNAS sees the GPU alongside with VMware adapter:

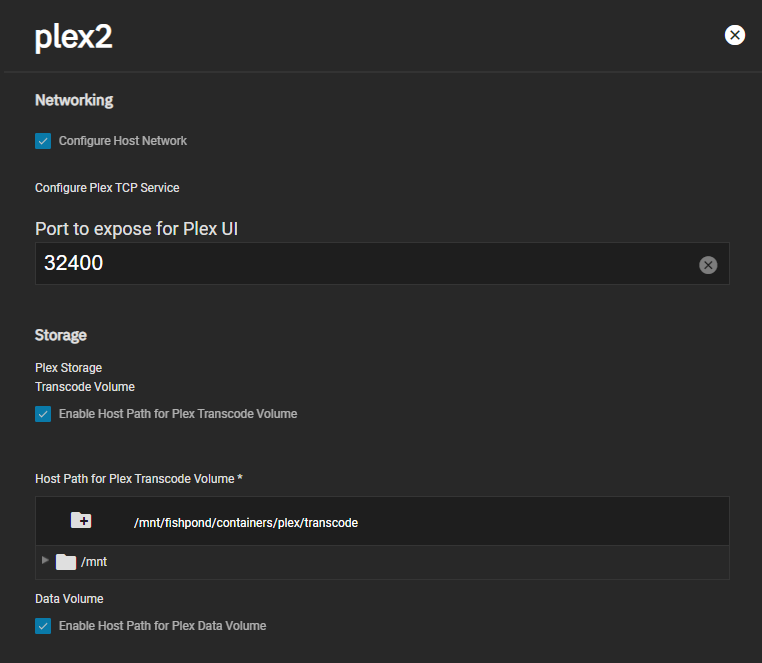

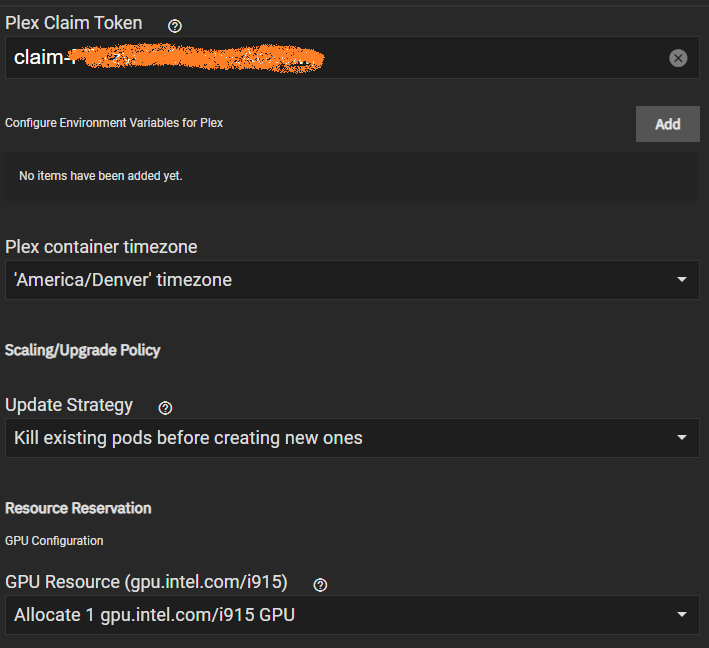

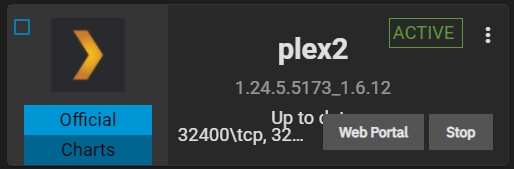

I am also allowed to add iGPU to Plex app (Official Chart):
I've tried to debug as much as possible on my own via some threads here that sounded similar. First thing I checked were middlewares:
Code:
midclt call device.get_gpus | jq . [ { "addr": { "pci_slot": "0000:00:0f.0", "domain": "0000", "bus": "00", "slot": "0f" }, "description": "VMware SVGA II Adapter", "devices": [ { "pci_id": "8086:7190", "pci_slot": "0000:00:00.0", "vm_pci_slot": "pci_0000_00_00_0" }, ...... { "pci_id": "15AD:07A0", "pci_slot": "0000:00:18.7", "vm_pci_slot": "pci_0000_00_18_7" } ], "vendor": null, "available_to_host": true }, { "addr": { "pci_slot": "0000:03:00.0", "domain": "0000", "bus": "03", "slot": "00" }, "description": "0000:03:00.0 Display controller: Intel Corporation CoffeeLake-S GT2 [UHD Graphics 630]", "devices": [ { "pci_id": "8086:3E91", "pci_slot": "0000:03:00.0", "vm_pci_slot": "pci_0000_03_00_0" } ], "vendor": "INTEL", "available_to_host": true } ]
Second thing was making sure that I have Intel GPU plugin which I have:
Code:
# k3s kubectl get pods -A NAMESPACE NAME READY STATUS RESTARTS AGE kube-system coredns-7448499f4d-gxpbp 1/1 Running 0 3h28m kube-system intel-gpu-plugin-qnpjx 1/1 Running 0 3h28m kube-system openebs-zfs-node-j28n5 2/2 Running 0 3h28m kube-system openebs-zfs-controller-0 5/5 Running 0 3h28m ix-qbittorrent qbittorrent-67dc5cff76-8lvg8 1/1 Running 0 3h28m ix-plexmediaserver plexmediaserver-5b9d98c6bb-7wdw8 1/1 Running 0 24m
While trying transcode on different movies debug shows only following errors that are related to CUDA. I do not have nor had nvidia GPU in the system and it suprises me that there is random CUDA error:
One thread suggested that OS does not see iGPU and it disables the plugin (case with BMC graphics) but in my case it seems to be fixed as intel-gpu-plugin is running.
OS itself is as vanilla as possible. I've just installed TrueCharts and deployed TC qBittorrent and official Plex app. No further configuration was done yet as I wanted to have ready to go system rather than have just few things work the way I want.
I can provide a debug but I am afraid that it contains too much information. Let me know if it is safe to upload it and I will do it :)
Thank you for any help :)
