Storage Pools Degraded ( Help )

[karkarii]

Dears,

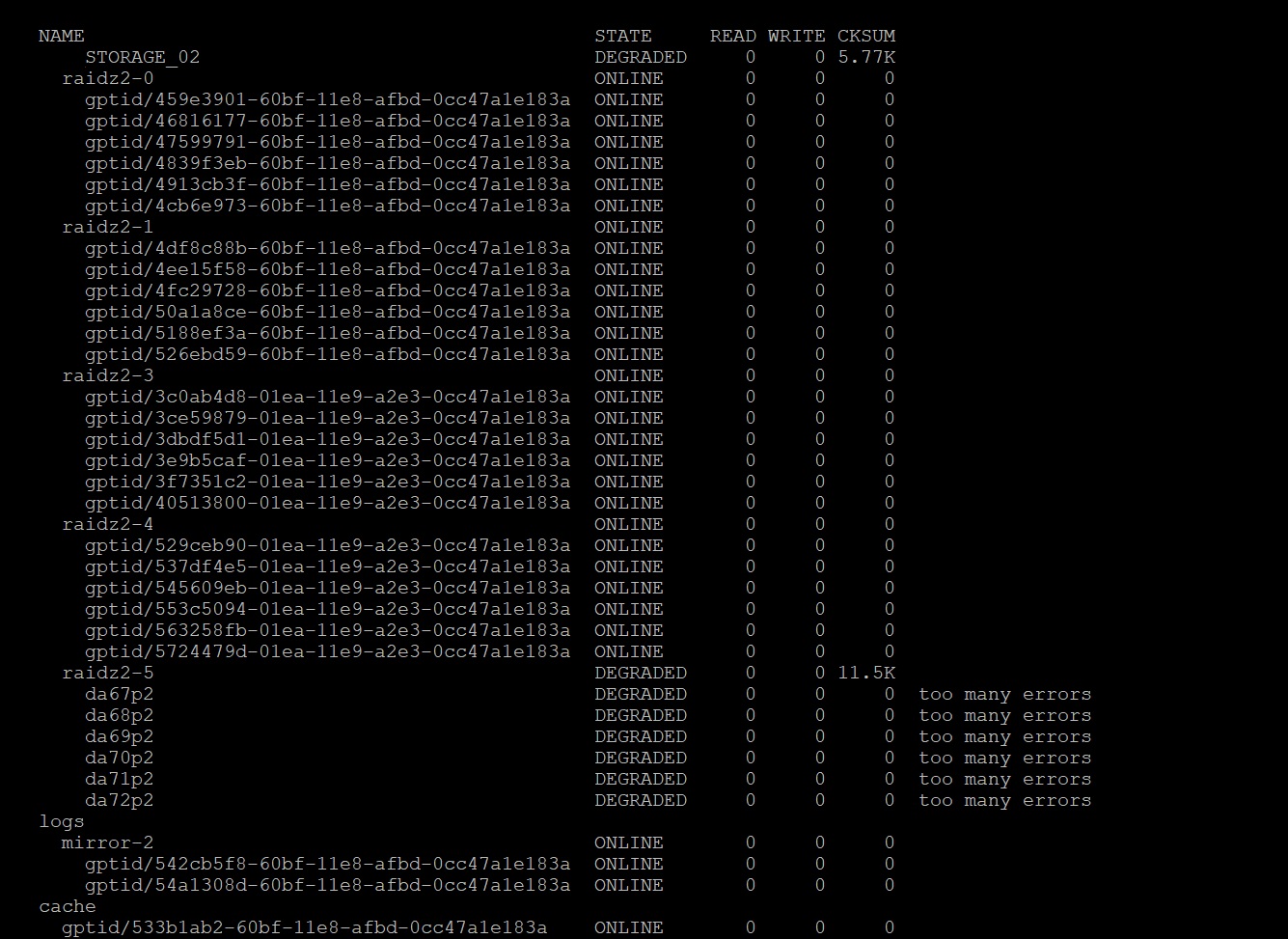

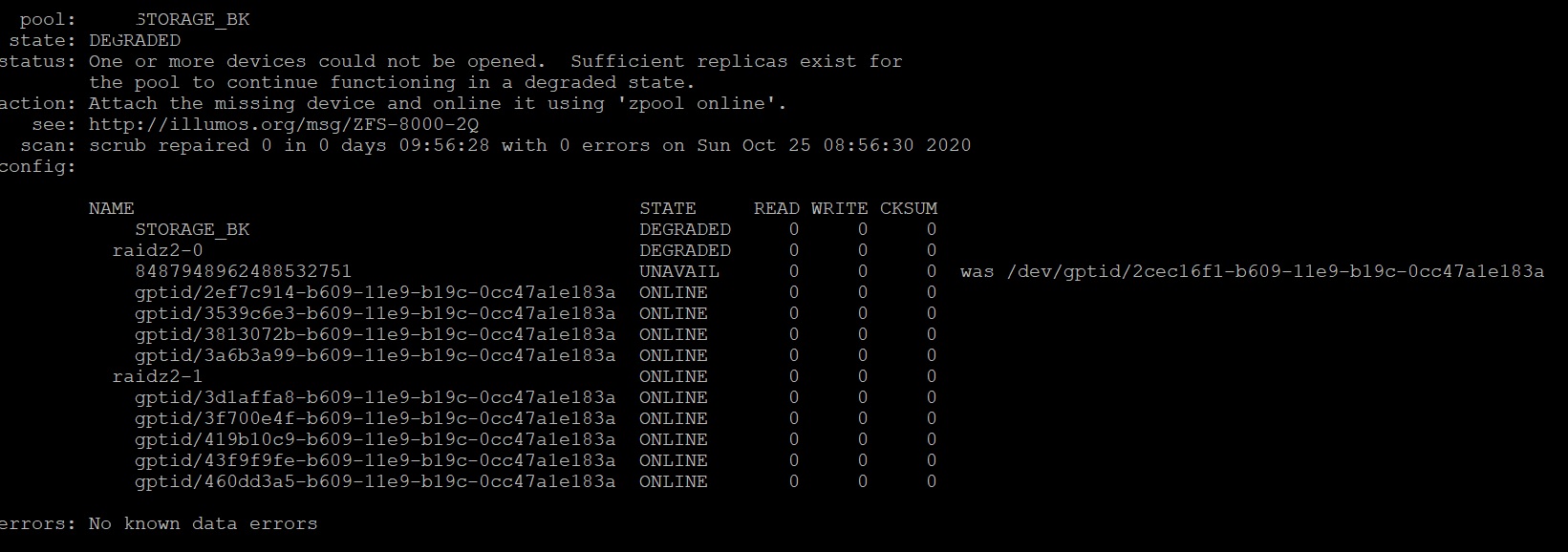

two of our main pools in the storage became degraded, I have attached a screenshot for the "zpool status -v" command for both pools and also the smart for
the first pool in the text file, we are running " FreeNAS-11.3-U5 "

what can we do ?

thanks



[sretalla]

It looks to me like you may have lost a port on your HBA/controller or one part of a backplane.

Check power, cabling and consider what may have happened to the path of connection to all of those disks.



[karkarii]

I have checked that , all the connections are ok



[Mannekino]

I've had a HBA fail in the past causing a pool to be degraded. Turned out it was one particular channel of the HBA that caused the issue. You can read my thread regarding this issue here: https://www.truenas.com/community/t...again-and-error-during-bi-weekly-scrub.73903/

Could be the case there's something wrong with your HBA like @sretalla suggested.



[karkarii]

I have checked all connections and they are all ok, what could be another possible cause for this, I'm sure its not a problem with the harddrives, as you can see in the attached photos, the whole last Vdev is affected (Degraded) not only one a problem occurs with one drive or more , any other suggestions ? checksum is increasing



[Scharbag]

What kind of HBA are you using? Can you interrogate the HBA to see what it is showing for connection status and drive list?

Also, it is odd to see a gptid for most drives and then suddenly a daxx for the missing drives. Are they on the same HBA or a different system?

Please give us some more details so we can help.

Cheers,
