Hi, I have two issues, not sure if they are related or not.

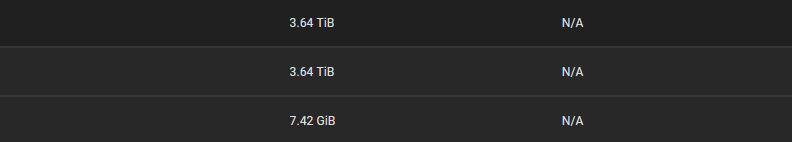

In Storage->Disks I have a lot of N/As for Pool associatations. Example:
Screenshot 2024-03-04 174241.png

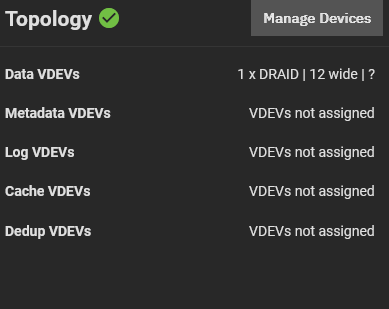

And for one of my pools the size is not reporting and only delivering a '?'.
Screenshot 2024-03-04 174304.png


I am running a PERC H730 mini (in HBA mode) and a SAS2008(B2) flashed to IT Mode, SAS2008(B2) info below:

LSI Corporation SAS2 Flash Utility
Version 20.00.00.00 (2014.09.18)
Copyright (c) 2008-2014 LSI Corporation. All rights reserved

Adapter Selected is a LSI SAS: SAS2008(B2)

Controller Number : 0
Controller : SAS2008(B2)
PCI Address : 00:85:00:00
SAS Address : 500605b-0-07a0-3d30
NVDATA Version (Default) : 11.00.00.06
NVDATA Version (Persistent) : 11.00.00.06
Firmware Product ID : 0x2213 (IT)
Firmware Version : 17.00.01.00
NVDATA Vendor : LSI
NVDATA Product ID : SAS9200-8e
BIOS Version : 07.33.00.00
UEFI BSD Version : 07.24.01.00
FCODE Version : N/A
Board Name : SAS9200-8e
Board Assembly : H3-25260-02F
Board Tracer Number : SP34308187

Finished Processing Commands Successfully.
Exiting SAS2Flash.

Does anyone have any insight as to what is going on here?


cenibyte

Cadet
Joined
Mar 4, 2024
Messages
2
I'm also running TrueNAS-SCALE-23.10.2.

I've even gone ahead and updated the firmware version on the SAS2008 card:
LSI Corporation SAS2 Flash Utility
Version 20.00.00.00 (2014.09.18)
Copyright (c) 2008-2014 LSI Corporation. All rights reserved

Adapter Selected is a LSI SAS: SAS2008(B2)

Controller Number : 0
Controller : SAS2008(B2)
PCI Address : 00:85:00:00
SAS Address : 500605b-0-07a0-3d30
NVDATA Version (Default) : 14.01.00.08
NVDATA Version (Persistent) : 14.01.00.08
Firmware Product ID : 0x2213 (IT)
Firmware Version : 20.00.07.00
NVDATA Vendor : LSI
NVDATA Product ID : SAS9211-8i
BIOS Version : 07.33.00.00
UEFI BSD Version : 07.24.01.00
FCODE Version : N/A
Board Name : SAS9200-8e
Board Assembly : H3-25260-02F
Board Tracer Number : SP34308187

Finished Processing Commands Successfully.
Exiting SAS2Flash.

The output of sas2ircu 0 display attached.
