Not Getting 10G Network Speeds on Windows 10 Client

adeelleo

Junior Member
Joined
Mar 28, 2021
Messages
17
I am facing issues of not getting 10G Speeds when connecting from Windows to TrueNAS.

I did some testing using iperf3 and it seems that i never get more the 2 Gbps on a 10G NIC when i am communicating between TrueNAS and the Windows 10 Machine.

Below are some Performance stats using iPerf3:

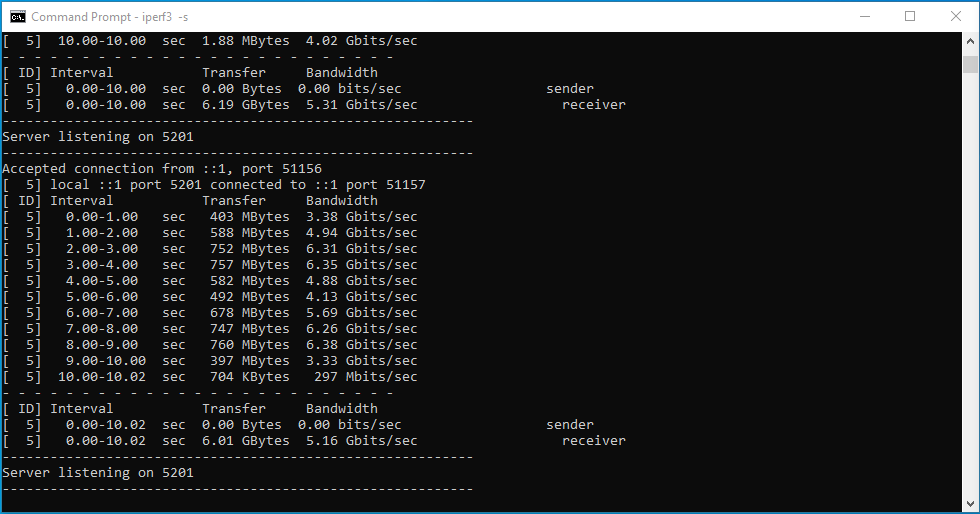

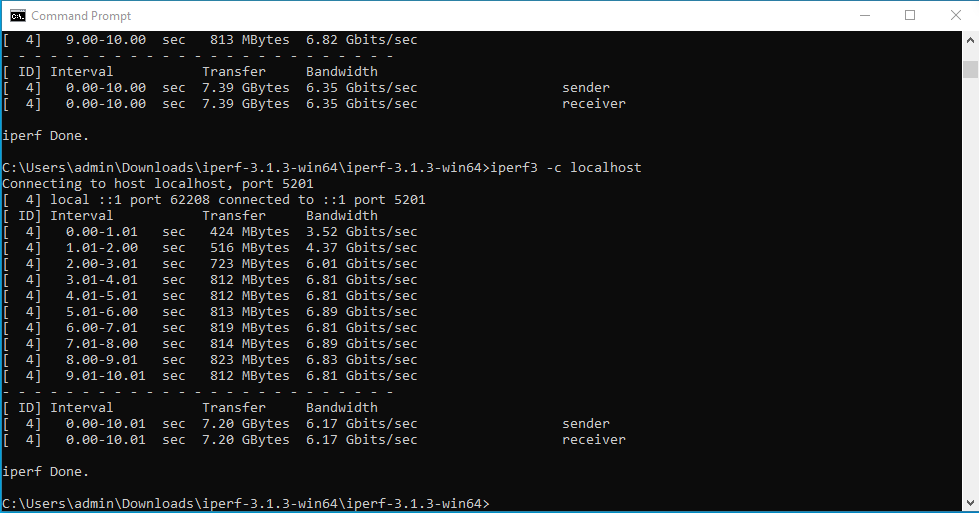

When testing the local Network Throughput on the Windows 10 Machine:

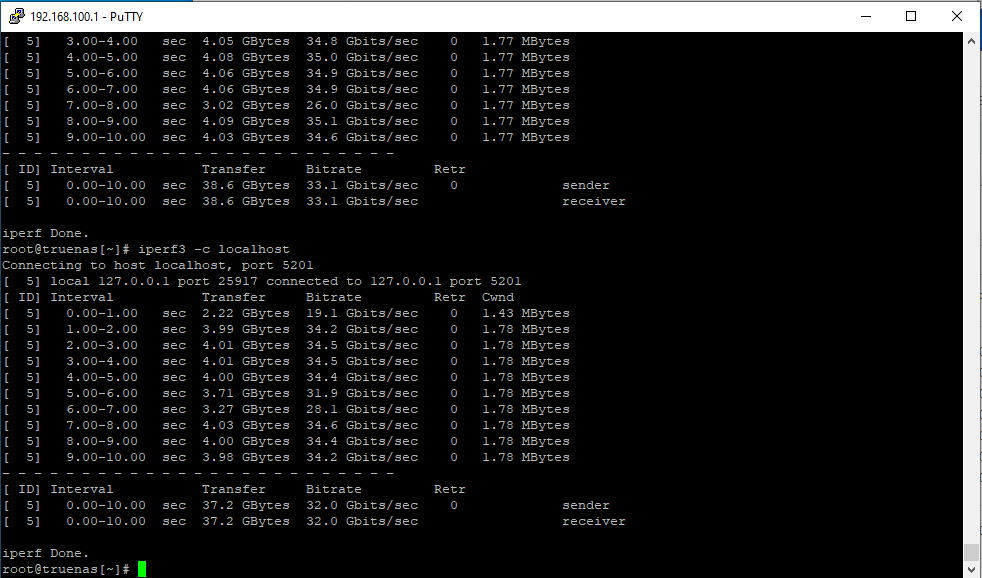

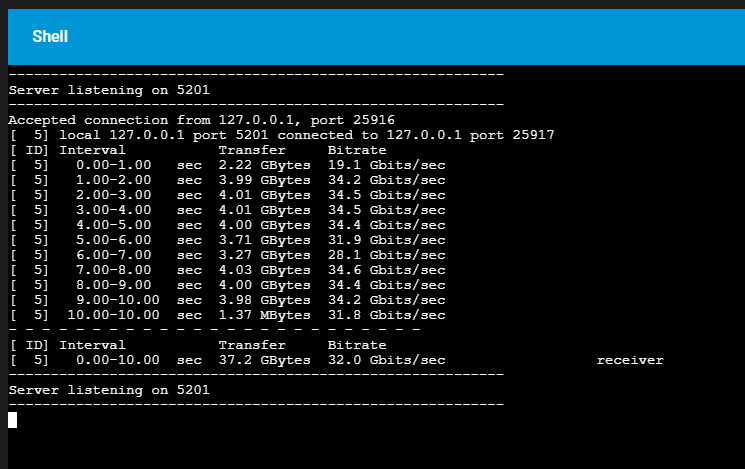

When Testing the local Network Throughput on the TrueNAS Machine:

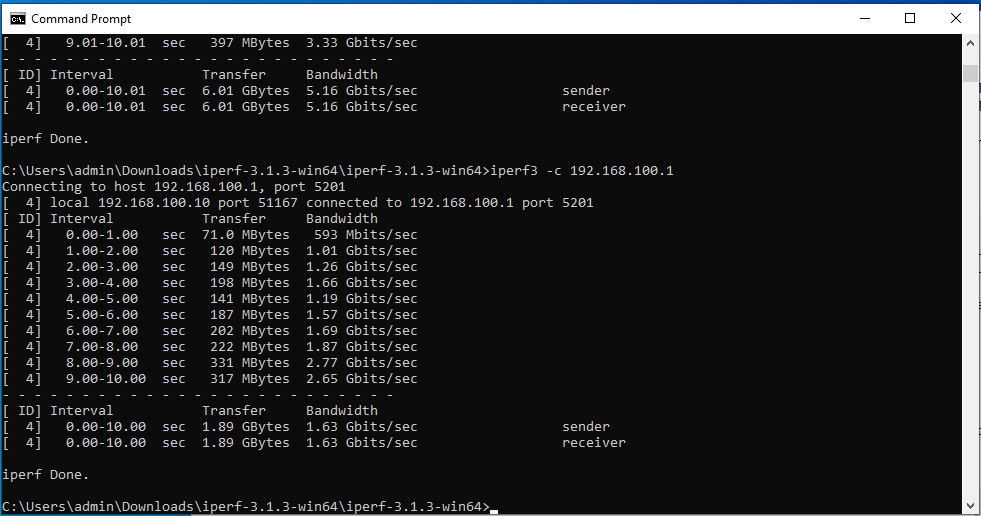

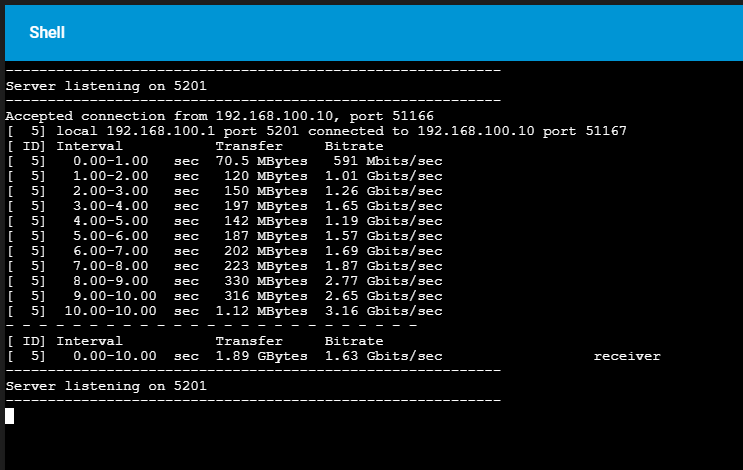

When Testing Network Throughput from the Windows 10 Machine to TrueNAS:

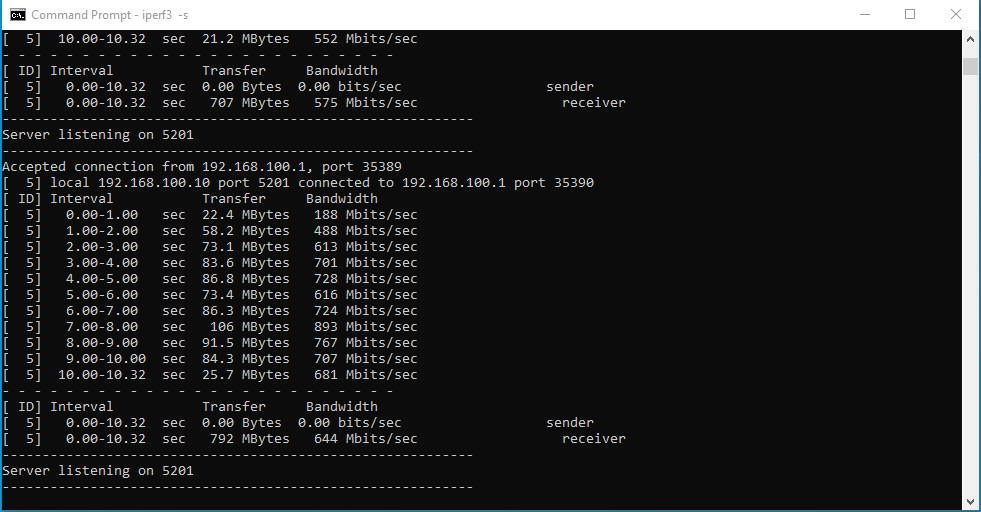

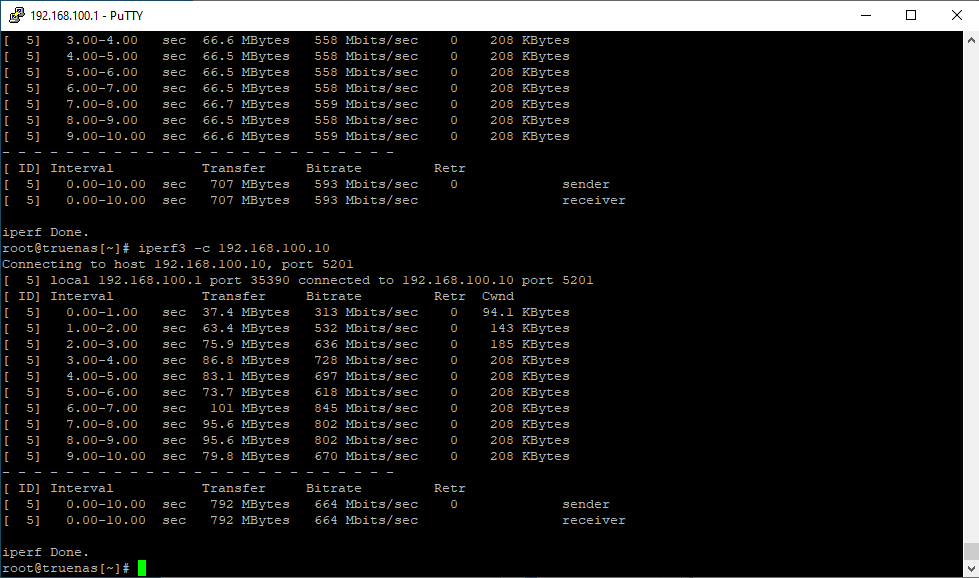

When Testing Network Throughput from TrueNAS to Windows 10 Machine:




Below is the current hardware Setup:

Windows 10 Machine:
------------------------
Dell T320 Server
Intel(R) Xeon(R) CPU E5-2420 v2 @ 2.20GHz
8GB ECC DDR3 RAM
2 x 146GB 15k SAS Disks for TrueNAS OS
Intel Pro/1000 PT Quad Port Gigabit Adapter
Intel X520 Dual Port 10Gigabit Adapter

TrueNAS Machine:
------------------------
Dell T320 Server
Intel(R) Xeon(R) CPU E5-2420 v2 @ 2.20GHz
12GB ECC DDR3 RAM
2 x 146GB 15k SAS Disks for TrueNAS OS
Intel Pro/1000 PT Quad Port Gigabit Adapter
Intel X520 Dual Port 10Gigabit Adapter
LSI SAS 9201-16e Quad Port 6Gbps SAS HBA
EMC 60 Disks Expansion
40 x 3TB NL-SAS Disks
TrueNAS Version: TrueNAS-12.0-U6.1

Note: I understand that i am using a lot less RAM that required for the setup with respect to the storage but i haven't yet reached to that stage of testing the actual Disk Performance. I seem to have a bottleneck at the Network layer.

I Tried enabling Jumbo Frames on Windows but that seems to have no effect. So i disabled it again.


Kailee71

Member
Joined
Jul 8, 2018
Messages
53
Ok so suprisingly, for me, the "official" latest iperf binary from iperf.fr (3.1.3 I think) show me a max of ~6Gbit/s on Win10, regardless of what's on the other side (Windows, Truenas, BSD, Linux etc etc). As soon as I used 3.10.1 the speed went to wire speed (near enough 10Gbit/s). That should at least boost your local speeds in Windows. I don't think it will resolve your problem but at least you'll be able to test and show max speed when you have it available.

Of course, finding pre-compiled binaris is trickier, and I can't recommend just downloading and trusting, but I got mine from here

Hope this helps sorting your issues.

Kai.


adeelleo

Junior Member
Joined
Mar 28, 2021
Messages
17
Ok so suprisingly, for me, the "official" latest iperf binary from iperf.fr (3.1.3 I think) show me a max of ~6Gbit/s on Win10, regardless of what's on the other side (Windows, Truenas, BSD, Linux etc etc). As soon as I used 3.10.1 the speed went to wire speed (near enough 10Gbit/s). That should at least boost your local speeds in Windows. I don't think it will resolve your problem but at least you'll be able to test and show max speed when you have it available.

Of course, finding pre-compiled binaris is trickier, and I can't recommend just downloading and trusting, but I got mine from here

Hope this helps sorting your issues.

Kai.

Oh. I was using the latest 3.1.3 version as well. I was also curious why it was not reporting the full 10Gbps Speeds. So i guess it was an issue with the latest iperf3 binary. Another strange thing that i noticed was that with the same 10Gbps card installed in the TrueNAS server along with a Quad Port Gigabit Card iperf3 was reporting 34 Gbps of Throughput. Which made no sense to me.

Anyhow changing iperf3 version wont have any impact on my current situation since i am not even reaching anywhere near the current 6 Gbps Throughput that iperf is incorrectly reporting.

I even tried creating a Mirrored Pool using 48 Disks with 24 Mirrors and tested copying data onto it. I was getting at max 140 MB/s speed. Which is consistent with the iperf numbers reported when i run it between the windows 10 machine and TrueNAS server. Which confirms that i am being bottle-necked at the network layer.


NugentS

Neophyte Sage
Joined
Apr 16, 2020
Messages
673
Turn off Antivirus and the firewall on the windows PC and retest.
Previous threads have pointed at these - in particular the AV as being responsible.

Can you test from another machine?


Kailee71

Member
Joined
Jul 8, 2018
Messages
53
I'd fire up ubuntu from a stick on your troublemaker and see how that fares. Just to exclude hardware issues. Ubuntu is usually pretty good at being quick OOB. Also, is it writes or reads, or both that are slow?

Also - with 48 disks - how are these attached? Maybe you're swamping your PCIe with all the disk activity and nothing's left for your 10GbE.


adeelleo

Junior Member
Joined
Mar 28, 2021
Messages
17
Turn off Antivirus and the firewall on the windows PC and retest.
Previous threads have pointed at these - in particular the AV as being responsible.

Can you test from another machine?
I turned off the antivirus and the windows firewall but that only marginally improved the throughput. about 10% improvement only.

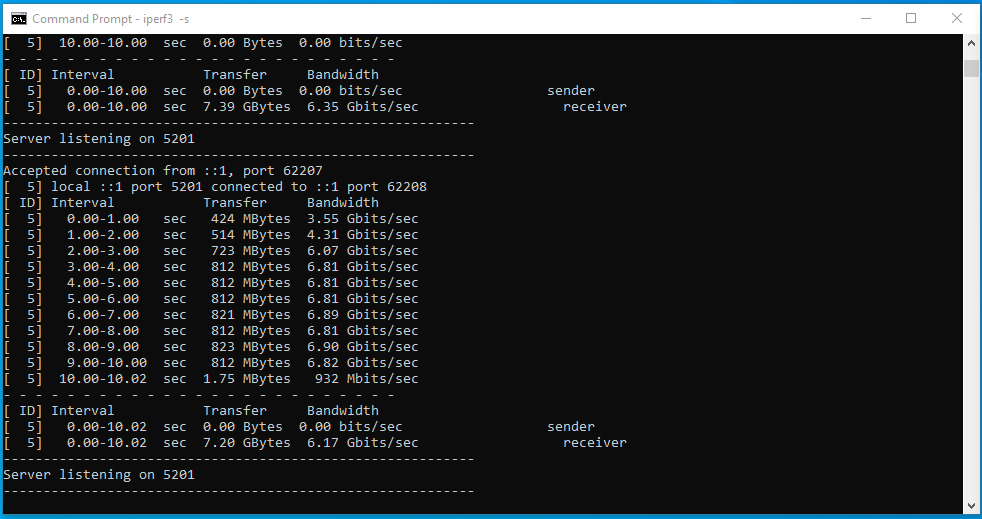

When testing Network Throughput locally on the windows 10 machine:




adeelleo

Junior Member
Joined
Mar 28, 2021
Messages
17
Ok so suprisingly, for me, the "official" latest iperf binary from iperf.fr (3.1.3 I think) show me a max of ~6Gbit/s on Win10, regardless of what's on the other side (Windows, Truenas, BSD, Linux etc etc). As soon as I used 3.10.1 the speed went to wire speed (near enough 10Gbit/s). That should at least boost your local speeds in Windows. I don't think it will resolve your problem but at least you'll be able to test and show max speed when you have it available.

Of course, finding pre-compiled binaris is trickier, and I can't recommend just downloading and trusting, but I got mine from here

Hope this helps sorting your issues.

Kai.
Tested the version 3.10.1 from the link that you suggested but for me it did not show any improvement.
Disabling Windows Firewall and Antivirus however did have 10% improvement.


adeelleo

Junior Member
Joined
Mar 28, 2021
Messages
17
I'd fire up ubuntu from a stick on your troublemaker and see how that fares. Just to exclude hardware issues. Ubuntu is usually pretty good at being quick OOB. Also, is it writes or reads, or both that are slow?

Also - with 48 disks - how are these attached? Maybe you're swamping your PCIe with all the disk activity and nothing's left for your 10GbE.
Ok I used an Ubuntu Boot CD and tested iperf3 on that using the same hardware and below were the results:

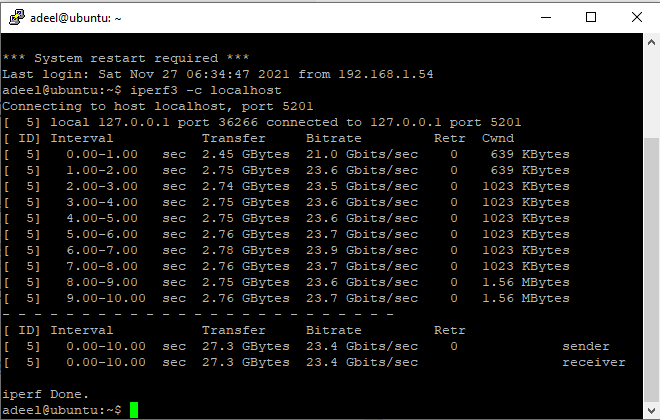

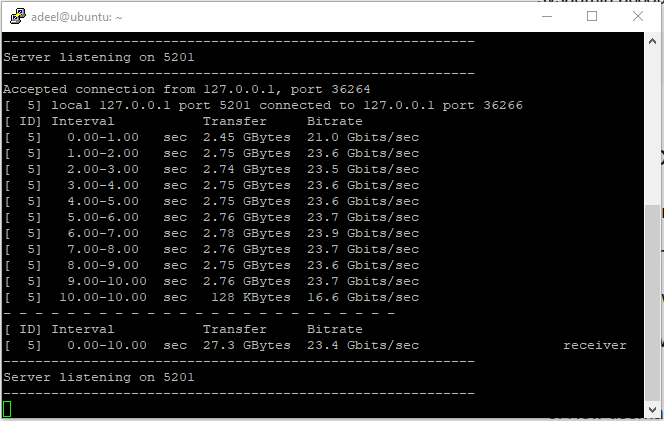

When testing Network Throughput locally on the Ubuntu Machine (Using Same machine which had windows 10 Installed):

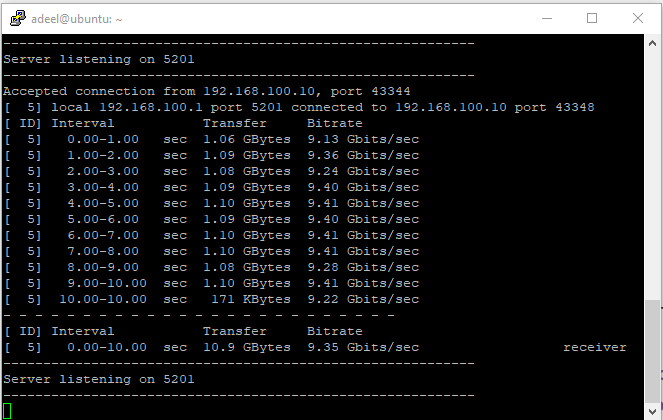

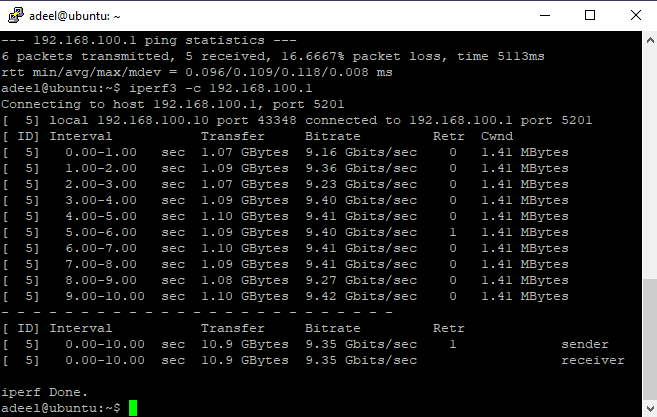

When Testing Network Throughput from the Ubuntu Machine to TrueNAS:




So there is nothing wrong with the hardware. Also the TrueNAS side of the hardware seems to be working fine.

Is there any additional configuration i need to do at Windows 10 end to improve the performance?


Kailee71

Member
Joined
Jul 8, 2018
Messages
53

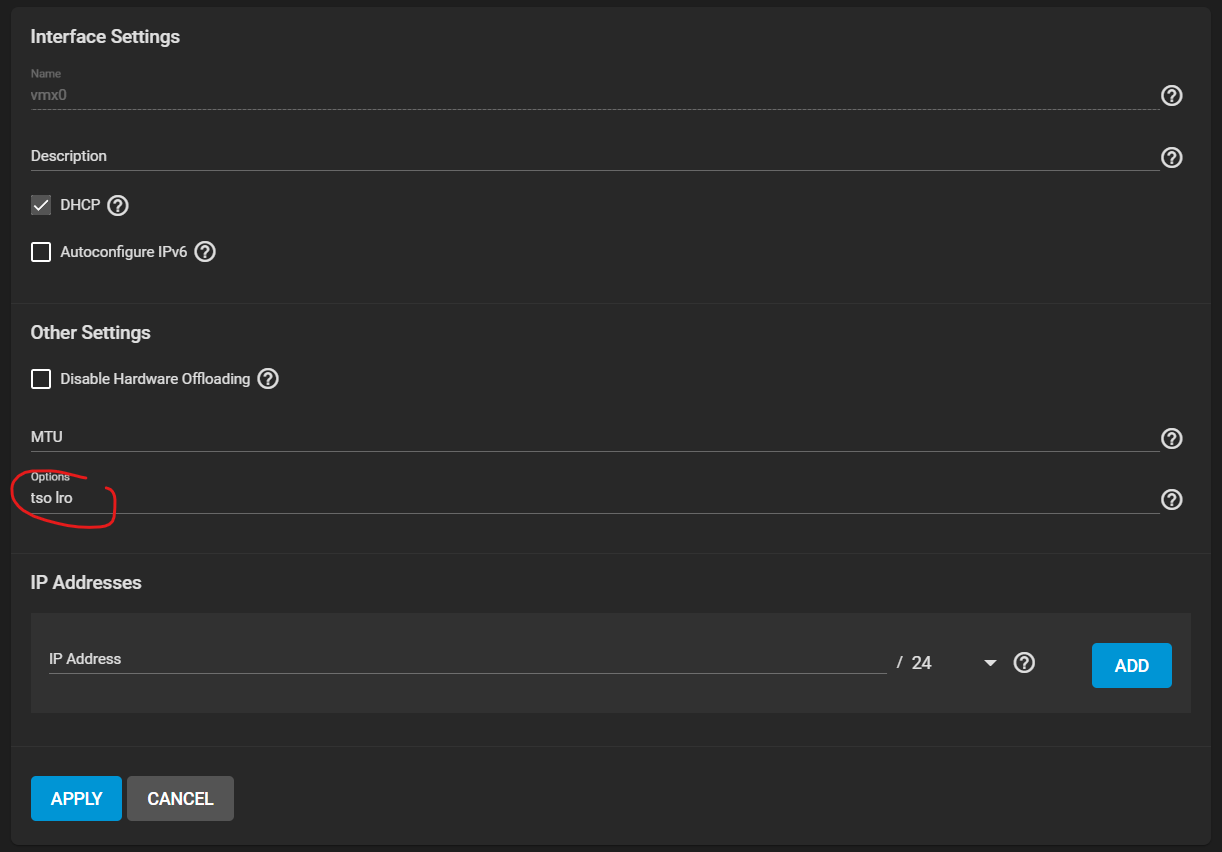

As I thought. Glad to see nowt's wrong with your hardware, but I'm surprised the newer iperf didn't help. The only thing I can now think of is LRO/TSO, I needed to enable these manually when I switched to Intel 10GbE on my clients. You can en-/disable these in the network interface settings;


(yes, this host is running on ESXi, with all necessary precautions) Have a play with these and see if it helps.

Cheerio,

Kai.

++++EDIT+++++
This is where the info came from
+++/EDIT+++++
