Networking issues after upgrade

[rmont]

I just tried to upgrade Scale from 23.10.1 to 23.10.1.3 and I can't make networking work any more.
I have already rolled back the upgrade and re-uploaded the settings, to no avail.

The server is connected to the network and accessible, but I can only ping within the local network, but not anything behind the local gateway.

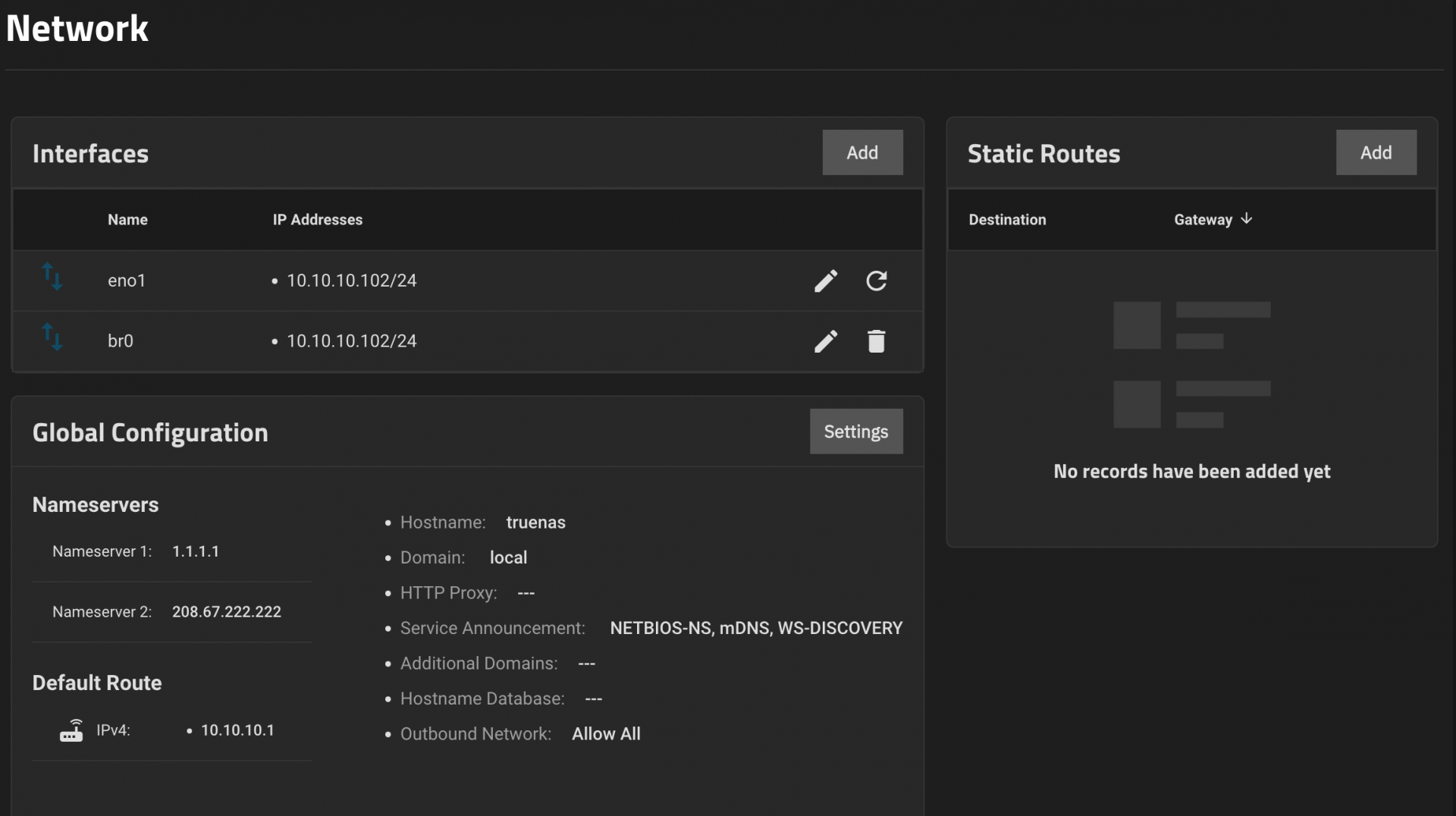

What's wrong with this network config?

• My router is on 10.10.10.1.
• I have already tried to add a static route 0.0.0.0/0 -> 10.10.10.1, but did not make any difference.
• The router works fine with all other devices
• I can ping 10.10.10.1, but not 1.1.1.1 or other IPs outside my network

Thanks for helping!



[chuck32]

Usually you can't have two interfaces on the same subnet, but in that case truenas won't let you configure it anyway. Is eno1 a member of br0? If so, remove the alias from eno1 and test again.

Other than that the settings look fine to me.

edit: you could check your router, did you use the same IP before? Maybe remove all static IP entries (if you set any) for .102

I have already rolled back the upgrade and re-uploaded the settings, to no avail.

So I guess you imported your config, so this settings should have worked in 23.10.1 before?



[rmont]

eno1 is a member of br0
eno1 is set to get the IP from DHCP
br0 has an alias set to 10.10.10.102/24

It did work this way before.

Based on your suggestion, I changed the IP address on the router's DHCP to 10.10.10.103 and left br0 at 10.10.10.102, and it worked.

I don't understand what's going on, but at least the problem has been fixed now.

Thanks for your time



[chuck32]

eno1 is a member of br0
eno1 is set to get the IP from DHCP

You do not need to configure eno1 then, neither DCHP nor a static IP.

The fact you assigned both interfaces the same IP will have caused some trouble.
