MAC Adress

Boogyman

Cadet
Joined
Feb 10, 2024
Messages
5
Hello everyone,
I have the following problem. I would like to run 2 Truenas Scale servers in my network. Since both servers do not use the physical MAC of the NIC, I now have 2 times the same MAC address in the LAN. How can I change the default MAC address on at least one server?
There are 2 physical servers, each with a physical NIC. In my router, both servers are displayed with the MAC address 6C:B3:11:3D:4D:5E. The MAC addresses of my physical NICs are of course different. Truenas Scale exchanges the MAC for its own. Unfortunately they are the same, so my router plays ping pong.


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,043

danb35

Hall of Famer
Joined
Aug 16, 2011
Messages
15,276
Truenas Scale exchanges the MAC for its own.
That's certainly not the default behavior. Even with a virtual interface (like a LAGG), it takes the MAC address of the first physical interface.

The MAC address you gave appears to have come from Shenzhen Lianrui Electronics Co. (see https://mac-address.alldatafeeds.com/mac-address-lookup/B20w7vAvRm). It's not something TrueNAS would have assigned on its own, and it doesn't even look like TrueNAS even exposes an option to spoof a MAC address.

What hardware are you using for your NAS. Are you running it on the bare hardware, or virtualized? If the latter, which hypervisor?


Boogyman

Cadet
Joined
Feb 10, 2024
Messages
5
I seem to have found the problem. I read in an Amazon review that I'm not the only one with this problem.

2.5 GBase-T PCIe 3.1 Network Adapter with Intel I225-V + 91 cm Cat8 Ethernet Cable 2500/1000/100 Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket
Brand: ULANSeN


PhilD13

Contributor
Joined
Sep 18, 2020
Messages
154
It sounds like you have an issue with the router, or if you are running virtualized and created virtual network interface cards (VNICs) and somehow failed to assign MAC addresses to the virtualized network cards.

This is from Oracle:
A virtualized Network Interface Card is used by a Virtual Machine as its network interface. A VNIC is assigned a MAC address. Each MAC address corresponds with a single virtual NIC, which is used by a virtual machine. You create VNICs when you create a virtual machine. The Virtual NICs tab is used to display the VNICs assigned to different virtual machines within your environment and to control the MAC addresses applied to each VNIC.


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,043
I seem to have found the problem. I read in an Amazon review that I'm not the only one with this problem.

2.5 GBase-T PCIe 3.1 Network Adapter with Intel I225-V + 91 cm Cat8 Ethernet Cable 2500/1000/100 Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller for Windows 10/11 with Low Profile Bracket
Brand: ULANSeN
So, how are you determining the "real" MAC? Sticker on the cards? Did the fine engineers at Super China Happy Sun Shenzhen Technology Corporation Limited manage to program every one of their totally legitimate Intel NICs with the same MAC from the factory?


Patrick M. Hausen

Hall of Famer
Joined
Nov 25, 2013
Messages
7,428
So, how are you determining the "real" MAC? Sticker on the cards? Did the fine engineers at Super China Happy Sun Shenzhen Technology Corporation Limited manage to program every one of their totally legitimate Intel NICs with the same MAC from the factory?
:eek:


Boogyman

Cadet
Joined
Feb 10, 2024
Messages
5
Hello
here are some pictures

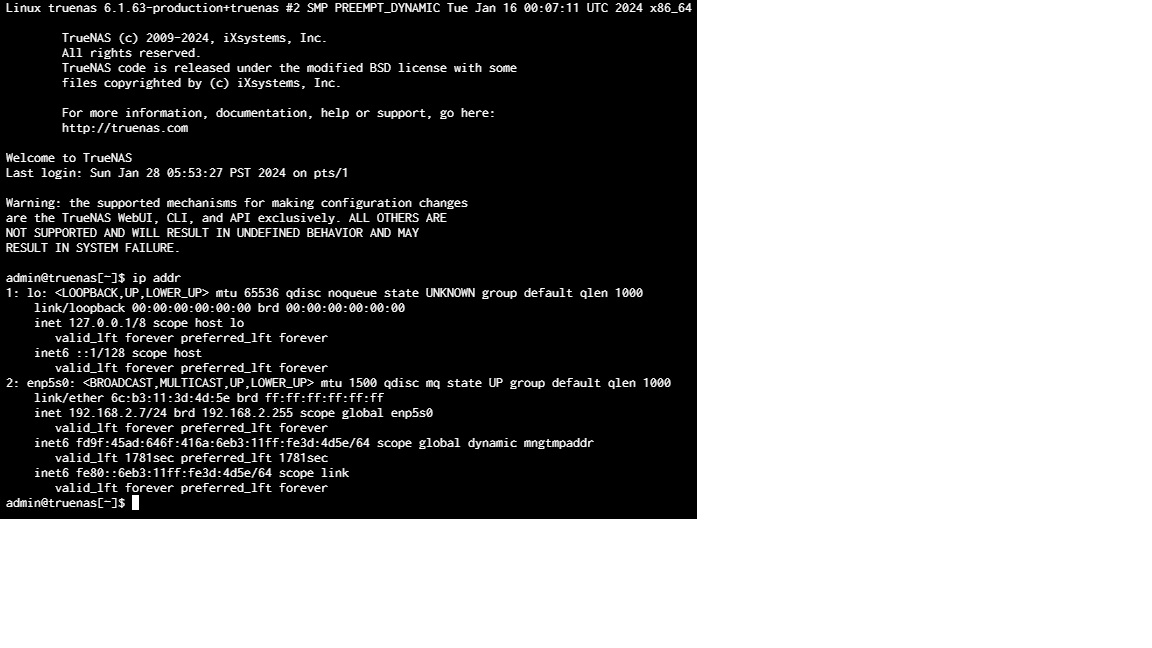

First Truenas Console

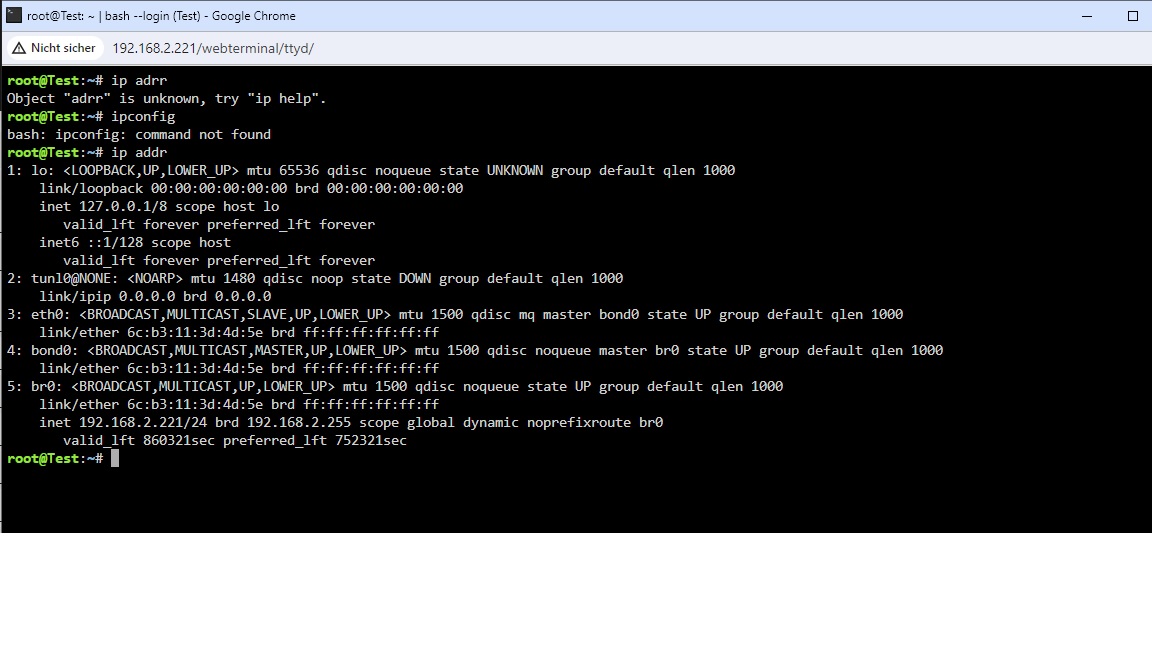

Second Unraid Console

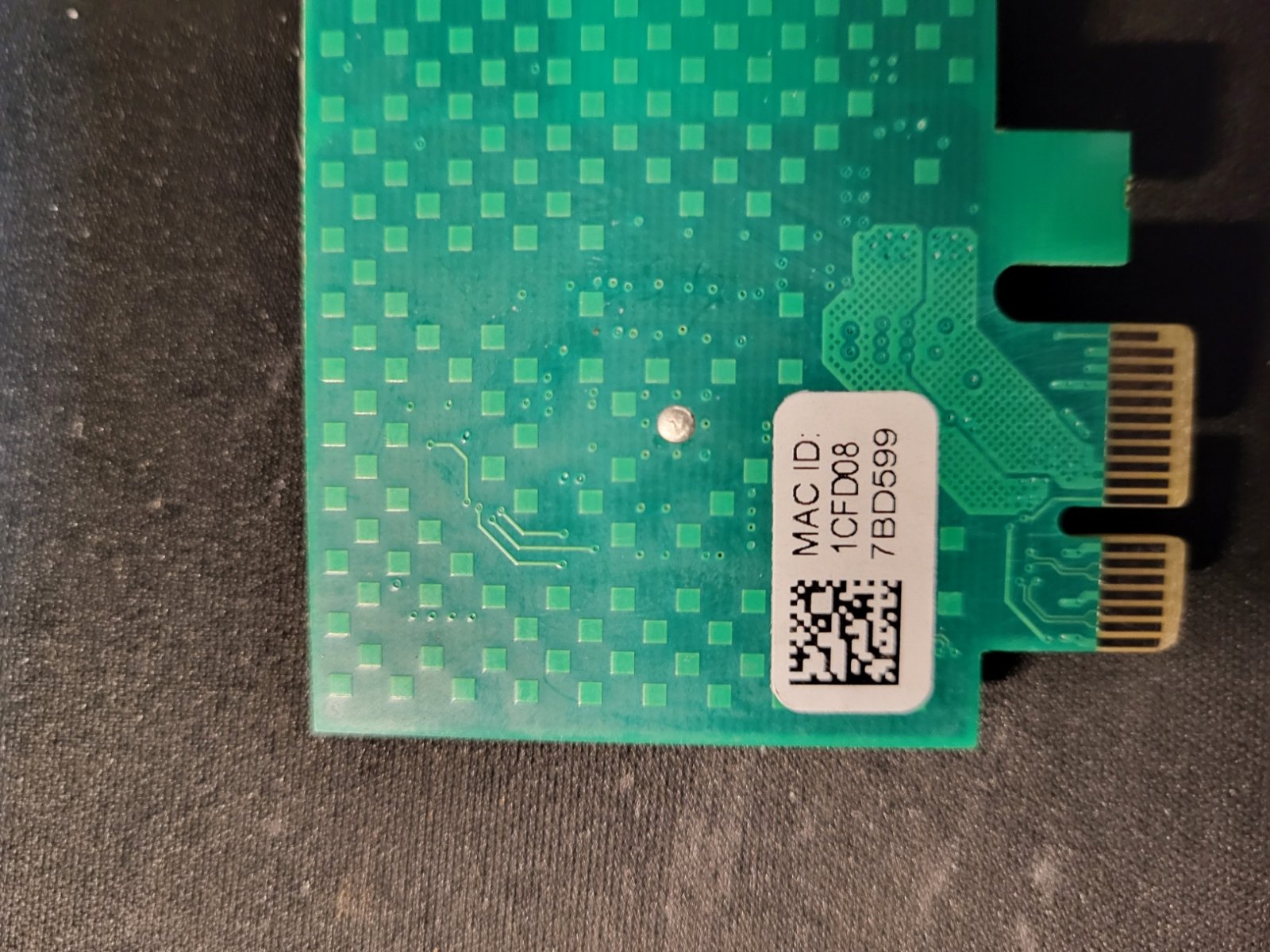

Third MAC on NIC
Truenas Scale.jpg
Unraid MAC.jpg


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,043
Oof. Notable reminder not to buy from the alphabet soup vendors that have inundated Amazon and other places.


danb35

Hall of Famer
Joined
Aug 16, 2011
Messages
15,276
That's frankly bizarre, and not something I ever would have guessed. But the same address showing in Unraid pretty conclusively rules out something with TrueNAS.


Boogyman

Cadet
Joined
Feb 10, 2024
Messages
5
That's exactly how I see it. I have ordered 3 different network cards in different price ranges and chips. There should be a positive match. :cool::cool:


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,043
That's frankly bizarre, and not something I ever would have guessed. But the same address showing in Unraid pretty conclusively rules out something with TrueNAS.
I'm sort of surprised it took this long to come across such a brain-dead operation selling NICs. Apparently they knew they needed to register for a MAC block, but then shipped multiple NICs with the same address...


anodos

Sambassador
iXsystems
Joined
Mar 6, 2014
Messages
9,475
This is something that I've been seeing here some and in our jira (servers with multiple NICs with same MAC address). We'll probably all have more cautionary tales in the near future about buying cheap NICs off amazon, ebay, and less reputable places.


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,043
As if I didn't have enough reasons to hate the 2.5 GbE ecosystem.


Apollo

Wizard
Joined
Jun 13, 2013
Messages
1,409
It is expected to find identical MAC addresses across devices, simply because the MAC address itself cannot be unique with the gazillion of devices out there.
Either the same MAC address has been left untouched or replicated on purpose, or the MAC address assignment has been omitted, it should still be possible to program a second MAC address if the device has been designed to support this feature (this is different from spoofing, as far as I know).


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,043
It is expected to find identical MAC addresses across devices
Not multiples in a single production run. The stickers with different MACs also suggest gross incompetence.


Apollo

Wizard
Joined
Jun 13, 2013
Messages
1,409
Either the same MAC address has been left untouched or replicated on purpose, or the MAC address assignment has been omitted,
That's why I added this.


Ericloewe

Server Wrangler
Moderator
Joined
Feb 15, 2014
Messages
20,043
That's what we call a ninja edit. One of the many perils of the internet...


Boogyman

Cadet
Joined
Feb 10, 2024
Messages
5
Hip hip hooray, now it works.

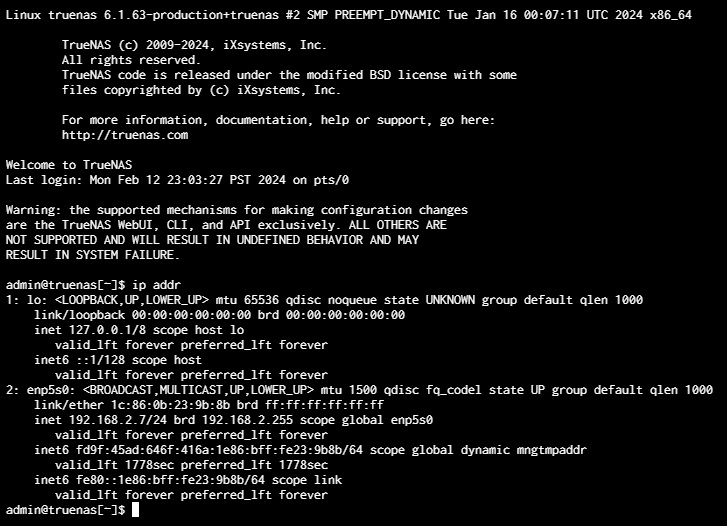

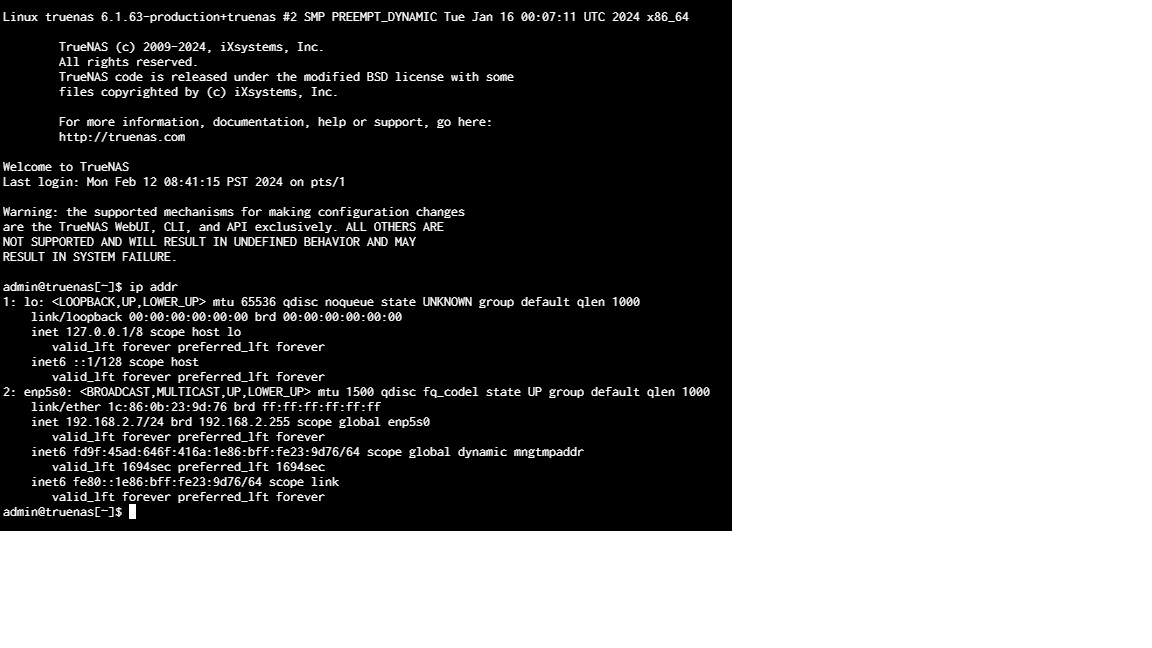

Truenas Scale New01.jpg


Truenas Scale New02.jpg



2,5 GB PCIe Netzwerkkarte, NICGIGA 2,5 Gigabit Ethernet Schnittstellenadapter, mit Realtek RTL8125B, Wake on LAN, 2,5 G NIC konform Windows/Linux/MAC OS​
