FreeNas System Alert

[RemyZ]

The capacity for the volume 'freenas-boot' is currently at 80%, while the recommended value is below 80%

I am getting this system alert message when my Satadomm is 64gib in size.

Scrub BootStatus
Boot Volume Condition: HEALTHY
Size: 59.5 GiB
Used: 48.1 GiB (80%) <---Help me understand how is this possible

I have recently updated the boot drive but this message come up beforehand. I have also factory reset twice



[Jailer]

Delete some of your old unused boot environments.



[Mirfster]

Wow, if that is all boot environments then I would be pretty surprised.



[BigDave]

Used: 48.1 GiB (80%) <---Help me understand how is this possible

Please post a screenie of your System > Boot tab window.

I'm with Mirfster, I gotta see 48Gbits of updates on a X11 board



[RemyZ]

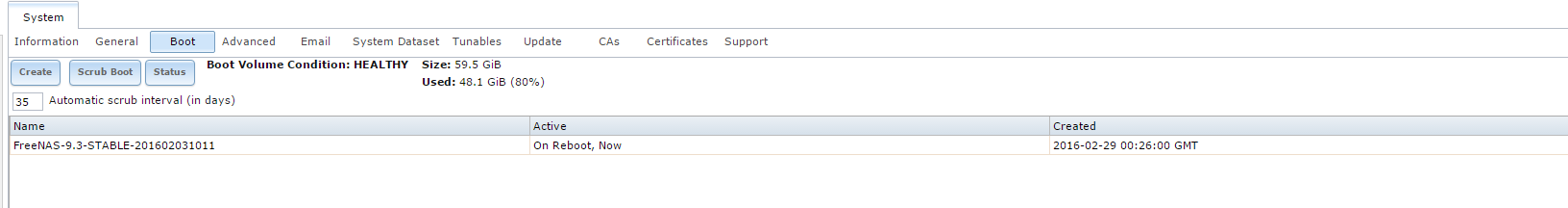

Attached



[Mirfster]

Something is not right. You only have one boot environment. There has to be something else going on...

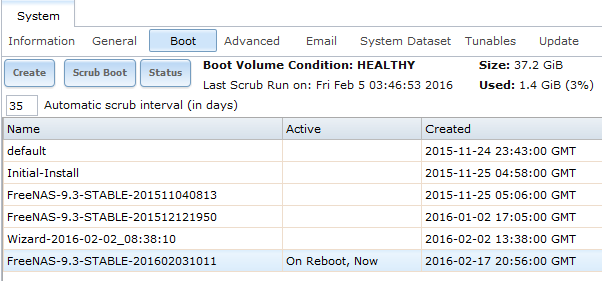

Mine has six (6) and still only has used 1.4 GiB:



[BigDave]

Come on man, you doctored that picture or somethin' right?

On a more serious note, you have something goin' on with that DOM sir,
that is just strange.

You're pullin' our forum leg, aren't ya?



[BigDave]

Hey, I think I know what this is. The flash chip is near it's block erase limit,
so FreeNAS is reading what it needs to run FreeNAS and it's filling up now.

Was this DOM purchased new OR used?



[RemyZ]

The dom was purchased new. I deleted the default and initial install in a panic rush and willing to start over since I dont have anything substantial on it at the moment.



[BigDave]

I'd fire up ssh and see what SMART lists as size/capacity for the DOM.
You won't be able to test it, but it should give basic info...



[RemyZ]

at this point what is the best way to start over from scractch as in
Reformat the Satadomm
Reinstall Freenas ?



[Mirfster]

If you want to you could. Just backup your config, install and apply the config.



[RemyZ]

what is the best way to format the satadomm ???



[m0nkey_]

Daft question, but you're not storing the system dataset on the SATADOM? http://doc.freenas.org/9.3/freenas_system.html#system-dataset

If you are, you might want to move it to one of your other pools.



[RemyZ]

No, I dont believe so.



[RemyZ]

Should I just delete Datasets then reformat the Satadomm and reinstall OS ?



[BigDave]

IMHO you need to address the SATA DOM issue before going forward.
Did you try looking at the smart data as I suggested?
https://forums.freenas.org/index.php?threads/freenas-system-alert.41773/#post-268517



[RemyZ]

What commands should I run once ssh'ed in ?



[BigDave]

[root@freenas] ~# smartctl -a /dev/ada0
copy and paste results here using [ code ] tags



[RemyZ]

[root@freenas] ~# smartctl -a /dev/ada0
copy and paste results here using [ code ] tags

Code:

Copyright (C) 2002-14, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model:     SATA SSD
Serial Number:    B45007570B2400105533
Firmware Version: S9FM02.1
User Capacity:    64,023,257,088 bytes [64.0 GB]
Sector Size:      512 bytes logical/physical
Rotation Rate:    Solid State Device
Form Factor:      Unknown (0x0008)
Device is:        Not in smartctl database [for details use: -P showall]
ATA Version is:   ACS-3 (minor revision not indicated)
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Sun Mar  6 08:46:41 2016 EST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (   30) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        (   2) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000a   100   100   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       797
12 Power_Cycle_Count       0x0012   100   100   000    Old_age   Always       -       74
168 Unknown_Attribute       0x0012   100   100   000    Old_age   Always       -       0
169 Unknown_Attribute       0x0000   100   100   000    Old_age   Offline      -       40
170 Unknown_Attribute       0x0013   100   100   010    Pre-fail  Always       -       25
173 Unknown_Attribute       0x0000   100   100   000    Old_age   Offline      -       458753
192 Power-Off_Retract_Count 0x0012   100   100   000    Old_age   Always       -       1
194 Temperature_Celsius     0x0023   070   070   000    Pre-fail  Always       -       30
196 Reallocated_Event_Count 0x0000   100   100   000    Old_age   Offline      -       0
218 Unknown_Attribute       0x0000   100   100   000    Old_age   Offline      -       0
231 Temperature_Celsius     0x0013   100   100   000    Pre-fail  Always       -       99
233 Media_Wearout_Indicator 0x0013   100   100   000    Pre-fail  Always       -       68900
241 Total_LBAs_Written      0x0012   100   100   000    Old_age   Always       -       59096
242 Total_LBAs_Read         0x0012   100   100   000    Old_age   Always       -       4421
246 Unknown_Attribute       0x0000   100   100   000    Old_age   Offline      -       12380

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged.  [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 0
Note: revision number not 1 implies that no selective self-test has ever been run
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
