Coexistence of both NFS v3 and v4 clients?

[wyang]

Greetings,

My server configuration
Type: SuperMicro SYS-6029U-E1CR25M
Processor: Intel(R) Xeon(R) Gold 6226R CPU @ 2.90GHz
Memory: 12 x 32GB Samsung M393A4K40DB2-CVF
Storage: 2 x 256GB NVMe SSD, INTEL SSDPEKKA256GB; 12 x 16TB HDD, Seagate ST16000NM001G-2KK103

TrueNAS-12.0-U7
- Boot: 1 x 2-way mirror (SSD)
- Pool: 2 x 6-wide RAIDZ2 data VDEVs

In NFS service settings, Enable NFSv4 is set. Two NFS shares are created for two clients, respectively.

Can clients mount these shares with NFS v3?

Can client1 mount its NFS share with type=nfs4 vers=4.1, while client2 mount its NFS share type=nfs vers=3?

Thank you.



[wyang]

Would any experts advise please? Thank you!



[wyang]

In /var/log/messages, it keeps reporting

nfsrv_cache_session: no session IPaddr=<IP of client1>
nfsrv_cache_session: no session IPaddr=<IP of client2>

could this be caused by the coexistence of NFS v3 and v4 clients?



[dipole]

I've read that it is possible to enable both in /etc/rc.conf in FreeBSD:

How do I disable NFSv3/v2 connections to a FreeBSD NFSv4 server?

I am using a Kubuntu 11.10 client with a FreeBSD 9.0 server. The server has the following lines in /etc/rc.conf nfs_server_enable="YES" nfsv4_server_enable="YES" nfsuserd_enable="YES" and the

serverfault.com

in Ubuntu:

NFSv4Howto - Community Help Wiki

I don't know about TrueNAS.

I am also seeing the same 2 successive errors in dmesg, but for the same client IP address. This occurs in both 12.0-U7 and 12.0-U8.

Code:

root@rhino[~]# dmesg | grep nfsrv_cache_session
nfsrv_cache_session: no session IPaddr=192.168.0.21
nfsrv_cache_session: no session IPaddr=192.168.0.21

Adding the -v option to the mount command on the client will show which protocols the client tests and which one it finally connects with:

Code:

$ sudo mount -vvv -t nfs4 -o proto=tcp,port=2049 rhino:/media/ /mnt/rhino/media/
mount.nfs4: timeout set for Fri Feb  4 13:00:09 2022
mount.nfs4: trying text-based options 'proto=tcp,port=2049,vers=4.2,addr=192.168.0.250,clientaddr=192.168.0.21'
mount.nfs4: mount(2): Protocol not supported
mount.nfs4: trying text-based options 'proto=tcp,port=2049,vers=4,minorversion=1,addr=192.168.0.250,clientaddr=192.168.0.21'
rhino:/media/ on /mnt/rhino/media type nfs4 (rw,proto=tcp,port=2049)

But I am struggling with the basics of NFSv4 and sec=sys authentication.

In my case, I am not able to ls the mounted directory despite aligning UID's, GID's, and domain. I have not enabled "NFSv3 ownership model for NFSv4".

Code:

$ ls -al /mnt/rhino/
total 1
drwxr-xr-x 3 root       root       19 Feb  3 09:13 .
drwxr-xr-x 5 root       root       45 Feb  3 09:13 ..
drwxr-xr-x 2 4294967294 4294967294  2 Feb  4 12:42 media
$ sudo ls -al /mnt/rhino/media/
ls: reading directory '/mnt/rhino/media/': Input/output error
total 0
$ ls -al /mnt/rhino/media/
ls: reading directory '/mnt/rhino/media/': Input/output error
total 0



[wyang]

Thanks @dipole for the reference links.

I don't have any experience with authentication. While creating an NFS share, it is configured Mapall User to root and Mapall Group to wheel. NFS mount works on clients.

I changed all client mounts to NFS v4 and upgraded to 12.0-U8.

In /var/log/messages, it still keeps reporting

nfsrv_cache_session: no session IPaddr=<IP of client1>
nfsrv_cache_session: no session IPaddr=<IP of client2>



[ramib]

In NFS service settings, Enable NFSv4 is set. Two NFS shares are created for two clients, respectively.

Can clients mount these shares with NFS v3?

Can client1 mount its NFS share with type=nfs4 vers=4.1, while client2 mount its NFS share type=nfs vers=3?

you should be able to mount both v3 and v4 using the vers= option.
works from linux and Mac

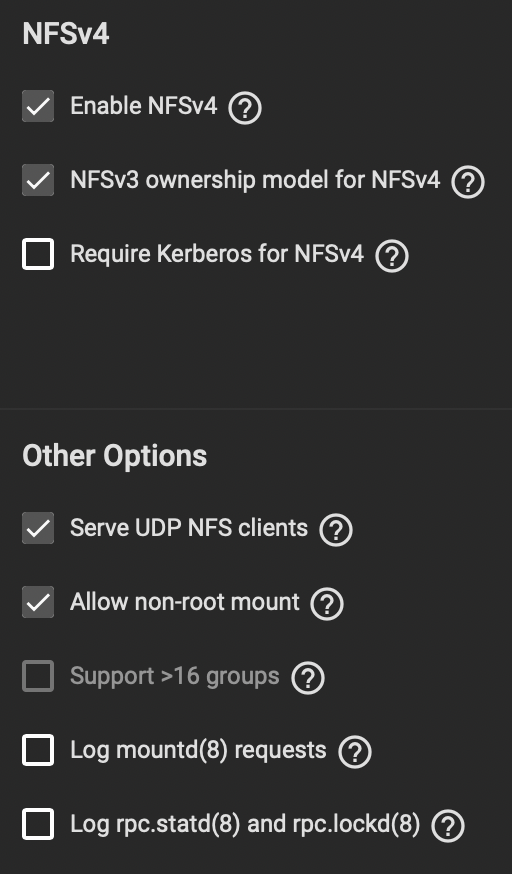

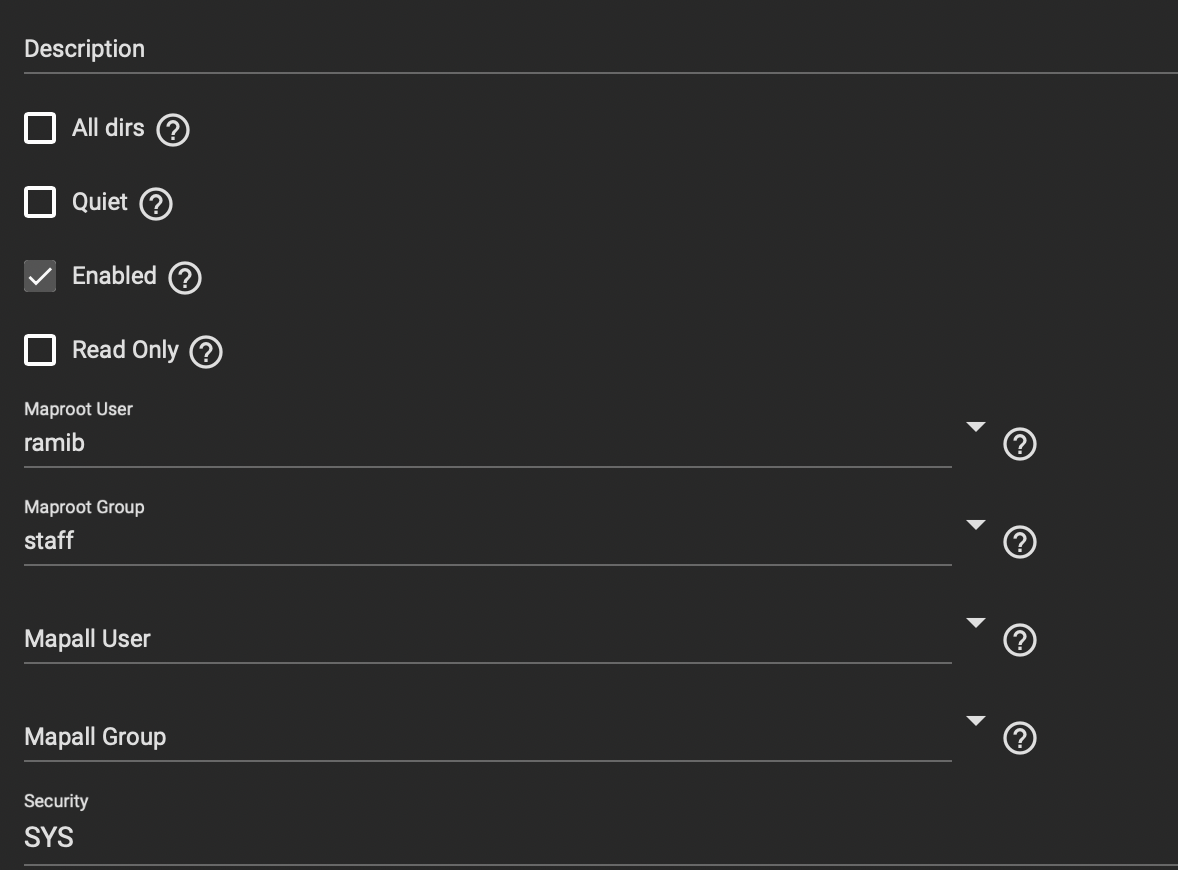

please see the attached images , maybe it helps for the settings.
I had this issue once but don't remember how I fixed it, Sorry



[wyang]

Thanks @ramib for sharing the details, showing these client service options.
