The controller should support at least 128 drives on IT mode, maybe even 256.
-
Important Announcement for the TrueNAS Community.
The TrueNAS Community has now been moved. This forum has become READ-ONLY for historical purposes. Please feel free to join us on the new TrueNAS Community Forums
Checking new HDD's in RAID
- Thread starter tstorzuk
- Start date
- Status
The controller should support at least 128 drives on IT mode, maybe even 256.

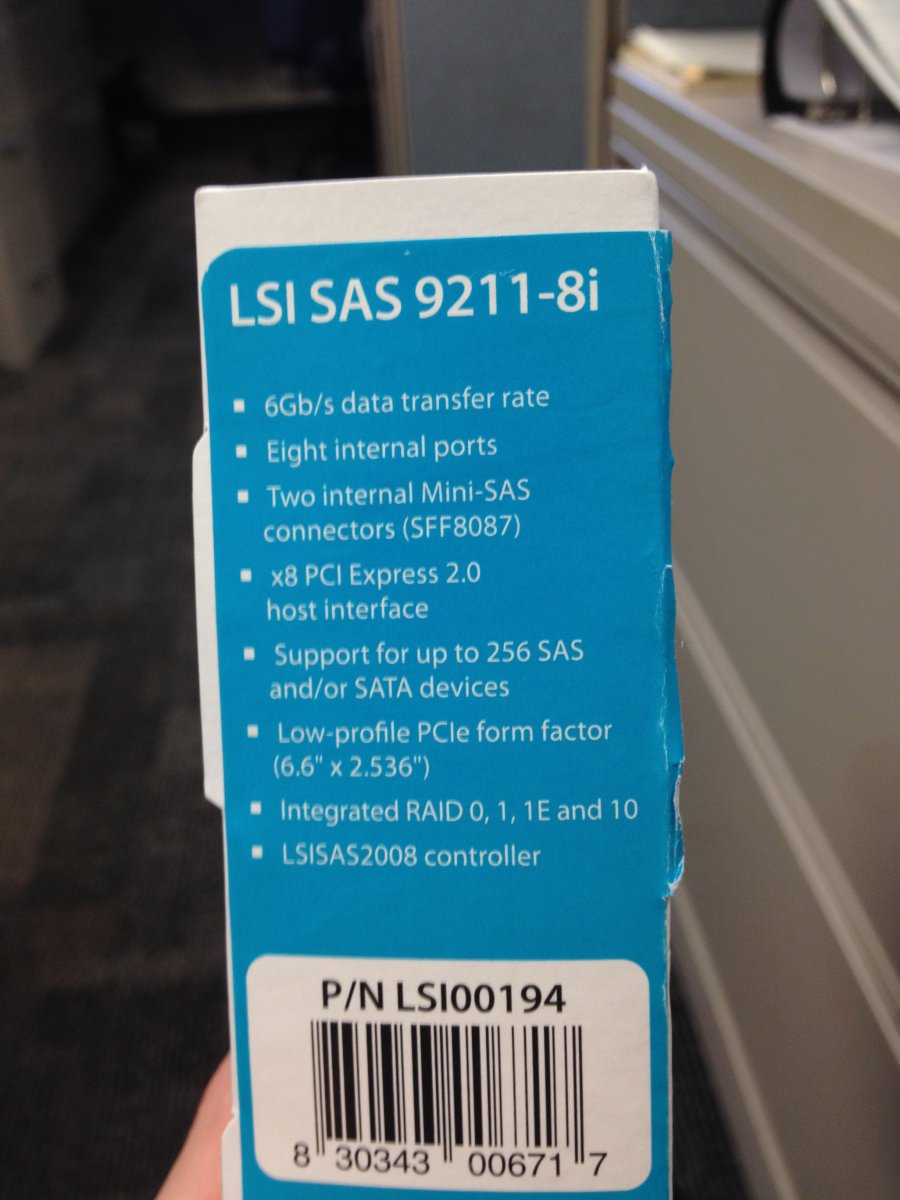

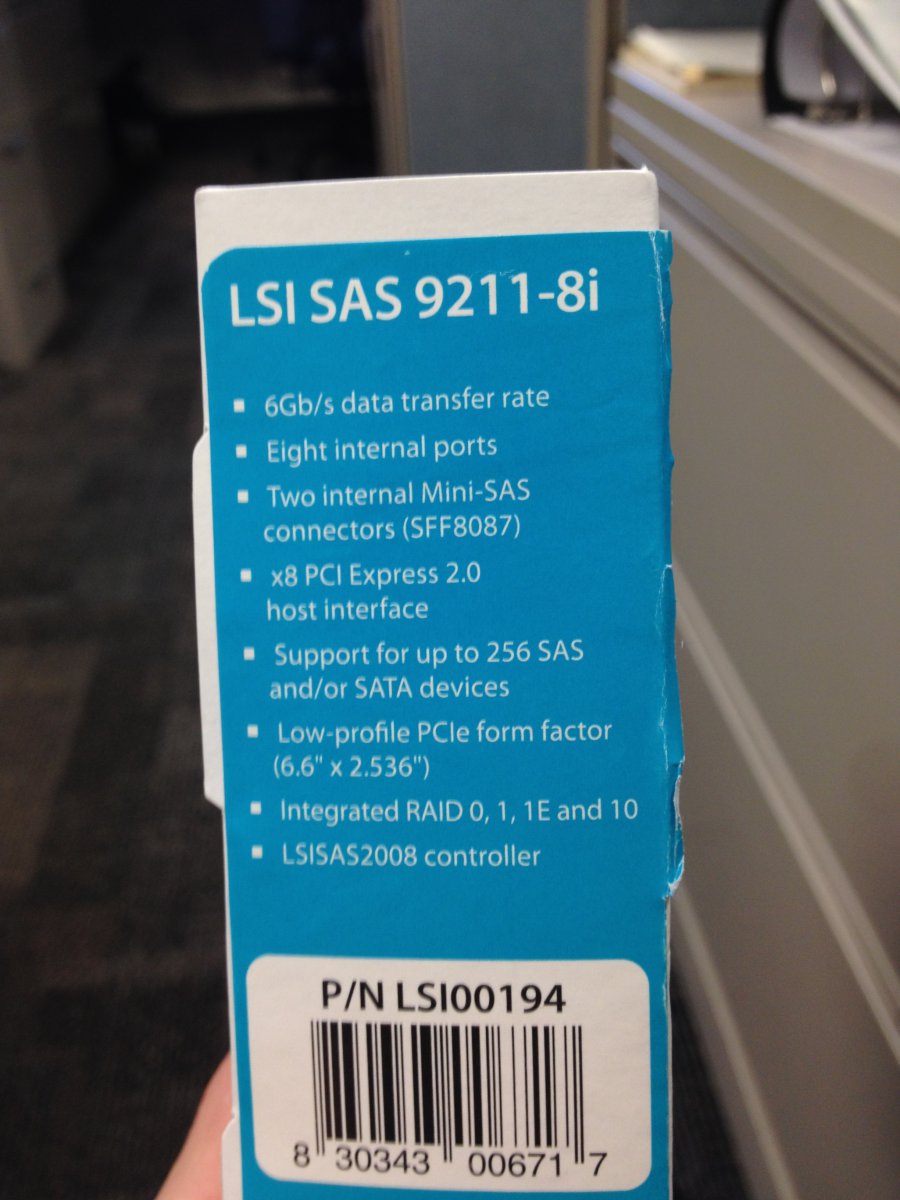

You are correct @Ericloewe but the problem is the M1015 docs say 32 disks. No idea if there is a limitation with the IBM or not. But you are correct that the true LSI card supports 128 or 256 (I forget what my box says and I can't check it right now).
- Joined
- Aug 19, 2014
- Messages
- 1,111
I was just going off the white sheet IBM put out. If it uses the same LSI chip as the 9211-8i then it should support 256 in IT mode.
Yes, it "should". Are you 100% sure that IBM doesn't have some limitation in the silicon that makes 256 disk support not work? That is a very real possibility and as far as I know nobody has tried to hook up enough drives to validate the 32 drive limit.
- Joined
- Aug 19, 2014
- Messages
- 1,111
I don't know but being an IBM card they probably do have a limit on the drive count. I don't run the IBM card myself so I couldn't test the stated 32 drive count limit per their white sheet. It would be interesting to see, when flashed with the LSI firmware, if the drive count is written into the IBM firmware or if it's hard coded on the card.
Yep. That's why I'd rather say it has the 32 drive limit that IBM calls for. If I'm wrong there's no downside. But if I were to tell people it supporst 128 drives and then doesn't that could mean seriously lost money and uptime as a result. So the conservative answer is the "proper" answer until proven otherwise. ;)
- Joined
- Aug 19, 2014
- Messages
- 1,111
I agee 110%, which is why I included the IBM white sheet in my first reply about the SAS expander. I don't what to mislead anyone, I thought we were speaking in theory about the cards potential. Please feel free to delete the other posts if you think someone might interpret them incorrectly and acquire false expectations.
jgreco posted his script here, but that thread doesn't allow discussion.
Here are the results from the first pass (the second pass is currently running), apologies for the novel:
Code:
Selected disks: da2 da4
<HGST HUS724040ALS640 A1C4> at scbus0 target 2 lun 0 (da2,pass2)
<HGST HUS724040ALS640 A1C4> at scbus0 target 8 lun 0 (da4,pass4)
Is this correct? (y/N): y
Performing initial serial array read (baseline speeds)
Tue Oct 28 16:45:19 EDT 2014
Tue Oct 28 16:49:49 EDT 2014
Completed: initial serial array read (baseline speeds)
Array's average speed is 174.075 MB/sec per disk
Disk Disk Size MB/sec %ofAvg
------- ---------- ------ ------
da2 3815447MB 175 101
da4 3815447MB 173 99
Performing initial parallel array read
Tue Oct 28 16:49:49 EDT 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 175 MB/sec
This suggests that this pass may take around 363 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 175 100
da4 3815447MB 173 173 100
Awaiting completion: initial parallel array read
Wed Oct 29 00:29:26 EDT 2014
Completed: initial parallel array read
Disk's average time is 27364 seconds per disk
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 27152 99
da4 4000787030016 27576 101
Performing initial parallel seek-stress array read
Wed Oct 29 00:29:26 EDT 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 136 MB/sec
This suggests that this pass may take around 466 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 136 77
da4 3815447MB 173 132 77
Awaiting completion: initial parallel seek-stress array read
Thu Oct 30 17:21:25 EDT 2014
Completed: initial parallel seek-stress array read
Disk's average time is 105024 seconds per disk
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 109143 104
da4 4000787030016 100905 96
Performing pass 2 parallel array read
Thu Oct 30 17:21:25 EDT 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 175 MB/sec
This suggests that this pass may take around 363 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 175 100
da4 3815447MB 173 173 100
Awaiting completion: pass 2 parallel array readI find it interesting that da2 is slightly faster at streaming (175MB/s vs. 173, ~1%), but quite a bit slower at seeking (109143 sec vs. 100905, ~8%!). Does that seem vaguely sane?
I'll be interested to see if the seek stress test disparity was a fluke once the second pass completes.
The only particular problems I've found with the script so far are:
1) As posted, it doesn't loop. I've tweaked that in my copy so that it'll just keep running indefinitely.
2) The initial sampling and time estimate is WAY off. It's not so bad for the streaming (456 minutes instead of 363, or 25%), but for the seek stress test something doesn't seem right. (1800+ minutes instead of 466 minutes, nearly 400% off!)
When I first ran the script, I accidentally had left the "sysctl kern.geom.debugflags=0x10" on from running badblocks, and the estimate was quite a bit closer (1121 minutes):
Code:
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 27154 99
da4 4000787030016 27578 101
Performing initial parallel seek-stress array read
Tue Oct 28 15:38:51 EDT 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 57 MB/sec
This suggests that this pass may take around 1121 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 138 79
da4 3815447MB 173 133 77One interesting thing I have noticed is that throughput seems to slowly drop towards the end of the disk. Even with badblocks, I got nearly 175MB/s at the start, but then 100MB/s at the end, consistently for each read and write pass, across both drives. That seems like it would account for the variance in streaming estimate vs. throughput (the average of 175 and 100 is 137.5, which is 25% slower than the initial estimate of 175).
But I'm not sure why the stress test estimate is so wildly off. The disk usage charts show about 150MB/s, presumably aggregated across the 5 processes per drive, and there's one odd spike up to 400MB/s that returns back to sanity over the course of about 6 hours. Maybe ARC is interfering? The two drives are a mirrored vdev, but they're not in use (no scrubbing or anything else).
On the plus side, no kernel warnings about connectivity, and no errors in the SAS PHY layer.
- Joined
- Feb 15, 2014
- Messages
- 20,194
That's typical of hard drives. Historically, it was because sectors were all the arc of the same angle, regardless of distance to the center of the disk - that way, the outer sectors are physically larger and require more time to read. I'd venture a guess this is no longer quite the case, so other things are involved.
With a constant RPM, though, you'd travel the same angle in the same amount of time regardless of which track you were on. I thought the old CHS drives just had limited capacity due to lower bit density on the outer tracks (since they were capped by the platter bit density on the innermost tracks).
With LBA drives, in contrast, you can have different numbers of sectors on different tracks, so that you can keep a fixed bit density on the platter, but have more sectors of data on outer tracks. That would be consistent with higher throughput on the outer edge vs. inner.
So if there were a way to tell iostat to sample the speed at both low LBA and high LBA (or maybe just do a middle LBA, but the middle track might be hard to calculate based on variable sectors per track) and average, you'd get a better estimate for streaming throughput over the entire drive.
That still doesn't explain the seek stress test disparity, though.
I just noticed another strange result:
It looks like the script is having all 5 dd processes per drive write to the same log file, which seems a little odd. But in theory the last one running will provide the time estimate. That suggests that the 5th run of dd only took 30 hours, but the whole run for all 5 took 41.
But that's also a bit surprising given that the 5 runs of dd are started a minute apart from each other. Also, once the other 4 are done, I'd expect throughput to approach the streaming throughput, which can scan the entire drive in less than 8 hours. So that still doesn't account for a 10-hour discrepancy between dd and wall clock.
This claims the pass finished in at most 109143 seconds, which is about 30h15m, but if you look at the two timestamps (Wed and Thu), it actually took almost 41 hours!
It looks like the script is having all 5 dd processes per drive write to the same log file, which seems a little odd. But in theory the last one running will provide the time estimate. That suggests that the 5th run of dd only took 30 hours, but the whole run for all 5 took 41.
But that's also a bit surprising given that the 5 runs of dd are started a minute apart from each other. Also, once the other 4 are done, I'd expect throughput to approach the streaming throughput, which can scan the entire drive in less than 8 hours. So that still doesn't account for a 10-hour discrepancy between dd and wall clock.
The plot thickens:
Not sure what to make of this one. At least the drives are getting a workout.
Code:
Performing pass 2 parallel seek-stress array read
Fri Oct 31 01:01:44 EDT 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 133 MB/sec
This suggests that this pass may take around 477 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 132 75
da4 3815447MB 173 133 77
Awaiting completion: pass 2 parallel seek-stress array read
Sat Nov 1 15:57:24 EDT 2014
Completed: pass 2 parallel seek-stress array read
Disk's average time is 101333 seconds per disk
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 113990 112 --SLOW--
da4 4000787030016 88676 88 ++FAST++Not sure what to make of this one. At least the drives are getting a workout.
Here's my patch to make it loop forever:
Copy/paste the above into a file (e.g. "solnet-array-test-loop.patch"). Apply with:
Code:
--- solnet-array-test-v2.sh.orig 2014-11-04 13:34:12.000000000 -0500
+++ solnet-array-test-v2.sh 2014-11-04 13:35:00.000000000 -0500
@@ -160,5 +160,11 @@
done
-pass=initial
+# loop forever
+while [ 1 ]; do
+if [ ${passnumber} -eq 1 ]; then
+ pass=initial
+else
+ pass="pass ${passnumber}"
+fi
echo ""
@@ -273,2 +279,6 @@
echo "${disk}" "${avgtime}" `grep -h " bytes transferred in" /tmp/sat.${disk}.out /tmp/sat.${disk}.err` "${avgtime}" | awk '{ if ($2 != 0) {percent=100 * $7 / $2} else {percent = 0}; printf "%-7s %17s %7.0f %6.0f", $1, $3, $7, percent; if (percent < 92) printf " ++FAST++"; if (percent > 107) printf " --SLOW--"; printf "\n"}'
done
+
+passnumber=`expr $passnumber + 1`
+done # while
+
Copy/paste the above into a file (e.g. "solnet-array-test-loop.patch"). Apply with:
Code:
patch < solnet-array-test-loop.patch
Fraoch
Patron
- Joined
- Aug 14, 2014
- Messages
- 395
Oops, I get:
I'm not too familiar with patching so I don't know if this was successful or not...
Code:
[root@Minas-Tirith] ~# patch < solnet-array-test-loop.patch Hmm... Looks like a unified diff to me... (Patch is indented 4 spaces.) The text leading up to this was: -------------------------- | --- solnet-array-test-v2.sh.orig 2014-11-04 13:34:12.000000000 |-0500 | +++ solnet-array-test-v2.sh 2014-11-04 13:35:00.000000000 -0500 -------------------------- Patching file solnet-array-test-v2.sh using Plan A... patch: **** malformed patch at line 5: done
I'm not too familiar with patching so I don't know if this was successful or not...
Here are the next few seek stress tests:

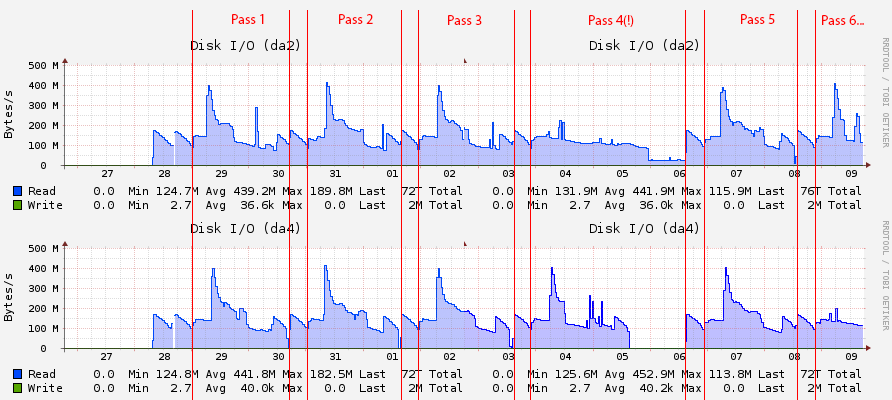

This just seems weird. Passes 2 and 3 of the seek stress test show a wide variation between da2 and da2, and looking at the chart, we do see a slight difference in speed, but not the 6+-hour difference reported by the script.
Stranger still, pass 4 looks really weird in the chart (with crazy low throughput on da2 at the end, 24MB/s), but the script thinks that run was fine.
And what's with the spikes up to 400MB/s in passes 1-3 and 5 (and on da4 in pass 4, and on da2 in pass 6)?
These two drives are a mirrored vdev with no activity, and no scrubs.
There's nothing in the logs that indicates any problems, and there aren't any SAS PHY errors or reallocated sectors.
Code:
Performing pass 3 parallel seek-stress array read
Sat Nov 1 23:37:01 EDT 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 133 MB/sec
This suggests that this pass may take around 480 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 132 75
da4 3815447MB 173 133 77
Awaiting completion: pass 3 parallel seek-stress array read
Mon Nov 3 14:39:55 EST 2014
Completed: pass 3 parallel seek-stress array read
Disk's average time is 97941 seconds per disk
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 109567 112 --SLOW--
da4 4000787030016 86314 88 ++FAST++
...
Performing pass 4 parallel seek-stress array read
Mon Nov 3 22:19:28 EST 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 133 MB/sec
This suggests that this pass may take around 478 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 132 76
da4 3815447MB 173 133 77
Awaiting completion: pass 4 parallel seek-stress array read
Thu Nov 6 15:11:48 EST 2014
Completed: pass 4 parallel seek-stress array read
Disk's average time is 126745 seconds per disk
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 129153 102
da4 4000787030016 124337 98
...
Performing pass 5 parallel seek-stress array read
Thu Nov 6 22:51:27 EST 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 133 MB/sec
This suggests that this pass may take around 478 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 132 76
da4 3815447MB 173 132 76
Awaiting completion: pass 5 parallel seek-stress array read
Sat Nov 8 13:37:29 EST 2014
Completed: pass 5 parallel seek-stress array read
Disk's average time is 88768 seconds per disk
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 90015 101
da4 4000787030016 87521 99This just seems weird. Passes 2 and 3 of the seek stress test show a wide variation between da2 and da2, and looking at the chart, we do see a slight difference in speed, but not the 6+-hour difference reported by the script.
Stranger still, pass 4 looks really weird in the chart (with crazy low throughput on da2 at the end, 24MB/s), but the script thinks that run was fine.
And what's with the spikes up to 400MB/s in passes 1-3 and 5 (and on da4 in pass 4, and on da2 in pass 6)?
These two drives are a mirrored vdev with no activity, and no scrubs.
There's nothing in the logs that indicates any problems, and there aren't any SAS PHY errors or reallocated sectors.
Well, now we have pass 6, and the chart looks like pass 4 except that da2 and da4 have traded places:
The only differences in the drives that I see are in higher ECC usage on da2: 94251 read errors corrected vs. 47533.
For reference, the verify stats haven't changed while running the solnet test script, but the read stats started out at 8804 for da2 and 7926 for da4, so they've diverged pretty significantly during the seek tests.
Curiously, the two drives claim to be identical firmware/revisions, but clearly they're not identical.
@jgreco, what do you make of this? Does any of this seem like cause for concern to you? I can't tell how much of the timing difference is due to script wonkiness (see posts above) and how much is due to any issue with the drives. Again, there aren't any kernel/log messages or SAS PHY errors.
Code:
Performing pass 6 parallel seek-stress array read
Sat Nov 8 21:18:19 EST 2014
The disk da2 appears to be 3815447 MB.
Disk is reading at about 133 MB/sec
This suggests that this pass may take around 477 minutes
Serial Parall % of
Disk Disk Size MB/sec MB/sec Serial
------- ---------- ------ ------ ------
da2 3815447MB 175 132 76
da4 3815447MB 173 133 77
Awaiting completion: pass 6 parallel seek-stress array read
Tue Nov 11 16:21:52 EST 2014
Completed: pass 6 parallel seek-stress array read
Disk's average time is 154824 seconds per disk
Disk Bytes Transferred Seconds %ofAvg
------- ----------------- ------- ------
da2 4000787030016 140787 91 ++FAST++
da4 4000787030016 168861 109 --SLOW--The only differences in the drives that I see are in higher ECC usage on da2: 94251 read errors corrected vs. 47533.
Code:
Manufactured in week 10 of year 2014
...
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 94251 24 0 94275 11622 213946.009 0
write: 0 0 0 0 630 16392.261 0
verify: 126 0 0 126 85 16.143 0
Non-medium error count: 0
...
Accumulated power on time, hours:minutes 1241:01 [74461 minutes]Code:
Manufactured in week 34 of year 2014
...
Error counter log:
Errors Corrected by Total Correction Gigabytes Total
ECC rereads/ errors algorithm processed uncorrected
fast | delayed rewrites corrected invocations [10^9 bytes] errors
read: 47533 0 0 47533 4377 213117.450 0
write: 0 0 0 0 1013 16003.161 0
verify: 40 0 0 40 27 15.575 0
Non-medium error count: 0
...
Accumulated power on time, hours:minutes 780:20 [46820 minutes]Curiously, the two drives claim to be identical firmware/revisions, but clearly they're not identical.
@jgreco, what do you make of this? Does any of this seem like cause for concern to you? I can't tell how much of the timing difference is due to script wonkiness (see posts above) and how much is due to any issue with the drives. Again, there aren't any kernel/log messages or SAS PHY errors.
I just did a smartctl -t long on ada{1,2,3,4} and got the following durations for the scans: 12 hours, 10 hours, 10 hours and 9 hours. I wondered if you would suspect a problem with the 12 hour drive?
- Joined
- Feb 15, 2014
- Messages
- 20,194
No, the estimates are almost always off by at least 10% anyway.
- Status
